Crouzet Logic Module The Crouzet Millenium 3 series logic module is the latest generation of the Millenium expandable version XD26 series with 16 digital inputs and 10 relay outputs of 8 x 8A relay and 2 x 5A relay contact current rating. This DIN rail mounting type logic module has a screw termination method. It has a large memory for applications that require a larger space. The logic module has a voltage rating of 100 to 240VAC.Crouzet Millenium 3:The Millenium 3 is the latest generation in the Millenium series. Improvements over the Millenium 2 Plus include:The Compact Controller has around twice the memory sizeThe Expandable Controller has around four times the memory size10-bit analogue input resolution (0 – 10V signal) on dc input types (formerly 8 bit)18 character (formerly 12), 4 line display with scrolling text and bar graph functionalityChoice of ladder or function block programming. Features and Benefits Operating temperature ranges between -20°C and +55°CBattery backupHighly visible blue LCD with 4 lines of 18 charactersand configurable backlightingAllow the use of the entire library of specific functionsblocs of the software workshopAnalogue inputs 0-10 VDC, Potentiometer, NTC, LDR(0-20 mA/Pt100 with converters)Choice of ladder or function block programming Serial, USB port communicationProtects programSelective configurationMemory back-up using EEPROMESD protectedExpandable controllerLCD displayMemory size 368bitsCompact controller Applications Automatic washing equipmentAgricultural machineryManaging air conditioningHeating systems Certifications CECSAGLUL approvedIP40 rated

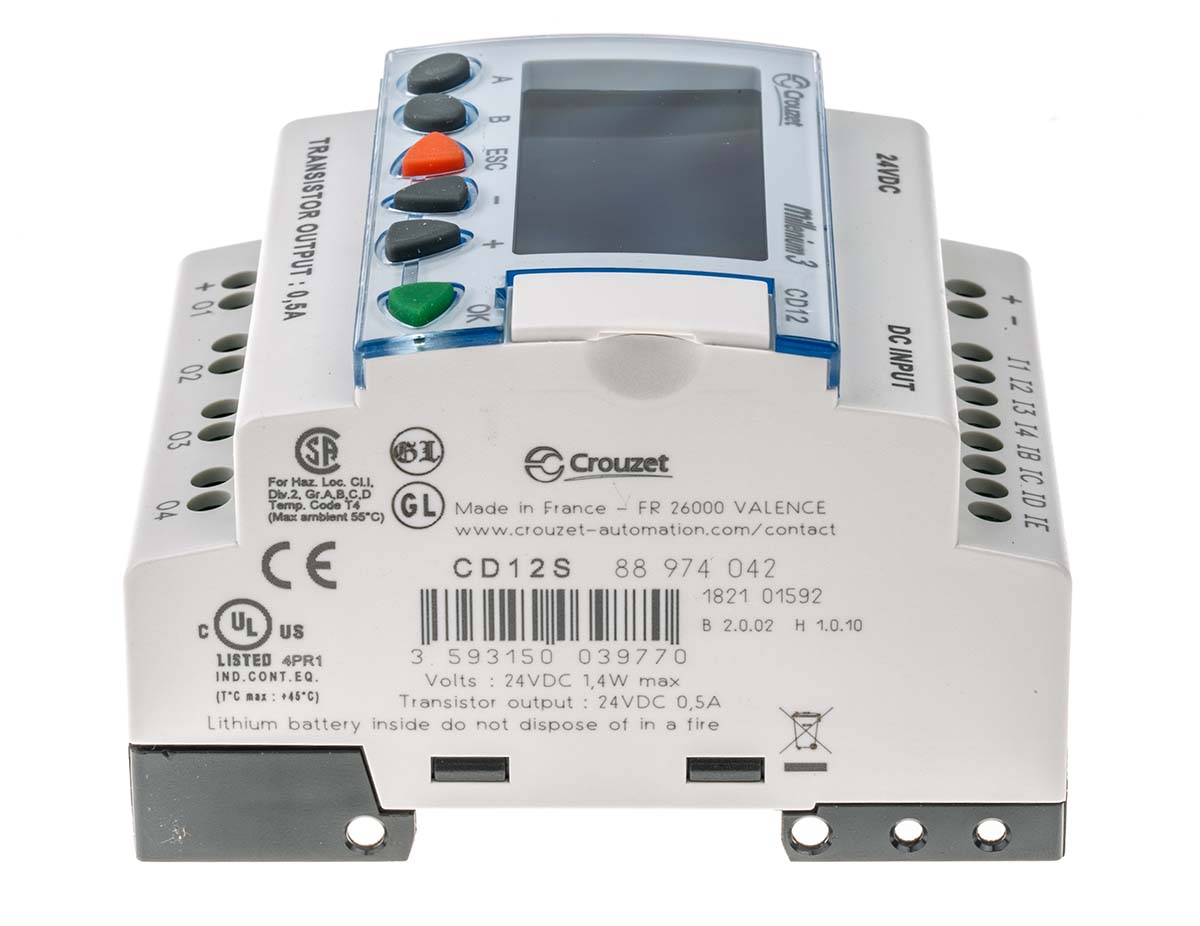

Crouzet Logic Module The Crouzet Millenium 3 series logic module is the latest generation of the Millenium compact version CD12 series with 8 digital (including 4 analogues) inputs and 4 solid-state outputs of 0.5A current rating (including 1 PWM). This DIN rail mounting type logic module has a screw termination method. It has a large memory for applications that require a larger space. The logic module has a supply voltage rating of 24VDC.Note: *8 x 8A plus 2 x 5A.Crouzet Millenium 3:The Millenium 3 is the latest generation in the Millenium series. Improvements over the Millenium 2 Plus include:The Compact Controller has around twice the memory sizeThe Expandable Controller has around four times the memory size10-bit analogue input resolution (0 – 10V signal) on dc input types (formerly 8 bit)18 character (formerly 12), 4 line display with scrolling text and bar graph functionalityChoice of ladder or function block programming. Features and Benefits Green LCD with 4 lines of 18 characters and configurable backlightingIndustrial temperature range ranges between -20°C and +55°CSelective parameter setting: you can choose the parameters that can be adjusted on the front panelAnalogue inputs 0-10 VDC, Potentiometer (0-20 mA/Pt100 with converters)Battery backupChoice of ladder or function block programming Serial, USB port communicationProtects programSelective configurationMemory back-up using EEPROMESD protectedExpandable controller Applications Automatic washing equipmentAgricultural machineryManaging air conditioningHeating systems Certifications CEUL approvedCSA certifiedGL certifiedIP40 rated

The Crouzet performance solid state relays have high immunity levels & built-in overvoltage protection and LED input status indicator. They have special zero cross (resistive, inductive and capacitive loads) with rated load current of 45A. They are used in almost any application, offering very long life expectancy and are easy to install, easy to use, robust and multipurpose. Operating voltage 24-500 VAHousing material UL94 V-0Baseplate material aluminiumLED input status indicator yellow

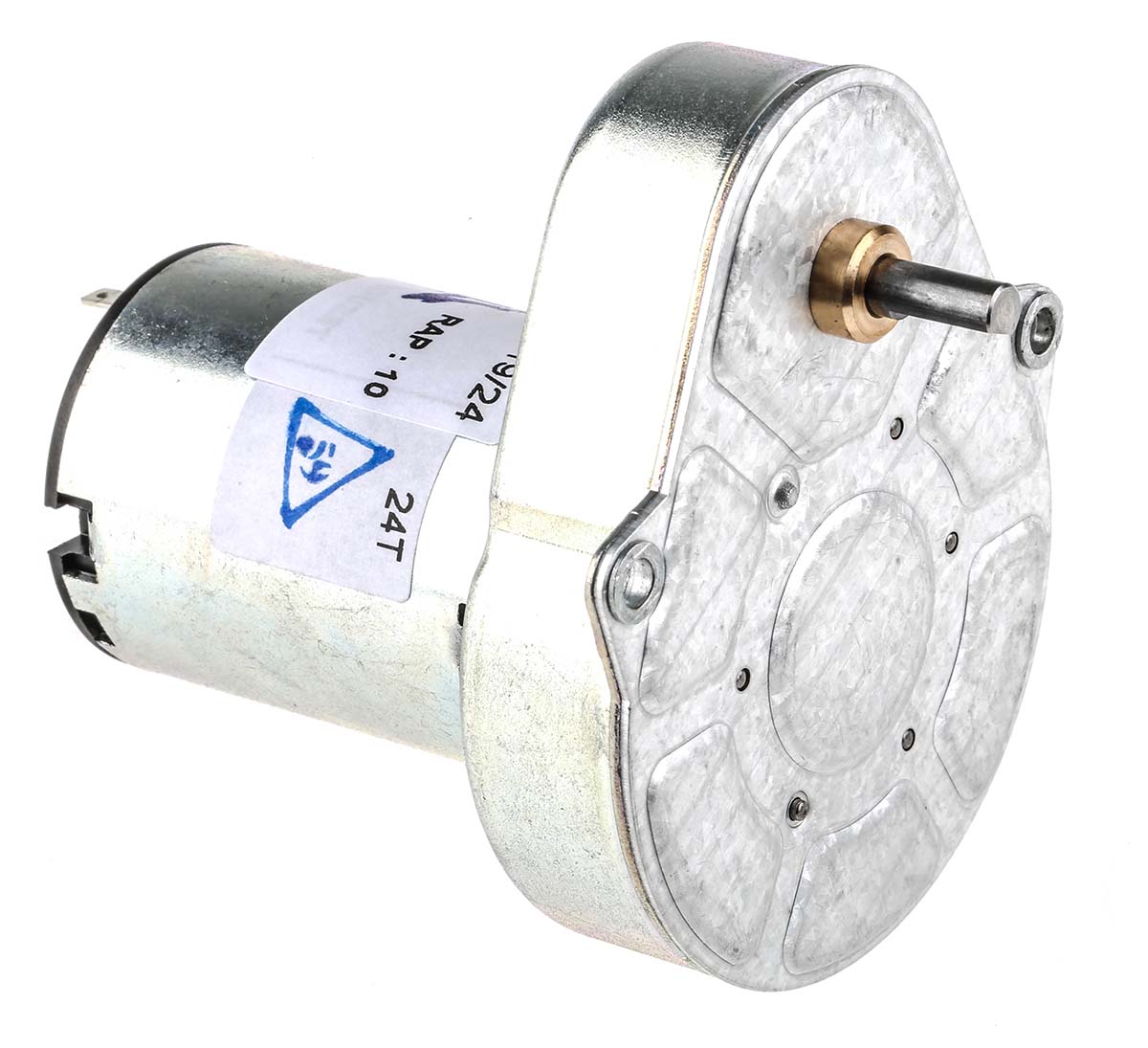

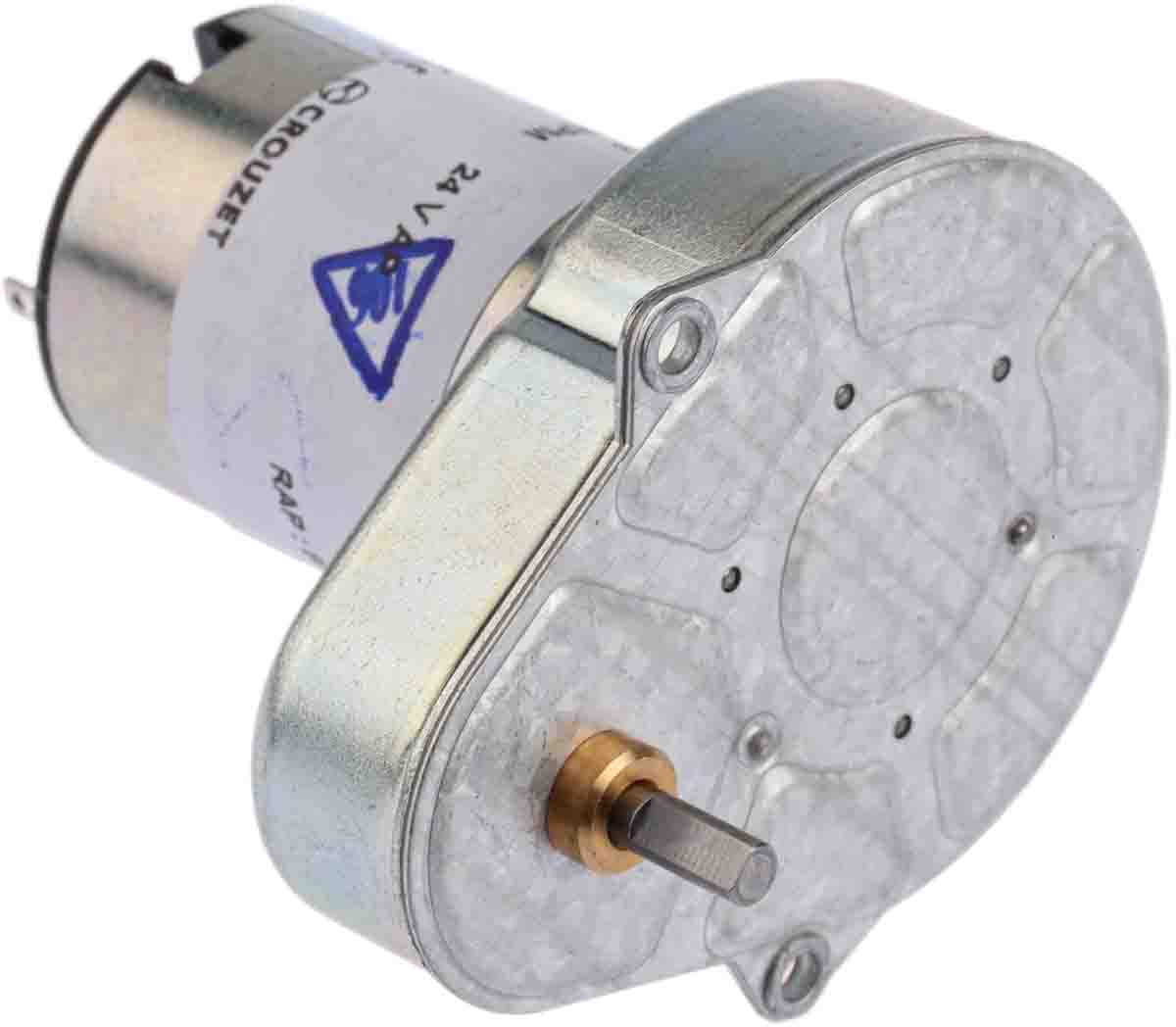

32 & 42mm Diameter Motors & Gearboxes Low to medium power dc. motors fitted with a square mounting flange, centring bush and drive pinion. This allows simple and quick attachment to a 65mm square gearbox. All motors have sintered bronze bearings lubricated for life32mm diameter motors have built-in interference suppression, whilst the 42mm diameter motors have replaceable motor brushes (stock no. 320-613)Gearboxes have metal end plates, with a plastic body between and metal gears. The user can select the appropriate combination of motor voltage, power and gearbox output speed which meets their requirementsGearbox dimensions: height 65mm x width 65mm, shaft diameter 8mm

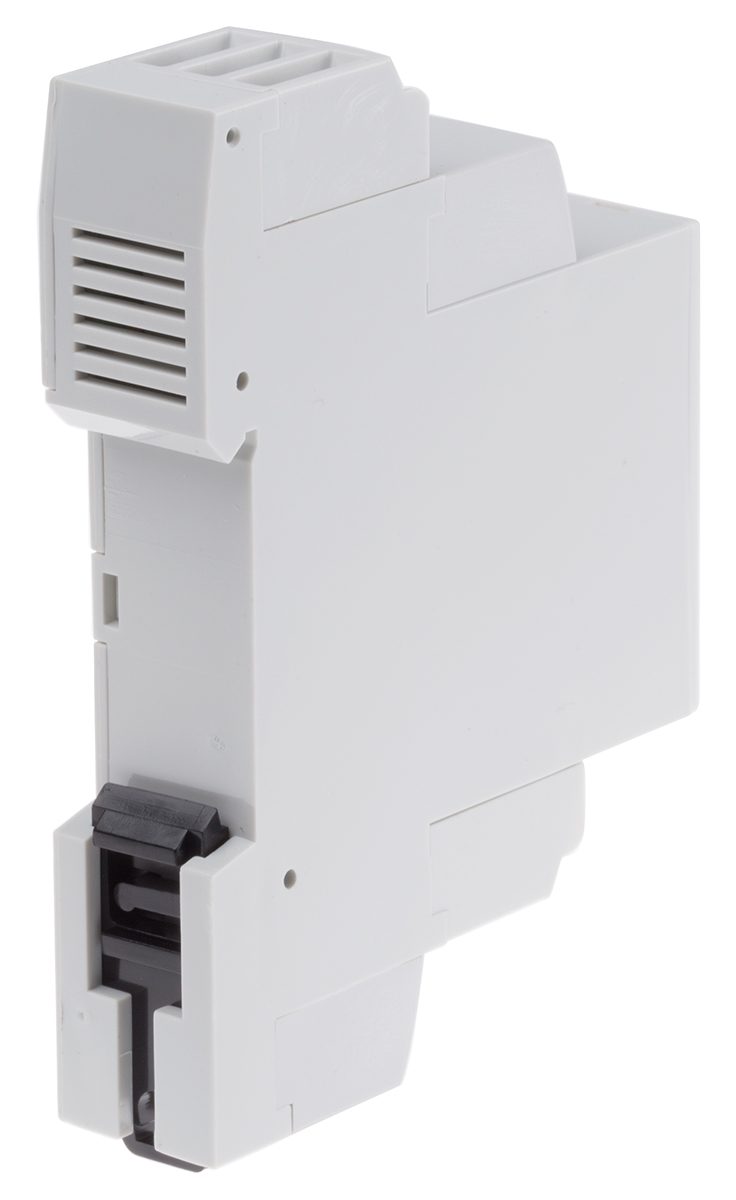

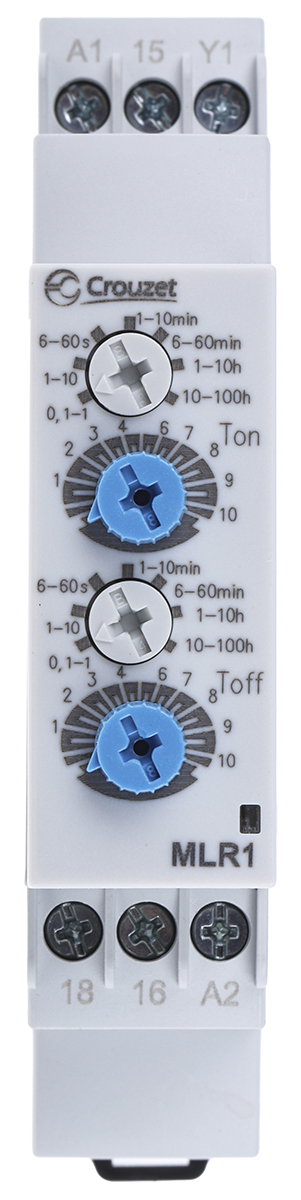

Crouzet Single-Function Timer Relay The Crouzet single-function timer relay is a compact device with a solid-state output and an option of connecting an external power supply to the control input. It performs the function of providing one-shot delay ranging between 0.1 second and 100 hours. Features and Benefits Mono-functionMultiple timing ranging between1 second to 10 seconds, 10 second to 1 minute, 1 minute to 10 minutes, 10 minutes to 1 hour, 1 hour to 10 hours, 10 hours to 100 hours 1 changeover relay output of 8ASPDT contact configurationMulti-voltage supply options ranging between 24VAC to 240VAC and 24VDCScrew or spring terminalsLED status indicator (relay version)Possibility of external load connection in parallel to the control inputThree wire PNP sensor compatibleSelf-extinguishing caseAgNi contact material Applications TextilesChemical industryMiningIrrigationRaw material handlingFood and beveragesIndustrial process control Certifications IP20 ratedIP40 ratedIP50 ratedIEC/EN 61812-1IEC/EN 61000-6-1IEC/EN 61000-6-2IEC/EN 61000-6-3IEC/EN 61000-6-4CE certifiedUL approvedcUL certifiedCSA certified GL certified

Plug-in OR logic cell - Ø 4 One-touch connection OR logic cell for semi-rigid tube connection male / female / female (MFF): Ø 4 mm

High performance Logic Controller up to 44 I/Os - 16 DI (4 HighSpeed/8 AI) - 8 DOWireless programming & Control with bluetooth Interface and Crouzet Virtual DisplayModbus TCP/IP (Client/Server) and Modbus RTU Network (Slave)Event and Datalog Management via mail/FTP server or LocallyUp to 1000 programming blocks with intuitive Crouzet Soft to go from simple to complex applications

The Crouzet Electromechanical Counters is an Impulse Counter. It is a CIM42x 29 with a capacity of 9999 impulses. It is a panel mounted and has an excellent visibility due to the large digit size. It has a long service life. 4 digits Impulse counter with ResetRated voltage 48 VDC2 way terminal stripProtection IP30

The Crouzet consists of Heatsink for solid state relays. These heatsinks insure the proper operation and long term reliability of solid state relays because they provide a means to dissipate the power that is normally developed internally in the SSR into the surrounding ambient air and maintain a safe operating temperature. Thermal resistance of 1.1 °C/W

32mm Direct Drive dc Motor with Magnetic Encoder

CTP104-E Performance Starter Kit CTP104-E performance starter kit from Crouzet. This C-Touch HMI starter kit offers a high quality and a high performance HMI with a direct connection to Millenium 3 Micro-PLC. Starter Kit Contains 4.3"" HMI Millenium 3 Micro-PLC Programming and connection cables Crouzet Touch Soft Features & Benefits TFT-LCD resistive touch screen Fan less cooling system 32-bit 600 Mhz or 1 GHz Cortex-A8 processor Built-in RTC Direct communication with the Millenium 3 Micro-PLC MODBUS RS232/485 protocol MODBUS TCP/IP protocol Integrated VNC server Extra function provided; Emails, recipe database, enhanced security and many more CE mark, cULus listed

Compact Controller Fixed 12 and 20 I/O optionsOne PWM output on stock no. 536-8913 and four on stock nos. 536-8941Non-expandable
