Tektronix Oscilloscope Probes The Tektronix 120AC current oscilloscope probe offers accurate current measurements over a wide range of frequencies. It allows current measurements without breaking the circuit by clipping onto the current-carrying conductor. The shielded probe head is not grounded when the slides are in their open positions, eliminating accidental grounding of the circuit under test. The probe range is switchable between 2mA/mV and 10mA/mV. Features and Benefits Bandwidth range is between 120Hz to 60MHz Input impedance is 1Mohm10.6Amp RMS, 250A peak, 10mAmp sensitivityCable length is 1.5mSplit core construction facilitates circuit connectionClips on to current-carrying conductor (i. e. does not break the circuit)Shielded probe head (200x16x32mm) eliminates accidental grounding of a circuit under test Applications Motor drives Power inverters/converters Power supplies Avionics Certifications UL61010-2-032 approvedUL61010-1 approvedCAN/CSA C22.2 No 61010-1 certifiedCAN/CSA C22.2 No 61010-2-032 certifiedEN61010-1 EN61010-2-032

Tektronix FCA3000 & FCA3100 Timer/Counter/Analyzers Tektronix timer/counter/analyzers offer performance and an abundance of features at an affordable price. With a graphical display and single button analyse key, users can instantly view their measurements with histograms, trend plots or a wide choice of statistics displayed simultaneously on the display, including Allan Deviation. There is the added benefit of multi-parameter measurements from one test connection, e.g., voltage measurements included with frequency. The instruments offer very high measurement speed and connectivity for an automated test system, including a convenient USB port. Measurements can be captured into internal memory at the rate of 250k/sec, or streaming block transfers through USB/GPIB up to 15k/sec. Graphical, multi-parameter timer/counter displayHigh resolution down to 50 ps single shot (time)Measurements to 12 digits/sec (frequency) Fast USB/GPIB bus transfer speeds Super fast measurements (250k/s) to internal memory Zero-dead time frequency/period measurements Built-in statistics & math functions including on screen histogram, trend plot or Allan Deviation GPIB operates in either SCPI/GPIB or 53131A emulation mode, for plug-n-play replacement in existing ATE systemsSeamless PC connectivity through USB with NI SignalExpress™ Software

Tektronix Current Probe & Clamp The Tektronix current probes are created for the permanent or semi-permanent in-circuit installation. Each probe consists of a current transformer and an interconnecting cable. The current transformers have a small hole to pass a current-carrying conductor during circuit assembly. Features and Benefits 25kHz to 1GHzMaximum pulse current is 450mAMaximum CW current is 12ASensitivity is 5mV/mAAccuracy is ±3 %Probe type is AC onlySolid core high bandwidthUltra-low inductanceVery small form factorCharacterize current waveforms up to less than 200 per second rise timesVery low loading of circuit under testFits into dense, closely-spaced circuit designs Applications Data storage read channel designSilicon characterization High-frequency analogue designESD testing Signal injection Differential current measurements Single-shot low rep-rate pulse measurements Propagation delay measurement Certifications UL3111-2-032CSA1010.2.032EN61010-2-032IEC61010-2-032

The Tektronix Oscilloscopes are 3 series Mixed Domain Oscilloscopes and available with the largest display in class. At the core of the 3 Series MDO is a world class oscilloscope, which offering comprehensive tools that speed each stage of debug from quickly discovering anomalies and capturing them, to searching your waveform record for events of interest and analysing their characteristics. This MDO contains over 125 trigger combinations providing a complete set of triggers, including runt, logic, pulse width, glitch, setup and hold violation, serial packet, and parallel data to help quickly locate your event of interest. Serial bus decodeTriggering and searchArbitrary function generator10 M record length on all channels200 MHz analogue channel bandwidth

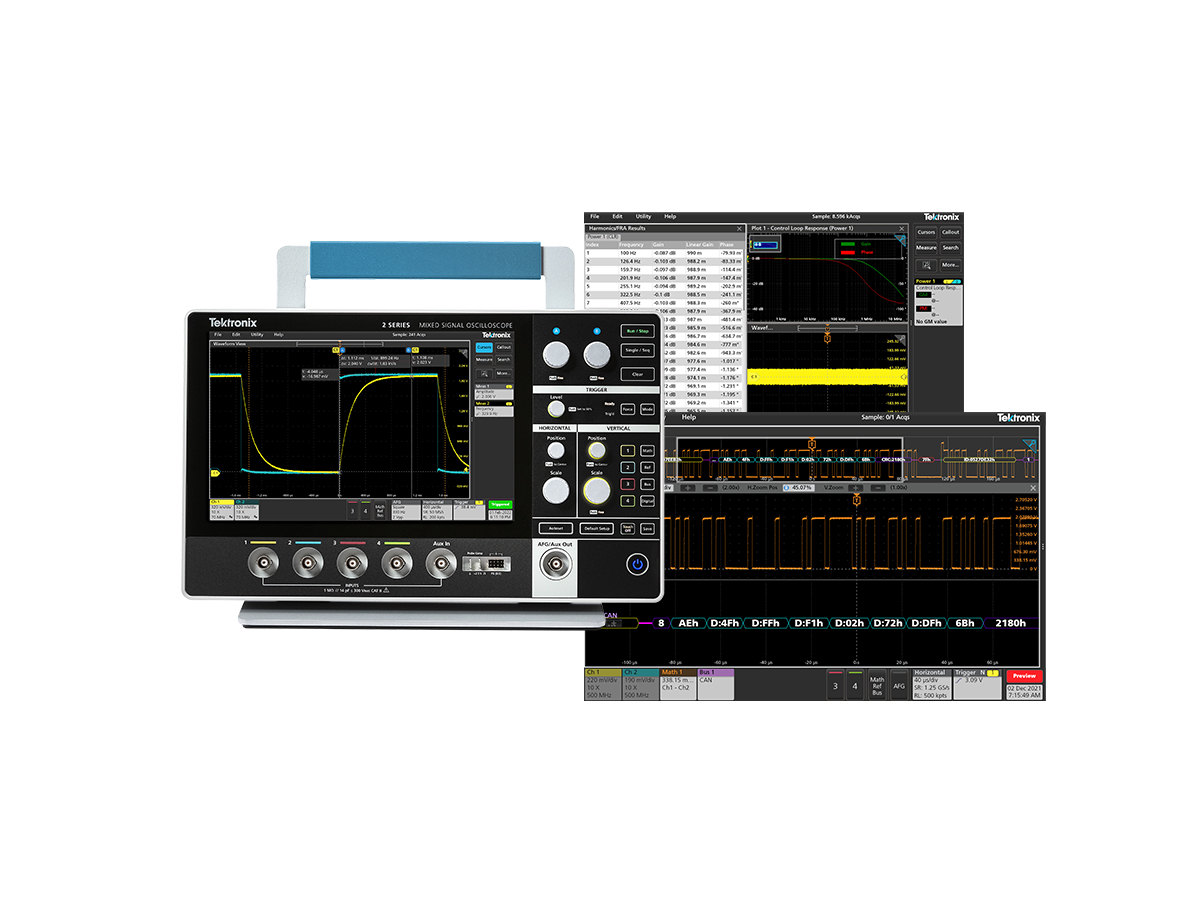

The Tektronix 2 Series Mixed Signal Oscilloscope features up to 4 analog channels, 500 MHz bandwidth, 2.5 GS/s sample rate, 16 channel MSO, 50 MHz AFG, 4-bit digital pattern generator, advanced triggers, protocol decode, DVM, and frequency counter is packed with features, all in a compact form factor about 1.5 inch thick making it the go-to oscilloscope for electronic debug and test, no matter where you work. FFT for spectrum analysisCapacitive touchscreenSimplified front panelBuilt-in 16 MSO channelsWide Variety of probesIntuitive touchscreen with simplified front panelExceptionally easy to use interface with comprehensive analysis for fast insightProgrammatic interface and backward compatibility

The Tektronix 2 Series Mixed Signal Oscilloscope features up to 4 analog channels, 500 MHz bandwidth, 2.5 GS/s sample rate, 16 channel MSO, 50 MHz AFG, 4-bit digital pattern generator, advanced triggers, protocol decode, DVM, and frequency counter is packed with features, all in a compact form factor about 1.5 inch thick making it the go-to oscilloscope for electronic debug and test, no matter where you work. FFT for spectrum analysisCapacitive touchscreenSimplified front panelBuilt-in 16 MSO channelsWide Variety of probesIntuitive touchscreen with simplified front panelExceptionally easy to use interface with comprehensive analysis for fast insightProgrammatic interface and backward compatibility

The Tektronix 2 Series Mixed Signal Oscilloscope features up to 4 analog channels, 500 MHz bandwidth, 2.5 GS/s sample rate, 16 channel MSO, 50 MHz AFG, 4-bit digital pattern generator, advanced triggers, protocol decode, DVM, and frequency counter is packed with features, all in a compact form factor about 1.5 inch thick making it the go-to oscilloscope for electronic debug and test, no matter where you work. FFT for spectrum analysisCapacitive touchscreenSimplified front panelBuilt-in 16 MSO channelsWide Variety of probesIntuitive touchscreen with simplified front panelExceptionally easy to use interface with comprehensive analysis for fast insightProgrammatic interface and backward compatibility

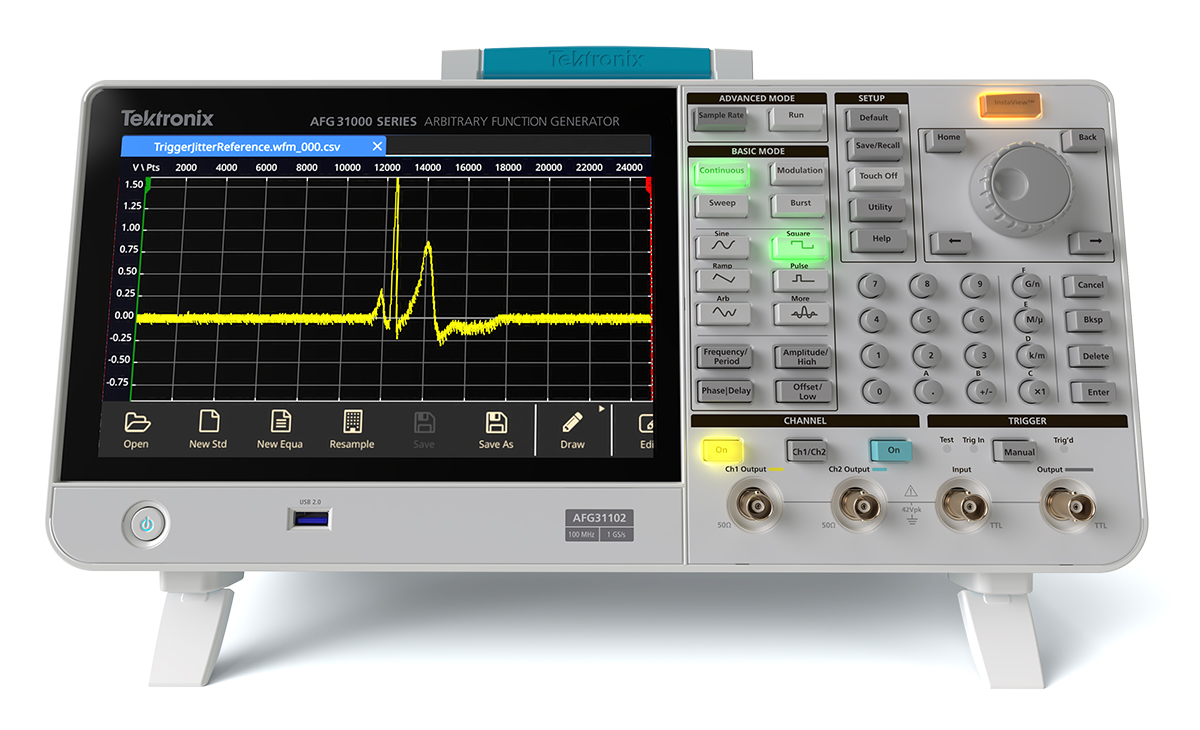

Tektronix Arbitrary Function Generator Series AFG31000 The Tektronix AFG31000 series with InstaView™ technology is the first high-performance arbitrary function generator with built-in waveform generation applications, patented real-time wave monitoring, and a modern user interface. It is also the first function generator on the market that includes built-in double pulse test software. The 9-inch screen works just like a smart device so you can pinch, zoom and scroll to easily locate settings and parameters on the simplified menu and find shortcuts to frequently used settings. The AFG31000 series has 10 models, ranging from 25MHz to 250MHz in both single channel and 2-channels. It provides advanced waveform generation and programming capabilities. The function generator has a 14-bit vertical resolution and also has built-in function waveforms such as sine, square, ramp and many more. It gives output with less distortion. The measurement of waves is done in an accurate format and the frequency deviation is shown precisely as the output function. Features and Benefits • 3 year warranty included• 1 or 2 channel models• Output amplitude range 1 mVpp to 10Vpp into 50Ω loads• The 9-inch capacitive touch screen works like a smart phone and has short-cuts to frequently used settings• Patented InstaView™ technology enables engineers to see the actual waveform at the Device Under Test (DUT) in real time, without the need of an oscilloscope and probe, eliminating the uncertainty caused by mismatched impedance• Sequencing option adds the ability to program long, complex waveforms with up to 256 steps• Built-in ArbBuilder lets you create and edit arbitrary waveforms on the instrument, eliminating the need to connect to a PC• Outputs are protected from over voltage and current to minimize potential instrument damage• Built-in Double Pulse Test application to generate voltage pulses with varying pulse widths onto the DUTs• Control both channels of multi-channel AFGs independently with dedicated Kickstart software AFG AppBasic (AFG) Mode:• 25 MHz, 50 MHz, 100 MHz, 150 MHz, or 250 MHz sine waveforms• 250 MSa/s, 1 GSa/s or 2 GSa/s sample rates• 14-bit vertical resolution• Built-in waveforms include sine, square, ramp, pulse, noise, and other frequently used waveforms• Sweep, Burst, and Modulation modes (AM, FM, PM, FSK, and PWM)Advanced (Sequence) Mode:• Continuous mode (optional Sequence, Triggered and Gated modes)• 16 Mpts arbitrary waveform memory on each channel (128 Mpts optional)• Up to 256 steps in sequence mode with loop, jump and wait events• Variable sampling clock 1 μSa/s to 2 GSa/s Accessories AFG AccessoriesCaseRS Stock No. 7286740 ACD4000B (Soft Carry Case)Software OptionsKickstart www.tek.com/en/products/keithley/keithley-control-software-bench-instruments/kickstartControl both channels of multi-channel AFGs independently with dedicated Kickstart Software AFG App Software Updates KickStart www.tek.com/en/products/keithley/keithley-control-software-bench-instruments/kickstartControl both channels of multi-channel AFGs independently with dedicated Kickstart Software AFG AppFor full list of accessories, application and software options, please see datasheetKeep your instrument up to date and to enhance the functionality, please visit Tektronix website for the latest software updates at https://www.tek.com/en/products/software Applications • Automotive • Battery Testing • Embedded Design• Power Measurements and Analysis• Education• Manufacturing test/troubleshooting• Power Semiconductor Testing

Tektronix 500 MHz Passive Oscilloscope Probes The Tektronix passive voltage oscilloscope probe has high bandwidth and high impedance with 10Mohm input resistance. This probe features a small probe head and sharp tip that makes it easier to probe dense circuitry. Integrated oscilloscope and probe measurement systems feature intelligent communication that automatically scales and adjusts units on the oscilloscope display. Features and Benefits Bandwidth is DC to 500MHzAttenuation ratio is 1:10Input impedance is 10Mohm 8pFMaximum Input voltage DC or RMS is 300VPeak CAT IIWide compensation range (7pF to 30pF)Compact probe head for probing small geometry circuit elementsSmall probe body for enhanced visibility to the device under testReplaceable probe tip cartridgesLarge accessory set for versatile connectivityTekProbe interface for direct BNC connection for oscilloscopes with 1Mohm inputsIntegrated oscilloscope and probe measurement systems feature intelligent communication that automatically scales and adjusts units on the oscilloscope displayCable length 1.3 m Applications Low power devices ServicingManufacturing engineering Test research and development Certifications UL approved

Tektronix Oscilloscope Probes The TCP0030A Tektronix current oscilloscope probe is designed for direct connection to oscilloscopes with the probe interface. This easy-to-use AC/DC current measurement probe provides bandwidth greater than 120MHz with selectable 5A and 30A measurement ranges. It also provides exceptional low current measurement capability and accuracy to current levels as low as 1mA. The probe combines Hall-effect technology with the Tektronix TekVPI oscilloscope interface. Features and Benefits Bandwidth is DC to 120MHzAC/DC measurement capability5A and 30A range settingsRise time is 2.92nsMaximum DC and RMS current is 30AMaximum peak pulse voltage 50AMaximum Input voltage is 150V CAT II (insulated wire 300 V CAT II)Split-core construction allows easy circuit connectionTypically less than 1% DC gain errorLow noise and DC driftOne button degauss/autozeroing - easy Degauss and Autozero set-up controls and probe status/diagnostic indicators on probe hardware and via oscilloscope UI display menuProbe head (LxWxH) – 200x16x32 mmCable length – 200 cmMaximum conductor size – 5 mmIntelligent communication with TekVPI™ oscilloscopes provides:- Units scaling and readout. Automatic, on-screen readout of amps and magnitude. Manual set-up is not required Hand calculation from volts to amps is unnecessary- Push button degauss and Autozero functionality- Probe status and diagnostic indicator LEDs- Remote GPIB/USB probe control Applications Power supply designDesign motor drive Electronic ballast Power semiconductors Switch mode control UPS systems Power convertersMobile communicationsMotor drivesIndustrial/consumer electronics Certifications CE compliantWEEE compliant

Tektronix Oscilloscope Probes The Tektronix single-ended Active FET oscilloscope probe provides excellent high-speed electrical and mechanical performance required for digital system designs. It is specifically designed for direct connection to oscilloscopes with the TekVP probe interface.Note:TAP1500 includes individual probe caseSupplied with:Ground leadsAdaptorsColour-coding clipsSolderable probe tipsTest tipsUser manualNylon carrying case Features and Benefits Bandwidth is DC to 1.5GHz Rise time is 267psAttenuation ratio is 1:10Maximum common mode input voltage is 10VInput impedance is 1Mohmll1pFInput capacitance is 1pF Non-destructive max. input voltage is ±15V (DC + peak AC)Input dynamic range -8V to 8VInput offset range -10V to 10VDCVersatile Mechanical Performance:-Small compact probe head for probing small geometry circuit elements-DUT attachment accessories Enable Connection to SMDs as small as 0.5mm pitch-Robust design for reliabilityEasy to use:-Provides automatic units scaling and readout on the oscilloscope display-Easy access to oscilloscope probe menu display for probe-Status/Diagnostic information, and to control probe DC offset-Remote GPIB/USB Probe control through the oscilloscope Applications high-speed digital systems design Component design and characterization Manufacturing engineering and test Educational research Signals with voltage swings up to 16Vp-p Certifications WEEE compliant

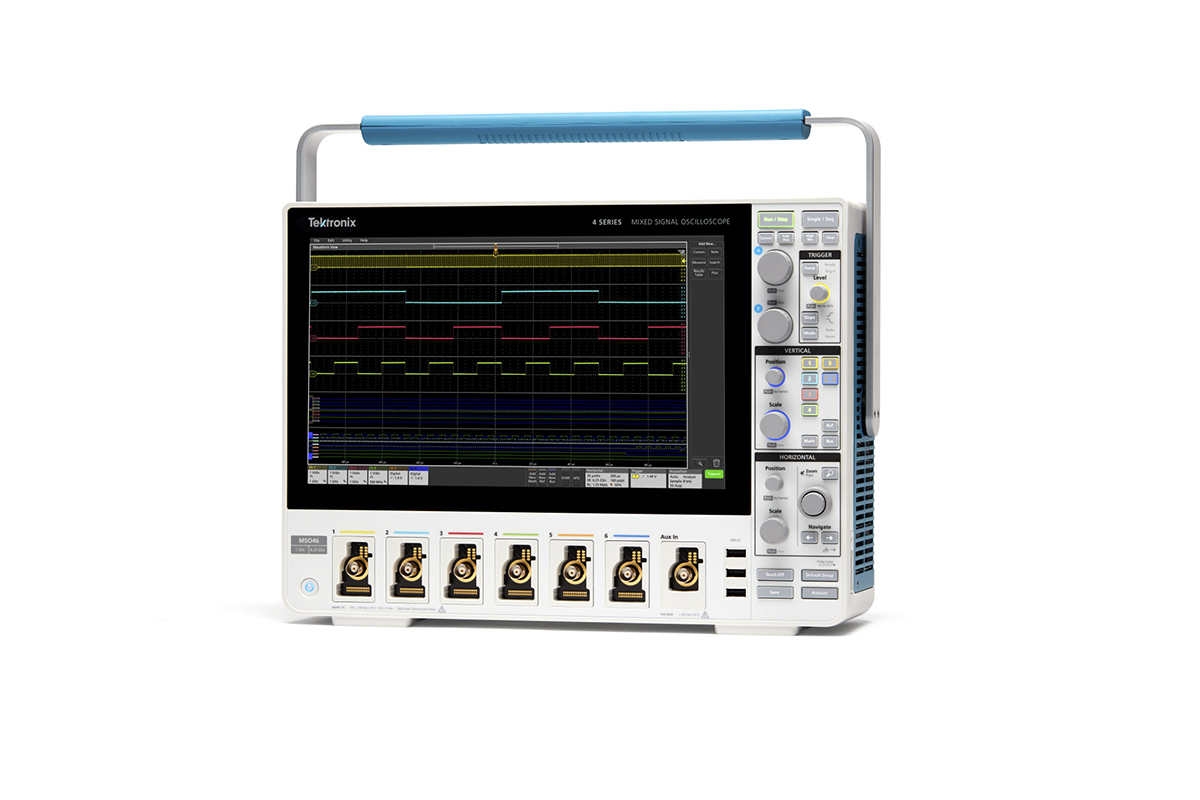

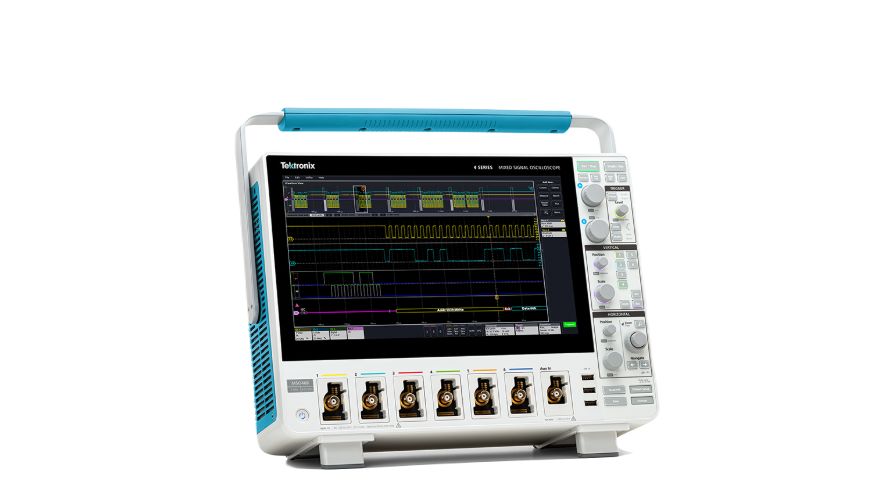

The Tektronix 4 Series Mixed Signal Oscilloscope 4 or 6 FlexChannel inputs where in each FlexChannel provides one analog signal that can be displayed as a waveform view, a spectrum view1, or both simultaneously eight digital logic inputs with TLP058 logic probe. It supporst 200 MHz, 350 MHz, 500 MHz, 1 GHz, 1.5 GHz (upgradable) bandwith and has vertical resolution of 12 bit ADC, 16 bit in High resolution mode. With a remarkably innovative pinch-swipe-zoom touchscreen user interface, a high-definition display, and 4 or 6 FlexChannel inputs that let you measure one analog or eight digital signals per channel, this oscilloscope is ready for today’s toughest challenges, and tomorrow’s too. It sets a new standard for performance, analysis, and overall user experience. 3 years standard warranty FlexChannel technology enables maximum flexibility and broader system visibility Unprecedented signal viewing capability Exceptionally easy-to-use user interface lets you focus on the task at hand Touch interaction finally done right Variable font size Attention to detail in the front-panel controls Digital Phosphor technology with FastAcq high-speed waveform capture IsoVu isolated measurement systemuse this as features for all
