ACC Silicones Neutral Cure Thermally Conductive Adhesive This thermally conductive adhesive sealant from Acc Silicones is a 1 part, non-corrosive RTV (room temperature vulcansing) silicone rubber, ideal for creating a secure bond with a range of applications. The AS1803 is perfect for the thermal coupling of electrical and electronic components, or between any surface where thermal conductivity or heat dissipation is vital due to the excellent thermal conductivity. This thermally conductive adhesive features a wide service temperature range, allowing it to be used with a range of materials. This sealant also features a rapid cure when in contact with atmospheric moisture, forming a tough weather and moisture resistant rubber. The AS1803 is part of a new family of products called acetone cure sealants that are solvent free. Features and benefits • Wide operating range of -50°C to +220°C, making it ideal for use with a variety of applications• Excellent bond and adhesion strength, eliminating the need for welding techniques• Excellent thermal conductivity even at high temperatures• Strong cure process with weather and moisture resistant properties• 1 part adhesive that is ready and easy to use• High thermal conductivity: 1.55 W/mK• Solvent free Application Thermal adhesives are a type of thermally conductive adhesive used to secure heat sinks and electronic components. Thermal adhesives are available in a number of mediums such as thermal paste, glue, tape and more. They work by creating a strong bond for heatsinks or electrical parts commonly via a two-part epoxy resin with thermal conductivity capabilities, drawing heat away from a device. Thermal adhesives are used in a variety of industries and applications such as:• Heat sink bonding• Potting/encapsulating sensors• BGA die heat spreader interface• Chip scale packages• Power semiconductors How to apply Before applying, ensure surfaces are clean and free from grease, dust and contaminants. If supplied in cartridges, the AS1803 can be applied using either manual or pneumatic dispensers. It can also be applied from bulk containers using conventional drum dispensing equipment. For optimum bond strength, the thickness of the sealant joint should be between 1 and 2 mm and left untouched for at least 24 hours, but ideally longer if possible. Can this thermal adhesive be removed? Thermal adhesives such as grease and pastes can be removed if required using a combination of a thermal adhesive remover (or high concentrate rubbing alcohol) and a lint free micro fibre cloth. Please note special care must be taken when removing thermal compounds and protective clothing must be worn at all times. What is the maximum operating temperature? The maximum operating temperature of this thermally conductive sealant is +220°C.

SILCOTHERM 2 Part Addition cure silicone encapsulant Thermally conductiveLow modulus1:1 Mix Ratio

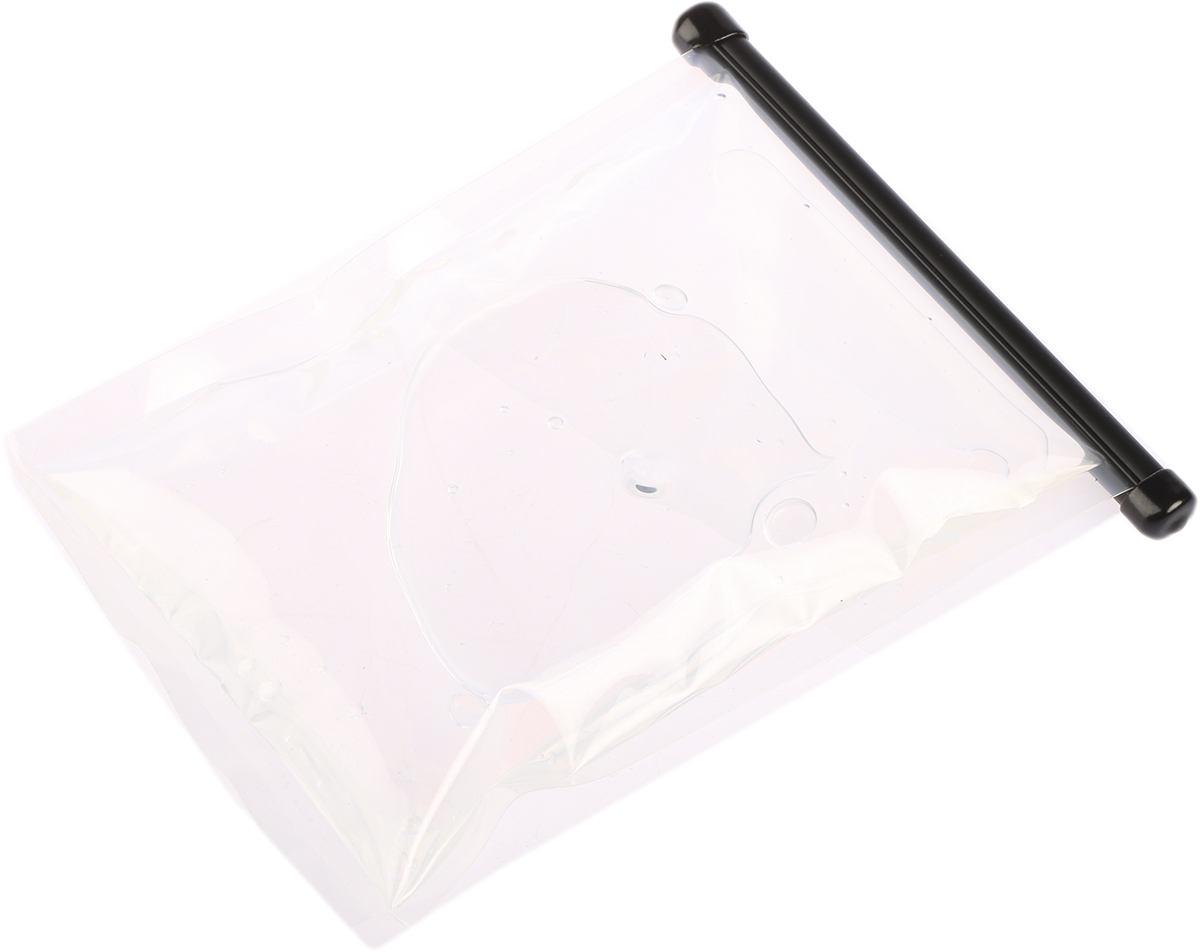

ACC Silicones Silicone Encapsulant Twin Pack The ACC Silicones 250g silicone encapsulant twin pack is a two-component, optically clear silicone elastomer system specially designed for electronic potting applications. It offers good protection against impact damage and it can be employed in areas where the transmission of light is important. This cured product is a hard, medium to high modulus elastomer that can be repaired. The parts have relatively low viscosities and are readily mixed in a simple 10:1 ratio. Features and Benefits Non-yellowing under UV lightOptically clearLow viscosityNo messy mixingIdeal for use with LED'sSmall volume twin packHardness is 40 shore ACure time is 20 hours Shelf life is 12 months Operating temperature ranges between -60⁰C and 204⁰CThermal conductivity of 0.18W/mK Certifications ANSI/ESD S20.20:2014BS EN 61340-5-1:2007

Acc Silicones Black Cartridge Silicone Adhesive The ACC silicones black cartridge silicone adhesive is non-corrosive, 1-part, room temperature vulcanizing (RTV) silicone rubber. The adhesive cures rapidly in contact with atmospheric moisture to form a tough rubber. It does not corrode copper or its alloys and exhibits excellent primer less adhesion when fully cured. The operating temperature ranges from -50°C to 220°C. Features and Benefits Neutral cureFast skin and cure timesGood adhesion to most substratesNo H&S issuesLow linear shrinkageSolvent-free Certifications ANSI/ESD S20.20:2014BS EN 61340-5-1:2007

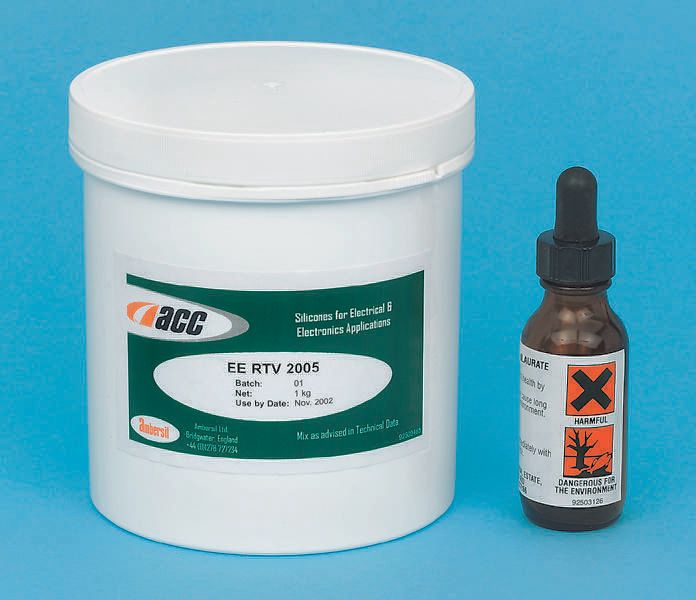

SE2005 Silicone Encapsulant SE2005 is a readily pourable, white, two component silicone elastomer which cures on addition of the catalyst to a resilient rubber. The hardness of the cured material is 40-45° IRHD. It is used to provide protection from vibration, thermal or mechanical shock. Key Features: 24 hour room temperature curingDeep section cureFree flowing, low viscosityStable up to 200°CDispensing equipment not necessary

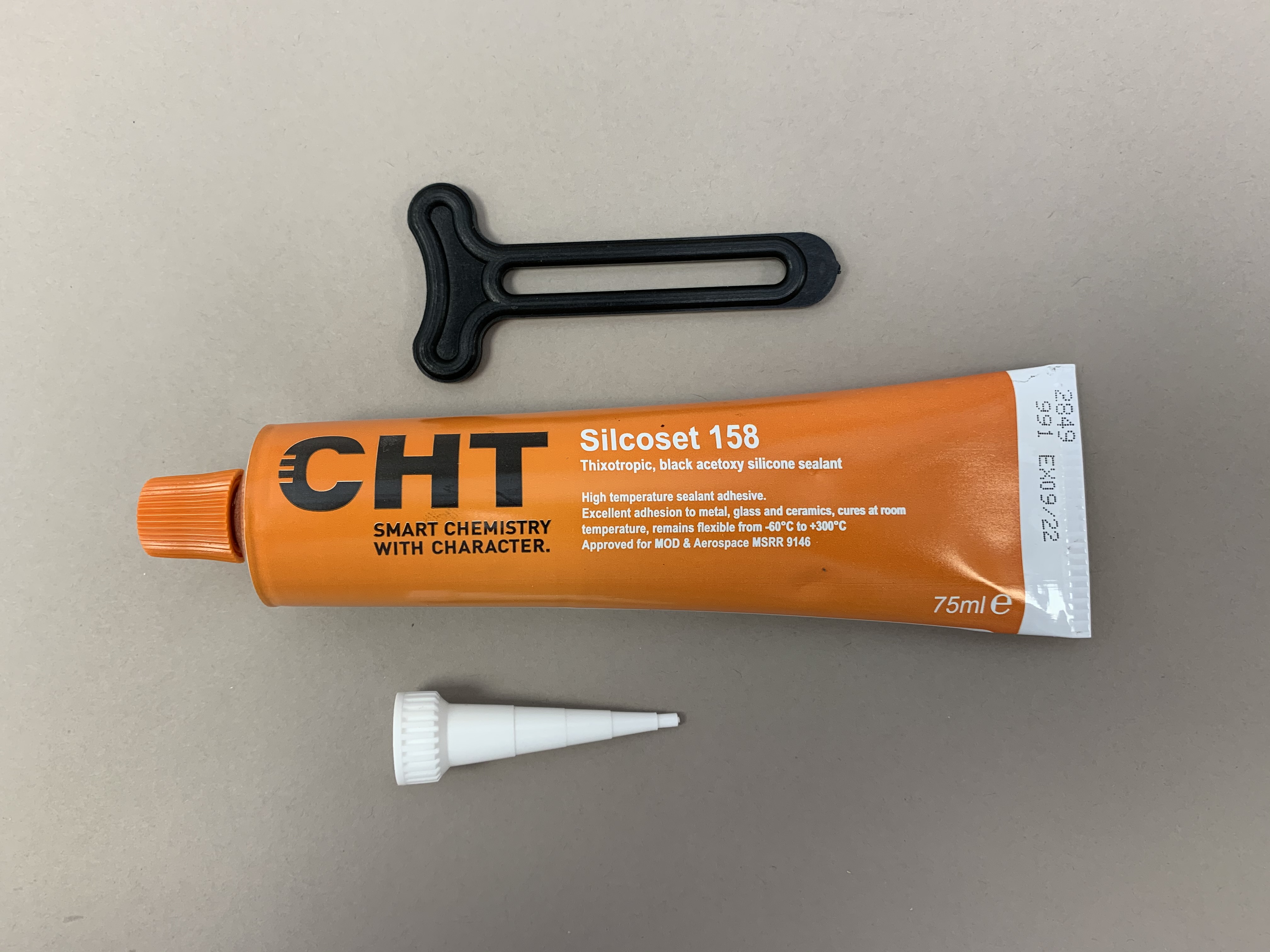

Silcoset 158 High Temperature Silicone Adhesive Silcoset 158 is a 1-Part ready to use RTV silicone adhesive which cures on exposure to atmospheric moisture. The cured adhesive remains flexible over a wide range of temperatures and is resistant to moisture and many common chemicals. Silcoset 158 is specified by Rolls Royce Aerospace and the MOD. Being heat resistant it is also suitable for the repair of domestic cookers. Heat Resistant -60°C to +300°CExcellent bonding to wide range of substratesGood electrical insulationResistance to ageing, weathering, ozone and coronaResistance to oxidation and many oils, chemicals and solventsMOD - AFS 1540BRolls Royce - MSRR 9146

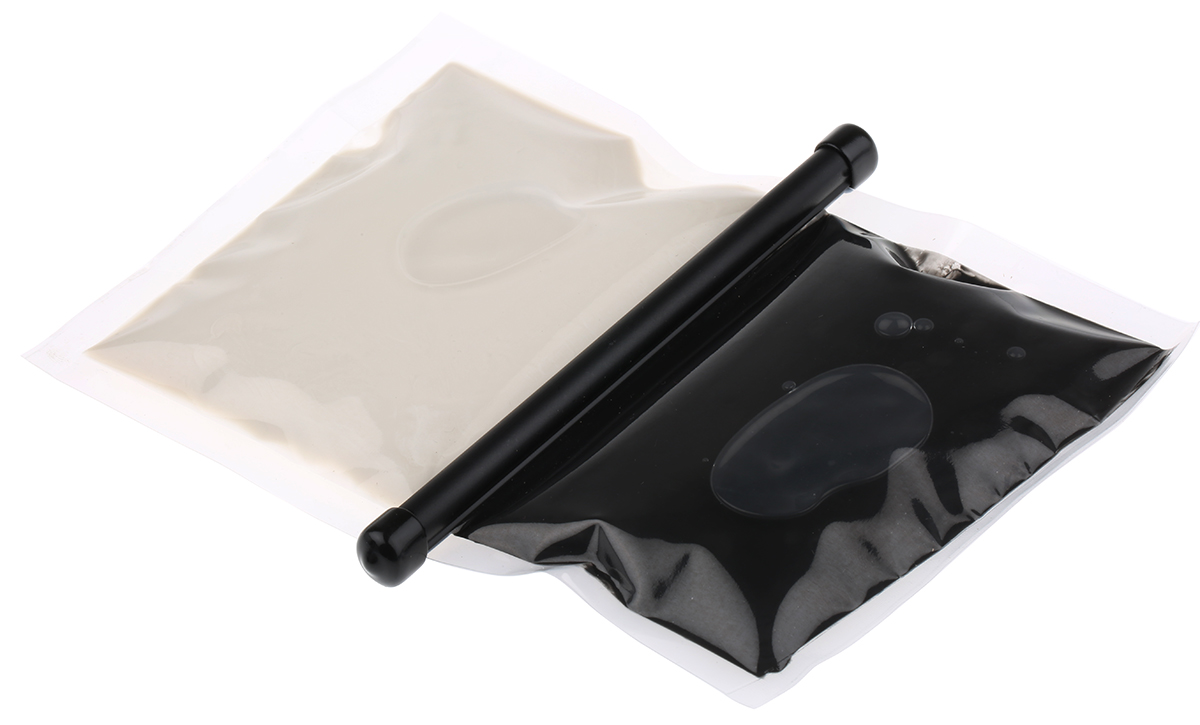

ACC Silicones Silicone Encapsulant Twin Pack Sachet The ACC Silicones 250g silicone encapsulant twin pack sachet is a two-component, addition-cure, thermally conductive silicone elastomer system. This fully cured elastomer offers good protection against shock, vibration and environmental contamination. The twin pack sachet provides fast, clean mixing without the need to weigh or measure the A/B components or use external mixing equipment. It is specially designed for electronic assembly potting applications. Features and Benefits Two colours assist mixingModerately low viscosityLong pot lifeFast cure at elevated temperatureThermally conductive rubberNon-corrosiveEasily repairedCure time is 24 hoursThermal conductivity is 0.68W/mKHardness is 32 shore A Operating temperature ranges between -55⁰C and 260⁰C Certifications UL 94 approved ANSI/ESD S20.20:2014BS EN 61340-5-1:2007

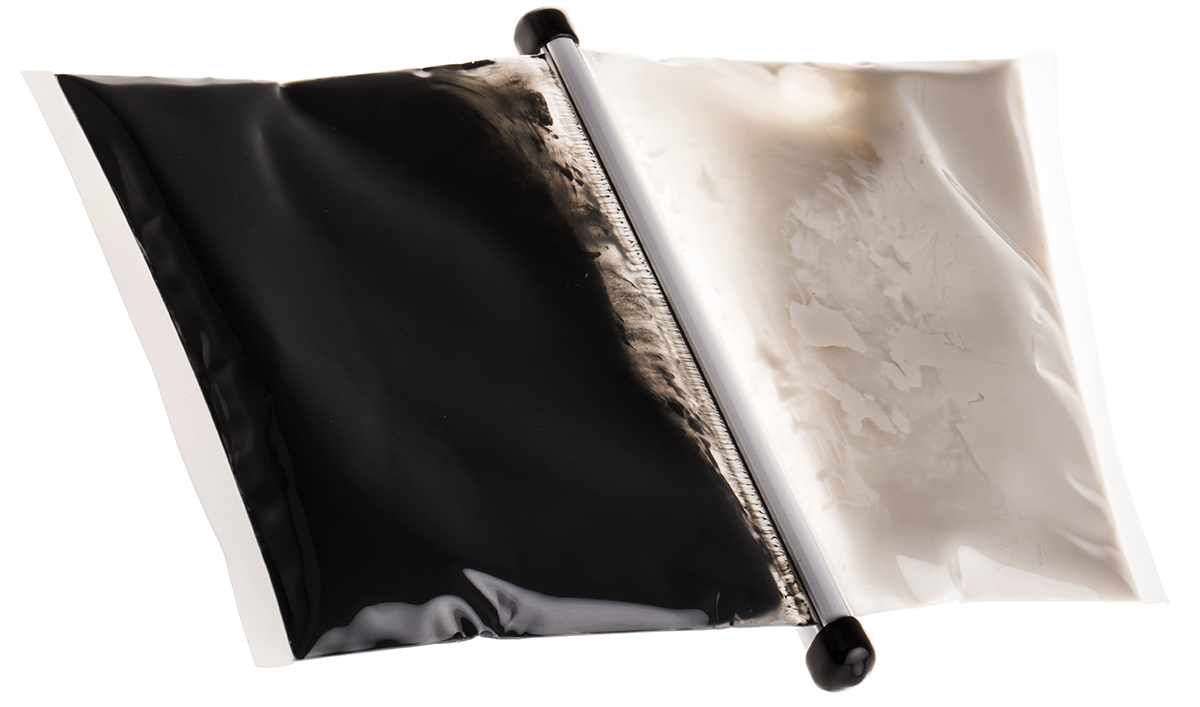

ACC Silicones Silicone Encapsulant Twin Pack The ACC Silicones 250g silicone encapsulant twin pack is a two-component, silicone elastomer system specially designed for electronic potting applications. It is supplied in an easy-to-use twin pack where there is no need for weighing with all the mixing contained within the package. It offers good protection against impact damage and it can be employed in areas where low flammability is a prerequisite. The cured product is a hard, medium to high modulus elastomer that can be repaired. Features and Benefits No messy mixingSmall volume twin pack1:1 Mix ratioThermally conductiveLow flammability Solvent freeHeat accelerated cureHardness is 55 shore ACure time is 24 hoursShelf time is 12 months Operating temperature ranges between -50⁰C and 275⁰CThermal conductivity of 0.37W/mK Certifications ANSI/ESD S20.20:2014BS EN 61340-5-1:2007

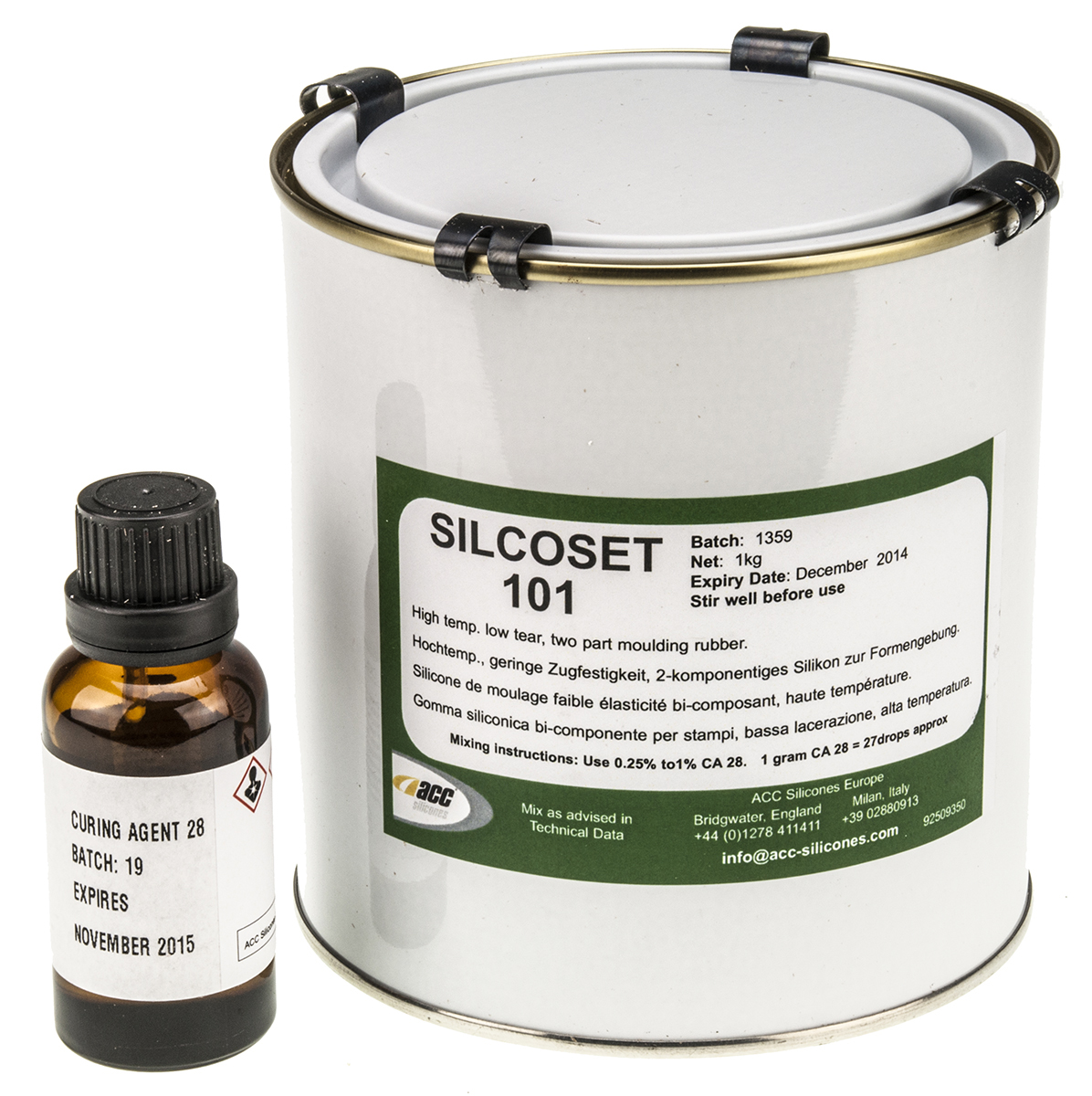

ACC Silicones Silcoset 101 Potting Compound The ACC Silicones 1000g silcoset 101 potting compound is a pourable brick-red liquid. The addition of Silicone curing agent that cures at room temperature to form a resilient, high-temperature-resistant, silicone rubber. It possesses excellent weathering resistance and is resistant to oxidation, oils and chemicals and exhibits very good electrical properties. It is used to protect from vibration, thermal or mechanical shock. It is recommended for potting, embedding and encapsulating delicate electrical and electronic equipment. Features and Benefits 24-hour room temperature curingFree flowing low viscosityStable up to 250°C continuous (300°C max)Deep section cureMOD approved productDispensing equipment not necessaryHardness is 61 shore ACure time is 4 hoursOperating temperature ranges between -60⁰C and 250⁰CThermal conductivity of 0.37W/mK
