Allen Bradley Guardmaster GuardShield 440L Type 4 Finger Protection Safety Light Curtains Ensure sophisticated presence sensing for your machine safety application with the GuardShield 440L Finger Protection Safety Light Curtains and accessories by Allen Bradley Guardmaster. The GuardShield family of safety light curtains are general-purpose devices for presence sensing. They can be used on hazardous machinery to ensure perimeter and access detection and point of operation detection, helping to prevent injury to personnel. Point of Operation Control light curtains (POC) are used specifically for finger, hand and arm recognition and should be placed close to the hazard where personnel interact with the machine. This type of safety system uses a transmitter which emits sequential pulses of infrared light to a receiver. When the beams are interrupted a stop signal is immediately sent to the machine. These GuardShield Light Curtains are self-contained two-box Type 4 Electro Sensitive Protective equipment (ESPE). They have convenient DIP switch selectable Modes of Operation, located beneath a security door in the end caps, which offer advanced features such as: &#149; Fixed blanking (teachable)<BR/>&#149; Floating blanking (one or two beam)<BR/>&#149; Beam coding<BR/>&#149; Start/restart interlock<BR/>&#149; External device monitoring (EDM) Features and Benefits: &#149; 14mm resolution (finger detection)<BR/>&#149; Two safety solid state and one auxillary non-safety outputs<BR/>&#149; Easy maintenance with the Quick Disconnect cables (4-pin for the sender, 8-pin for the receiver) Applications: &#149; Robot cells<BR/>&#149; Conveyors<BR/>&#149; Presses<BR/>&#149; Forming Operations<BR/>&#149; Electronic Fences<BR/>&#149; Workstations <B>Note: </B>Installation and operation of this safety device must be in strict accordance with accompanying operating instructions. When ordering both a sender and receiver are included. In addition, a sender cable and a receiver cable will be required. For suitable safety relays, see the "Minotaur" range of products (e.g <a href="/web/p/products/4475587">447-5587</a>) <B>Standards:</B> IEC/EN61496 parts 1 & 2, Type 4 ESPE and EN954-1 Cat 4, UL61496, UL1998 <B>Approvals:</B> TUV and CE marked; UL61496, UL1998

Allen Bradley Guardmaster Sensaguard 440N RFID Cylindrical Non-Contact Safety Switch Optimise your guard door and improve machine safety with the Sensaguard 440N RFID Cylindrical Non-Contact Safety Switches by Allen Bradley Guardmaster. These switches ensure a superior level of security and protection to reduce risk of injury, damage to equipment, and overall downtime. The Sensaguard safety switches feature advanced latest generation Radio Frequency Identification technology for coding and inductive technology for sensing, which makes them highly reliable and tamper-resistant. These switches are designed to be installed on machine guard doors, offer tolerance to door misalignment, and have a large sensing range. These versatile switches can meet a broad range of industrial applications. These safety interlock switches can be connected standard safety relays, SmartGuards and safety I/O blocks to suit your needs. They also maintain PLe, SIL 3, Cat 4 rating even with multiple units connected in series. They have a high IP69K rating, which ensures that they can withstand powerful jets of water and are fully protected against dust ingress. The Sensaguard switches are a cost-effective solution and are perfectly suited for use with sliding, hinged, and lift-off machine guard doors. Features and Benefits: &#149; 3 x PNP outputs (including 1 auxiliary)<BR/>&#149; Excellent IP69K environmental protection rating<BR/>&#149; Highly tamper-proof due to secure RFID sensing<BR/>&#149; No dedicated controller is required<BR/>&#149; LED indication for door status and fast troubleshooting<BR/>&#149; Can be connected in series with other safety components (light curtain, E-stops, key interlock switches)<BR/>&#149; Superior reliability due to short-circuit and over-voltage protection<BR/>&#149; Uses the standard proximity brackets<BR/>&#149; Multiple sensing directions offers greater flexibility <B>Note: </B>Supplied with actuator. Stainless steel version is suitable for use in harsh environments. <B>Standards:</B> IEC60947-5-3, IEC 61508, EN954

Allen Bradley Guardmaster Sensaguard 440N RFID Cylindrical Non-Contact Safety Switch Optimise your guard door and improve machine safety with the Sensaguard 440N RFID Cylindrical Non-Contact Safety Switches by Allen Bradley Guardmaster. These switches ensure a superior level of security and protection to reduce risk of injury, damage to equipment, and overall downtime. The Sensaguard safety switches feature advanced latest generation Radio Frequency Identification technology for coding and inductive technology for sensing, which makes them highly reliable and tamper-resistant. These switches are designed to be installed on machine guard doors, offer tolerance to door misalignment, and have a large sensing range. These versatile switches can meet a broad range of industrial applications. These safety interlock switches can be connected standard safety relays, SmartGuards and safety I/O blocks to suit your needs. They also maintain PLe, SIL 3, Cat 4 rating even with multiple units connected in series. They have a high IP69K rating, which ensures that they can withstand powerful jets of water and are fully protected against dust ingress. The Sensaguard switches are a cost-effective solution and are perfectly suited for use with sliding, hinged, and lift-off machine guard doors. Features and Benefits: &#149; 3 x PNP outputs (including 1 auxiliary)<BR/>&#149; Excellent IP69K environmental protection rating<BR/>&#149; Highly tamper-proof due to secure RFID sensing<BR/>&#149; No dedicated controller is required<BR/>&#149; LED indication for door status and fast troubleshooting<BR/>&#149; Can be connected in series with other safety components (light curtain, E-stops, key interlock switches)<BR/>&#149; Superior reliability due to short-circuit and over-voltage protection<BR/>&#149; Uses the standard proximity brackets<BR/>&#149; Multiple sensing directions offers greater flexibility <B>Note: </B>Supplied with actuator. Stainless steel version is suitable for use in harsh environments. <B>Standards:</B> IEC60947-5-3, IEC 61508, EN954

Allen Bradley Guardmaster - Ferrogard GD2 Non Contact Safety Switch Experience superior machine guard locking and protect personnel from hazardous areas with the Ferrogard GD2 magnetically actuated non-contact safety switch by Allen Bradley Guardmaster. Expertly designed to be installed on safety guards and gates, this switch works by isolating the control power to the machine when the safety barrier is opened. The magnetic actuator is removed upon guard door release, which opens the NC safety contacts. This stops dangerous machines in which are in motion, preventing injury to operators. This safety switch is designed with resilient stainless steel housing to protect against impacts, making it particularly useful for heavy duty applications. It also has a wider temperature range than the plastic Ferrogard switches, ensuring it can be used in more flexible applications. It has a high tolerance to door misalignment due to its large sensing field, giving you greater stability and security, and offers non-contact reliability. To keep your operations running smoothly this switch has protected safety contacts, unlike other magnetic switches, which help to ensure that it does not fail to danger. It has an excellent IP68 rating (NEMA 6P), which means that it is dust-tight and suitable for use in wet environments due to its fully sealed contacts. All Ferrogard switches have internal non-resettable overload protection on the safety contact and offer simplified set up and alignment for your convenience. The Allen Bradley Guardmaster range of machine safety products offers flexible, cost-effective solutions for every application to provide essential protection for your equipment and personnel, and enhance productivity in the workplace. Features and Benefits: &#149; Operating temperature range -25°C to +125°C<BR/>&#149; Non-contact actuation allows instant opening of the guard door when needed<BR/>&#149; Risk of debris contamination is reduced due to no contact between the sensor and actuator<BR/>&#149; Contacts completely sealed to meet IP68 requirements<BR/>&#149; Stainless steel head and actuator housing<BR/>&#149; Safety Contacts Operating Distance Make 12 mm, Break 23 mm<BR/>&#149; M4 mountable in any position<BR/>&#149; High tolerance to misalignment<BR/>&#149; Cat. 1 device per EN 954-1 dual channel interlocks suitable for Cat. 3 or 4 systems Approvals CE Marked for all applicable directives and cULus CE Marked for all applicable directives and cULus UL, CSA Standards EN954-1, ISO13849-1, IEC/EN60204-1, NFPA79, EN1088, ISO14119, ANSI B11.19, AS4024.1.

Allen Bradley Guardmaster - Ferrogard GD2 Non Contact Safety Switch Experience superior machine guard locking and protect personnel from hazardous areas with the Ferrogard GD2 magnetically actuated non-contact safety switch by Allen Bradley Guardmaster. Expertly designed to be installed on safety guards and gates, this switch works by isolating the control power to the machine when the safety barrier is opened. The magnetic actuator is removed upon guard door release, which opens the NC safety contacts. This stops dangerous machines in which are in motion, preventing injury to operators. This safety switch is designed with resilient stainless steel housing to protect against impacts, making it particularly useful for heavy duty applications. It also has a wider temperature range than the plastic Ferrogard switches, ensuring it can be used in more flexible applications. It has a high tolerance to door misalignment due to its large sensing field, giving you greater stability and security, and offers non-contact reliability. To keep your operations running smoothly this switch has protected safety contacts, unlike other magnetic switches, which help to ensure that it does not fail to danger. It has an excellent IP68 rating (NEMA 6P), which means that it is dust-tight and suitable for use in wet environments due to its fully sealed contacts. All Ferrogard switches have internal non-resettable overload protection on the safety contact and offer simplified set up and alignment for your convenience. The Allen Bradley Guardmaster range of machine safety products offers flexible, cost-effective solutions for every application to provide essential protection for your equipment and personnel, and enhance productivity in the workplace. Features and Benefits: &#149; Operating temperature range -25°C to +125°C<BR/>&#149; Non-contact actuation allows instant opening of the guard door when needed<BR/>&#149; Risk of debris contamination is reduced due to no contact between the sensor and actuator<BR/>&#149; Contacts completely sealed to meet IP68 requirements<BR/>&#149; Stainless steel head and actuator housing<BR/>&#149; Safety Contacts Operating Distance Make 12 mm, Break 23 mm<BR/>&#149; M4 mountable in any position<BR/>&#149; High tolerance to misalignment<BR/>&#149; Cat. 1 device per EN 954-1 dual channel interlocks suitable for Cat. 3 or 4 systems Approvals CE Marked for all applicable directives and cULus CE Marked for all applicable directives and cULus UL, CSA Standards EN954-1, ISO13849-1, IEC/EN60204-1, NFPA79, EN1088, ISO14119, ANSI B11.19, AS4024.1.

Allen Bradley Guardmaster 440K-T11171 Trojan 6 Safety Interlock Switch Experience highly secure guard interlocking for machinery and protect personnel from entering dangerous areas with the Trojan 6 Safety Interlock Switch by Allen Bradley Guardmaster. This tongue interlock switch features dual entry slots and the head can be rotated, providing 4 actuator entry positions for greater application flexibility. The head is movable only by releasing the cover screws. The 440K-T11171 Trojan 6 Safety Interlock Switch has 3NC safety contacts, 1NO auxiliary contact. It has break-before-make action and M20 conduit entry. It comes with a standard type actuator made of tough stainless-steel to provide a longer service-life. The housing is made of durable UL approved glass-filled polyester, which is red for improved visibility. It is also environmentally sealed to IP67, ensuring that it is fully protected against ingress of dust and can withstand regular washdowns. This reliable safety switch is designed specifically to be fitted at the leading edge of hinged, sliding and lift-off machine guards. How does it work? The Trojan 6 switch is operated by inserting a specially profiled key, which is permanently fixed to the door. It incorporates a self-ejecting mechanism which prevents use of the switch if the actuator is not mounted to the door, ensuring greater security. The 440K Trojan 6 interlock units provide cost-efficient and safe electrical interlocking of the guard to the control circuit of the machine. Features and Benefits: • Dual key entry slots and rotatable head to allow up to 4 actuator entry points<BR/>• Self-ejecting tamper resistant actuator that operates only when mounted to the guard<BR/>• Durable and versatile - can be used in most applications<BR/>• Forced guided contacts<BR/>• High IP67 environmental protection rating <B>Note: </B>All switches come with an actuator.<BR/>This device can be used with GuardLink, a new linking technology from Allen Bradley Guardmaster. GuardLink simplifies and reduces the connection time of the safety system while providing real-time diagnostic information over Ethernet IP. This simplifies the identification of the location of the device that has tripped the system. Thus, it reduces downtime and improves the overall efficiency of the machines. For more details, please refer to the GuardLink brochure. Certifications: EN 954-1<BR/>ISO 13849-1<BR/>IEC/EN 60204-1<BR/>NFPA 79<BR/>EN 1088<BR/>ISO 14119<BR/>IEC/EN 60947-5-1<BR/>ANSI B11.19 <BR/>AS 4024.1 <BR/>cULus listed<BR/>TÜV certified <BR/>CCC certified<BR/>IP67 rated (Enclosure) How does a Safety Interlock Switch work? Safety interlock switches work by securely locking guard doors and gates, preventing unsafe access to hazardous areas where machinery may be in operation. This helps to decrease the risk of injury to personnel and damage to machinery. They can also be used to monitor the status of the machine guard, and to ensure that machinery cannot start up or run while the guard door is open. They are often utilised in industrial applications, such as safeguarding factory production lines. They can vary in lock type, maximum current and voltage, and housing material. These interlock switches are specifically designed to meet high standards of protection. Rockwell Automation is a global leader in industrial automation and digital transformation, and brings smart manufacturing to life. With a long legacy of creating Allen-Bradley® integrated control and information solutions, we help make you as productive as possible. Our portfolio of sensing, safety and motor control products can support your move towards smart machine applications. Allen-Bradley® IO-Link sensors are data-enabled and communicate with all field buses, providing diagnostic and health information about the device before a machine stops, and enabling quick production changeovers through fast parameter downloads from PLCs into the device. This reduces machine downtime and increases manufacturing OEE. For safety components, products with built-in diagnostics simplify the set-up of the smart device, and reduce maintenance, leading to a more efficient, machine data-driven approach.

Allen Bradley Guardmaster 440K-MT55001 Safety Interlock Switch Reliable, durable, and versatile - the 440K-MT55001 safety interlock switch by Allen Bradley Guardmaster is an excellent machine guard solution for your safety system. The 440K-MT55001 interlock switch has 2NC/1NO contacts and a maximum voltage rating of 500VAC/250VDC. The maximum current rating is 2.2A. This safety switch has an ingress protection rating of IP67, ensuring that it is both dust-proof and water-tight. The housing for this unit is die-cast painted zinc alloy in red, offering high durability and providing easy visibility of the switch. The operating temperature range is -20°C to 80°C. This dependable switch has break-before-make action and M20 conduit entry. The MT-GD2 tongue interlock switch offers application flexibility with its dual entry slots, which can provide up to 8 different actuator entry positions due to the conveniently rotatable head. The head can be moved via the tamper-resistant cover screws and the switch includes front and end entry. This safety switch is designed to be fitted on hinged, sliding, and lift-off machine guard doors. It ensures superior protection for equipment and personnel. Features and Benefits: • 2NC safety / 1NO auxiliary contact configuration<BR/>• Forced guided contacts that comply with EN 1088, IEC 947-5-1<BR/>• Robust die-cast painted zinc alloy housing, in highly visible red<BR/>• Ideal for washdown environments due to high IP67 rating<BR/>• Rotatable head with dual slots and 8 actuator entry options Certifications: CE certified<BR/>UL listed<BR/>TUV certified<BR/>EN 1088<BR/>IEC 947-5-1<BR/>DIN50041 <BR/>IP67 rated How does a Safety Interlock Switch work? Safety interlock switches work by securely locking guard doors and gates, preventing unsafe access to hazardous areas where machinery may be in operation. This helps to decrease the risk of injury to personnel and damage to equipment. They can also be used to monitor the status of the guard, and to ensure that machinery cannot start up or run while the guard door is open. They are often utilised in industrial applications, such as safeguarding factory production lines. They can vary in lock type, maximum current and voltage, and housing material. These interlock switches are specifically designed to meet high standards of protection. Rockwell Automation is a global leader in industrial automation and digital transformation, and brings smart manufacturing to life. With a long legacy of creating Allen-Bradley® integrated control and information solutions, we help make you as productive as possible. Our portfolio of sensing, safety and motor control products can support your move towards smart machine applications. Allen-Bradley® IO-Link sensors are data-enabled and communicate with all field buses, providing diagnostic and health information about the device before a machine stops, and enabling quick production changeovers through fast parameter downloads from PLCs into the device. This reduces machine downtime and increases manufacturing OEE. For safety components, products with built-in diagnostics simplify the set-up of the smart device, and reduce maintenance, leading to a more efficient, machine data-driven approach.

Allen Bradley Guardmaster MT-GD2 Safety Interlock Switch, Standard Improve safe-access to machinery for operators and keep your guard door secure with the MT-GD2 Safety Interlock Switch by Allen Bradley Guardmaster. The MT-GD2 switches are tongue (or key) operated safety interlocking devices. They are expertly designed to be fitted on the leading edge of hinged, sliding, and lift-off guards. This resilient interlock switch has a rotatable head and dual entry slots, providing eight different points for actuator entry to give you improved application flexibility. The head is also secured with tamper-resistant screws. This affordable and compact switch is 117 x 40 x 43 mm with DIN 50041 standard fixing centres and includes forced guided contacts. It is designed to be easily installed. It is also sealed to IP67, making it perfect for use in harsh industrial environments as it is fully protected from dust ingress and can withstand some immersion in water. To operate the MT-GD2 interlock switch a specially profiled, stainless-steel actuator must be inserted. This should be permanently attached to the guard door. This device provides reliable electrical interlocking of the guard door and the machine&#146;s control circuit. This ensures that power to the machine is isolated while the guard door is open, preventing access to dangerous areas where machinery is running and minimising risk of injury to personnel. This versatile switch can be used as part of a system for higher-risk applications as it is available with a variety of contact configurations. Features and Benefits: &#149; 8 possible actuator entry positions including front and end entry, rotatable head<BR/>&#149; Tamper-resistant screws <BR/>&#149; Forced guided contacts - complies with EN 1088, IEC 947-5-1<BR/>&#149; Die-cast metal body with painted zinc for enhanced corrosion resistence<BR/>&#149; Contacts break actuation travel; 6mm<BR/>&#149; Operating temperature: -20 to +80°C<BR/>&#149; DIN 50041 footprint<BR/>&#149; Sealed to IP67: fully protected against dust ingress and some water immersion<BR/>&#149; CE marked in accordance with relevant European Directives Approvals: UL, TUV

Allen Bradley Guardmaster 440G-A27163 Sliding Bolt Actuator (GD2 model) Ensure that your guard-locking system is complete with the 440G-A27163 Sliding Bolt Actuator from Allen Bradley Guardmaster. The 440G-A27163 unit is a Sliding Bolt Actuator which is suitable for use with the TLS-GD2 Safety Interlock Switch. This reliable actuator is manually operated and can be extended to work with an interlock switch. When retracted it can be locked off with up to 3 padlocks, offering dependable security. It is also made of tough stainless-steel to ensure superior durability, and the housing is comprised of aluminium. It has 4 x M5 fixings. This actuator should be permanently attached to the guard door. Dimensions: 3.3in (length) X 1.57in (width) X 5.51in (height) This actuator is used with a safety interlock switch to provide safe-access to machinery and hazardous areas, offering greater protection for personnel and equipment. Features and Benefits: • Actuator for use with TLS-GD2 interlock switch<BR/>• Sliding Bolt Action, manual operation<BR/>• Stainless-steel actuator and aluminium housing Applications: Sliding<BR/>Hinged<BR/>Lift-off guards What are Safety Interlock Switches? Safety Interlock Switches are locking devices which can be used to monitor the position of a machine guard door and turn off the power supply when the safety barrier is released. They can also be used to keep a guard securely locked when machinery is running. This helps to prevent personnel from accessing a hazardous area where machinery may be in motion and minimises risk of injury or equipment damage. Interlock switches are often used for industrial applications. What is a Safety Interlock Actuator? The actuator is a separate component which is usually inserted into the switch to enable the locking mechanism to work. It forms a key part of the overall safety interlock unit. Different types include: 90º, Flat, Standard, Semi-Flexible, Fully Flexible, and Specialty. Rockwell Automation is a global leader in industrial automation and digital transformation, and brings smart manufacturing to life. With a long legacy of creating Allen-Bradley® integrated control and information solutions, we help make you as productive as possible. Our portfolio of sensing, safety and motor control products can support your move towards smart machine applications. Allen-Bradley® IO-Link sensors are data-enabled and communicate with all field buses, providing diagnostic and health information about the device before a machine stops, and enabling quick production changeovers through fast parameter downloads from PLCs into the device. This reduces machine downtime and increases manufacturing OEE. For safety components, products with built-in diagnostics simplify the set-up of the smart device, and reduce maintenance, leading to a more efficient, machine data-driven approach.

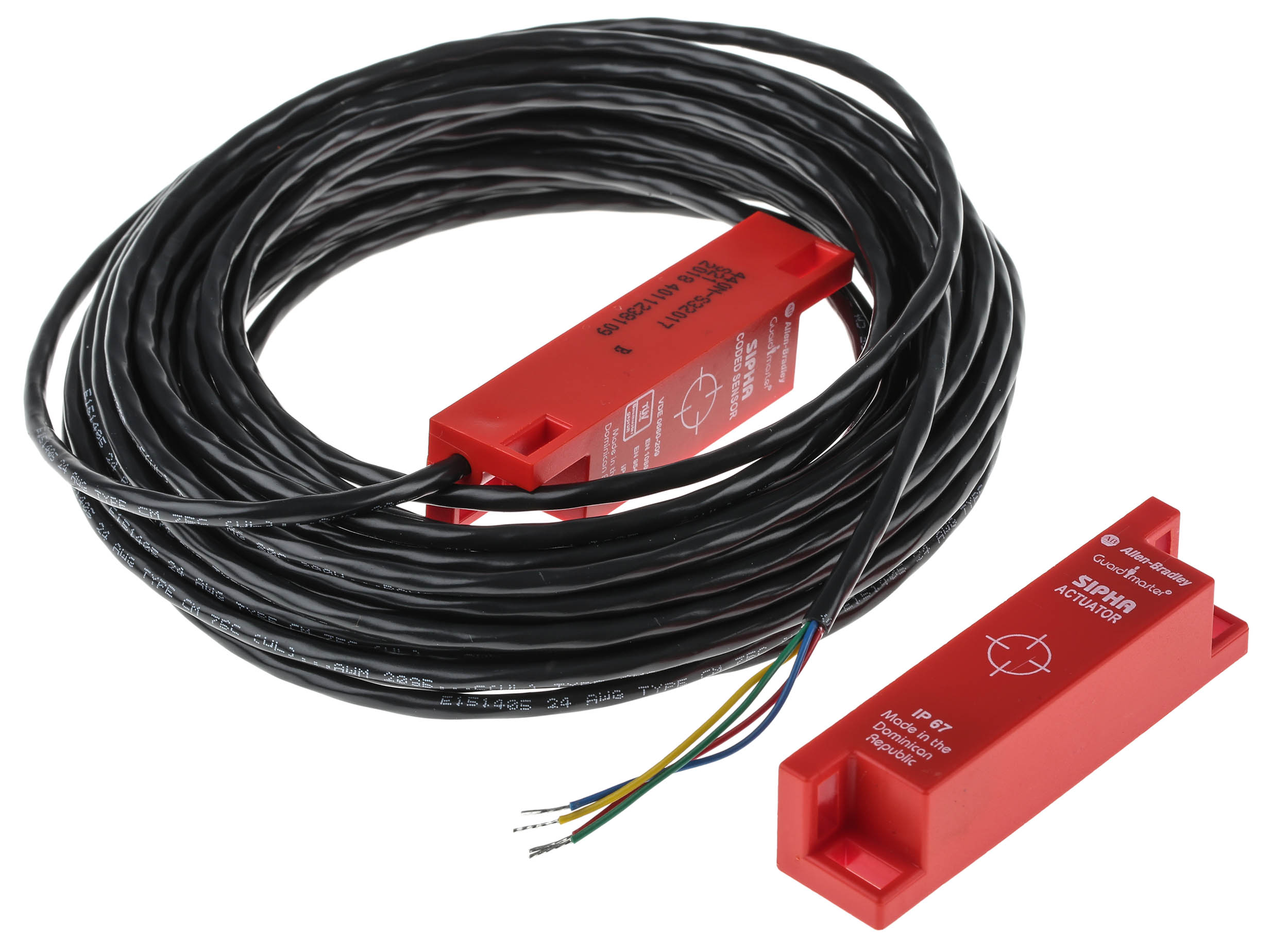

Allen Bradley Guardmaster 440N-S32042 Sipha Magnetic Non-Contact Safety Switch Optimise the safety of your machine guard door and protect operators with the Sipha Magnetic Safety Switch by Allen Bradley Guardmaster. This versatile safety switch ensures a high level of tamper-resistance as it features magnetically sensitive elements which must be activated in a specific order to operate correctly. This means that it cannot be defeated by a simple magnet, providing superior security and reliability for complex applications. The 440N-S32042 Sipha Non-Contact Safety Switch has a supply voltage rating of 250VAC, 300VDC. It has 1NC/1NO safety contacts and 1NO auxiliary contact. It is dust-proof and water-tight, with a high ingress protection rating of IP67 (NEMA 6P). This compact interlock safety switch also features moulded-in brackets and offers simplified installation. The Sipha switches are ideally suited for use with hinged, sliding, and lift-off machine guards. The Sipha sensor must be connected to the control unit to give a monitored circuit. The control unit can be used with a single sensor to provide a high-integrity system for high risk applications. It has facilities for connecting a manual reset button and monitoring external devices such as contactors. Features and Benefits: • Tamper-proof - Magnetic coded sensing ensures excellent level of security<BR/>• Mounting is possible in any position<BR/>• Non-contact actuation ensures less wear-and-tear and longer service life<BR/>• Must be operated with its own safety control unit<BR/>• Easy to install and versatile due to compact size and moulded-in brackets<BR/>• IP67 rating makes it perfectly suited for wet environments Certifications: IP67 rated<BR/>EN954-1<BR/>ISO13849-1<BR/>IEC/EN60204-1<BR/>NFPA79<BR/>EN1088<BR/>ISO14119<BR/>IEC60947-5-1<BR/>IEC/EN60947-5-3<BR/>ANSI B11.19<BR/>AS4024.1<BR/>CE certified<BR/>UL listed<BR/>TUV approved Rockwell Automation is a global leader in industrial automation and digital transformation, and brings smart manufacturing to life. With a long legacy of creating Allen-Bradley® integrated control and information solutions, we help make you as productive as possible. Our portfolio of sensing, safety and motor control products can support your move towards smart machine applications. Allen-Bradley® IO-Link sensors are data-enabled and communicate with all field buses, providing diagnostic and health information about the device before a machine stops, and enabling quick production changeovers through fast parameter downloads from PLCs into the device. This reduces machine downtime and increases manufacturing OEE. For safety components, products with built-in diagnostics simplify the set-up of the smart device, and reduce maintenance, leading to a more efficient, machine data-driven approach. What are the advantages of non-contact safety switches? Non-contact safety switches are highly reliable and durable. They take less wear and tear and are low-maintenance, as well as resistant to shocks and vibrations. They cannot be easily manipulated or tampered with and are ideal for use with machine guard doors to restrict access to unsafe areas. They are often used in industrial environments, such as in factory production lines.

Allen Bradley Guardmaster Sipha 440N-S32043 Magnetic Non-Contact Switch Experience superior machine guard locking and ensure safe-access for personnel with the Sipha 440N-S32043 Magnetic Non-Contact Safety Switch by Allen Bradley Guardmaster. This advanced switch features magnetically sensitive elements which must be activated in a specific sequence to operate correctly, ensuring greater stability and security. Power is isolated when the machine guard is released, preventing access to dangerous areas for operators as machinery cannot run until the safety barrier is closed. It is highly tamper-resistant as it is designed specifically to operate with its actuator and cannot be defeated by a simple magnet, giving you peace-of-mind. These safety switches are ideal for use with sliding, hinge, and lift-off safety guards. The control unit is used with a single sensor to ensure a high-integrity system in high-risk applications. The Sipha switch has facilities for connecting a manual reset button and monitoring external devices, such as contactors. For other applications, multiple sensors (including mechanical switches) can be connected to one Sipha control unit. This Sipha 440N switch has a supply voltage rating of 250VAC, 300VDC, 1NC Auxiliary contact, and 1NC + 1NO Safety contacts. It has a switching distance of 10mm (Make) to 13mm (Break) and an operating temperature range of -25°C to +125°C. It uses an 8 Pin Micro (M12) Connector. Features and Benefits: • Non-contact actuation - long lasting due to less wear-and-tear, simple set-up, guard door can be opened immediately<BR/>• Reliable magnetic coded sensing<BR/>• Must be operated with its own safety control unit, giving a monitored circuit<BR/>• Easy to install and versatile due to its compact size and moulded-in brackets<BR/>• Highly durable robust stainless-steel housing<BR/>• Sealed to IP67 – fully protected against dust ingress and can withstand temporary immersion in water Certifications: IP67 rated<BR/>EN954-1<BR/>ISO13849-1<BR/>IEC/EN60204-1<BR/>NFPA79<BR/>EN1088<BR/>ISO14119<BR/>IEC60947-5-1<BR/>IEC/EN60947-5-3<BR/>ANSI B11.19<BR/>AS4024.1<BR/>CE certified<BR/>UL listed<BR/>TUV certified What are magnetically coded non-contact safety switches? A magnetically coded non-contact switch is a device used for monitoring the position of machine safety barriers. They are typically used in industrial environments. It uses a magnetically-actuated reed contact and a specially-coded actuator. When the barrier is opened the contacts will either open or close due to the magnetic force interrupting the circuit. As there is no contact between the sensor and actuator they take less wear, are resistant to shocks and vibrations, and are highly tamper-proof, which gives them a long service life. They are often used for sliding, hinge, and removable gates. Allen Bradley Guardmaster aim to maximise protection, efficiency, and productivity in your workplace with their wide range of machine safety and monitoring devices. With their high-quality safety products recognised for excellence and innovation across the globe, you can be sure to find a flexible and secure solution for your application.

<strong>Allen Bradley Guardmaster MatGuard External Corner, 96 x 96mm, Aluminium - 440F-T3012</strong> This external corner from Rockwell Automation's Allen Bradley Guardmaster range is an important component for your 440F MatGuard safety mat. These pressure-sensitive mats detect movement on their surface and trigger the connected machinery to stop. The external corners keep the mat securely fastened in place to prevent dead spots in the sensors. The MatGuard is kept completely sealed by the corner's IP67 (ingress protection), which prevents any water, liquids and coolants from harming the pressure sensors. <strong>Features and Benefits</strong> • 96 x 96mm corner provides tight connection between two 2m perimeter trims<BR/>• Cable channel has room for up to three cables for versatile use<BR/>• Aluminium material is corrosion-resistant for use in wet environments<BR/>• Robust 16mm thickness for durability and long life <strong>Standards and Certifications</strong> • EN (European Norm)<BR/>• ISO (International Organization for Standardization)<BR/>• IEC (International Electrotechnical Commission)<BR/>• ANSI (American National Standards Institute)<BR/>• AS (Aerospace Safety) <strong>What are the best conditions for installing this corner?</strong> The surface must be even, with no sharp drops, to protect the internal sensors. The corner should have no gaps between it and the floor to prevent a tripping hazard. Ensure the centres of cables are used in the corner channel so no adaptors are put under stress by the sharp turn.
