The Amphenol RF MMCX right angle plug connectors use to connect RG-174, RG-188, RG-316 and Times LMR-100A cables, this connectors are made of brass body material and 50 ohm impedance. This plug connectors used in establishing connections with the connectors. It has all the necessary compliance required to be qualified for application as per manufacturers documentation. Frequency supports up to 6 GHzInsulator Material PTFERoHS (EU) compliant

The Amphenol RF Mini-BNC plug connectors are use to connect RG-179 Belden 179DT cables, this connectors are made of brass body material and 75 ohm impedance. This plug connectors used in establishing connections with the connectors. It has all the necessary compliance required to be qualified for application as per manufacturers documentation. Cable Type (Terminates to) RG-161, RG-179, RG-187, Belden 179DT, Belden 1520A, etc.Insulator material PTFE

The Amphenol RF BNC straight plug connectors are use to connect RG-174, RG-188, RG-316 and Times LMR-100A cables, this connectors are made of brass body material and 50 ohm impedance. This plug connectors used in establishing connections with the connectors. It has all the necessary compliance required to be qualified for application as per manufacturers documentation. Frequency supports up to 4 GHzInsulator material Delrin

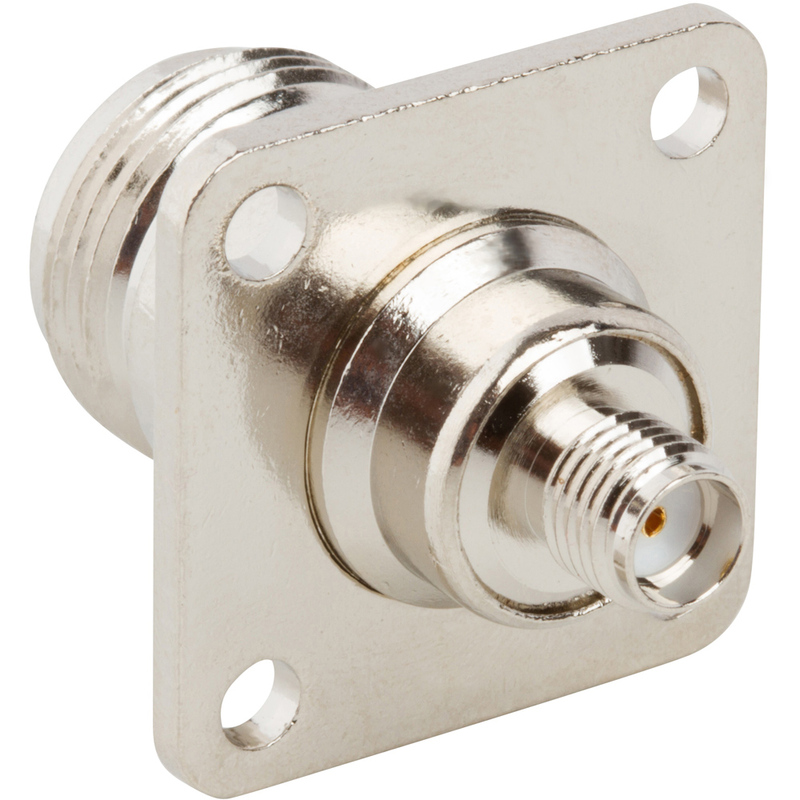

The Amphenol RF Adapter is the most sought after solution for industries and applications which involve RF circuits. The product is an adapter used in establishing connections with the cables and the interfaces. It has all the necessary compliance required to be qualified for application as per manufacturers documentation. Has all the necessary compliances as per the manufacturers documentationAvailable in a wide range of configuration to suit the consumer needs

The SMB interface features a snap-on coupling mechanism and is available in 50 Ohm and 75 Ohm configurations. SMB connectors conform to the requirements of MIL-C-39012, and the interface is in compliance with MIL-STD-348. SMB connectors offer broadband performance with low reflection DC to 4 GHz and utilize die cast components on non-critical areas to provide a low-cost solution. Selective plating provides corrosion resistance finish as well as good solder-ability characteristicsVarious plating options in nickel, gold, and tin leadSMB PCB slide-on plug and jack allows board-to-board mounting with a low insertion force making this is ideal for mating a high number of connectors on a pair of PCB’s RF Connector, SMB Straight PCB Jack, Through Hole, 50 Ohm

The BNC is a bayonet style connector allowing for quick connect and disconnect with a positive locking mechanism. Mating is achieved with just a quarter turn of the coupling nut. With a classic, dependable design, BNCs are suited to accommodate a large variety of RG and industry standard cables, in a variety of termination styles. Amphenol offers a full line of BNCs in a multitude of options. From 50 Ω to 75 Ω Impedance, Commercial to Military grade, BNC connectors are miniature, lightweight and reliable. A full line of printed circuit board receptacles, bulkhead receptacles, reverse-polarity connectors, resistor terminations, and other accessories complement the product offering. Bayonet coupling mechanism provides positive, quick mating and un-mating50 Ω and 75 Ω impedance designs allow customers to match impedance to system requirementsConnectors are available for military, industrial and commercial applications RF Connector, BNC Straight Jack, Isolated, Solder Cup, 50 Ohm, Bulkhead

Amphenol SMA Series Using a threaded interface, SMA 50 Ohm connectors are semi-precision units that provide excellent electrical performance from DC to 26.5 GHz and outstanding mechanical durability. SMA connectors feature stainless steel or brass construction and - 36 threaded coupling, which offers high performance in a compact design. For phase array radar, test equipment, ILS landing systems and other instrumentation using phase matching techniques, SMA interconnects offer a precise and simple means of phase adjustment for microwave devices. Built in accordance with MIL-C-39012 and CECC 22110/111, SMA connectors can be mated with all connectors that meet these specification mating diameters regardless of manufacturer. Features and Benefits Light weight, compact and vibration proof designLow cost commercial grade (Brass SMA) available in nickel or gold plating Terminates to all standard flexible coaxial cables, low-loss (LMR) type cables and industry standard semi-rigid and conformable cables Applications Base stationsAntennasTelecommunicationsInstrumentationPC/LAN

Plugs and Jacks

Amphenol 50 Ohm SMA RF Coaxial Revese Polarity Bulkhead Crimp Jacks 50 Ohm SMA RF coaxial revese polarity bulkhead jacks with a crimp termination. These 50 Ohm SMA RF coax reverse polarity panel mount crimp jack connectors have a gold plated centre contact and are suitable for use with a variety of RF coaxial cable types. The panel cut-out for these SMA bulkhead crimp jacks is 6.5 x 6mm.

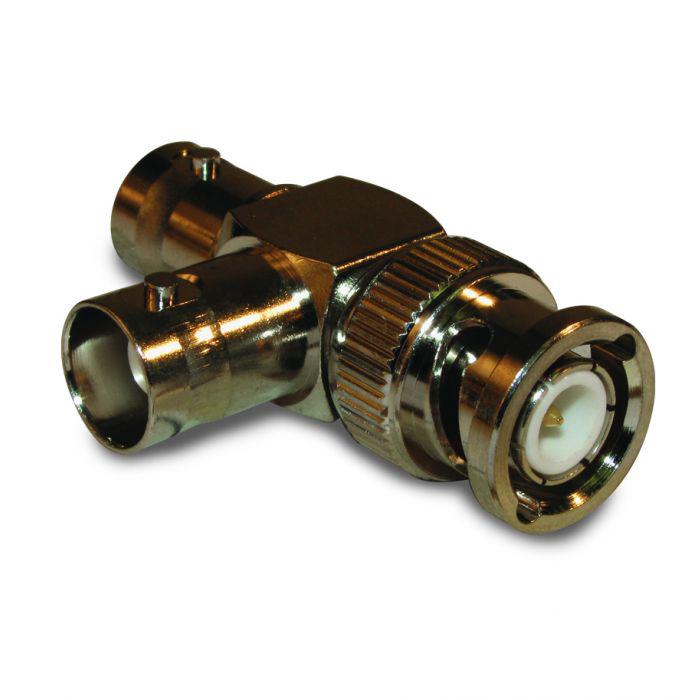

The Amphenol RF Adapter is the most sought after solution for industries and applications which involve RF circuits. The product is an adapter used in establishing connections with the cables and the interfaces. It has all the necessary compliance required to be qualified for application as per manufacturers documentation. Has all the necessary compliances as per the manufacturers documentationAvailable in a wide range of configuration to suit the consumer needs

The Amphenol RF Co-Axial Cables, Connectors and accessories are the most sought after solution for industries and applications which involve RF circuits. The product is a jack/connector used in establishing connections with the connectors. It has all the necessary compliance required to be qualified for application as per manufacturers documentation. Has all the necessary compliances as per the manufacturers documentation

The BNC is a bayonet style connector allowing for quick connect and disconnect with a positive locking mechanism. Mating is achieved with just a quarter turn of the coupling nut. With a classic, dependable design, BNCs are suited to accommodate a large variety of RG and industry standard cables, in a variety of termination styles. Amphenol offers a full line of BNCs in a multitude of options. From 50 Ω to 75 Ω Impedance, Commercial to Military grade, BNC connectors are miniature, lightweight and reliable. A full line of printed circuit board receptacles, bulkhead receptacles, reverse-polarity connectors, resistor terminations, and other accessories complement the product offering. Bayonet coupling mechanism provides positive, quick mating and un-mating50 Ω and 75 Ω impedance designs allow customers to match impedance to system requirementsConnectors are available for military, industrial and commercial applications RF Connector, UG-1094A/U, BNC Straight Jack, Solder Cup, 50 Ohm, Bulkhead
