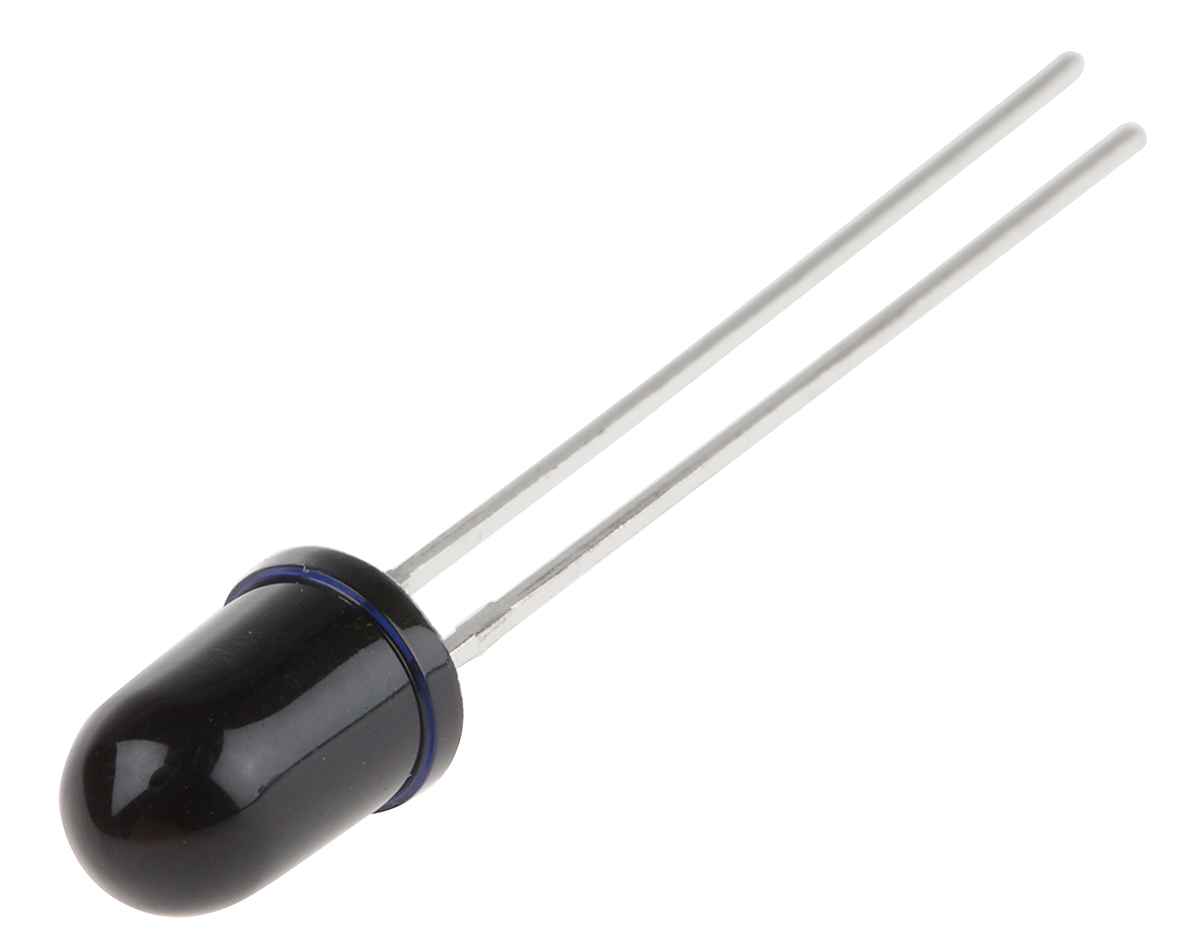

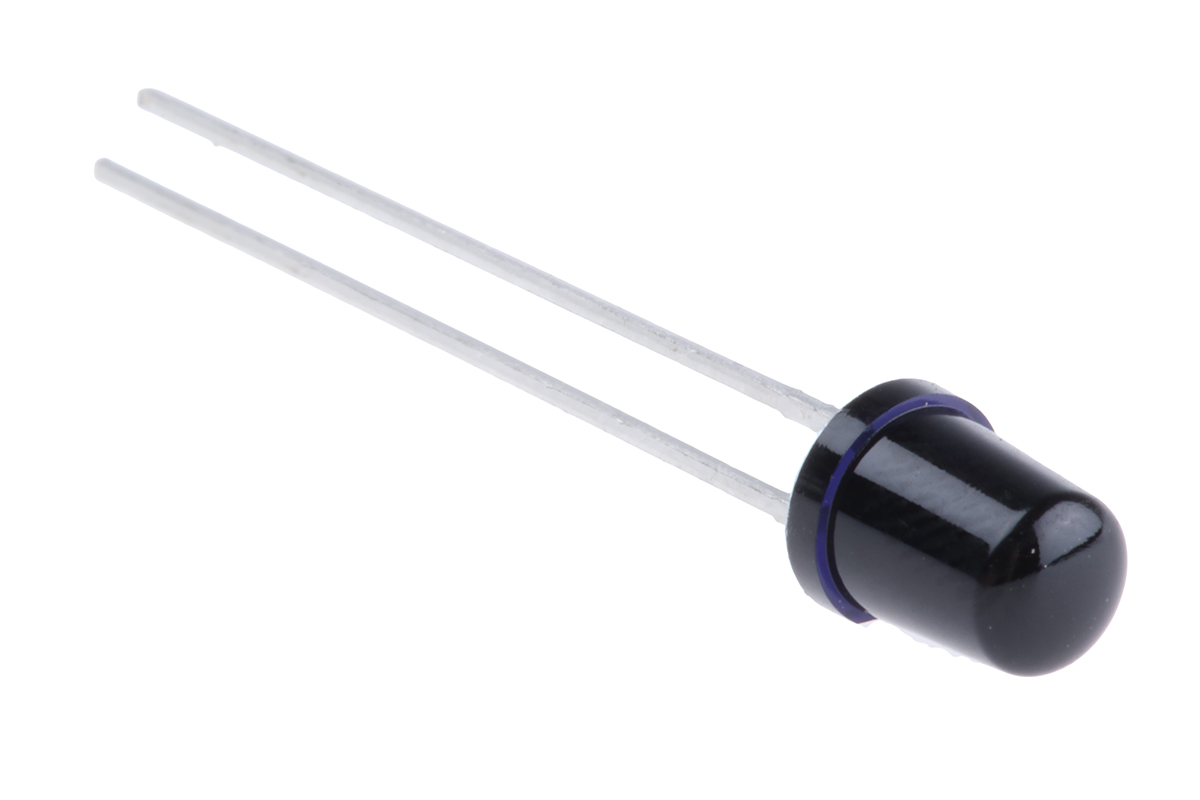

OSRAM Through-Hole 5mm (T-1 3/4) IR Emitters A range of Infrared (IR) emitters, from OSRAM Opto Semiconductors, in standard 5 mm (T-1 3/4) through-hole plastic packages. Some IR LEDs within this range are a spectral match with silicon photodetectors. <BR/>

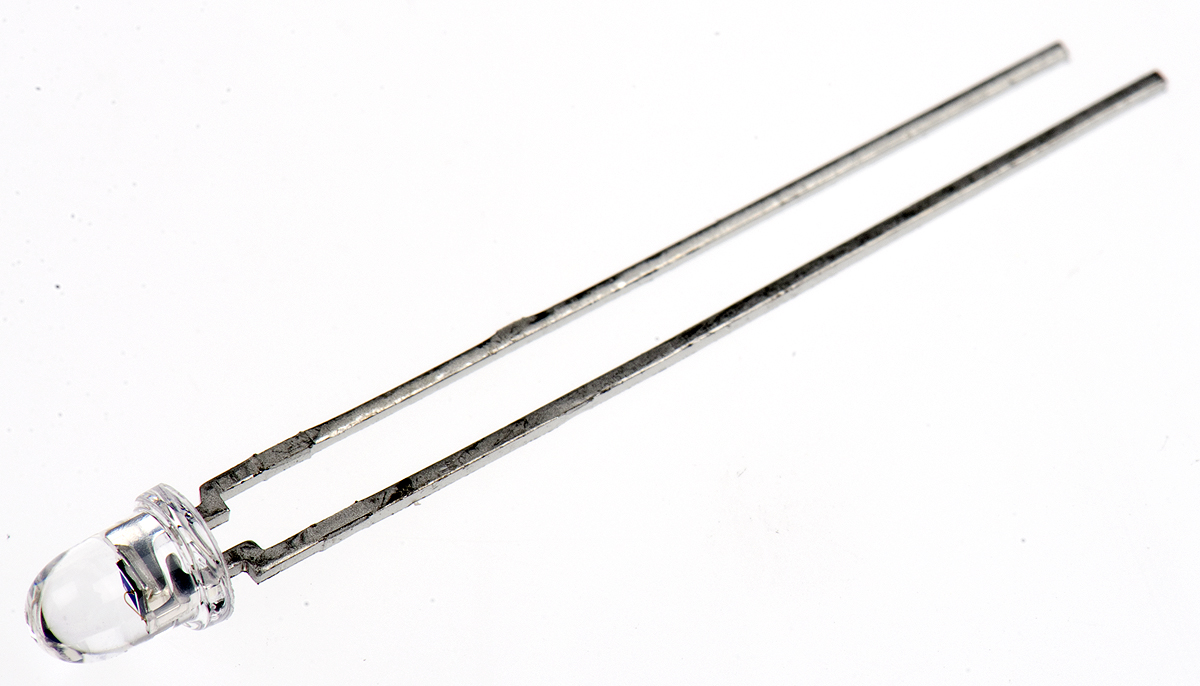

OSRAM Through-Hole 3mm (T-1) IR Emitters A range of Infrared (IR) emitters, from OSRAM Opto Semiconductors, in standard 3mm (T-1) through-hole plastic packages. Some IR LEDs within this range are a spectral match with silicon photodetectors. <BR/>

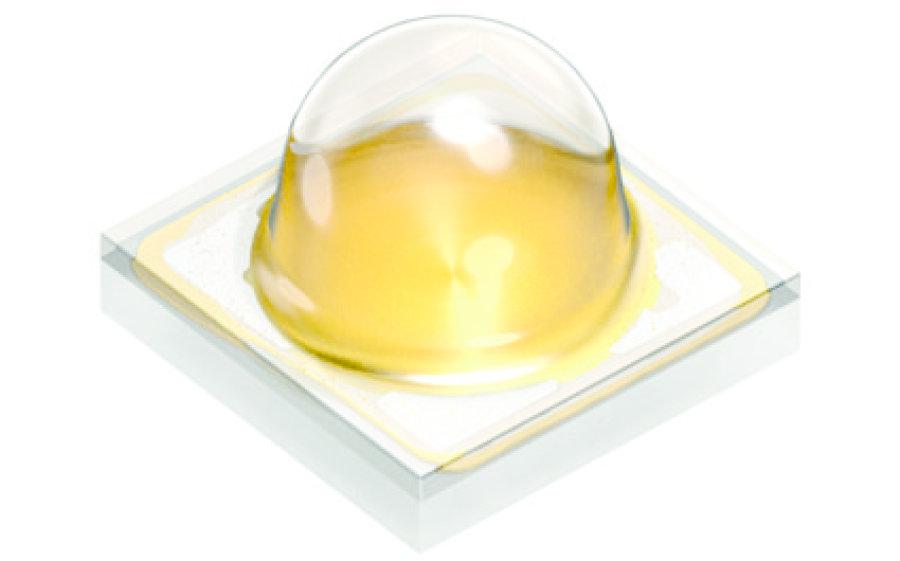

The OSRAM Opto Semiconductors red LED has well known superior robustness, high reliability, long lifetime, low thermal resistance. It is SMT ceramic package with silicone lens. It has applications in architecture and horticulture lighting. It has 8 kV ESD according to ANSI/ESDA/JEDEC JS-001. Typically it has 120° radiation<BR/>It has operating temperature from -40 °C to 125 °C

Silicon PIN Photodiode Suitable for reflow soldering<BR/>Especially suitable for applications from 400 nm to 1100 nm<BR/>small package: (WxDxH) 4 mm x 5.1 mm x 0.85mm<BR/>Solder control structure<BR/>Applications<BR/>Photo interrupters<BR/>Industrial electronics<BR/>Consumer electronics<BR/>For control and drive circuits<BR/>Remote control

OSRAM TOPLED Black Series LEDs The TOPLED Black series, from OSRAM Opto Semiconductors, are low power LEDs in a black standard package. Their black package allows the LEDs to offer a high contrast with low reflectivity and a high intensity output. These qualities make the TOPLED Black LEDs ideal for applications which require a high contrast, mostly in high ambient light conditions. The TOPLED black devices have a variety of viewing angles which are optimised for display applications, making the light focused on the viewer. <BR/>Suitable applications for the TOPLED Black LEDs include; information displays, public transport signs, price changer displays, symbol luminaires and variable message signs.<BR/> Features of the TOPLED Black LEDs:<BR/>- Black surface mount (SMT) package<BR/>- Focused radiation pattern: 30°, 60° and 120°<BR/>- Low power (binned at 20mA)<BR/>- High brightness in beam direction<BR/>- Variety of colours<BR/>- Footprint compatible with TOPLED and Power TOPLED

OSRAM TOPLED Black Series LEDs The TOPLED Black series, from OSRAM Opto Semiconductors, are low power LEDs in a black standard package. Their black package allows the LEDs to offer a high contrast with low reflectivity and a high intensity output. These qualities make the TOPLED Black LEDs ideal for applications which require a high contrast, mostly in high ambient light conditions. The TOPLED black devices have a variety of viewing angles which are optimised for display applications, making the light focused on the viewer. <BR/>Suitable applications for the TOPLED Black LEDs include; information displays, public transport signs, price changer displays, symbol luminaires and variable message signs.<BR/> Features of the TOPLED Black LEDs:<BR/>- Black surface mount (SMT) package<BR/>- Focused radiation pattern: 30°, 60° and 120°<BR/>- Low power (binned at 20mA)<BR/>- High brightness in beam direction<BR/>- Variety of colours<BR/>- Footprint compatible with TOPLED and Power TOPLED

OSRAM TOPLED Black Dome Lens Series LEDs The TOPLED Black series , from Osram Opto Semiconductors, is a range of mid-power LEDs in a standard PLCC-2 dome lens package. The black package, provides significantly higher contrast and lower reflectivity than comparable white-package LEDs, without compromising luminous intensity.This makes the TOPLED Black LED ideal for use in signs and displays including: information displays for traffic and public transport,price changing displays or for any kind of display lettering. Black SMT PLCC-2 package with dome lens<BR/>Pad layout compatible with TOPLED and Power TOPLED<BR/>Focused viewing angle

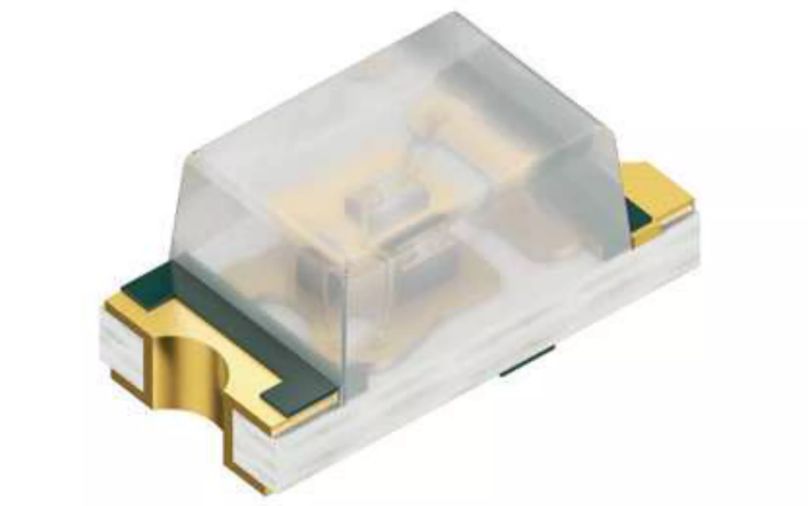

OSRAM CHIPLED 0603 Series LEDs The OSRAM CHIPLED 0603 series of LEDs, from OSRAM Opto Semiconductors, forms a part of the CHIPLED family. The CHIPLED 0402 come in the standard 0603 compact footprint. Ideal for applications that do not require a high powered LED, the CHIPLED 0603 can be used for various applications. These applications include; key/LCD-backlighting, eraser arrays, narrow distance displays or indicators for external modems.<BR/> Features of the CHIPLED 0603 LEDs:<BR/>Dimensions: 1.6 x 0.8 mm<BR/>Industry standard 0603 package<BR/>Flat (0.3 mm) packages available<BR/>Variety of colours<BR/>

OSRAM Mini TOPLED Series LEDs The Mini TOPLED series of LEDs, from Osram Opto Semiconductors, are small package devices with a high quality, directed light output. The Mini TOPLED LEDs have an integrated reflector and an extremely wide viewing angle. With their high brightness class, the Mini TOPLEDs offer a pleasant white light which is suitable for interior illumination in automotive applications. Their compact form factor makes the Mini TOPLEDs ideal for applications where space is limited, such as: Indoor displays, optical indicators, coupling into light guides, backlighting (LCD, switches, keys, displays, illuminated advertising, general lighting) and interior automotive lighting. (e.g. dashboard backlighting).<BR/> Features of the Mini TOPLED LEDs:<BR/>Compact SMT package<BR/>Dimensions: 1.8 x 2.2 mm<BR/>Viewing angle: 120°<BR/>Operating current: 20mA<BR/>High quality light output<BR/>Long lifetime: 50,000 hours<BR/>ESD stability: 8kV<BR/>Corrosion stability<BR/>Meets automotive industry standards

OSRAM TOPLED Series LEDs - Single Colour The TOPLED series of LEDs, from Osram Opto Semiconductors, are compact and highly reliable LED devices. As Osram&#146;s first SMT LED with an integrated reflector, the TOPLED family of LEDs are ideal for applications such as: indoor/outdoor displays, display backlighting, signal and symbol illumination. The TOPLEDs are also a suitable replacement for micro incandescent bulbs or floor marker lighting.<BR/> 3.4 x 3.0 x 2.1 mm PLCC-2 package size <BR/>Viewing angle 120°

OSRAM Mini TOPLED Series LEDs The Mini TOPLED series of LEDs, from Osram Opto Semiconductors, are small package devices with a high quality, directed light output. The Mini TOPLED LEDs have an integrated reflector and an extremely wide viewing angle. With their high brightness class, the Mini TOPLEDs offer a pleasant white light which is suitable for interior illumination in automotive applications. Their compact form factor makes the Mini TOPLEDs ideal for applications where space is limited, such as: Indoor displays, optical indicators, coupling into light guides, backlighting (LCD, switches, keys, displays, illuminated advertising, general lighting) and interior automotive lighting. (e.g. dashboard backlighting).<BR/> Features of the Mini TOPLED LEDs:<BR/>Compact SMT package<BR/>Dimensions: 1.8 x 2.2 mm<BR/>Viewing angle: 120°<BR/>Operating current: 20mA<BR/>High quality light output<BR/>Long lifetime: 50,000 hours<BR/>ESD stability: 8kV<BR/>Corrosion stability<BR/>Meets automotive industry standards

OSRAM PointLED Series LEDs The POINTLED series of LEDs, from Osram Opto Semiconductors, has a diameter of only 2mm so fits easily into a simple drill hole to sit flat against the PCB. Featuring a symmetrical radiation pattern, these versatile LEDs are ideal for applications such as: keypad illumination, display backlighting, coupling to light guides or automotive interior lighting. 2mm diameter package size <BR/>Viewing angle 120°<BR/>Reverse through-hole mount ideal for flat backlight (stock no. 654-6164 is Top mount)
