CALYS 50 calibrator Maintenance tool which gathers all of the signals in the manufacturing process: voltage, current, resistance, temperature using resistance probes and thermocouples, Frequency, counting and measurement and simulation of dry contacts.<BR/>Simultaneous measurement and emission.<BR/>Double display (measurement / emission) screen with indication of date / time and ambient temperature.<BR/>'Easyconnect", ultra simple connection system, which accepts sockets, bare wires, terminals and banana plugs as well as flat thermocouple connectors.<BR/>Graphic screen display with date and time, backlit with adjustable contrast. Selectable display resolution of 1, 2 or 3 digits after the decimal point.<BR/>Display of measurement statistics: Min, Max and Average.<BR/>Emission of ramps and increments to test the linearity and the range of transmitters, with retarder function.<BR/>Integrated valve test.<BR/>Scaling for quadratic and linear signals.<BR/>Scaling for sensor correction.<BR/>Compatible with HART transmitters.<BR/>USB port for downloading software.<BR/>Supplied with measurement wires, strap and stand.

Aoip Instrumentation Calibrator The Aoip Instrumentation calibrator is a basic multifunction calibrator from the CALYS range. It is the perfect tool for advanced process maintenance and can be used on the test bench in many industries. It is suitable for both field and lab measurements. This product can simultaneously measure and generate over two isolated channels, various signals of temperature, resistance, process and frequency in one single instrument. This calibrator is fully protected by an antichoc rubber holster. It integrates "easy connect" terminals and a wide backlit display that makes it easy to use in low light conditions. This tool gathers all the signals in the manufacturing process: voltage, current, resistance, temperature using resistance probes and thermocouples, frequency, counting and measurement and simulation of dry contacts. Features and Benefits Simultaneous measures and simulates current range up to 50mA and voltage up to 50V IN / 20V OUT range<BR/>Double display (measurement/emission) screen with an indication of date/time and ambient temperature<BR/>'Easy connect", ultra-simple connection system, which accepts sockets, bare wires, terminals and banana plugs as well as flat thermocouple connectors<BR/>Graphic screen display with date and time, backlit with adjustable contrast<BR/>Selectable display resolution of 1, 2 or 3 digits after the decimal point<BR/>Display of measurement statistics for min, max and average values<BR/>Emission of ramps and increments to test the linearity and the range of transmitters, with retarder function<BR/>Integrated valve test<BR/>Scaling for quadratic and linear signals<BR/>Scaling for sensor correction<BR/>Compatible with HART transmitters<BR/>USB port for downloading software<BR/>Supplied with measurement wires, strap and stand Applications Process control automation<BR/>Manufacturing<BR/>Instrumentation Certifications IP54 rated

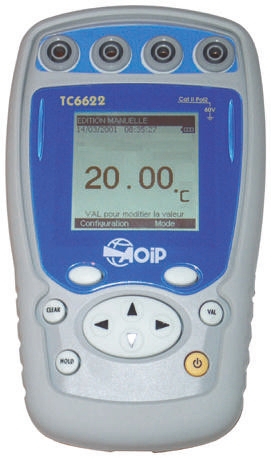

RTD PT100 TC6622 calibrator Single function temperature calibrator using resistance probes.<BR/>Simulation of signals from a resistance probe and in Ohms.<BR/>Measurement of signals from a 4-wire resistance probe and in Ohms.<BR/>13 types of probes: Pt50, Pt100, Pt 200, Pt 500, Pt1000, JPT100, Ni100, Ni120, Ni1000, CU10, Cu50.<BR/>Automatic recognition of the number of wires connected.<BR/>Calibration of transmitters, taking measurements on site.<BR/>Quick simulation of resistive probes for application on latest generation recorders and transmitters.<BR/>Memorisation of 10,000 values with a trends and statistics curve.<BR/>Emission of ramps and increments to test the linearity and the range of transmitters, with retarder function.<BR/>Display on graphic screen with date and time and backlighting with adjustable contrast.<BR/>Display in °C, °F or corresponding value in Ohms.<BR/>Menus with online help and probe connection assistance.<BR/>Display resolution selectable up to 0.01 °C or 0.01 °F.<BR/>Impact proof sheathing.<BR/>Power supply: 4 AA batteries or battery / charger kit built into the back of the instrument.<BR/>USB socket for downloading.

RTD PT100 TC6622 calibrator Single function temperature calibrator using resistance probes.<BR/>Simulation of signals from a resistance probe and in Ohms.<BR/>Measurement of signals from a 4-wire resistance probe and in Ohms.<BR/>13 types of probes: Pt50, Pt100, Pt 200, Pt 500, Pt1000, JPT100, Ni100, Ni120, Ni1000, CU10, Cu50.<BR/>Automatic recognition of the number of wires connected.<BR/>Calibration of transmitters, taking measurements on site.<BR/>Quick simulation of resistive probes for application on latest generation recorders and transmitters.<BR/>Memorisation of 10,000 values with a trends and statistics curve.<BR/>Emission of ramps and increments to test the linearity and the range of transmitters, with retarder function.<BR/>Display on graphic screen with date and time and backlighting with adjustable contrast.<BR/>Display in °C, °F or corresponding value in Ohms.<BR/>Menus with online help and probe connection assistance.<BR/>Display resolution selectable up to 0.01 °C or 0.01 °F.<BR/>Impact proof sheathing.<BR/>Power supply: 4 AA batteries or battery / charger kit built into the back of the instrument.<BR/>USB socket for downloading.

Aoip Thermocouple Calibrator The Aoip thermocouple calibrator with RS calibration is a handheld temperature device for thermocouples or resistive probes, equipped with a large graphical display and memory. It measures voltage ranging between -10mV and 100mV. This temperature calibrator measures or generates thermocouple temperatures (16 different types) and voltage with an accuracy of 0.02%. TC calibrators use a graphical interface, making programming and reading easier under graphical or test format. It is delivered with 4 alkaline AA batteries in the standard. The optional battery charger used a rechargeable battery. Features and Benefits High accuracy: 0.02% reading with an adjustable resolution of 1μV (TC 6621) <BR/>Values displayed in °C, °F, mV and ohm<BR/>Low-temperature coefficient: 10ppm/°C for thermocouples and 7ppm/°C for resistance<BR/>Measurements with HOLD function<BR/>Simulation of ramps, pre-programmed steps and synthesizer values<BR/>Correction of calibrated sensors<BR/>10,000 values stored and displayed graphically<BR/>Display resolution is selectable up to 0.1°C

AOIP micro-ohmmeter for field use The micro-ohmmeter for field use is able to measure metallisation type or winding measurement low resistances on site and has a long battery life.<BR/>Measuring current of up to 10 A - Resolution 0.1 μΩ.<BR/>Ranges from 5 mΩ → 2500 Ω.<BR/>Choice of type of resistance measured - selfic or non-selfic. <BR/>DC measurement.<BR/>Measurement trigger: Manual or automatic.<BR/>Pliers and measurement points connected by locking sockets to avoid connection errors and unwanted disconnections.<BR/>Measurements on 4 wires of pure and highly selfic resistances such as:<BR/>- Power supply cable<BR/>- Earthing check:<BR/>- Mechanical connection:<BR/>- Engine, windings, high power transformers<BR/>-Metallisation and resistance of contacts<BR/>-Measurement on fuses<BR/>- Cable strands.<BR/>Recording of 1500 values with identification and reading on the display or using the LOG OM software.<BR/>Automatic compensation for EMF parasites, eliminating errors in measurement.<BR/>Display of the measured resistance value at a programmable temperature in °C, depending on the ambient temperature and the temperature coefficient of the metal being measured.<BR/>Power supply with quick-charge battery, providing 5000 measurements at 10A.<BR/>Integrated battery charger, 90 → 264 V / 45 → 420 Hz.

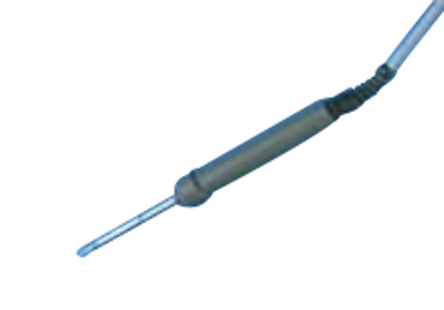

AOIP OM 16 micro-ohmmeter Accessories A range of accessories for use with OM 16 micro-ohmmeter. Test Probe AMT 005 Mounted on metallic rod with handle<BR/>5 m cord and locking socket adapted to the OM 16 micro-ohmmeter<BR/>Measurement is taken by pressing a point (voltage reading) mounted on a spring. This measurement is taken when the fixed concentric part (arrival of current) makes contact with the part to be measured. Kelvin Clamp / Clip AMT 006 Fitted with a 5 m cord and a locking socket adapted to the OM16<BR/>Permanently takes a current of 10 A

AOIP OM 16 micro-ohmmeter Accessories A range of accessories for use with OM 16 micro-ohmmeter. Test Probe AMT 005 Mounted on metallic rod with handle<BR/>5 m cord and locking socket adapted to the OM 16 micro-ohmmeter<BR/>Measurement is taken by pressing a point (voltage reading) mounted on a spring. This measurement is taken when the fixed concentric part (arrival of current) makes contact with the part to be measured. Kelvin Clamp / Clip AMT 006 Fitted with a 5 m cord and a locking socket adapted to the OM16<BR/>Permanently takes a current of 10 A

Winding resistance tester resolution 10μΩ AOIP OM10 The OM10 micro-ohmmeter measures all resistances and windings from 10 μΩ (resolution) → 50 kΩ.<BR/>Ranges from 500 mΩ → 50 kΩ.<BR/>Portable and self-contained field enclosure with stand for tabletop use.<BR/>Measurements on 4 wires for resistances such as:<BR/>- Power supply cable<BR/>- Weight continuity braid<BR/>- Contact resistance<BR/>- Mechanical connection (solder)<BR/>- Motor<BR/>- Transformer.<BR/>Automatic compensation for EMF parasites, eliminating errors in measurement.<BR/>Display of the measured resistance value at 20 °C, depending on the ambient temperature and the temperature coefficient of the metal being measured.<BR/>Power supply via integral rechargeable battery or mains power.<BR/>Delivered in carry case with instructions and mains charger adapter.
