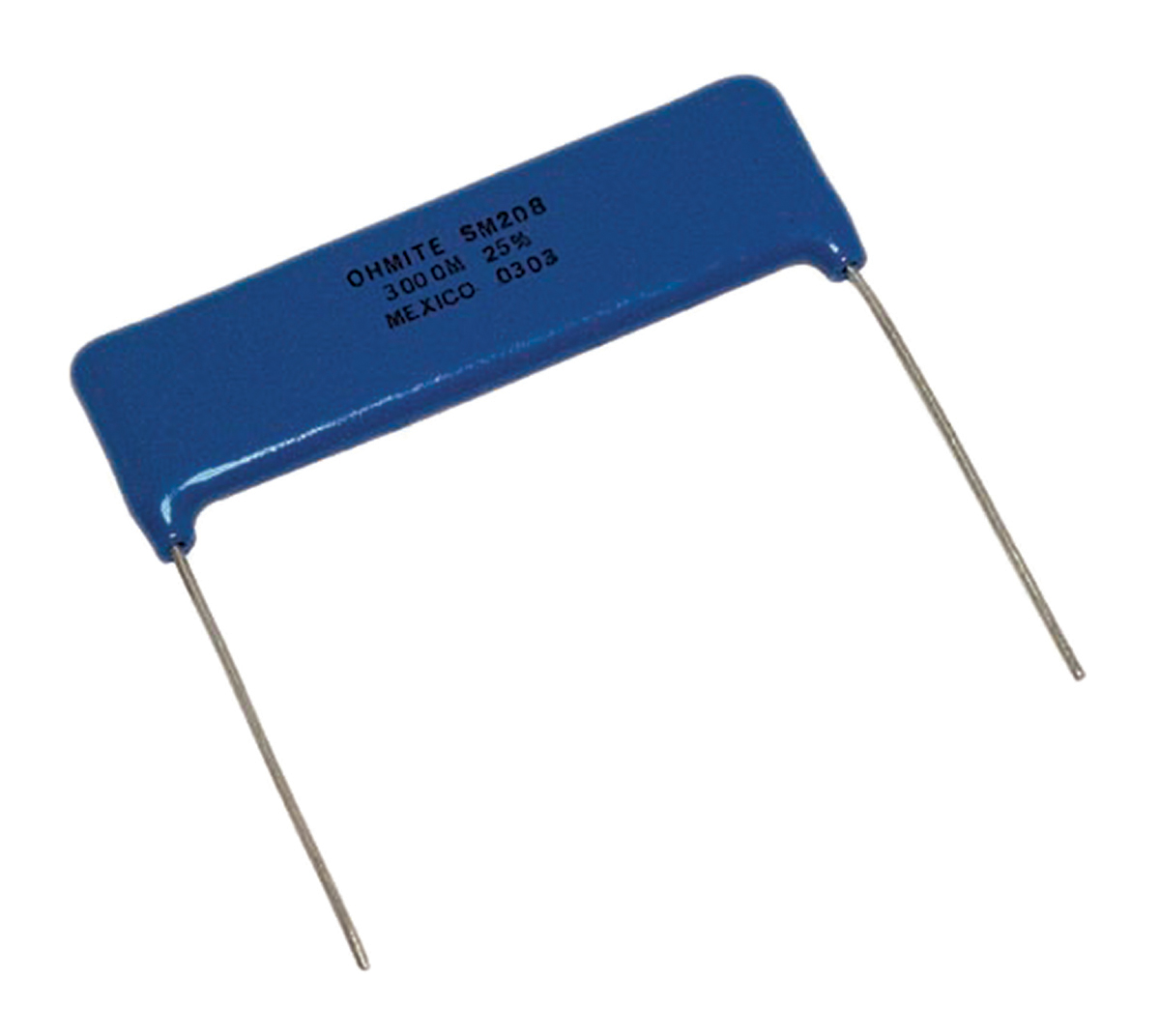

Ohmite Slim-MOX Series Precision Thick Film Resistors Ohmite Slim-MOX series precision thick film resistors provide stable performance for a wide range of resistance values, with voltage ratings up to 25K. Low temperature coefficients are available for high stability circuit applications. The space-saving Planar package offers an alternative to traditional high-voltage resistors. Features & Benefits: High dielectric and low outgassing epoxy coatingLow resistor noiseNon-inductiveRoHS compliantRadial terminals

The Arcol Ohmite Heatsink e VR series offers a low profile, large surface area and is configurable using a universal cam clip system. The VR series is designed to accommodate TO-220, TO-247, and high power IXYS packages. The VR series is thru hole soldered onto PCBs and is ideal for compact (1U or 2U) packaging with forced convection cooling. Heat Sink AL6063-T5Spring clip music wire, per ASTM A228 with bright nickel platingSolder feet steel or brass with pure tin platedRoHS compliant

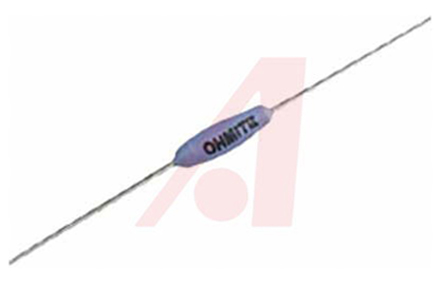

40 Series Wirewound Axial Resistors Ohmite 40 Series resistors are economical conformal silicone-ceramic coated resistors. These all-welded resistors are characterised by their low temperature coefficients and resistance to thermal shock, making them ideal for a wide range of electrical and electronic applications. EconomicalDesigned for commercial, industrial and communications equipmentStability under high temperature conditionsAll-welded constructionRoHS compliant

The Arcol Ohmite product is an HVC series precision high value high voltage wraparound chip resistor available in thick film construction technology. It is mostly suitable for high vacuum applications. It also offers an high working voltage up to 6000 volts. High value chip resistors in thick film technologyLow temperature and voltage dependency low TCR and VCRHigh working voltage up to 6000V Suitable for high vacuum applications no organicsContact areas are nickel barrier or matte tinWraparound terminals

Ohmite’s Slim-Mox provides stable performance for a wide range of resistance values, with voltage ratings up to 25K. Low temperature coefficients are available for high stability circuit applications. The space-saving planar package offers an alternative to traditional high voltage resistors. Multiple taps are provided on the Slim-Mox RD for use in advanced circuit designs. Tight ratio tolerances make these resistors ideal for precision applications requiring consistent performance. The Slim-Mox HT provides a higher power rating for high ambient temperature environments. Appropriate for mounting near heat generating components. The Slim-Mox HT is finished with a rugged silicone coating suitable for most environments.

The Arcol Ohmite HS Range of aluminium housed resistors has been designed for a variety of solder, cable, threaded and fast on terminations. If you need a special termination design for your application. High Power to volumeWound to maximise High Pulse CapabilityValues from R005 to 100KCustom designs welcome

Ohmite 210 Series Wirewound Adjustable Power Resistors Ohmite 210 series adjustable power resistors for applications requiring settings at different resistance values. These wirewound resistors are equipped with an adjustable lug, making them ideal for adjusting circuits, obtaining odd resistance values and setting equipment to meet various line voltages. The 210 series resistors feature a hollow core to permit secure fastening with spring-type clips or thru bolts with washers. They also offer the durability of lead free vitreous enamel coating and all-welded construction. Terminals suitable for soldering or bolt connection.Adjustable lug suppliedHigh wattage applicationsAll-welded constructionRugged lead free vitreous enamel coating.Flame resistant coatingRoHS compliant

Ohmite’s Slim-Mox provides stable performance for a wide range of resistance values, with voltage ratings up to 25K. Low temperature coefficients are available for high stability circuit applications. The space-saving planar package offers an alternative to traditional high voltage resistors. Multiple taps are provided on the Slim-Mox RD for use in advanced circuit designs. Tight ratio tolerances make these resistors ideal for precision applications requiring consistent performance. The Slim-Mox HT provides a higher power rating for high ambient temperature environments. Appropriate for mounting near heat generating components. The Slim-Mox HT is finished with a rugged silicone coating suitable for most environments. Outstanding voltage coefficientHigh temperature silicone coatingLow resistor noiseNon-inductiveRoHS compliantRadial Terminals

Ohmite Slim-MOX Series Precision Thick Film Resistors Ohmite Slim-MOX series precision thick film resistors provide stable performance for a wide range of resistance values, with voltage ratings up to 25K. Low temperature coefficients are available for high stability circuit applications. The space-saving Planar package offers an alternative to traditional high-voltage resistors. Features & Benefits: High dielectric and low outgassing epoxy coatingLow resistor noiseNon-inductiveRoHS compliantRadial terminals

Small size and light weightSuitable for both wave and reflow solderingCan withstand high surgeReduction of assembly costs

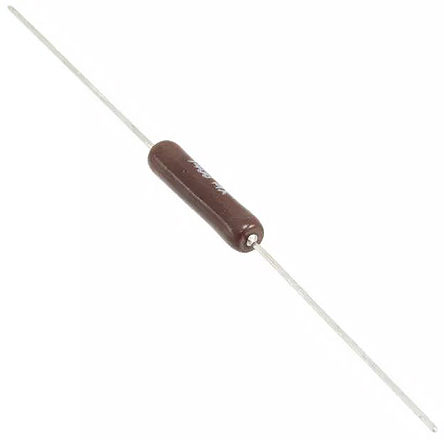

Ohmite 10 Series Current Sense Resistors Ohmite 10 Series are current sense axial resistors. Two versions of the 10 series axial resistors are available, with either two terminals or four terminals.The four termination variation is designed for use in a Kelvin configuration. This configuration allows a current to be applied through two opposite terminals while the sensing voltage is measure across the other two terminals. The temperature coefficient of the terminals and the resistance is practically eliminated by the Kelvin configuration. The use of four terminals enables a lower self-heating drift and lower temperature coefficient of resistance than traditional two terminal axial resistors. Features 1% tolerance as standard, but other options are availableThese axial resistors are low inductance and non-inductive below 0.25 ΩEncapsulated in a silicone compoundFour terminal variations have tinned copper leads, while two terminals variations feature solder plated copper or copper clad steel terminalsRoHS Compliant Product Application Information 10 series axial resistors are suitable for current sensing applications. The four terminal variations are ideal for low resistance applications requiring the highest accuracy and temperature stability.

The Arcol Ohmite HS Range of aluminium housed resistors has been designed for a variety of solder, cable, threaded and fast on terminations. If you need a special termination design for your application. High Power to volumeWound to maximise High Pulse CapabilityValues from R005 to 100KCustom designs welcome
