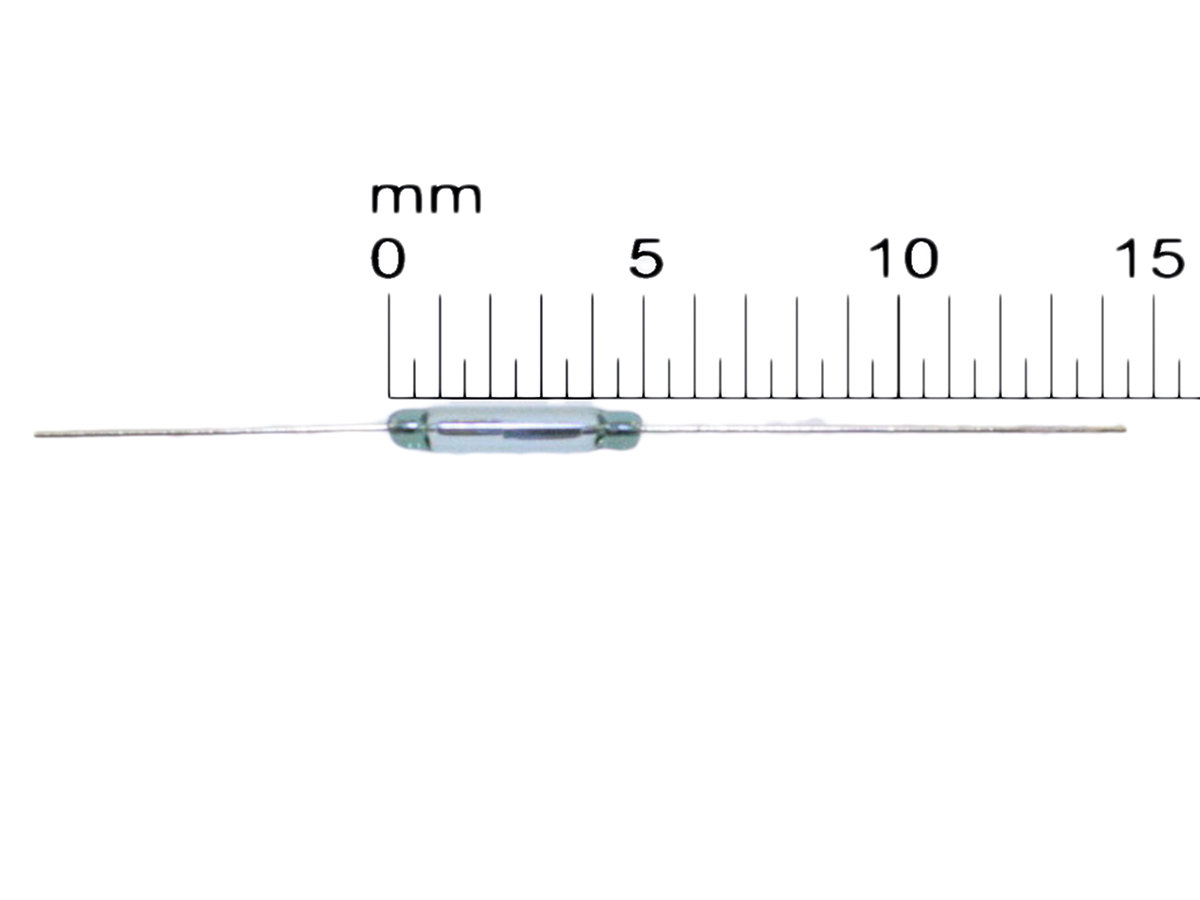

Form A & C Reed Switches These dry-reed switches have been hermetically sealed in a gas-filled glass envelope. Actuation is done with an electro-magnet, a permanent magnet or a combination of both. If you prefer, they can be placed alongside a coil and actuated when a current is applied to the coil. They feature single pole, single throw, normally open contacts and have two magnetically actuated reeds.There is a wide selection to choose from. You can select different lengths and each length has various sensitivity options. Hermetically sealedForm A (SPNO) or form C (SPCO) ruthenium or rhodium plated contactsMechanical Life 108 OperationsFor suitable magnets, see stk. no 362-2401 typically

Solid State, Dual O/P, Magnetically Activated Prewired in a flame retardant Crastine (GFFR) housing N/O collector outputPNP or NPN outputBounce free switching up to 10kHzSealed to IP67Cable length 130mmDimensions 30 x 20 x 7 mm

Tilt with Changeover Contacts Steel gold plated housingHermetically sealed constructionGold plated contactsDimensions: Length 26mm (inc. pins) Body Dia. 6.5mmDifferential angle 35°

Form A & C Reed Switches These dry-reed switches have been hermetically sealed in a gas-filled glass envelope. Actuation is done with an electro-magnet, a permanent magnet or a combination of both. If you prefer, they can be placed alongside a coil and actuated when a current is applied to the coil. They feature single pole, single throw, normally open contacts and have two magnetically actuated reeds.There is a wide selection to choose from. You can select different lengths and each length has various sensitivity options. Hermetically sealedForm A (SPNO) or form C (SPCO) ruthenium or rhodium plated contactsMechanical Life 108 OperationsFor suitable magnets, see stk. no 362-2401 typically

Assemtech Rectangular Proximity Reed Switches This range of rectangular magnetic proximity reed switches from Assemtech are designed to provide a simple and cost effective solution to position or limit sensing applications. Reed switches are often employed to carry out such functions as linear actuator switches, security system switches and door switches. Moulded switch case with 2 slotted fixing holesRobust sealed switchChangeover version available

Fully Encapsulated Contact Form A - Normally open24Vac and 70Vac version availableOperating temperature range: -20 to +70°C (24V); -25 to +70°C (70V)Pin pitch 12mmContact resistance 200mΩ (24V); 150mΩ (70V)

Form A & C Reed Switches These dry-reed switches have been hermetically sealed in a gas-filled glass envelope. Actuation is done with an electro-magnet, a permanent magnet or a combination of both. If you prefer, they can be placed alongside a coil and actuated when a current is applied to the coil. They feature single pole, single throw, normally open contacts and have two magnetically actuated reeds.There is a wide selection to choose from. You can select different lengths and each length has various sensitivity options. Hermetically sealedForm A (SPNO) or form C (SPCO) ruthenium or rhodium plated contactsMechanical Life 108 OperationsFor suitable magnets, see stk. no 362-2401 typically

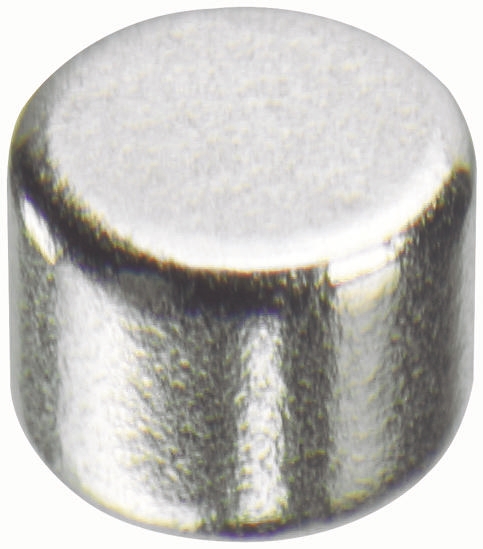

Reed Operating Magnets For use with reed switches

Accessories

Ferrite magnet This magnet is particularly suitable for switching controls for reed switches,magnetoresistive sensors, etc.

Encapsulated Tilt Cylindrical and Rectangular polypropylene housed Tilt switches rated to IP65 Hermetically sealed, gold plated contactsCylindrical type prewired with 150mm of 2 core PVC cable, Rectangular type prewired with 300mm of 2 core PVC cableDifferential angles: cylindrical tilt switch 15°, rectangular 16°

Tip-over Switches - Housed & 1 Pin Hermetically sealed steel tin plated switch, available with or without a polypropylene housingGold plated contactsHoused type is rated to IP65 and is prewired with 150mm of 2 core PVC cable
