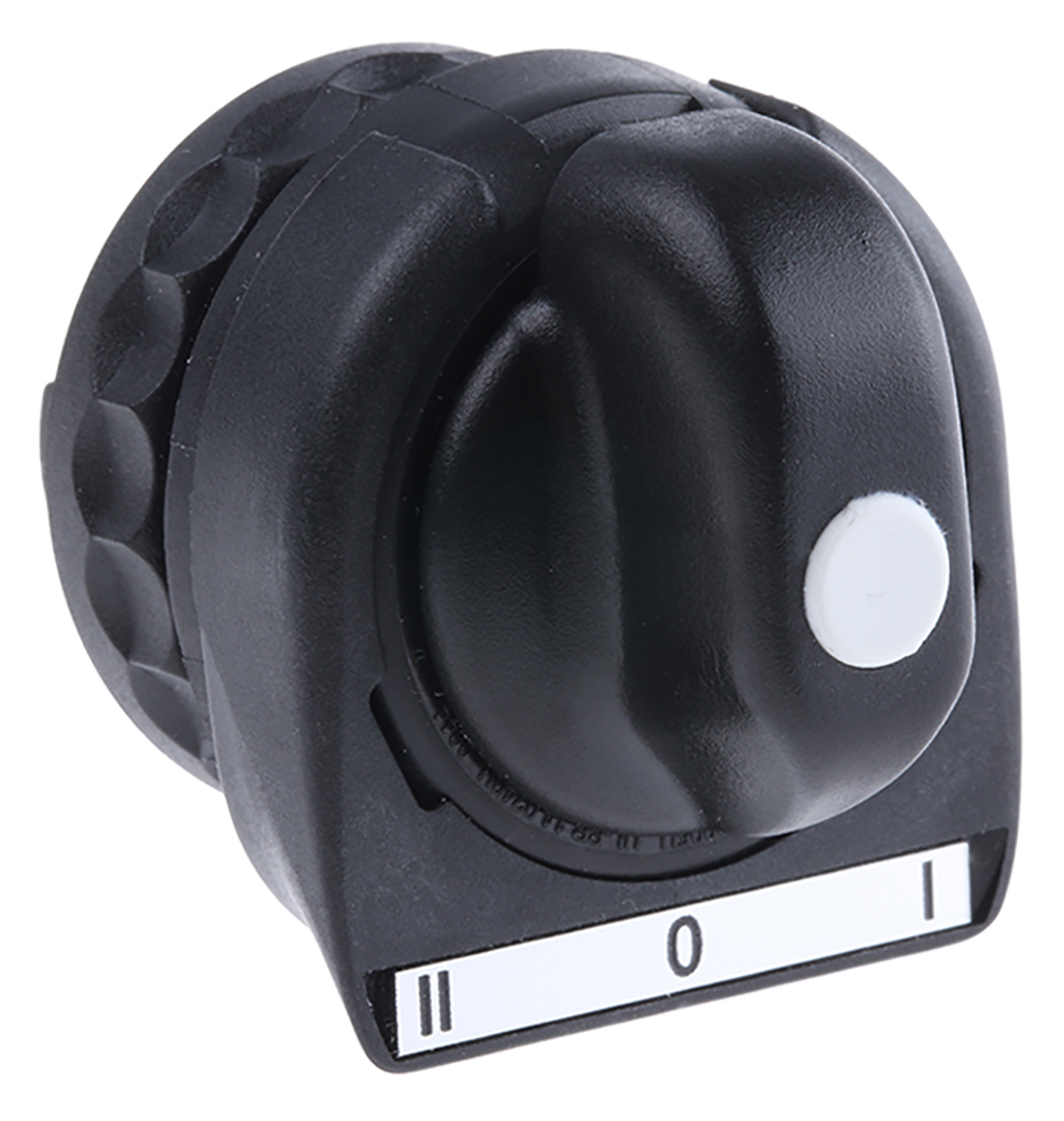

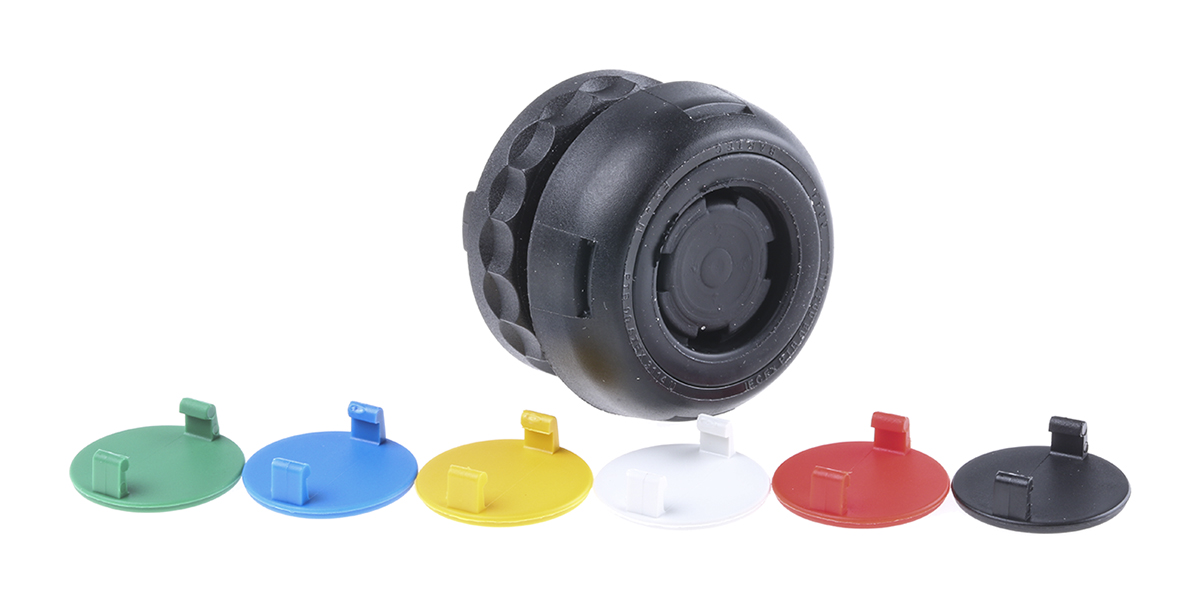

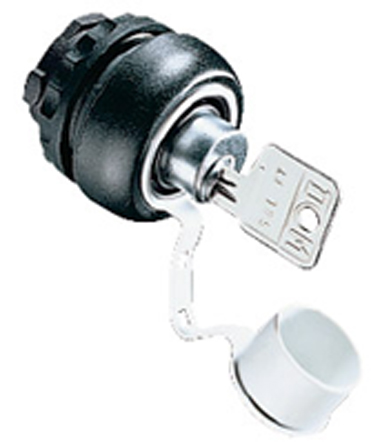

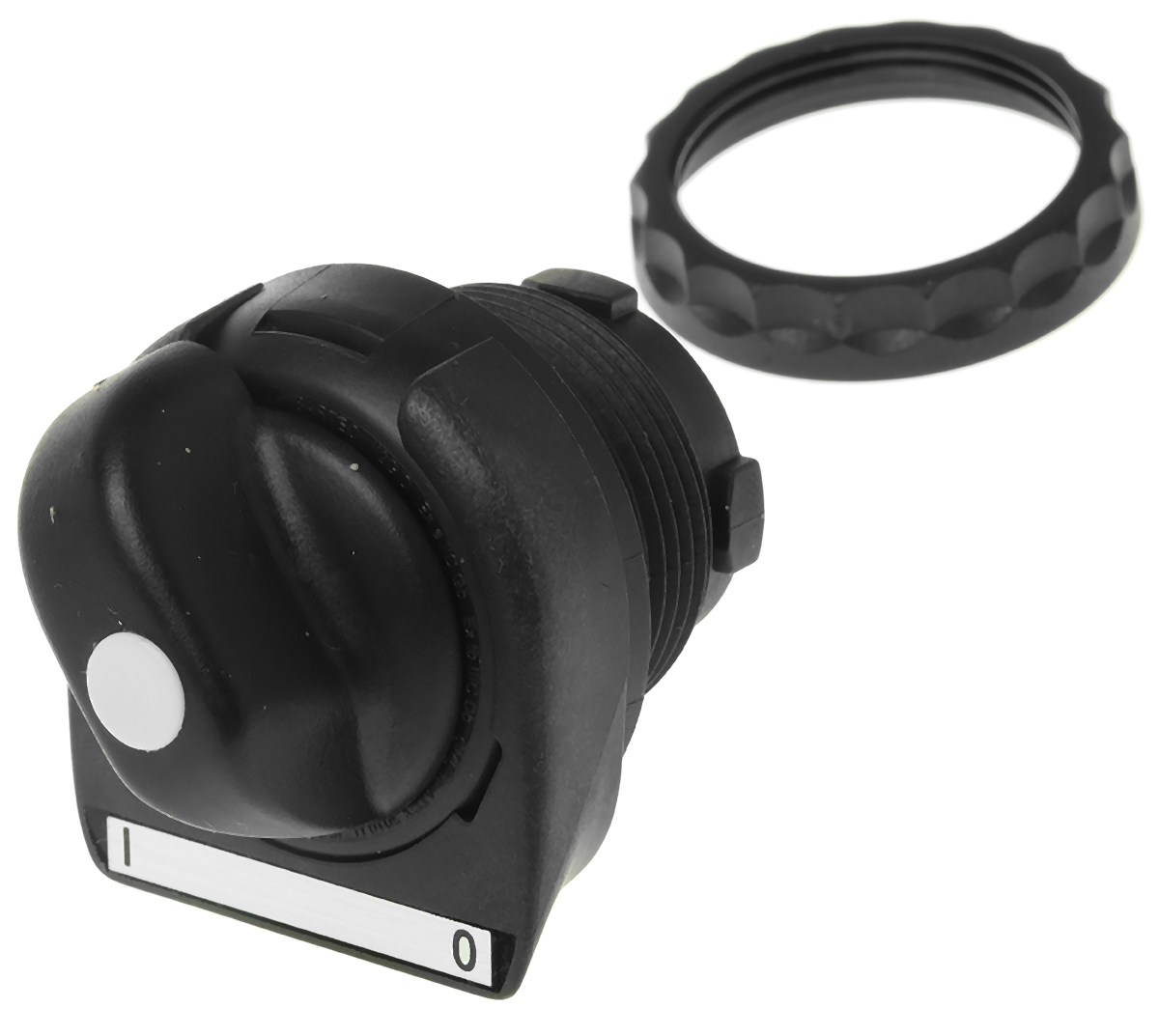

Switch and Lamp Modules Switch modules from Bartec can be used in almost all hazardous areas where machine functions are activated by means of a button or a switch. The ComExflex is flexible and in addition to a large number of actuating elements it, it has a junction box. The junction boxes facilitate the use of ComExflex in a control console or a control panel. The junction box features a cable gland and can be combined with various function modules. All contacts in the switch modules are self-cleaning and the opening contacts have positive opening operation. The ComExflex lamp module indicates command modes by means of a light signal lighting up or going out. It is suitable for use in almost all hazardous areas which a visual indication of a machines functional status is required. The lamp module can be combined with various lamp module actuating elements. Lamp module comes combined with a push button actuating element and junction box One module for all fields of application Illumination 180° High flexibility due to junction box Low installation depth Mounting locked, bayonet lock Hazardous Area Actuators & Contact Blocks Panel mounting, with a wide range of switch contact arrangements and elements including; selector switches, key switches, standard pushbuttons and an emergency stop pushbutton. The actuators and lens units require a 30.5mm mounting hole. Ingress protection is to IP66 and they are component-approved in their own right. Switch and lamp modules include three metres of encapsulated cable. Switch modules include a wipe clean action and are rated up to 230Vac/16A (circuit type AC-12). The N/C contact has a positive break action.,The electronic circuitry of each lamp module self configures to allow the lamps to be used over a wide range of ac and dc voltages.,A simple cam arrangement on the modules provides a rapid method for the fitting of the actuators.

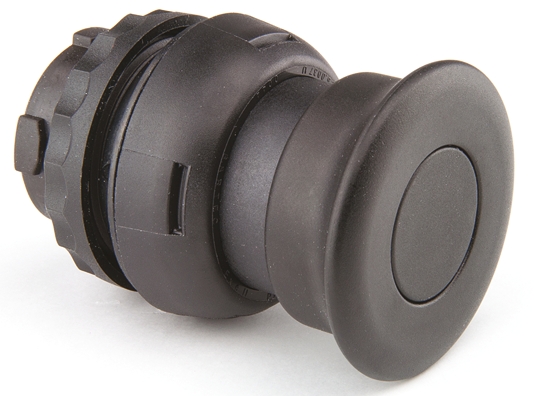

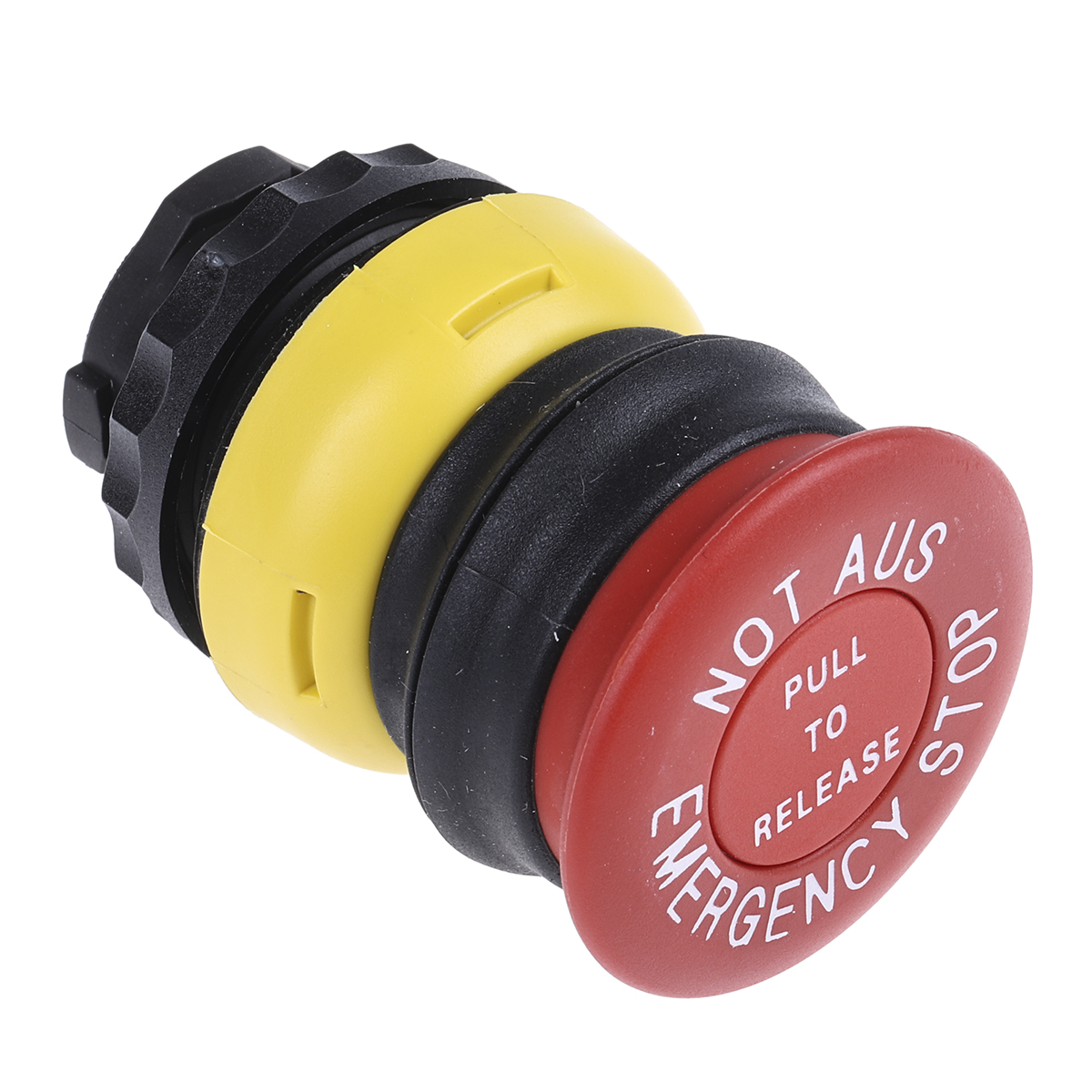

Single Emergency Stop Pull-to-reset, designed to prevent accidental operation Lockable version is padlockable in the actuated position to prevent restart Approvals II 2 G EEx e d IIC T6 Bartec Hazardous Area Control stations for Zones 1 and 2 made from anti-static and impact-resistant polymer. Normally closed contacts are positive break Fitted with two terminals each side of contacts for loop-in applications Switching capacities: 250V a.c./16A (AC12); 230V a.c./10A (AC15); 24V d.c./1A (DC13) and 110V d.c./0.5A LED lamps (on stations with indicators) operate from 24 to 48V d.c. or 24 to 230V a.c. Ingress protection to IP66/67 Reduced side walls to allow easy access to switch and lamp modules Units can be joined together to form pendants or larger control stations by using a coupler kit Terminals: 0.5 to 2.5mm 2 conductors Two earth terminals fitted as standard in each unit Cable entry M20 x 1.5mm (bottom face)

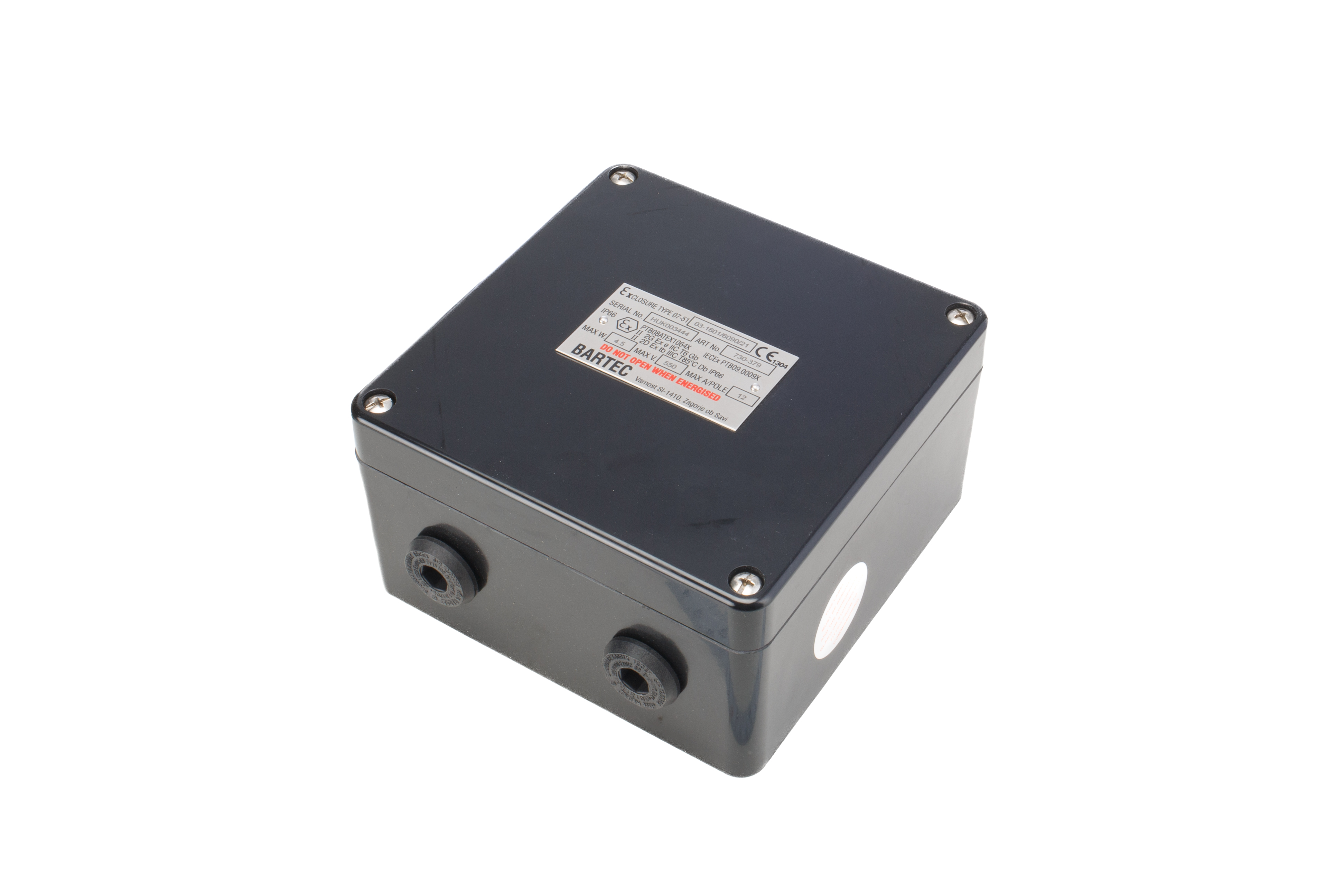

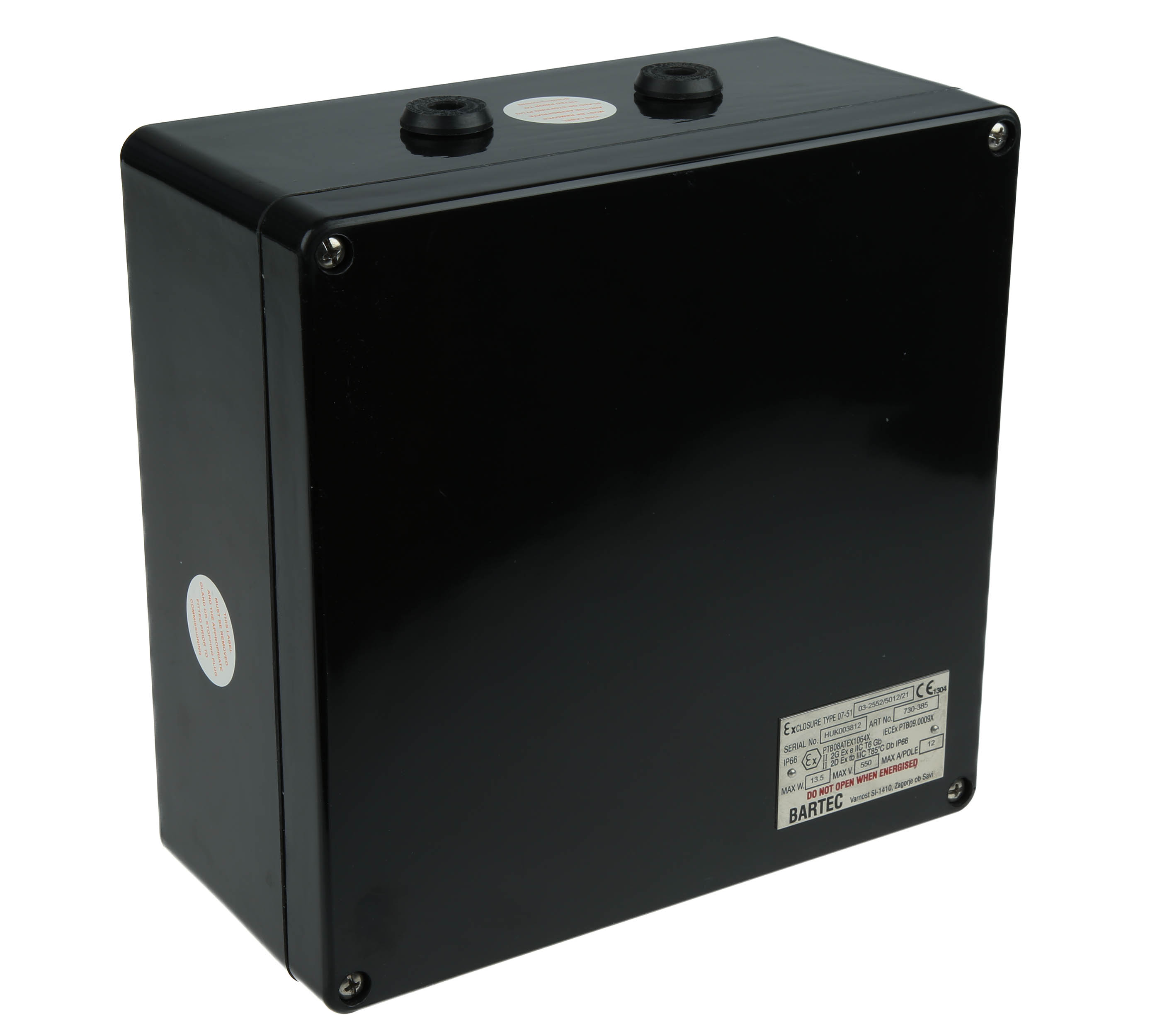

Control Gear and Switchgear IP66 Introducing the range of GB-terminal junction boxes from Bartec. Manufactured of high impact resistance, glass-fibre reinforced polyester SMC & DMC providing extraordinary stability and corrosion resistance. The standard enclosure consists of black, antistatic material. All boxes have been tested and approved by the BASEEFA authorities according to the latest European Standards. These correspond to the requirements of the EC directive 94/9/EC (ATEX). Features and Benefits: • Made from high-quality antistatic, glass-fibre reinforced polyester • Operating temperature from -25 °C to +40 °C (-55°C to +65°C for extended ambient temperature range only)• IP66 water resistance • High impact energy (greater than 2 x 7 Nm)• Flame retardant: IEC 92.1, UL94VO• Shock Resistant with pre-punched fixing holes• External earth connection• ATEX and BASEEFA certified• Available in black Junction boxes are available in variety of sizes: Bartec ATEX Junction Box, IP66, 122mm x 120mm x 90mm (730-363)Bartec ATEX Junction Box, IP66, 160mm x 160mm x 90mm (730-379)Bartec ATEX Junction Box, IP66, 255mm x 250mm x 120mm (730-385) Typical Application: Junctions Boxes are primarily used in building construction and are designed to provide protection to wiring circuits and electrical connections for easy access. Boxes are usually made from metal or heavy-duty plastic and in most situations can be used both indoor and outdoor due to water and impact resistance. Typically junction boxes are used for:• Connecting additional sockets to circuits• Adding lighting points• Extending circuits• Electricity circuit repairs Approvals & Certification: • ATEX EC directive 94/9/EC• BAS 98 ATEX 3089U• BASEEFA• EN 50014• EEx II 2G, EEx e II T6 increased safety• IP 66 (IEC 144/EN 60529) FAQs: Does this box come with terminal?No, these boxes do not come with terminals.What's included in the set? Boxes are supplied complete with:• 4 screws• instruction sheet

Single Indicator Lamp Mulit-voltage LED green or red lamp unit, as part of the Bartec ComEx control stations range.

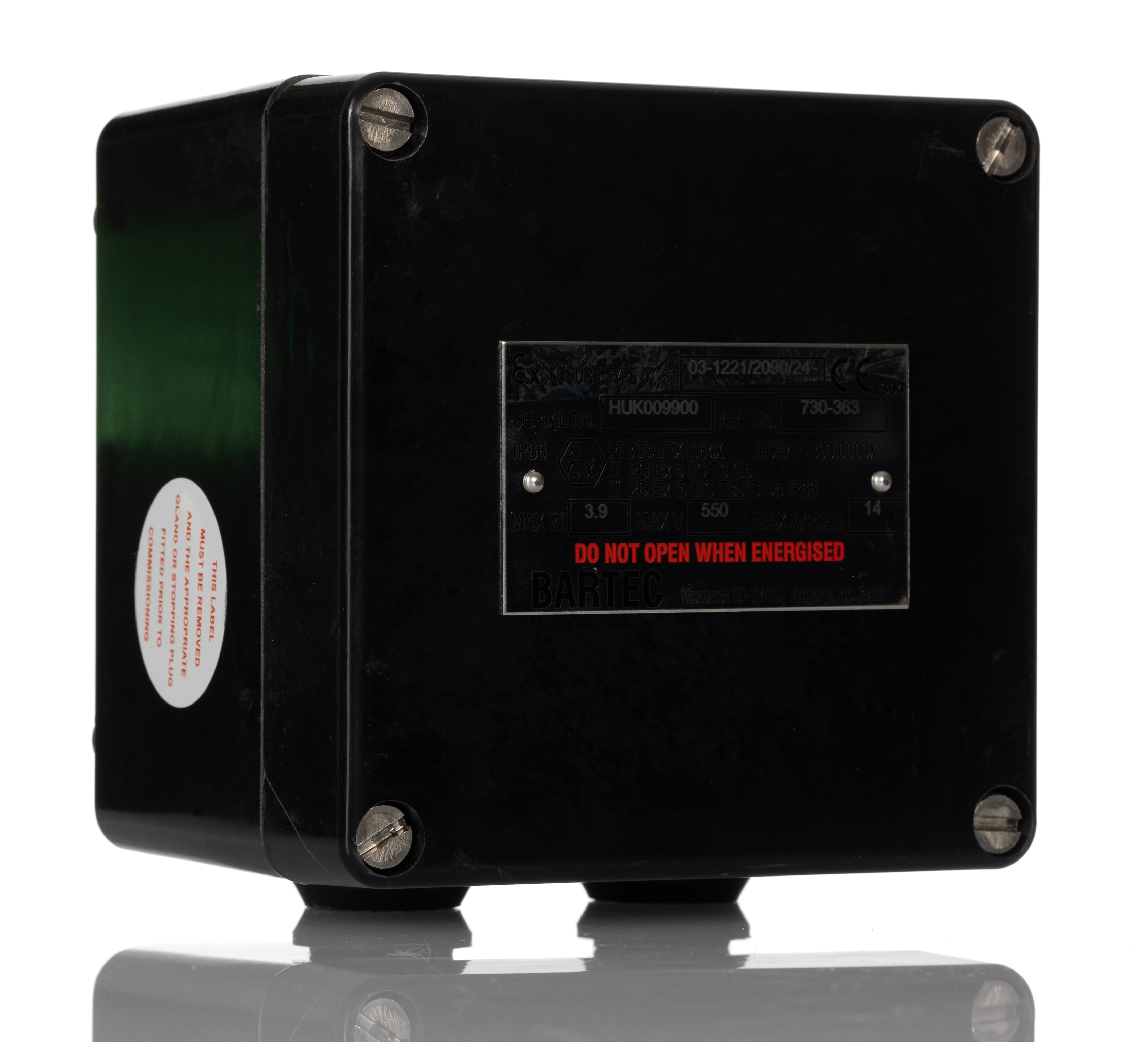

Bartec Junction Box The Bartec junction box is a terminal box manufactured with high impact resistance, glass-fibre reinforced polyester SMC, and DMC for extraordinary stability and corrosion resistance. The standard enclosure consists of black, antistatic material. It has a voltage rating of 550V and a current rating of 21A. Features and Benefits Number of terminals are 9Earth continuity plateM20 conduit entriesConductor size 0.5 to 4mmExtended ambient temperature rangeExternal earth connectionLength of 122mm, width of 120mm and height of 90mm Certifications ATEX certifiedBASEEFA approvedIP66 ratedBS EN 61340-5-1:2007ANSI/ESD S20.20:2014

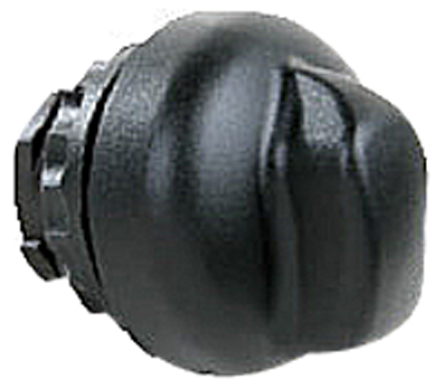

Switch Actuators

Switch Actuators

Switch Actuators

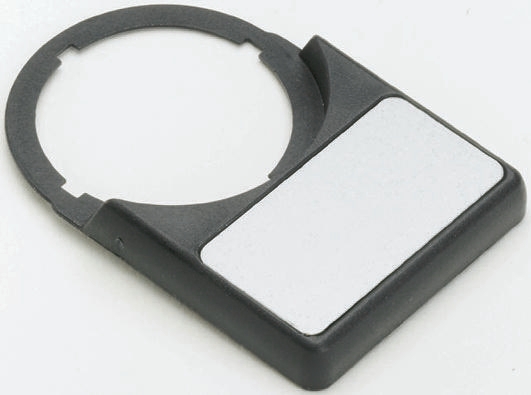

Label Holder For operator inclusive label inserts
