125 & 250W Industrial Grade Convert Select Series The Convert Select series are DIN Rail mountable DC-DC and AC-DC converters. They have power factor correction with low harmonic distortion, negligibly low inrush current, high immunity to transients and surges, and low electromagnetic emissions. Internal protection circuits such as input over/under voltage lockout, thermal protection, output overvoltage protection by a control loop ensure safe operation of the final system. The Convert Select series are designed according to the latest industry requirements and standards. Features and Benefits Rugged 35 mm DIN Rail snap-fit design<BR/>Class I equipment<BR/>Universal AC-input or DC-input with single stage conversion<BR/>Power factor correction, harmonics IEC/EN 61000-3-2<BR/>Virtually no inrush current<BR/>Power factor correction, harmonics IEC/EN 61000-3-2<BR/>Immunity to IEC/EN61000-4-2/3/4/5/6/11<BR/>High efficiency 89%<BR/>Short-term peak capacity 150% nominal rating, with rectangular current limit<BR/>Independently regulated outputs<BR/>Outputs: no load, overload and short circuit proof<BR/>MTBF greater than 600000 hours<BR/>Emissions according to EN 55011/022<BR/>PCBs coated by protective lacquer<BR/>High reliability<BR/>RoHS compliant Applications The Convert Select series are suitable to power building control systems, factory automation, industrial controls, instrumentation, electromagnetic drives, fans and other DC loads.

BEL Power Solutions INC Power Supply The Bel Power Solutions Inc. W series switch-mode power supply is dual output primary controlled AC-DC or DC-DC flyback converter with a constant switching frequency of 130kHz. Its high-efficiency results from the power-factor-corrected, single-step conversion of the input voltage to a low output voltage. It has an input voltage ranging between 85VAC and 264VAC/90VDC to 350VDC. This power supply has an output current rating of 5A at 24VDC output voltage. Its output voltage is adjustable within a range between 24VDC and 25.8VDC and delivers an electrically isolated safety extra-low voltage (SELV) and low output noise.<BR/>Note:<BR/>Operating temperature is without de-rating Features and Benefits Green LED for status indication<BR/>High efficiency up to 87%<BR/>Highly reliable<BR/>Independently regulated outputs<BR/>Internal protection circuits<BR/>MTBF is greater than 600000 hours<BR/>Operation temperature ranging between -40°C and 60°C<BR/>Power rating is up to 250W<BR/>Rugged, 35mm snap-fit design<BR/>Virtually no inrush current Applications Building control systems<BR/>Electromagnetic drives<BR/>Factory automation<BR/>Industrial controls<BR/>Instrumentation Certifications CE certified<BR/>cCSAus<BR/>cULus<BR/>EN<BR/>IEC<BR/>UL approved

BEL POWER SOLUTIONS INC Power Supply The Bel Power Solutions Inc. W series power supply is dual output primary controlled AC-DC or DC-DC flyback converter with a constant switching frequency of 130kHz. Its high-efficiency results from the power-factor-corrected, single-step conversion of the input voltage to a low output voltage. It has an input voltage ranging between 85VAC and 264VAC/90VDC to 350VDC. This power supply has an output current rating of 10A at 24VDC output voltage. Its output voltage is adjustable within a range between 24VDC and 25.8VDC and delivers an electrically isolated safety extra-low voltage (SELV) and low output noise. <BR/>Note:<BR/>Operating temperature is without de-rating Features and Benefits Green LED for status indication<BR/>High efficiency up to 87%<BR/>Highly reliable<BR/>Independently regulated outputs<BR/>Internal protection circuit<BR/>MTBF is greater than 600000 hours<BR/>Operating temperature ranging between -40°C and 60°C<BR/>Power rating is up to 250W<BR/>Rugged, 35mm snap-fit design<BR/>Virtually no inrush current Applications Building control systems<BR/>Electromagnetic drives<BR/>Factory automation<BR/>Industrial controls<BR/>Instrumentation Certifications CE certified<BR/>cCSAus<BR/>cULus<BR/>EN<BR/>IEC<BR/>UL approved

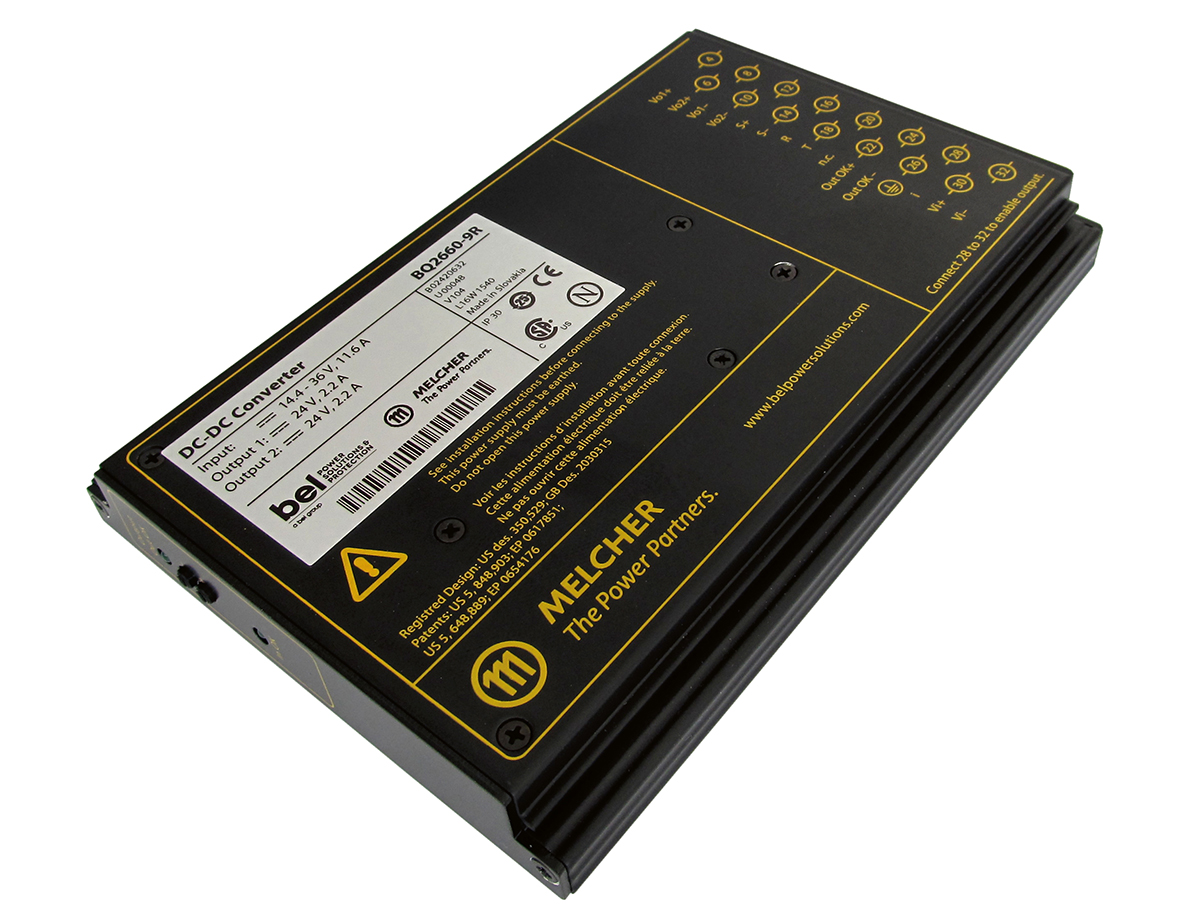

Power-One 66W to 132W Single/Dual Output Regulated Isolated DC-DC Converter - Q Series These Q Series compact DC-DC converters have all the necessary input and output filtering, signalling and protection features which are needed in the majority of applications. These converters provide flexible output power, high efficiency and reliabiity, low ripple and RFI noise levels, full input to input isolation, negligibe inrush current, overtemperature protection and over-/undervoltage lockout. These DC-DC conveters are designed for 19" DIN rack systems but can also be chassis-mounted using four M3 screws. 1 or 2 isolated outputs which can be series or parallel connected to provide pre-set voltages of 5.1 to 48Vdc<BR/>Particularly suitable for rugged environment<BR/>Excellent surge and transient protection<BR/>Compliant with European railway standards EN 50155 and EN 50121-3-2<BR/>Designed for 19" DIN-rack systems occupying 3U/4TE but can also be chassis-mounted by means of four screws<BR/>Fully enclosed in black-coated aluminium case acts as a heat sink and an RFI shield, ideal for cold wall mounting<BR/>Conformal coating provides very high levels of protection against humidity and conductive dust<BR/>Hot plug and current share for redundant applications<BR/>Low inrush current, hot swappable. 48V input products complaint with telecoms standard ETS 300132-2<BR/>Features include wide trim range, output OK signal and inhibit<BR/>Dimensions: H111 x W20 x L172 mm<BR/>Weight: 480g<BR/>Minimum isolation voltage: 4.2 kV Regulation output 2 Vo2 depends upon the load distribution: If each output is loaded with at least 10% of Io nom, the deviation of Vo2 remains within ±5% of Vo nom. The figures 12, 13 and 14 on page 14 of the attached datasheet explain the regulation with different load distributions up to the current limit. If Io1 = Io2 or the two outputs are connected in series, the deviation of Vo2 remains within ±1% of the value of Vo nom, provided that the load is at least Io min.

Power-One 66W to 132W Single/Dual Output Regulated Isolated DC-DC Converter - Q Series These Q Series compact DC-DC converters have all the necessary input and output filtering, signalling and protection features which are needed in the majority of applications. These converters provide flexible output power, high efficiency and reliabiity, low ripple and RFI noise levels, full input to input isolation, negligibe inrush current, overtemperature protection and over-/undervoltage lockout. These DC-DC conveters are designed for 19" DIN rack systems but can also be chassis-mounted using four M3 screws. 1 or 2 isolated outputs which can be series or parallel connected to provide pre-set voltages of 5.1 to 48Vdc<BR/>Particularly suitable for rugged environment<BR/>Excellent surge and transient protection<BR/>Compliant with European railway standards EN 50155 and EN 50121-3-2<BR/>Designed for 19" DIN-rack systems occupying 3U/4TE but can also be chassis-mounted by means of four screws<BR/>Fully enclosed in black-coated aluminium case acts as a heat sink and an RFI shield, ideal for cold wall mounting<BR/>Conformal coating provides very high levels of protection against humidity and conductive dust<BR/>Hot plug and current share for redundant applications<BR/>Low inrush current, hot swappable. 48V input products complaint with telecoms standard ETS 300132-2<BR/>Features include wide trim range, output OK signal and inhibit<BR/>Dimensions: H111 x W20 x L172 mm<BR/>Weight: 480g<BR/>Minimum isolation voltage: 4.2 kV Regulation output 2 Vo2 depends upon the load distribution: If each output is loaded with at least 10% of Io nom, the deviation of Vo2 remains within ±5% of Vo nom. The figures 12, 13 and 14 on page 14 of the attached datasheet explain the regulation with different load distributions up to the current limit. If Io1 = Io2 or the two outputs are connected in series, the deviation of Vo2 remains within ±1% of the value of Vo nom, provided that the load is at least Io min.

Cassette Style Mating Connectors These connectors have 15 contacts in two vertical columns, designed to meet DIN 41612. Suitable for use with cassette type converters

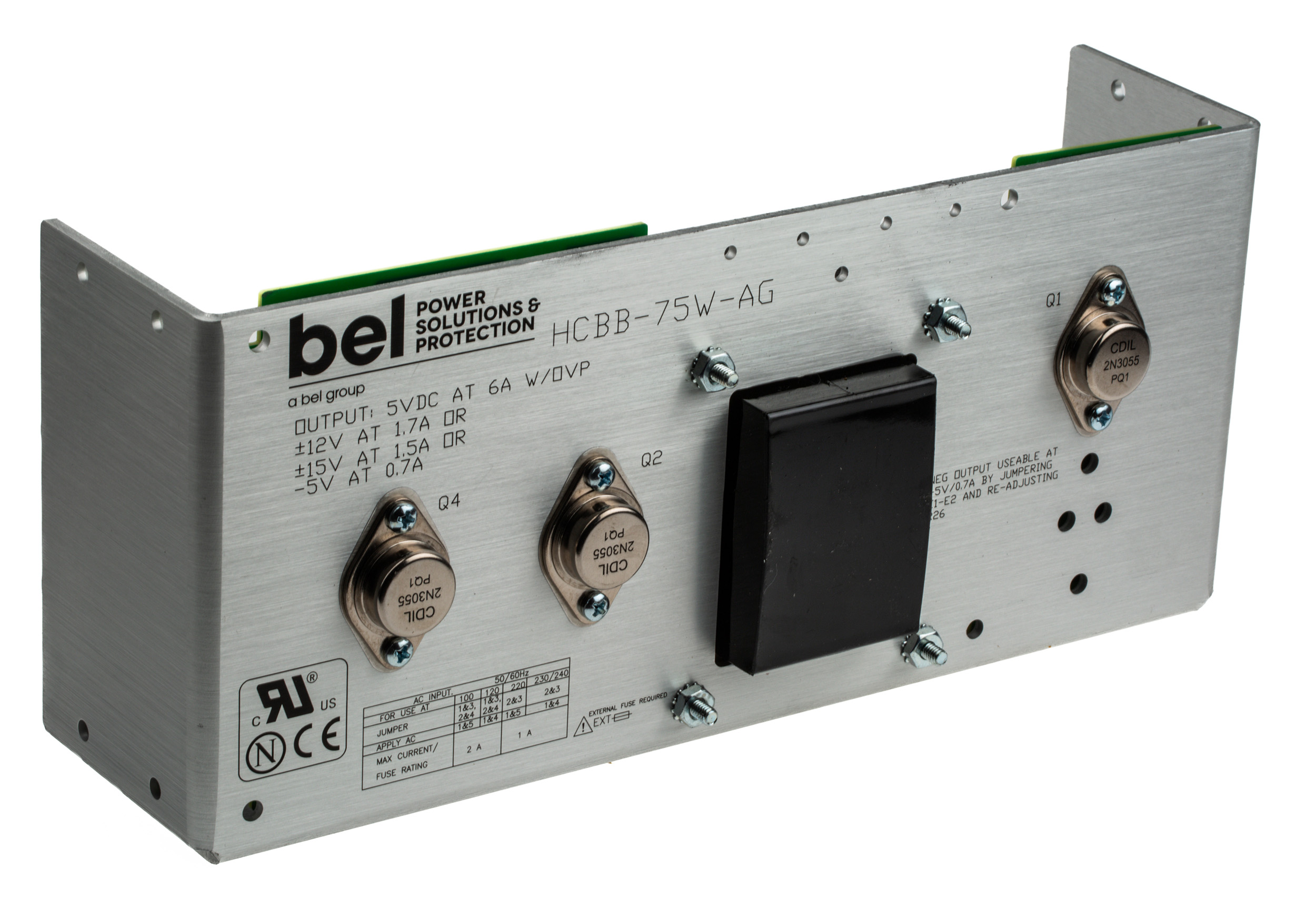

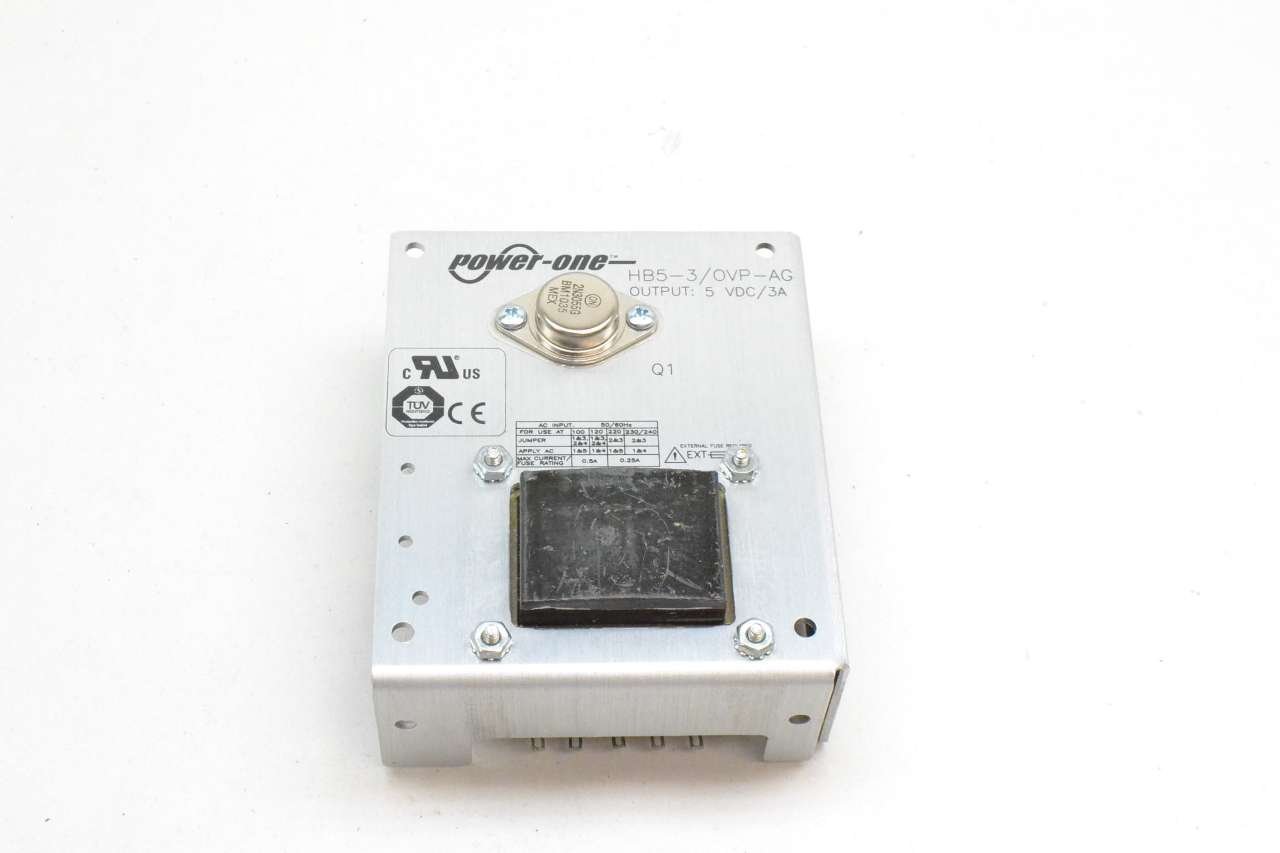

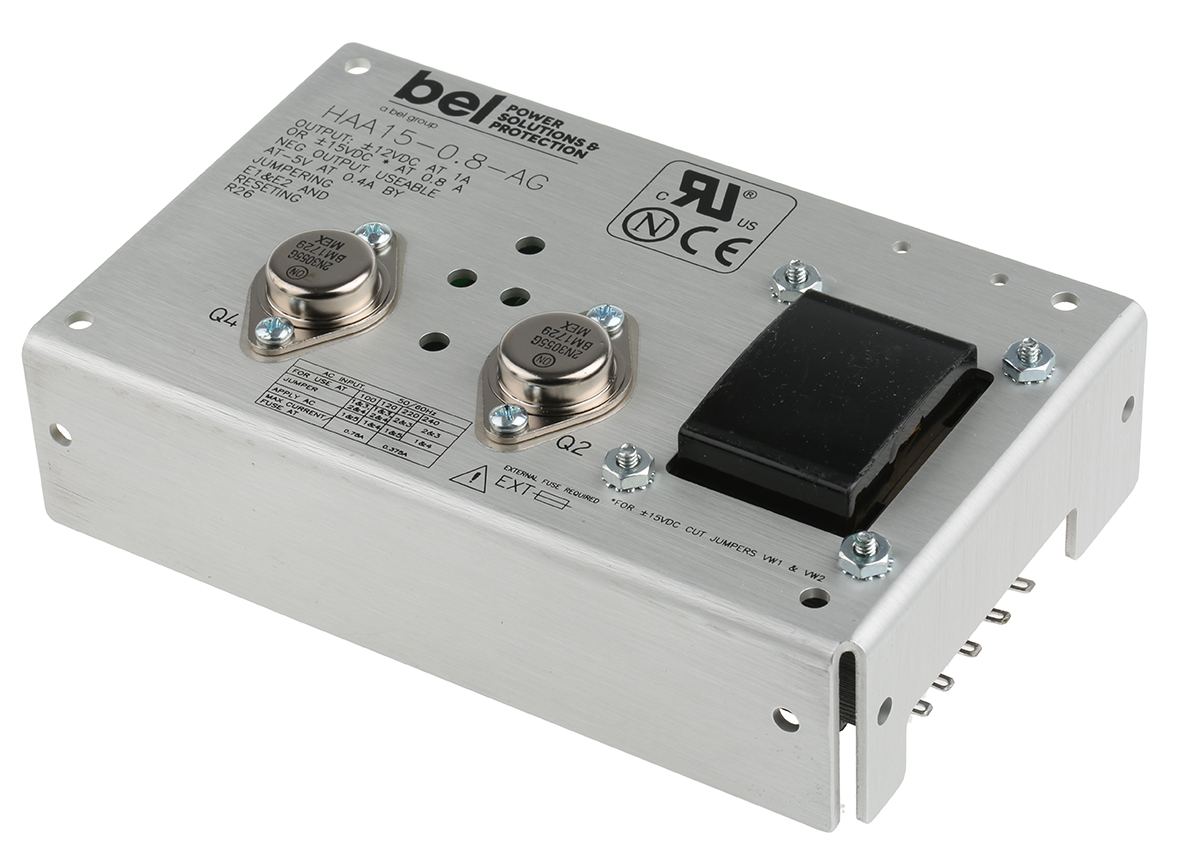

Power One H Series Linear Power Supplies The Power One range of Linear power supplies rugged technology and proven design merge to create quiet, highly-regulated, dependable DC power. The Linear power supplies are available in a range of voltages and offer a high accuracy output regulation. Wide range of input voltage<BR/>Low output ripple<BR/>±0.05% Output regulation

MAP55 Series MAP55 series are power supplies that meet industrial and commercial requirements. This series have a variable frequency design with thermal efficient U-channel chassis, reliable and tightly regulated dc power. Single output models feature wide-range adjustable outputs to meet a wide variety of standard and user-specific output voltage requirements. Full international safety, EMI, and ESD compliance ensuring worldwide acceptance. Covers for MAP55 series are available separately. Metric and SAE mounting inserts<BR/>Dual mode connectors<BR/>All units bear CE mark

BEL POWER SOLUTIONS INC Embedded Switch Mode Power Supply The BEL POWER SOLUTIONS INC embedded switch-mode power supply from the MAP55 series is a 55W rated, AC to DC plug-in device with 1 output. It has a variable frequency design with thermal, efficient, U-channel chassis, reliable and tightly regulated DC power. This single output model features a wide range of adjustable outputs to meet a variety of standard and user-specific output voltage requirements. It has a compact design and universal input supply voltage rating range from 90VAC to 132VAC (low range) and 175VAC to 264VAC (high range). Features and Benefits Dual mode connectors<BR/>Greater than 225,000 hours MTBF<BR/>Metric and SAE <BR/>Output current is 2.5A at 24VDC<BR/>U bracket mount Applications Commercial requirements<BR/>Industrial Certifications CE certified <BR/>EN60950-1

BEL POWER SOLUTIONS INC Embedded Switch Mode Power Supply The BEL POWER SOLUTIONS INC embedded switch-mode power supply from the MAP130 series is a 130W rated, AC to DC plug-in device with 4 outputs. This single and multi-output compact power supply provides regulated outputs with high peak current capabilities. It has a compact design and universal input supply voltage rating range from 90VAC to 132VAC (low range) and 175VAC to 264VAC (high range).<BR/>Inclusions:<BR/>Covers for MAP130 series are available separately. Features and Benefits Automatic 115/230 input voltage selection<BR/>EMI level B filtering<BR/>Greater than 100,000 hour MTBF<BR/>Metric and SAE<BR/>Output currents are 20A at 5VDC, 1A at 15VDC and 3A at 24VDC<BR/>Over voltage protection and over temperature protection<BR/>Power fail signal included<BR/>Remote sense<BR/>Thermal shutdown (with a warning)<BR/>U bracket mount Applications Commercial requirements<BR/>Industrial Certifications CE certified <BR/>EN60950-1

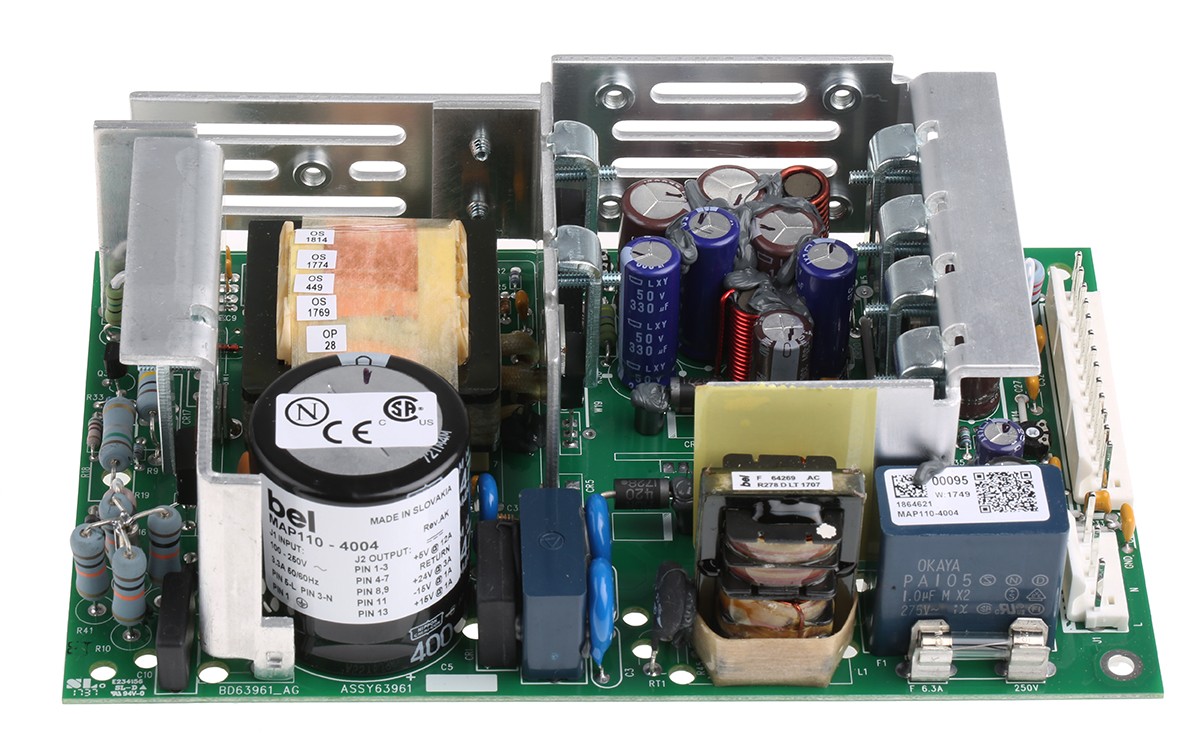

MAP110 Series MAP110 series are low cost power supplies that meet industrial and commercial requirements. Wide dynamic output current and fixed-frequency operation simplifies system level operation. Single output models feature wide-range adjustable outputs to meet a variety of standards and user-specific output voltage requirements. EMI and ESD compliant ensure worldwide acceptance.

BEL POWER SOLUTIONS INC Embedded Switch Mode Power Supply The BEL POWER SOLUTIONS INC embedded switch-mode power supply from the MAP110 series is an 80W rated, AC to DC plug-in device with 4 outputs. It has wide dynamic output current and fixed-frequency operation for simplified system-level operation. The MAP110 series power supply is configured to an international standard footprint. The input and output connections are made via popular single-row Molex connectors. It has a compact design and universal input supply voltage rating range from 85VAC to 264VAC. Features and Benefits Chassis mount<BR/>Greater than 134,000 hours MTBF<BR/>Open frame package type<BR/>Options include over temperature protection<BR/>Output currents are 12A at 5VDC, 1A at 15VDC and 3A at 24VDC<BR/>Power fail signal, chassis and cover<BR/>Remote sense and overvoltage protection on single output units and main output of multiple output units Applications Commercial requirements<BR/>Industrial Certifications EN60950-1<BR/>EN61000-4-2/-3/-4 (Input transient and ESD compliance)
