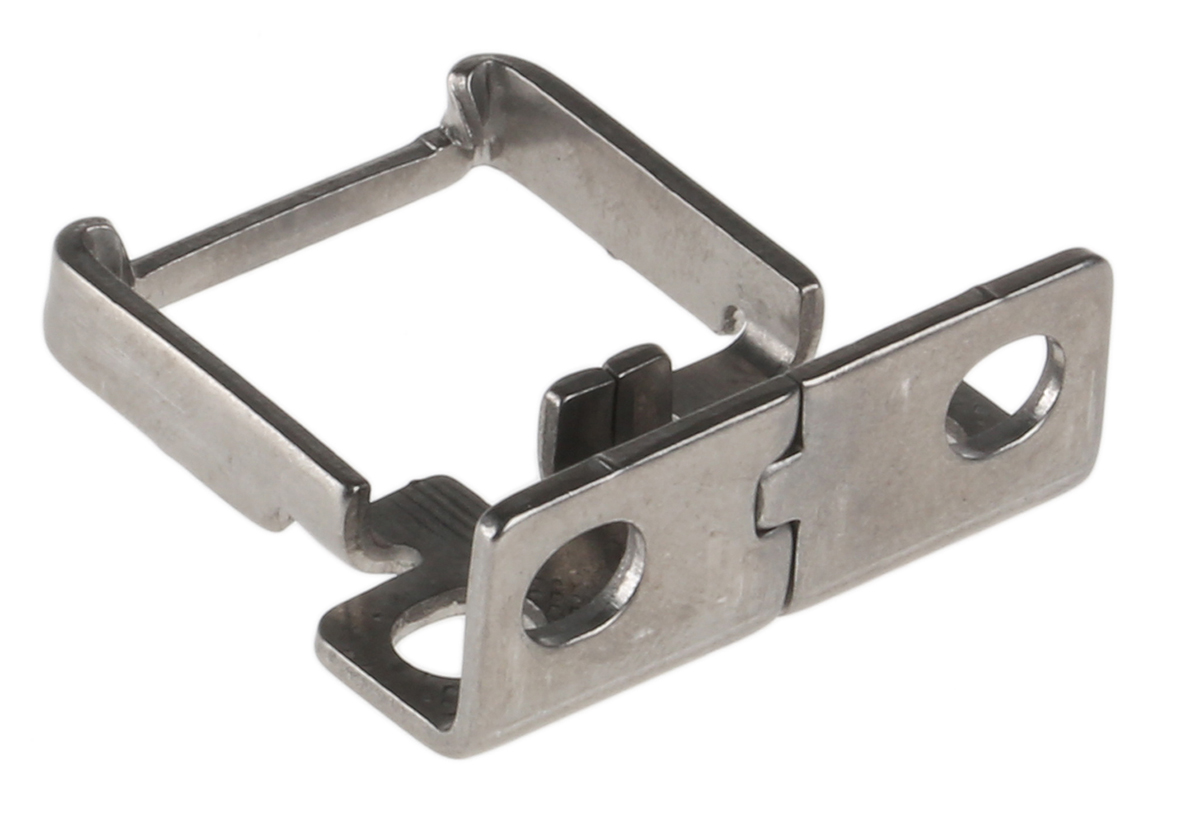

Bernstein AG RFID safety switch The Bernstein AG RFID safety switch has a non-contact safety sensor that monitors moveable safety guards, such as doors, flaps and hoods. It belongs to the SRF series of safety switches. It is coded with only one possible code. With its innovative diagnostic system, the RFID device makes safety circuits suitable for Industry 4.0. The system provides a multitude of diagnostic data of each sensor, even in a series connection, to support smart production. Features and Benefits • Compact: small in size, flexible in use<BR/>• Cost-saving: Thanks to a four-wire unshielded standard connection cable from sensor to sensor<BR/>• Low coding level<BR/>• M12 8-pin connection with 25 cm cable<BR/>• New innovative Daisy Chain Diagnostics (DCD)<BR/>• PNP diagnostics<BR/>• Reading diagnostics information through Android smartphone via NFC interface<BR/>• Safe: up to PL e - even in series connection, with high default protection<BR/>• Series connection of the sensors through internal safety electronics without compromising the safety level<BR/>• Simple and specific maintenance thanks to pre-failure monitoring<BR/>• Transmission of data via I/O Link interface Applications • Factory automation<BR/>• Food processing industry<BR/>• Industrial robots<BR/>• Machine guard<BR/>• Packaging<BR/>• Protective door Certifications • IC certified<BR/>• IEC 61508<BR/>• IEC 61508<BR/>• IEC 62061: 2013 <BR/>• IEC 62061:2013<BR/>• IP69 rating<BR/>• ISO certified<BR/>• TÜV certified

Bernstein AG RFID safety switch The Bernstein AG RFID safety switch has a non-contact safety sensor that monitors moveable safety guards, such as doors, flaps and hoods. It belongs to the SRF series of safety switches. It is suitable for all coding levels. With its innovative diagnostic system, the RFID device makes safety circuits suitable for Industry 4.0. The system provides a multitude of diagnostic data of each sensor, even in a series connection, to support smart production. Features and Benefits • Actuator SRF suitable for all coding levels<BR/>• Compact: small in size, flexible in use<BR/>• Cost-saving: Thanks to a four-wire unshielded standard connection cable from sensor to sensor<BR/>• Reading diagnostics information through Android smartphone via NFC interface<BR/>• Safe: up to PL e - even in series connection, with high default protection<BR/>• Series connection of the sensors through internal safety electronics without compromising the safety level<BR/>• Simple and specific maintenance thanks to pre-failure monitoring<BR/>• Transmission of data via I/O Link interface Applications • Factory automation<BR/>• Food processing industry<BR/>• Industrial robots<BR/>• Machine guard<BR/>• Packaging<BR/>• Protective door Certifications • IC certified<BR/>• IEC 61508<BR/>• IEC 61508<BR/>• IEC 62061: 2013 <BR/>• IEC 62061:2013<BR/>• IP69 rating<BR/>• ISO certified<BR/>• TÜV certified

Bernstein AG RFID safety switch The Bernstein AG RFID safety switch has a non-contact safety sensor that monitors moveable safety guards, such as doors, flaps and hoods. Sensor belongs to SRF series of safety switches. It is coded with only one possible code. It has its innovative diagnostic system, the RFID device makes safety circuits suitable for Industry 4.0. The system provides a multitude of diagnostic data of each sensor, even in a series connection, to support smart production. Features and Benefits • Compact: small in size, flexible in use<BR/>• Cost-saving: Thanks to a four-wire unshielded standard connection cable from sensor to sensor<BR/>• Low coding level<BR/>• M12 8-pin connection with 25 cm cable<BR/>• New innovative Daisy Chain Diagnostics (DCD)<BR/>• Reading diagnostics information through Android smartphone via NFC interface<BR/>• Safe: up to PL e - even in series connection, with high default protection<BR/>• Series connection of the sensors through internal safety electronics without compromising the safety level<BR/>• Simple and specific maintenance thanks to pre-failure monitoring<BR/>• Transmission of data via I/O Link interface Applications • Factory automation<BR/>• Food processing industry<BR/>• Industrial robots<BR/>• Machine guard<BR/>• Packaging<BR/>• Protective door Certifications • IC certified<BR/>• IEC 61508<BR/>• IEC 61508<BR/>• IEC 62061: 2013 <BR/>• IEC 62061:2013<BR/>• IP69 rating<BR/>• ISO certified<BR/>• TÜV certified

Magnetic sensor with Hall/magneto-resistive technology Electronic Magnetic Sensor Contact-free, bounce-free switching<BR/>Impervious to shocks and vibrations<BR/>Continuous short-circuit and overload proof<BR/>High switching frequency → 5000 Hz<BR/>3 m PUR connection cable<BR/>Temperature range: -20 °C → +70 °C<BR/>High IP67 protection rating Accessories: magnet T-62 N/S Barium ferrite<BR/>Dimensions: Ø 23 mm x 10 mm<BR/>Incl. Fixing material for 4.3 mm central bore<BR/>Temperature range: -40 °C → +150 °C

Particularly suitable for personal protection applications<BR/>Design safety features <BR/>Different actuating forces<BR/>Actuators can be repositioned by 180°<BR/>Two actuator openings which makes horizontal and vertical operation possible<BR/>Cable entry 3 x M20 x 1.5

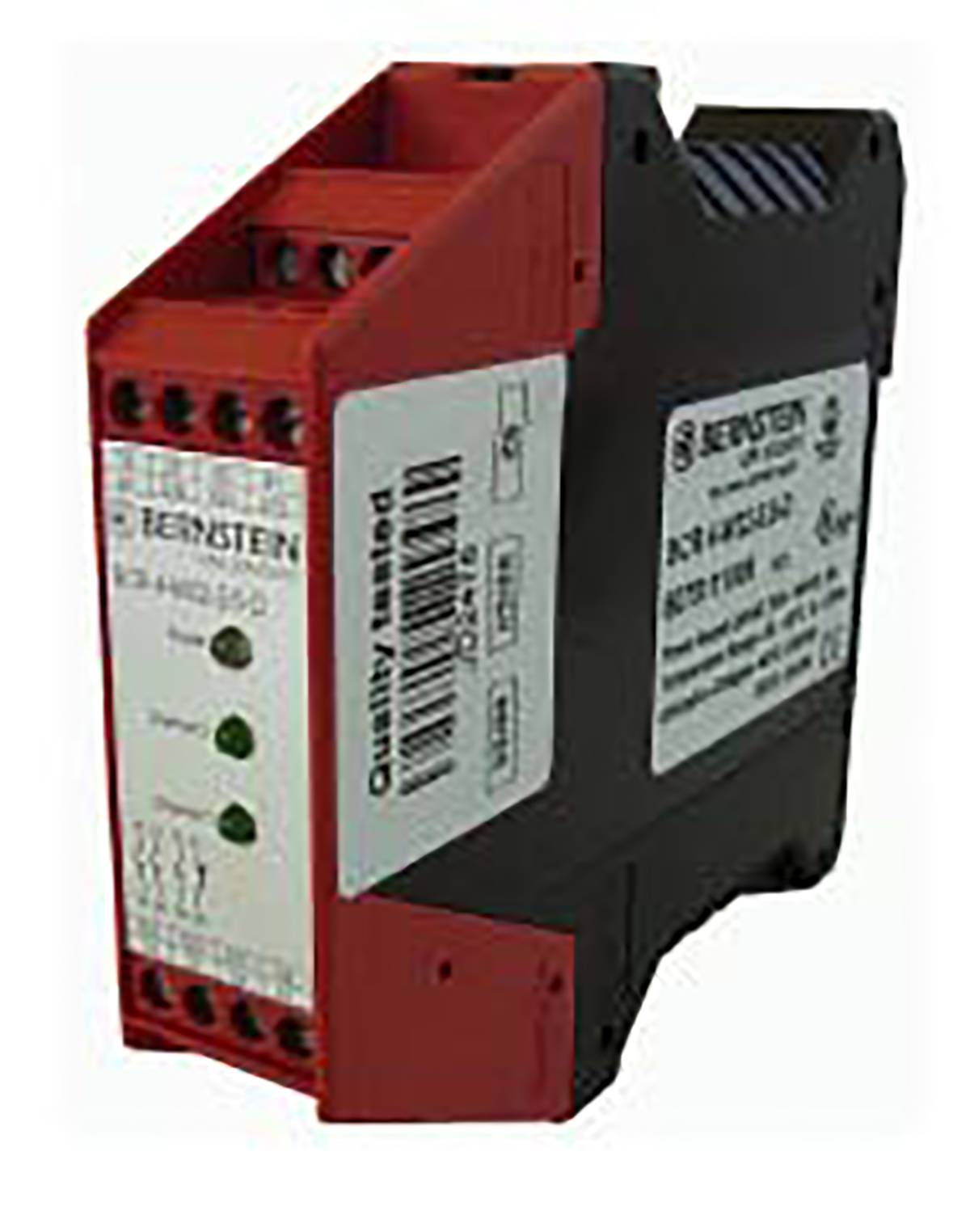

Bernstein AG Safety Relay The Bernstein AG 3NO 24VDC SCR relay is housed in a slim-line DIN rail polyamide material housing. The SCR relay is used to monitor the correct position and reliable operation of inputs from the safety sensors or safety switch contacts. Features and Benefits • Compact in dimension 22.5mmx114.5mmx99mm <BR/>• Feedback loop with monitored/automatic reset<BR/>• LED display for output status and mains supply<BR/>• Monitored start by selectable external jumper lead<BR/>• No cross-short safety<BR/>• Operating temperature ranges between -25°C and 55°C<BR/>• Screw-type terminal for electrical connections Applications • Industrial automation<BR/>• Pressure sensitive mats<BR/>• Safety gates Certifications • CCF<BR/>• CULus listed<BR/>• DIN EN 60947-5-1<BR/>• DIN VDE 0160<BR/>• DIN VDE 0660 part 200<BR/>• DIN VDE 46228<BR/>• EN ISO 13849-1<BR/>• IP20 DIN VDE 0470 part 1 rated<BR/>• IP40 DIN VDE 0470 part 1 rated<BR/>• Performance Level e, Kat.3<BR/>• TUV

Bernstein AG Limit Switch The Bernstein AG limit switch is predestined for installation on section structures confined installation conditions. As compared to SKT, it offers more connection space for the wiring and variants with up to three switching contacts available. Features and Benefits • Actuator can be repositioned by 180°<BR/>• Enclosure and cover PA 6, self-extinguishing (UL-94-V0)<BR/>• Two actuator openings which makes horizontal and vertical operation possible<BR/>• Type: Zb (Galvanically isolated changeover contact)<BR/>• Versions: 1 NC/1NO, 2 NC Applications • Automotive<BR/>• Factory Certifications • DIN EN 50047<BR/>• VDE 0470 T1<BR/>IP65 rated

Bernstein AG Safety Relay The Bernstein AG 2NO 24VDC SCR relay is housed in a slim-line DIN rail polyamide material housing. The SCR relay is used to monitor the correct position and reliable operation of inputs from the safety sensors or safety switch contacts. Features and Benefits • Compact in dimension 22.5mmx114.5mmx99mm<BR/>• Feedback loop with monitored/automatic reset<BR/>• LED display for output status<BR/>• Operating temperature ranges between -25°C and 55°C<BR/>• Screw-type terminal for electrical connections<BR/>• Up to control category 2 or 3 (depending on mode of application) Applications • Industrial automation<BR/>• Pressure sensitive mats<BR/>• Safety gates Certifications • CCF<BR/>• DIN EN 60947-5-1<BR/>• DIN VDE 0160<BR/>• EN ISO 13849-1<BR/>• IP20 DIN VDE 0470 part 1 rated<BR/>• IP40 DIN VDE 0470 part 1 rated<BR/>• Performance Level e, Kat.3<BR/>• TUV

Bernstein AG Safety Relay The Bernstein AG 2NO 24VDC SCR relay is housed in a slim-line DIN rail polyamide material housing. The SCR relay is used to monitor the correct position and reliable operation of inputs from the safety sensors or safety switch contacts. Features and Benefits • Ambient temperature ranges between -25°C and 70°C<BR/>• Compact in dimension 22.5mmx114.5mmx99mm<BR/>• Feedback loop with monitored/automatic reset<BR/>• LED display for output status<BR/>• Screw-type terminal for electrical connections<BR/>• Up to control category 2 or 3 (depending on mode of application) Applications • Industrial automation<BR/>• Pressure sensitive mats<BR/>• Safety gates Certifications • CCF<BR/>• EN ISO 13849-1<BR/>• IP69 rated<BR/>• Performance Level e, Kat.3

Bernstein AG Limit Switch The Bernstein AG SK series is an NC configuration slow action contact switch. It is available with an M12 connector. Features and Benefits • Actuators can be repositioned by 180°<BR/>• Cable entry 3 x M20 x 1.5<BR/>• Different actuating forces<BR/>• Enclosure and cover PA 6, self-extinguishing (UL-94-V0)<BR/>• Test regulations GS-ET 15<BR/>• Two actuator openings which makes horizontal and vertical operation possible<BR/>• Type: Zb (Galvanically isolated changeover contact) Applications • Automotive<BR/>• Personal protection applications Certifications • VDE 0470 T1<BR/>• IP65 rated

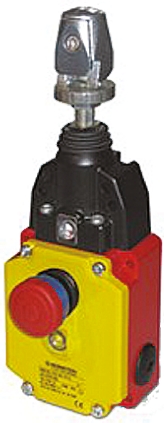

Bernstein SRM Safety Rope Pull Switches Even under extreme conditions, such as major temperature fluctuations, the SRM rope pull switch continues to work reliably. Rope pull switch manufactured in accordance with DIN EN 60947-5-5 and DIN EN ISO 13850<BR/>Protection class IP67<BR/>Stable and durable metal housing (aluminium pressure die-casting)<BR/>Suitable for outdoor use<BR/>Can be deployed at temperatures between -30 to +80 °C<BR/>Easy to fasten due to hole template patterns common for most rope pull switch models<BR/>Flexible handling with three M20 x 1.5 cable entries<BR/>Easy installation due to the maximum connection space<BR/>Up to four positively driven NC contacts<BR/>Separate-action built-in switches

Bernstein SRM Safety Rope Pull Switches Even under extreme conditions, such as major temperature fluctuations, the SRM rope pull switch continues to work reliably. Rope pull switch manufactured in accordance with DIN EN 60947-5-5 and DIN EN ISO 13850<BR/>Protection class IP67<BR/>Stable and durable metal housing (aluminium pressure die-casting)<BR/>Suitable for outdoor use<BR/>Can be deployed at temperatures between -30 to +80 °C<BR/>Easy to fasten due to hole template patterns common for most rope pull switch models<BR/>Flexible handling with three M20 x 1.5 cable entries<BR/>Easy installation due to the maximum connection space<BR/>Up to four positively driven NC contacts<BR/>Separate-action built-in switches
