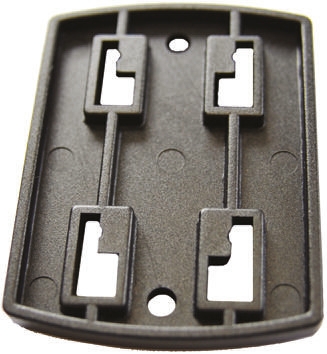

The Bopla Mounting Panels are designed with a combination of high-performance materials for superior durability and safety. The plastic parts are made from PC UL 94 V-0, ensuring flame-retardant and self-extinguishing properties, suitable for outdoor use (f1 listing according to UL 746 C). Materials in accordance with requirement set R1 / R7 according to DIN EN 45545 2

<B>Bopla Bocube Aluminium Enclosures</B> Introducing the Bocube aluminium enclosures from Bopla. A unique and innovative general purpose enclosure that is ideal for wall mount or desktop applications in industrial or commercial environments. There are 2 colour finishes available, light grey (RAL7035) or graphite grey (RAL7024). These versatile aluminium enclosures are available in various sizes and feature a captive lid with or without membrane keypad surface <B>Why would you buy theses enclosures?</B> Bocube enclosures offer the ultimate in protection for electronics and switchgear with an added layer of security. They are designed with very few parts which can quickly and easily be assembled with no need for special tools. The patented hinge is a game changer, it offers quick-release catch technology without screws which can be opened with a screwdriver and closed by hand. <B>Features & Benefits</B> &#149; General purpose solid aluminium enclosure<BR/>&#149; All versions are listed under UL file no. 196 706<BR/>&#149; Captive lid with smooth surface or membrane keypad area<BR/>&#149; Integrated hinge design<BR/>&#149; Concealed screws<BR/>&#149; Prepared for cost-efficient integration of pressure compensation elements<BR/>&#149; Recessed front surface for sensitive interfaces<BR/>&#149; Mounting space for front panels and scored PCBs<BR/>&#149; With or without membrane keypad surface<BR/>&#149; Available in light grey (RAL7035) or graphite grey (RAL7024)<BR/>&#149; GD Al Si 12 enclosure with PU foamed seal<BR/>&#149; Al Mg Si 0.5 powder-coated hinges and cover<BR/>&#149; IP66 / IP68-1.2m (2 hours)/IP69<BR/>&#149; RoHS compliant <B>Typical Applications</B> &#149; Cable/Wire Management<BR/>&#149; IT/Server<BR/>&#149; Solar Power Batteries<BR/>&#149; Oil and Gas Production<BR/>&#149; Food and Beverage Industry<BR/>&#149; Telecommunication Industry <B>Compatible Accessories</B> &#149; 11 mm pressure compensation element: RS stock no: <a href="/web/p/products/9075315">907-5315</a> <B>(IP) Ingress Protection and what it means</B> IP rating classifies the degrees of protection provided against the intrusion of solid objects (including body parts like hands and fingers), dust, accidental contact and water in electrical enclosures. <B>Frequently Asked Questions</B> <B>Can the enclosure be used outside?</B><BR/><BR/>Bocube enclosures with an IP66/68 rating is dustproof and fully protected when submerged in water – 1.2 m (2 hrs)<BR/><BR/><B>Does this product have RFI shielding?</B><BR/><BR/>No, this product does not have RFI shielding<BR/><BR/><B>What is supplied?</B><BR/><BR/>Enclosure incl. hinge and fixing material

<B>Bopla Bocube Aluminium Enclosures</B> Introducing the Bocube aluminium enclosures from Bopla. A unique and innovative general purpose enclosure that is ideal for wall mount or desktop applications in industrial or commercial environments. There are 2 colour finishes available, light grey (RAL7035) or graphite grey (RAL7024). These versatile aluminium enclosures are available in various sizes and feature a captive lid with or without membrane keypad surface <B>Why would you buy theses enclosures?</B> Bocube enclosures offer the ultimate in protection for electronics and switchgear with an added layer of security. They are designed with very few parts which can quickly and easily be assembled with no need for special tools. The patented hinge is a game changer, it offers quick-release catch technology without screws which can be opened with a screwdriver and closed by hand. <B>Features & Benefits</B> &#149; General purpose solid aluminium enclosure<BR/>&#149; All versions are listed under UL file no. 196 706<BR/>&#149; Captive lid with smooth surface or membrane keypad area<BR/>&#149; Integrated hinge design<BR/>&#149; Concealed screws<BR/>&#149; Prepared for cost-efficient integration of pressure compensation elements<BR/>&#149; Recessed front surface for sensitive interfaces<BR/>&#149; Mounting space for front panels and scored PCBs<BR/>&#149; With or without membrane keypad surface<BR/>&#149; Available in light grey (RAL7035) or graphite grey (RAL7024)<BR/>&#149; GD Al Si 12 enclosure with PU foamed seal<BR/>&#149; Al Mg Si 0.5 powder-coated hinges and cover<BR/>&#149; IP66 / IP68-1.2m (2 hours)/IP69<BR/>&#149; RoHS compliant <B>Typical Applications</B> &#149; Cable/Wire Management<BR/>&#149; IT/Server<BR/>&#149; Solar Power Batteries<BR/>&#149; Oil and Gas Production<BR/>&#149; Food and Beverage Industry<BR/>&#149; Telecommunication Industry <B>Compatible Accessories</B> &#149; 11 mm pressure compensation element: RS stock no: <a href="/web/p/products/9075315">907-5315</a> <B>(IP) Ingress Protection and what it means</B> IP rating classifies the degrees of protection provided against the intrusion of solid objects (including body parts like hands and fingers), dust, accidental contact and water in electrical enclosures. <B>Frequently Asked Questions</B> <B>Can the enclosure be used outside?</B><BR/><BR/>Bocube enclosures with an IP66/68 rating is dustproof and fully protected when submerged in water – 1.2 m (2 hrs)<BR/><BR/><B>Does this product have RFI shielding?</B><BR/><BR/>No, this product does not have RFI shielding<BR/><BR/><B>What is supplied?</B><BR/><BR/>Enclosure incl. hinge and fixing material

ABS square housings Square models have a moulded-clip system to close the cover.<BR/>The bases feature mounting bosses for PCBs, threaded inserts and self-tapping screws.<BR/>Designed to house small electronic assemblies as well as PCBs.

Ventilated housing Housing featuring integrated vertical ventilation slots, and designed to receive all electronic mountings that require ventilation.

ABS square housings Square models have a moulded-clip system to close the cover.<BR/>The bases feature mounting bosses for PCBs, threaded inserts and self-tapping screws.<BR/>Designed to house small electronic assemblies as well as PCBs.

<B>Ultramas Housings</B> Desk enclosures for electronics equipment.<BR/>May be used in either a horizontal or vertical position.<BR/>Feature lower and upper air vents.<BR/>Bosses for European standard size cards are located inside the enclosure shells.<BR/>Grooves for vertical installation of cards are located on the enclosure sides.<BR/>A set of two folding feet and two fixed feet, as well as the front and rear panels, may be ordered separately.

Housings with mains power socket These housings, available in two shades of grey consist of 2 stackable sections and are mounted using 4 screws in the base.<BR/>Fitted with a 16 A (2 + T) plug in accordance with DIN 49441 R2, which can be used in both French and German sockets.

Housings with mains power socket These housings, available in two shades of grey consist of 2 stackable sections and are mounted using 4 screws in the base.<BR/>Fitted with a 16 A (2 + T) plug in accordance with DIN 49441 R2, which can be used in both French and German sockets.

Housings with mains power socket These housings, available in two shades of grey consist of 2 stackable sections and are mounted using 4 screws in the base.<BR/>Fitted with a 16 A (2 + T) plug in accordance with DIN 49441 R2, which can be used in both French and German sockets.

<B>Bopla Ultrapult Consoles Front & Rear Panel Accessories</B> A range of front & rear panel accessories for Bopla Ultrapult Consoles. The front panels are equipped with soldered pins for interior fitting while the rear panel sections slide into console. These panels are 2 mm thick and natural-coloured anodised aluminium. <B>Features and Benefits</B> • Aluminium panels<BR/>• Slide rear panel<BR/>• Front soldered lugs<BR/>• 2 mm thickness<BR/>• Natural-coloured anodised aluminium <B>Front panels</B> • 29320180 = RS stock no: <a href="/web/p/products/1619324">161-9324</a><BR/>• 29620180 = RS stock no: <a href="/web/p/products/1619346">161-9346</a> <B>Rear panels</B> • 56031800 = RS stock no: <a href="/web/p/products/1199123">119-9123</a><BR/>• 56061800 = RS stock no: <a href="/web/p/products/1199139">119-9139</a> <B>Front panels for use with;</B> • 29320180 for use with 45320185 = RS stock no: <a href="/web/p/products/1619302">161-9302</a><BR/>• 29620180 for use with 45620185 = RS stock no: <a href="/web/p/products/1619330">161-9330</a> <B>Rear panels for use with;</B> • 56031800 for use with 45320185 = RS stock no: <a href="/web/p/products/1619302">161-9302</a><BR/>• 56061800 for use with 45620185 = RS stock no: <a href="/web/p/products/1619330">161-9330</a>

<B>Bopla Ultrapult Open Area Consoles</B> Introducing the Ultrapult console enclosures from Bopla. The Ultrapult range is an excellent choice to house PCBs, electronic and electrical components. They are made of ABS and presented in a light grey colour similar to (RAL7035). These desktop enclosures are the ideal solution for easy operation in applications such as telecommunications systems and are completely customisable to suit your needs. <BR/><BR/>Ultrapult consoles are enclosures with an open area and are typically purchased with front and rear panel accessories. <B>Front & Rear Panel Accessories</B> A range of front & rear panel accessories for Ultrapult consoles. The front panels are equipped with soldered pins for interior fitting while the rear panel sections slide into console. These panels are 2 mm thick and natural-coloured anodised aluminium. <B>Features and Benefits</B> • ABS material<BR/>• Designed to receive an aluminium front & rear panels<BR/>• Two-part housings are assembled using M3 screws on the underside<BR/>• Bottom section for mounting cards on mounting bosses designed to receive self-tapping screws<BR/>• Wall mountable<BR/>• Colour: Top & Bottom = Light grey, similar to RAL 7035, Bezel = agate grey RAL 7038<BR/>• IP 40/ DIN EN 60529 <B>Console External Dimensions</B> • L.290.9 x D.198.9 x H.120.4 mm = RS stock no: <a href="/web/p/products/1619330">161-9330</a><BR/>• L.157.5 x D.198.9 x H. 120.4 mm = RS stock no: <a href="/web/p/products/1619302">161-9302</a> <B><I>Front Panel Accessories</I></B><BR/>• MPN. 29620180 = RS stock no: <a href="/web/p/products/1619346">161-9346</a>; for use with MPN. 45620185 = RS stock no: <a href="/web/p/products/1619330">161-9330</a><BR/>• MPN. 29320180 = RS stock no: <a href="/web/p/products/1619324">161-9324</a>; for use with MPN. 45320185 = RS stock no: <a href="/web/p/products/1619302">161-9302</a><BR/><BR/><B><I>Rear Panel Accessories</I></B><BR/>• MPN. 56031800 = RS stock no: <a href="/web/p/products/1199123">119-9123</a>; for use with MPN. 45320185 = RS stock no: <a href="/web/p/products/1619302">161-9302</a><BR/>• MPN. 56061800 = RS stock no: <a href="/web/p/products/1199139">119-9139</a>; for use with MPN. 45620185 = RS stock no: <a href="/web/p/products/1619330">161-9330</a> <B>Typical Applications</B> • Food and Beverage Industry <BR/>• Telecommunication Industry <BR/>• Cable/Wire Management<BR/>• IT <B>(IP) Ingress Protection and what it means</B> IP rating classifies the degrees of protection provided against the intrusion of solid objects (including body parts like hands and fingers), dust, accidental contact, and water in electrical enclosures. <B><I>FAQ's</I></B><BR/><BR/><B><I>Can the enclosure be used outside?</I></B><BR/>These desktop enclosure have an IP40 rated, no protection from liquids.<BR/><BR/><B>Whats in the box?</B><BR/>• Console, 4 screw covers, 4 rubber feet, 4 screws
