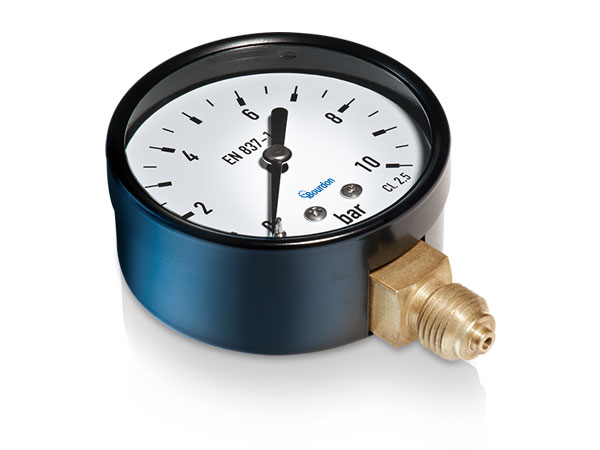

Baumer MAT Steel Case Pressure Gauge Black painted steel pressure gauges from Baumer. The gauges have a Kostil (technolpolymer) dial with easy to read black graduations and number on a white back ground (100mm versions have a ABS plastic dial). Gauges are manufcatured to conform to EN 837-1 and are available with a bottom or back connection. Features and Benefits • Knife edge black aluminium pointer • IP32 rated • Cupreous metal Bourdon tube • Welded tube connection assembly • Brass connection with 14 mm square • Class 2.5 • 40, 50, 63mm and 100mm gauge diameters available Applications • Compressed gases • Lubricating circuits • Hot or cold water networks • Water distribution

Baumer MIT Pressure Gauge - Class 2.5 The gauges have an aluminium alloy dial with easy to read black graduations and number on a white background. Gauges are manufactured to conform to EN 837-1 and are available with a bottom or back connection. Features and benefits • Black balanced aluminium pointer • IP54 (IP65 for 100 mm dia.) rated • Cupreous metal Bourdon tube • Welded tube connection assembly • 14 mm Hexagonal (21 mm for 100 mm dia.) brass connection • Class 2.5 • 63 mm and 100 mm gauge diameters available Applications • Compressors • Diesel engines • Agricultural equipment • Public works • Machine tools • Hydraulic systems • Pumps

Baumer MIT Pressure Gauge - Class 2.5 The gauges have an aluminium alloy dial with easy to read black graduations and number on a white background. Gauges are manufactured to conform to EN 837-1 and are available with a bottom or back connection. Features and benefits • Black balanced aluminium pointer • IP54 (IP65 for 100 mm dia.) rated • Cupreous metal Bourdon tube • Welded tube connection assembly • 14 mm Hexagonal (21 mm for 100 mm dia.) brass connection • Class 2.5 • 63 mm and 100 mm gauge diameters available Applications • Compressors • Diesel engines • Agricultural equipment • Public works • Machine tools • Hydraulic systems • Pumps

The Bourdon MEX5 is stainless steel pressure gauge has nominal size of Ø 100 with G1/2 connection and protected with IP65 rating. Class 1 according to EN 837-1Wetted parts Stainless steel (MEX) or Monel (MEM)Lloyds Register ApprovalOption liquid-filled for applications with pulsations or vibrationsOption case material 1.4404 (316L) for aggressive atmosphere

The Bourdon pressure gauge with damping fluid used for non-corrosive gasses and liquids. Back connection

The Bourdon utility pressure gauge with damping fluid for non-corrosive gasses and liquids. It has nominal of size 63 mm. It has pressure in between 0 to 6 bar. Back connection, front flange, 3 holes for panel mountingOEM applications

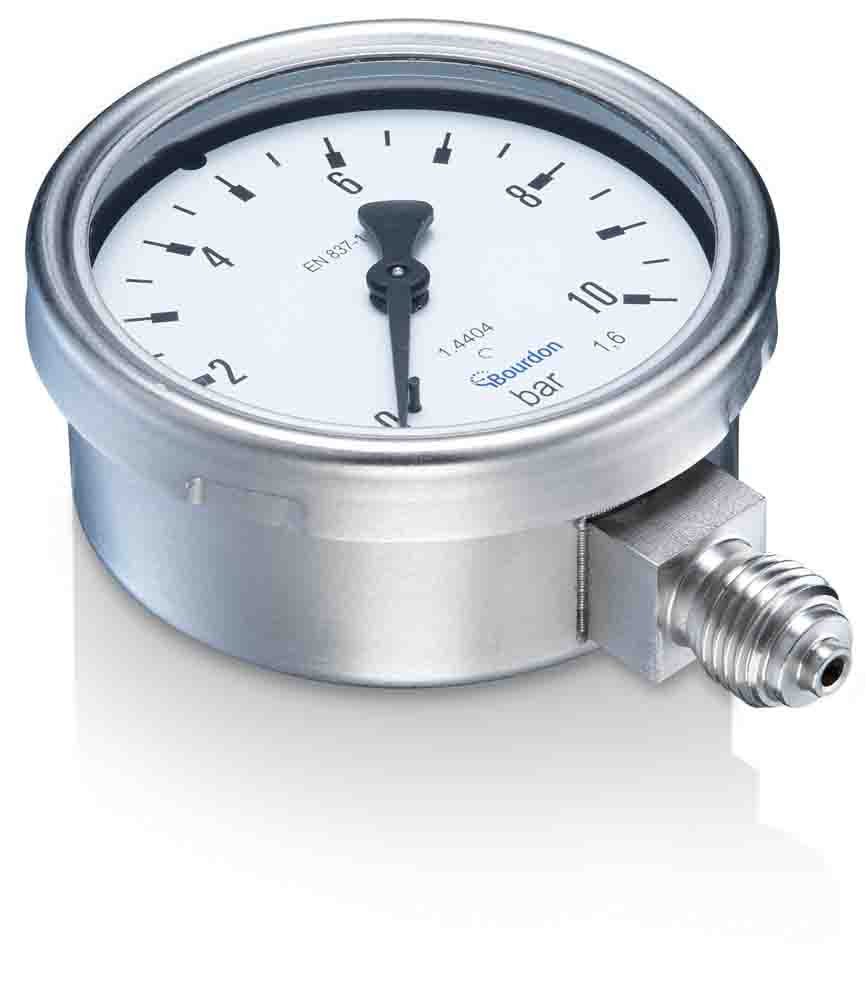

The Bourdon MEX3 is stainless steel pressure gauge has nominal size of Ø 63 with G1/4 connection and protected with IP65 rating. Class 1.6 according to EN 837-1Wetted parts Stainless steelCase with crimped bezel ringLloyds Register ApprovalOption Liquid-filled for applications with pulsations or vibrationsOption Case material 1.4404 (316L) for aggressive atmosphere Technical

The Bourdon MEX5 is stainless steel pressure gauge has nominal size of Ø 100 with G1/2 connection and protected with IP65 rating. Class 1 according to EN 837-1Wetted parts Stainless steel (MEX) or Monel (MEM)Lloyds Register ApprovalOption liquid-filled for applications with pulsations or vibrationsOption case material 1.4404 (316L) for aggressive atmosphere

The Bourdon MAT1 is pressure gauge ecoline dry steel case which has nominal size of Ø 40 with G1/8 connection. It is protected with IP32 rating. Class 2.5 according to EN 837-1Wetted parts BrassOEM applications Technical

The Bourdon MAT1 is pressure gauge ecoline dry steel case which has nominal size of Ø 40 with G1/8 connection. It is protected with IP32 rating. Class 2.5 according to EN 837-1Wetted parts BrassOEM applications Technical

Baumer MIT Pressure Gauge - Class 2.5 The gauges have an aluminium alloy dial with easy to read black graduations and number on a white background. Gauges are manufactured to conform to EN 837-1 and are available with a bottom or back connection. Features and benefits • Black balanced aluminium pointer • IP54 (IP65 for 100 mm dia.) rated • Cupreous metal Bourdon tube • Welded tube connection assembly • 14 mm Hexagonal (21 mm for 100 mm dia.) brass connection • Class 2.5 • 63 mm and 100 mm gauge diameters available Applications • Compressors • Diesel engines • Agricultural equipment • Public works • Machine tools • Hydraulic systems • Pumps

Baumer Industrial Pressure Gauges - Class 1.0 Stainless steel accuracy class 1.0 industrial pressure gauges with a black plastic pointer and easy to read white dial face with black lettering. The gauge is fitted with a high quality instrument glass window with an elastomer seal and blow out device for operator safety. Features and benefits • Suitable for corrosive gases and liquids • EN 837-1 Class 1.0 • IP 65 • Stainless steel wetted parts • Fully welded process connection • 100 mm Nominal size Applications • Food and beverage • Laboratory and medical • Oil gas / chemical • Water and waste water • Energy • Transportation and logistics • Machinery
