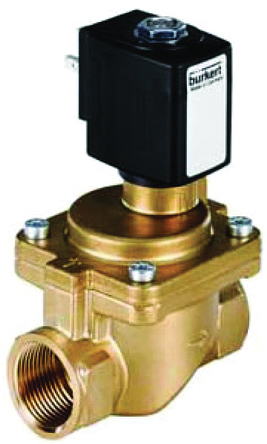

Burkert Solenoid Valve The Burkert 0211B series 1/4inG female solenoid valve has a supply voltage of 24VDC. This 2-port NO position valve with a servo diaphragm has a compact design with NBR seal. The valve is normally open by spring action assisted by the fluid pressure. When de-energized, the media is exhausted to atmosphere via the pilot operator. When energized, the space above the servo diaphragm is exhausted via the pilot valve, the diaphragm is lifted by the fluid pressure to close the valve.<BR/>Compact solenoid valves suitable for most gas and fluid handling applications. Where practical, valves are shown with a schematic diagram showing the (circuit) function. The diagram is laid out so that the left-hand side of the diagram describes the operation of the valve when the coil is energised. When the coil is de-energised, the spring (or servo-assist) return controls the valve and is described on the right-hand side of the diagram. The 3 / 2-way designation indicates a valve with three ports and two modes of operation. It is normal practice to refer to 2 / 2-way valves as two ways. The port designations A, B, P, P1, P2 and R are used on the schematic diagrams and are marked on the valve bodies. Valve bodies are marked for a specific circuit function but can often be used for other functions. Reference to the schematic diagrams and technical specifications indicates the appropriate connections and pressure capabilities when an alternative circuit function is required. Features and Benefits Maximum working pressure is 8bar<BR/>Flow factor(Kv) is 0.16m³/h<BR/>High flow rate<BR/>Operating temperature is between -10°C and 55°C<BR/>Power consumption is 8W<BR/>Solenoid epoxy encapsulation efficiently dissipates the heat generated by the coil<BR/>The supply voltage is 24VDC Applications Circuit function B for air or gases (consult for use with liquids) <BR/>Fire protection installations <BR/>Irrigation systems <BR/>Laundries <BR/>Machine tools<BR/>Neutral gases and liquids <BR/>Sanitary applications <BR/>Varnishing technology Certifications IP65 rated

<B>Type 0211 - Direct-acting 2/2 way plunger valve</B> The 0211 Burkert Solenoid Valve is a 2-way solenoid valve which is direct acting and normally has a closed (Circuit function A) or normally open (Circuit function B). <B>Features and Benefits </B> • Vibration-resistant block-screwed coil design.<BR/>• Compact design, up to DN 6.<BR/>• Housing made of brass and stainless steel with threaded connection.<BR/>• Arrow on valve body indicates flow direction. <B>Where is a Burkert Solenoid Valve used?</B> This Solenoid Valve is usually used for sealing ports. <B>How can I mount a Solenoid Valve?</B> Mounting is accomplished by means of four M4 x 8 mm tapped holes located on the valve underside.

2 // 2 NF direct control, compact solenoid valves, series 6013 Range of direct control 2 // 2 NC solenoid valves for neutral liquids up to +100°C.<BR/>Able to change the solenoid without removing the valve.<BR/>The solenoid can be positioned freely or locked in 4 positions at 90° intervals.<BR/>High quality, FPM sealing material included as standard.<BR/>DIN 43 650A connector.<BR/>Brass body.

Two-way Compact Solenoid Valves, Type 6013 Modular direct acting solenoid valve system Brass body with polyamide coil<BR/>Coil can be changed easily with valve in place<BR/>Coil can be locked in four by 90° positions or move free between, as required<BR/>FPM high quality seal material <BR/>Suitable for compressed air; natural gas; water and hydraulic oil<BR/>Maximum operating temperature: 55°C<BR/>Power consumption: 8W (DC), 24VA (Inrush, AC); 17VA (Hold, AC)<BR/>Protection to IP65, with cable plug DIN 43650C

Two-way Compact Solenoid Valves, Type 6013 Modular direct acting solenoid valve system Brass body with polyamide coil<BR/>Coil can be changed easily with valve in place<BR/>Coil can be locked in four by 90° positions or move free between, as required<BR/>FPM high quality seal material <BR/>Suitable for compressed air; natural gas; water and hydraulic oil<BR/>Maximum operating temperature: 55°C<BR/>Power consumption: 8W (DC), 24VA (Inrush, AC); 17VA (Hold, AC)<BR/>Protection to IP65, with cable plug DIN 43650C

3 // 2 NF direct control, miniature solenoid valves, series 6012 Range of miniature, modular, direct control solenoid valves for neutral liquids of up to +100 °C.<BR/>Function 3 // 2 NF, DL output, with exhaust when off.<BR/>Able to change the solenoid without removing the valve.<BR/>The solenoid can be positioned freely or locked in 4 positions at 90° intervals.<BR/>High quality FPM (Viton) sealing material as standard.<BR/>DIN 43 650C connector.<BR/>Body made of brass.

6012 Series 3//2 way, Miniature Normally Closed Solenoid Valves – Threaded Port Connection Coil changed easily with valve in place<BR/>Coil can be locked in any one of four 90° positions or move free between, as required<BR/>Brass body, polyamide coil and FKM high quality seal material<BR/>Suitable for compressed air, water, hydraulic oil<BR/>Operating temperature –10 to +100°C max.<BR/>Power consumption 4W DC; 9VA (Inrush); 6VA (Hold)<BR/>Protection to IP65 with cable plug DIN43650C

6012 Series 3//2 way, Miniature Normally Closed Solenoid Valves – Threaded Port Connection Coil changed easily with valve in place<BR/>Coil can be locked in any one of four 90° positions or move free between, as required<BR/>Brass body, polyamide coil and FKM high quality seal material<BR/>Suitable for compressed air, water, hydraulic oil<BR/>Operating temperature –10 to +100°C max.<BR/>Power consumption 4W DC; 9VA (Inrush); 6VA (Hold)<BR/>Protection to IP65 with cable plug DIN43650C

3 // 2 NF direct control, miniature solenoid valves, series 6012 Range of miniature, modular, direct control solenoid valves for neutral liquids of up to +100 °C.<BR/>Function 3 // 2 NF, DL output, with exhaust when off.<BR/>Able to change the solenoid without removing the valve.<BR/>The solenoid can be positioned freely or locked in 4 positions at 90° intervals.<BR/>High quality FPM (Viton) sealing material as standard.<BR/>DIN 43 650C connector.<BR/>Body made of brass.

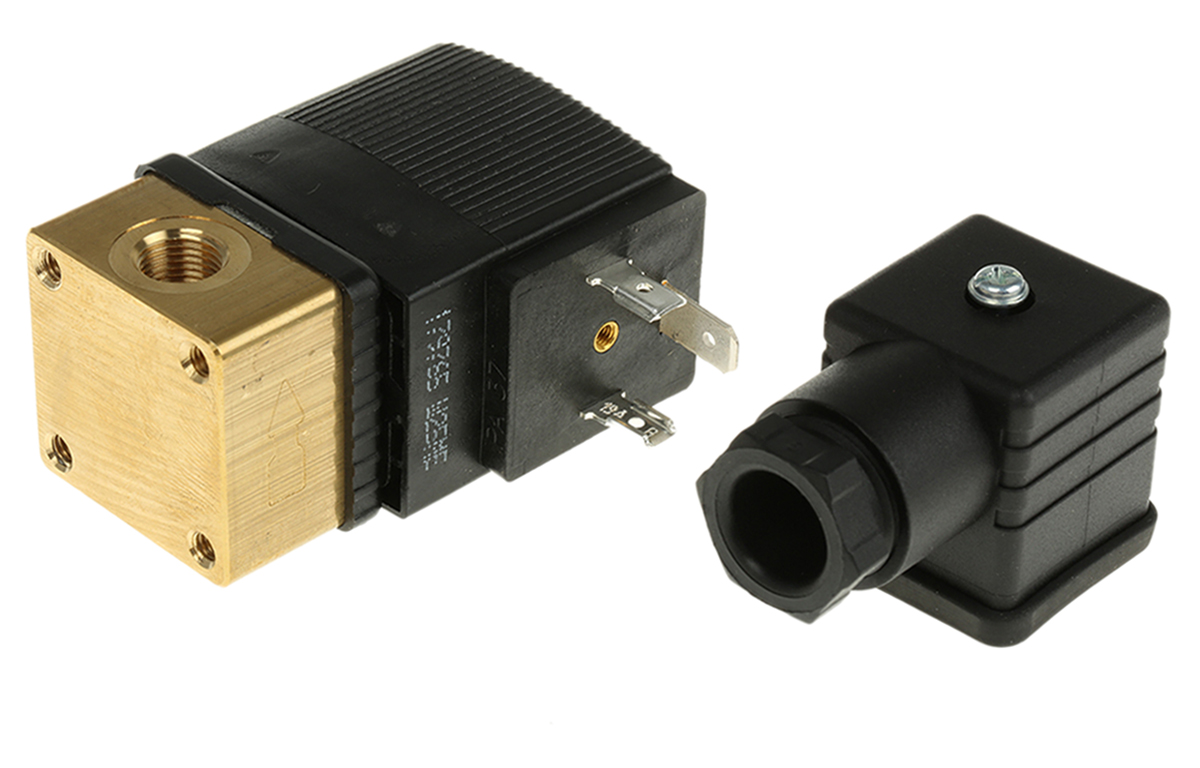

Burkert Solenoid Valve The Burkert 2-port 1/8in G female solenoid valve is a screwed coil system. It has high-quality seal material FPM as standard. The stopper and plunger guide tube are welded together to enhance pressure resistance and leak tightness. Its maximum opening and closing time ranging between 15 milliseconds and 20 milliseconds. This valve is suitable to use with water, neutral fluids air natural, gases, oil and fats (without additives). Features and Benefits Supply voltage is 24VDC<BR/>Flow factor (Kv) is 0.06m³/h<BR/>Direct-acting and compact valve with diameter of DN2.4<BR/>Brass body with a polyamide coil<BR/>Coil can be changed easily with valve in place<BR/>Coil can be locked in four by 90° positions or move freely in between, as required<BR/>Simple and quick flange or manifold installation <BR/>Quick coupling (push-in fitting) for plug-in hose connections<BR/>Maximum working pressure is 6bar<BR/>Power consumption is 4W <BR/>Operating temperature ranging between -10°C and 55°C Certifications IP65 rated

6011 Series Two-Way, Miniature Normally Closed Solenoid Valves - Threaded Port Connection Coil changed easily with valve in place<BR/>Coil can be locked in four 90° positions or move free between, as required<BR/>Brass body, polyamide coil and FPMhigh quality seal material<BR/>Suitable for compressed air, water, hydraulic oil<BR/>Operating temperature -10 to +100°C max.<BR/>Power consumption 4W DC; 9VA (Inrush); 6VA (Hold)<BR/>Protection to IP65 with cable plug DIN43650C

6011 Series Two-way, Miniature Normally Closed Solenoid Valves - Sub Base Connection (Manifold) Compact Design<BR/>Coil changed easily with valve in place<BR/>FPM seal<BR/>Suitable for the following media: compressed air, water, hydraulic oil<BR/>Operating temperature -10 to +100°C max.<BR/>Protection to IP65 with cable plug DIN43650C<BR/>Fits on the following manifolds: stock nos <a href="/web/p/products/244389">244-389</a>, <a href="/web/p/products/244395">244-395</a>, <a href="/web/p/products/244418">244-418</a> and <a href="/web/p/products/244424">244-424</a>
