The Calex PyroMiniBus sensors Touch screen display with data logging are used to configure, display and log data and alarms from up to 6 sensors per PM180 unit, simultaneously or individually. Touch screen with backlight<BR/>Compatible with PyroMiniBus, PyroMini, PyroBus and FibreMini sensor<BR/>2-channel scrolling temperature chart

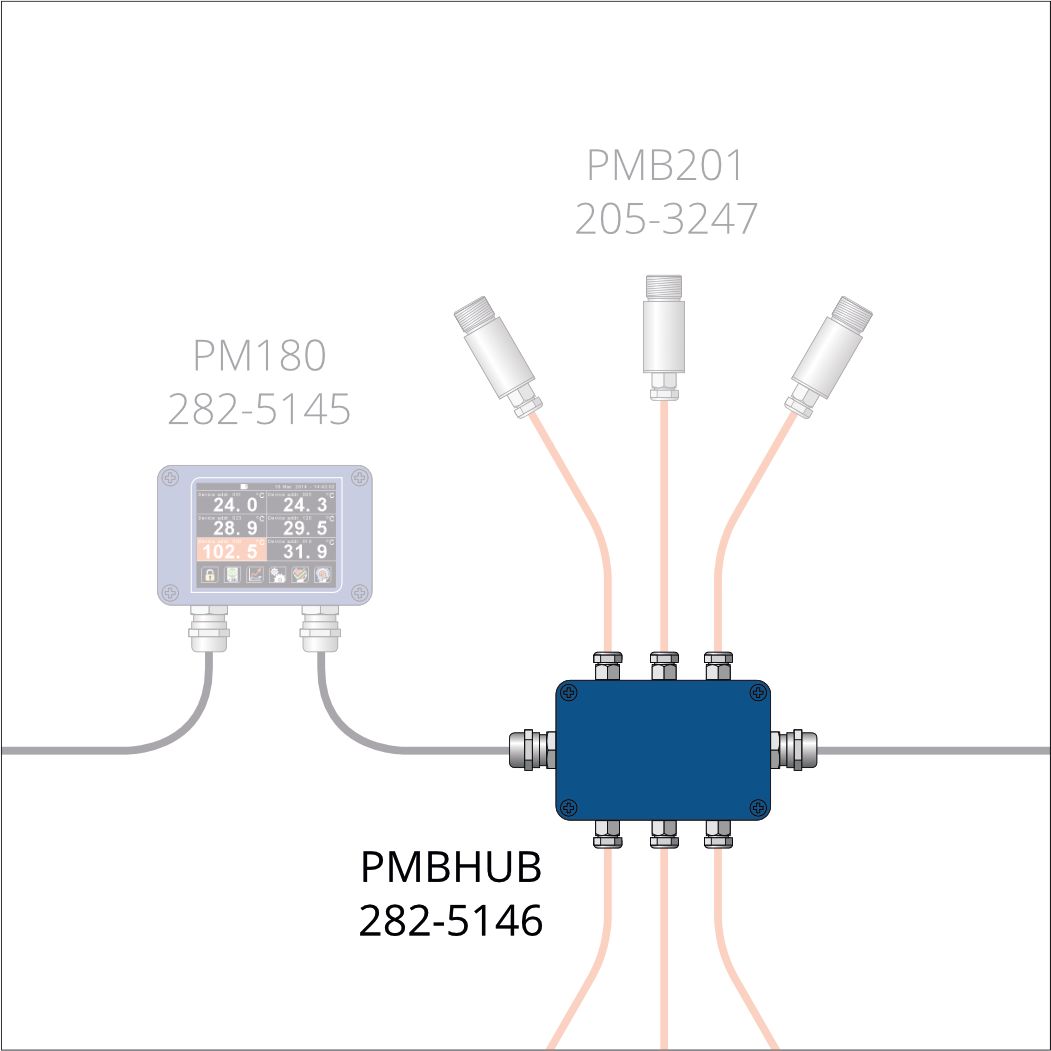

The Calex Junction box is design to used with PyroMiniBus sensors. It can connect upto 6 PyroMiniBus sensors to PM180. IP65 rated<BR/>RS485 network cable<BR/>Removable screw terminals

The Calex PyroMini OEM is a low-cost infrared temperature sensor with 15:1 precision optics. The sensor temperature measurement range is between 0°C and 500°C. It has Right-angled cable entry for low-profile installations and optional mounting brackets. The standard output cable length is 1 metre. Output = 4-wire, type K thermocouple<BR/>Ambient temperature range = 120°C<BR/>Accuracy = ±1% of reading or ±1ºC whichever is greater<BR/>Spectral range = 8 to 14 μm<BR/>Sensing head cable length = 3m<BR/>IP65 rated

The Calex PyroMini OEM is a low-cost infrared temperature sensor with 15:1 precision optics. The sensor temperature measurement range is between 0°C and 500°C with 2-wire, 4-20 mA output (loop-powered). It has Right-angled cable entry for low-profile installations and optional mounting brackets. The standard output cable length is 1 metre. Output = 2-wire, 4-20 mA<BR/>Ambient temperature range = 120°C<BR/>Accuracy = ±1% of reading or ±1ºC whichever is greater<BR/>Spectral range = 8 to 14 μm<BR/>Sensing head cable length = 3m<BR/>IP65 rated

The Calex PyroMini OEM is a low-cost infrared temperature sensor with 15:1 precision optics. The sensor temperature measurement range is between 0°C and 500°C. It has Right-angled cable entry for low-profile installations and optional mounting brackets. The standard output cable length is 1 metre. Output = 4-wire, type J thermocouple<BR/>Ambient temperature range = 120°C<BR/>Accuracy = ±1% of reading or ±1ºC whichever is greater<BR/>Spectral range = 8 to 14 μm<BR/>Sensing head cable length = 3m<BR/>IP65 rated

The Calex PyroMiniBus PMB201 is a fully-configurable miniature infrared temperature sensor with RS485 communications. 20:1 optics The sensor measurement temperature range is between -20°C and 1000°C. It is interface with 6-channel temperature display with configuration, alarms and data logging system. Ambient temperature range = 0°C to 120°C<BR/>Accuracy = ±1% of reading or ±1ºC whichever is greater<BR/>Spectral range = 8 to 14 μm<BR/>Baud Rate = 9600 baud

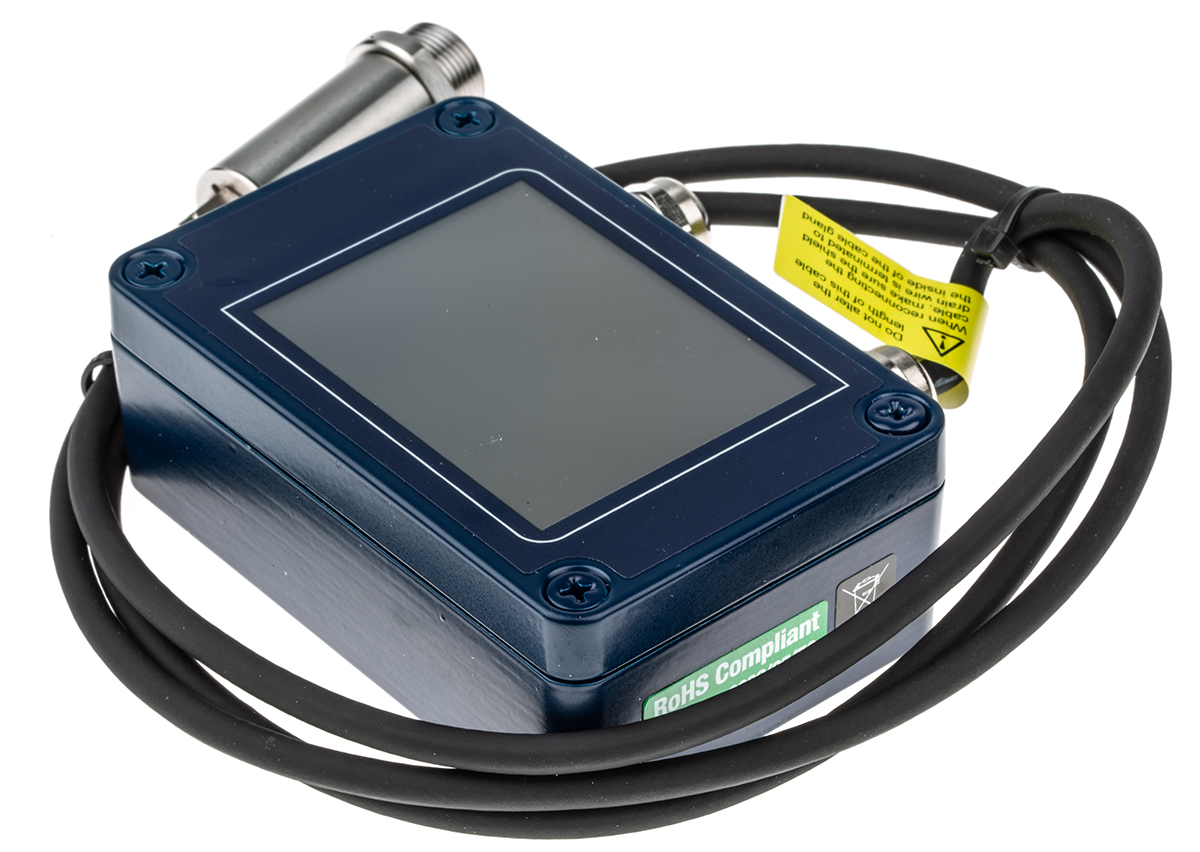

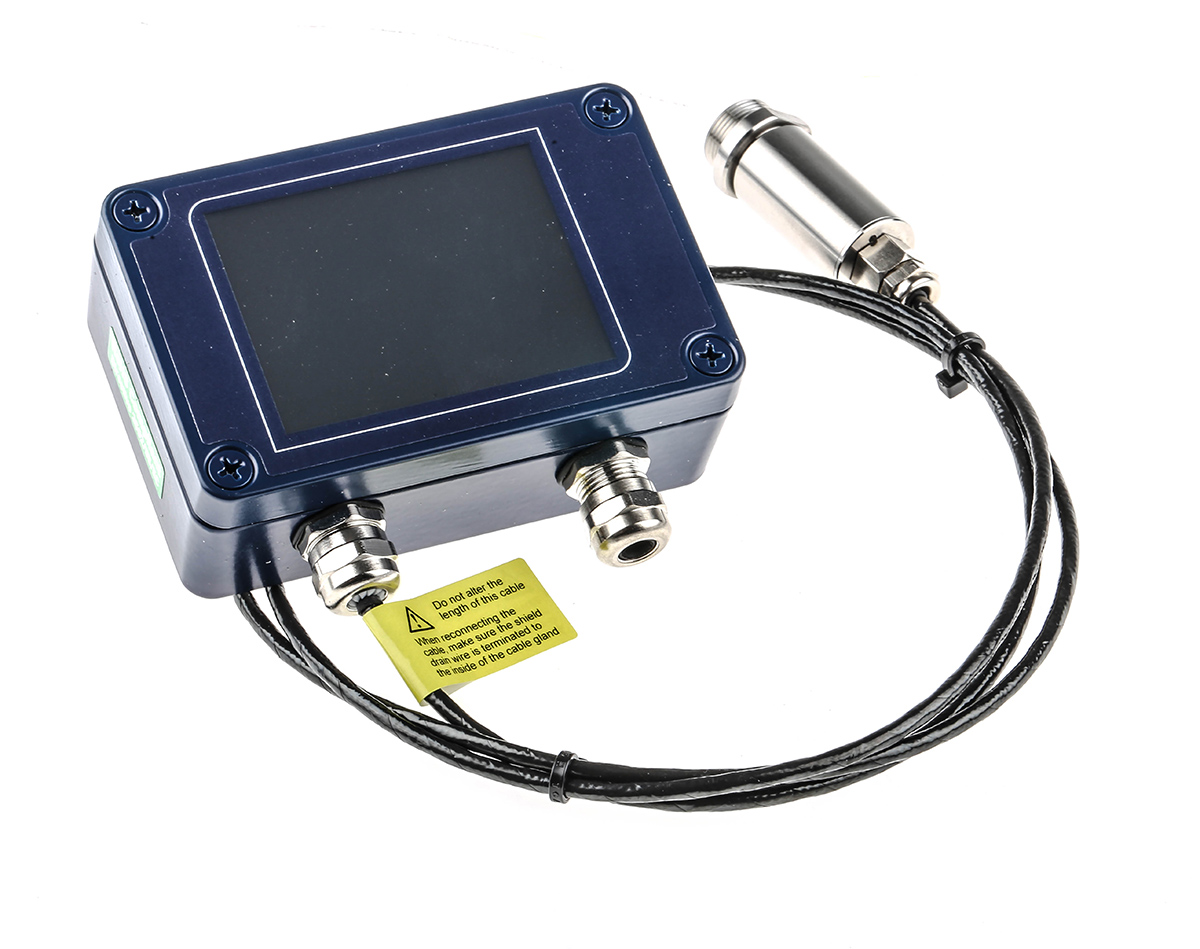

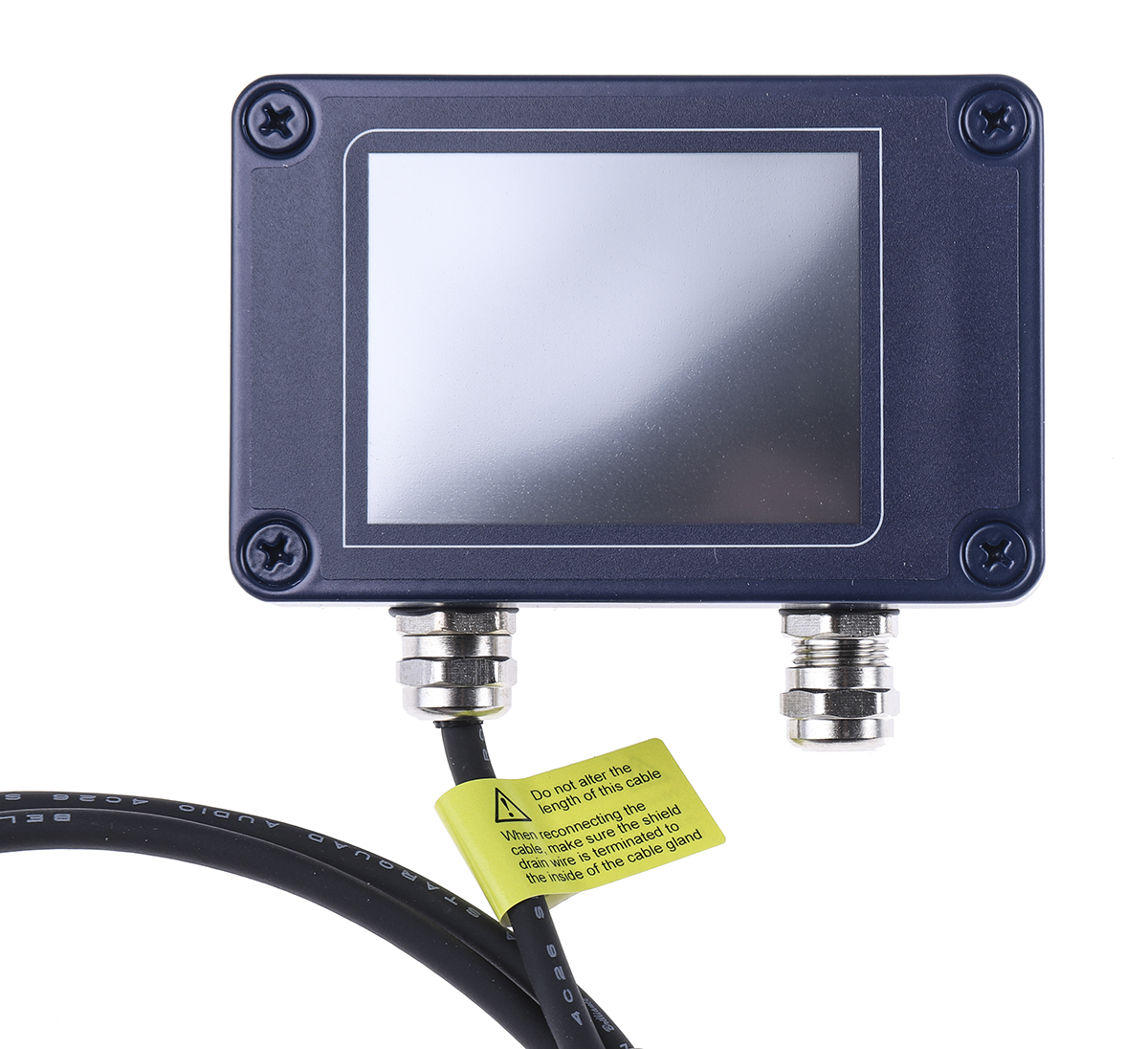

PyroMini IR Temperature Sensors Miniature infrared temperature sensor with optional high-ambient sensing head and touch screen. Sensing head and configurable electronics module with touch screen (optional) for temperature indication and configuration. High-ambient sensing head (optional) withstands up to 180°C without cooling<BR/>Data logging to MicroSD Card (included) on touch screen models<BR/>4 to 20 mA and relay outputs<BR/>Alarm relay outputs rated 24 V DC (optional) - no need for separate trip amplifier<BR/>Temperature ranges from -20°C to 1000°C<BR/>Maximum, minimum, average and instantaneous readings, peak or valley hold, reflected energy compensation<BR/>Optional mounting brackets, air purge collar, laser sighting tool and protective window<BR/>Cable length: 1m

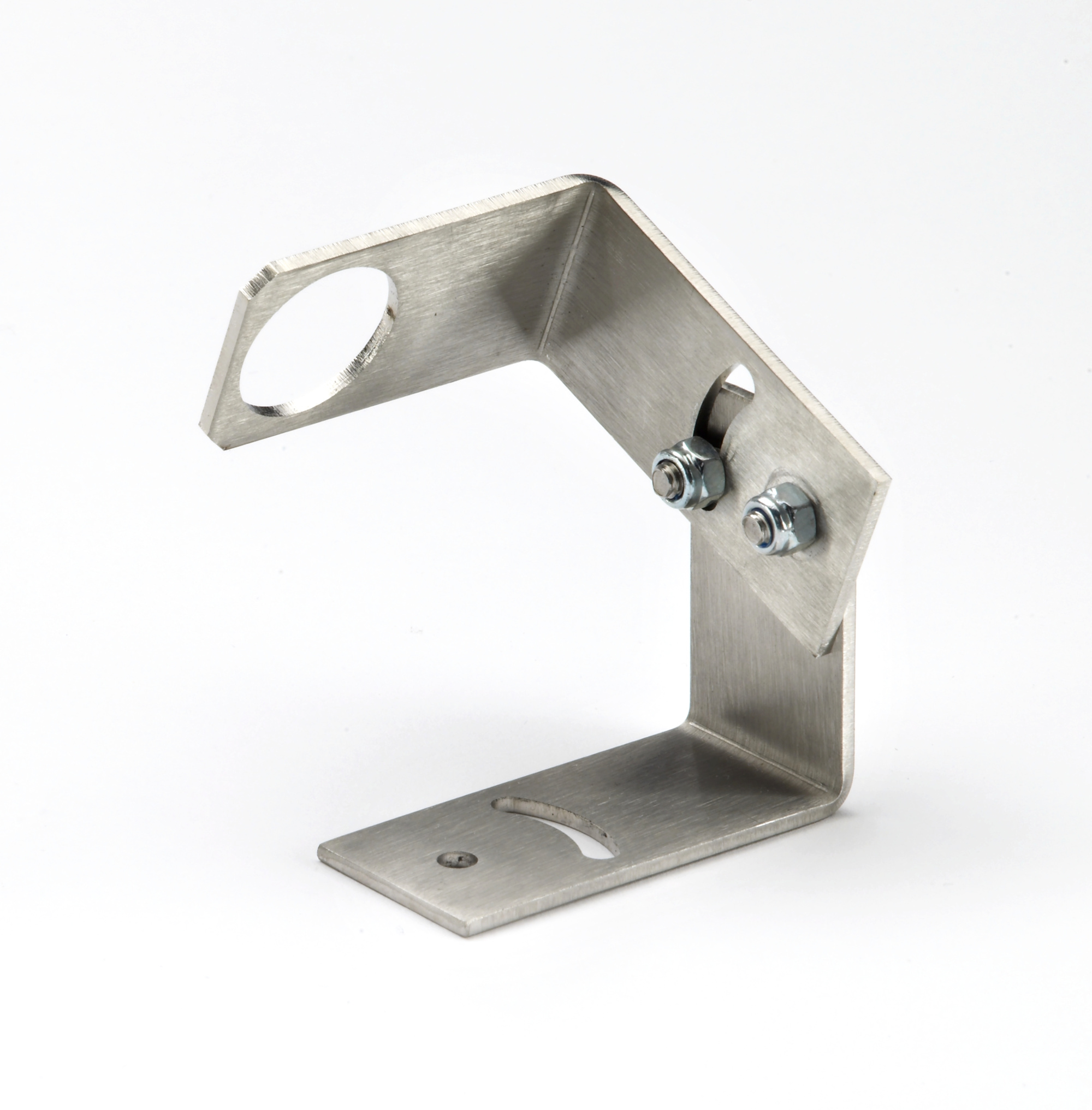

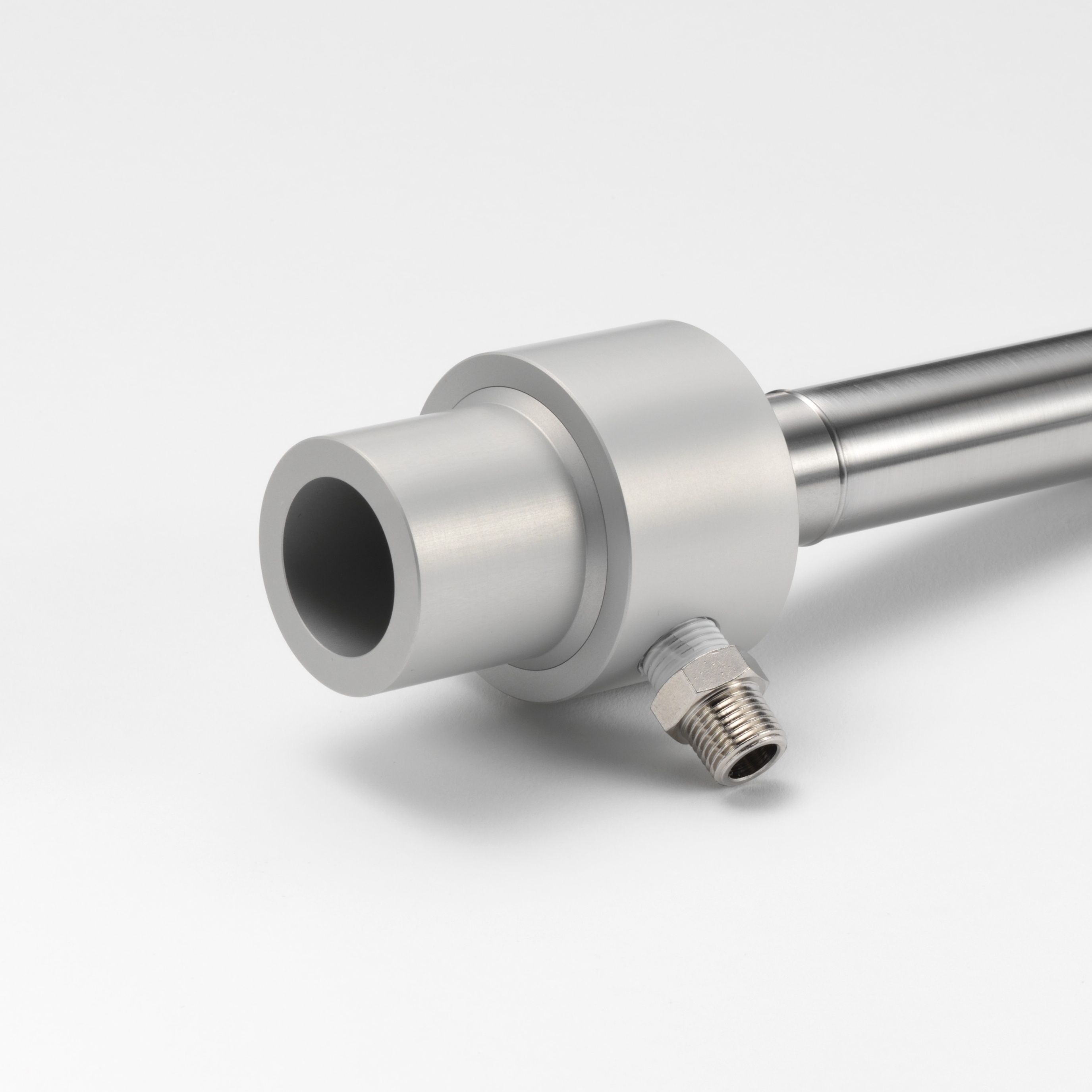

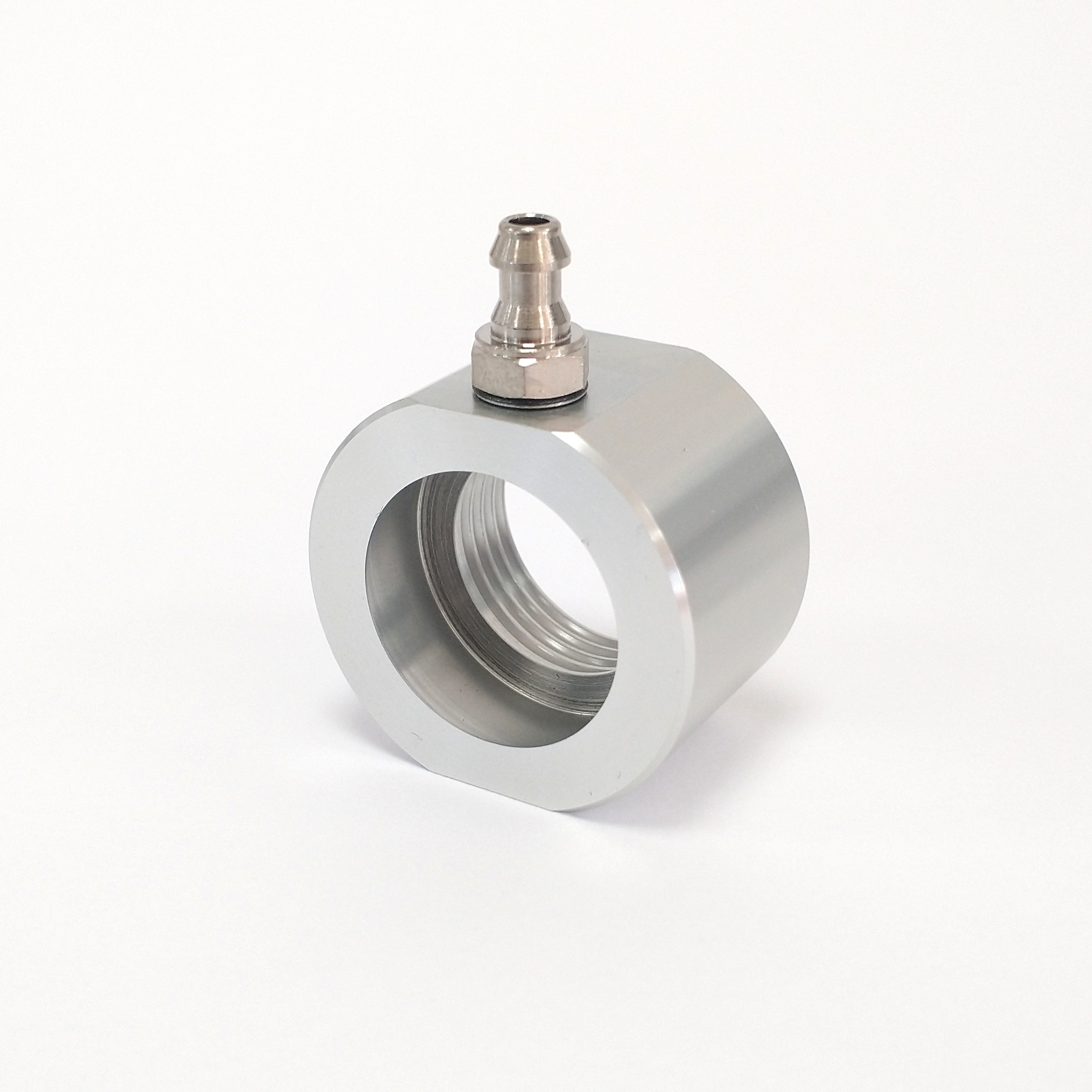

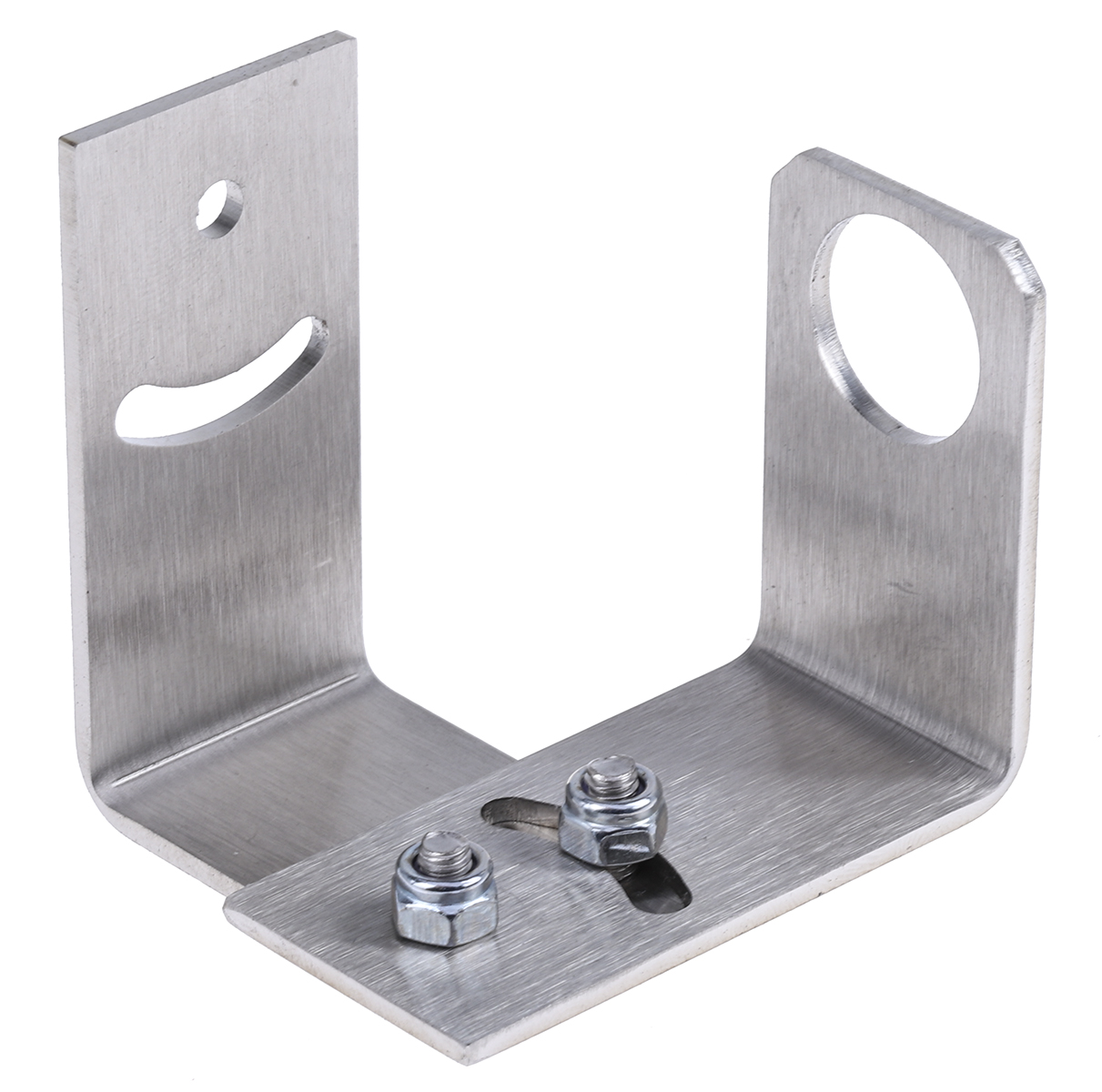

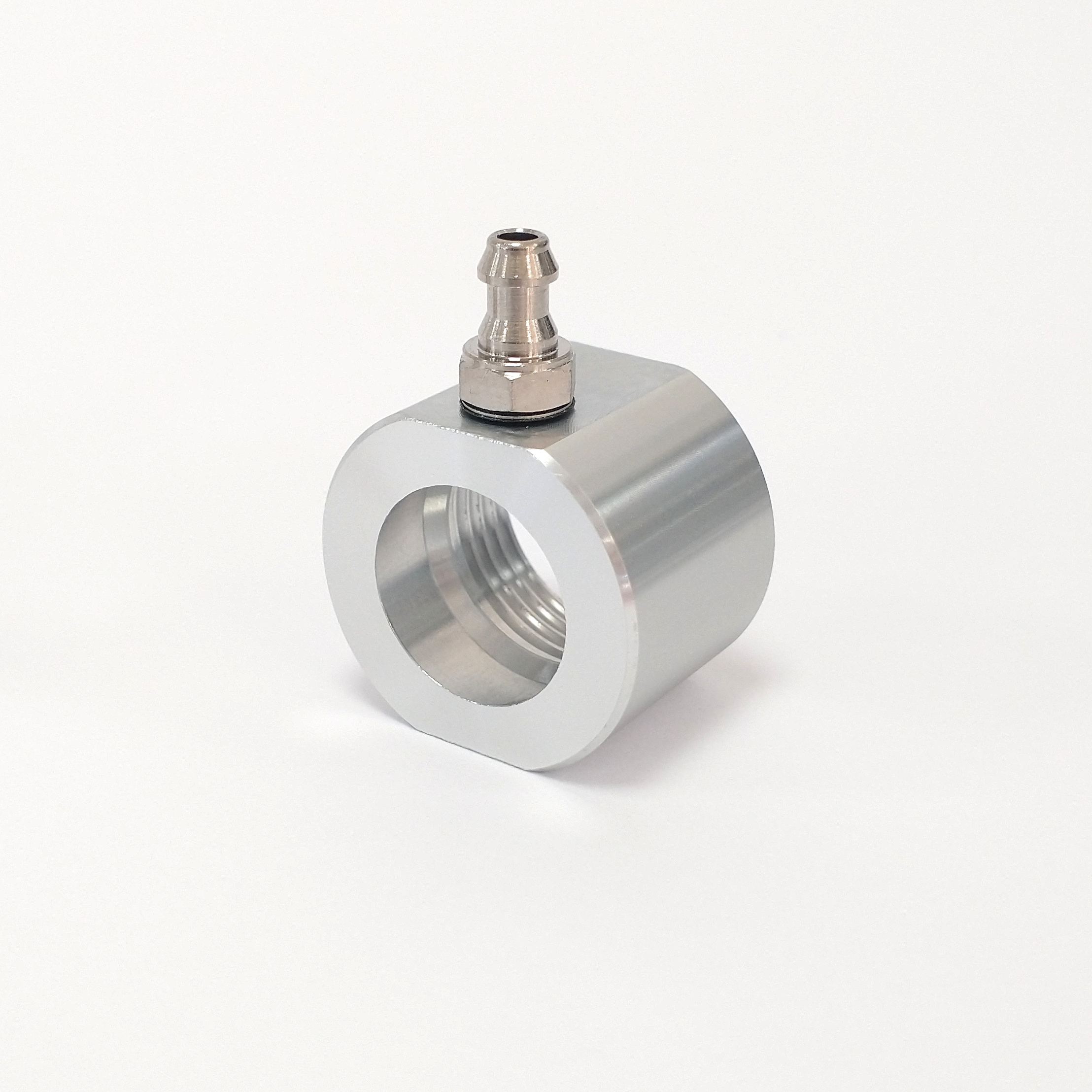

PyroMini IR Temperature Sensor Accessories Adjustable mounting brackets and air purge collars. The adjustable mounting bracket consists of a fixed mounting bracket plus another L- shaped bracket. When assembled as shown the adjustable mounting bracket offers a rigid support for the sensor and allows fine adjustment in two planes. Air purge collars are used to keep dust, fumes, moisture and other contaminants away from the lens. Air flows into the fitting on the side and out of the aperture at the front.

PyroMini IR Temperature Sensor Accessories Adjustable mounting brackets and air purge collars. The adjustable mounting bracket consists of a fixed mounting bracket plus another L- shaped bracket. When assembled as shown the adjustable mounting bracket offers a rigid support for the sensor and allows fine adjustment in two planes. Air purge collars are used to keep dust, fumes, moisture and other contaminants away from the lens. Air flows into the fitting on the side and out of the aperture at the front.

PyroMini IR Temperature Sensors Miniature infrared temperature sensor with optional high-ambient sensing head and touch screen. Sensing head and configurable electronics module with touch screen (optional) for temperature indication and configuration. High-ambient sensing head (optional) withstands up to 180°C without cooling<BR/>Data logging to MicroSD Card (included) on touch screen models<BR/>4 to 20 mA and relay outputs<BR/>Alarm relay outputs rated 24 V DC (optional) - no need for separate trip amplifier<BR/>Temperature ranges from -20°C to 1000°C<BR/>Maximum, minimum, average and instantaneous readings, peak or valley hold, reflected energy compensation<BR/>Optional mounting brackets, air purge collar, laser sighting tool and protective window<BR/>Cable length: 1m

The Calex 6 Channel handheld temperature data logger with touch screen. It has 4 x thermocouple inputs and 2 x RTD inputs. It display and log all 6 channels simultaneously or individually. Data logging to SD Card, or PC via USB interface. It is powered by built-in battery, USB or mains adapter and (included) touch screen with backlight. Built-in stand<BR/>Free software available<BR/>Modbus interface for integration into third-party software<BR/>2-channel scrolling temperature chart<BR/>Alarm indication for each channel<BR/>CE Marked and RoHS 2 Compliant

The Calex Electronics ExTemp intrinsically safe infrared temperature sensor. It measures the temperature of surfaces in hazardous areas without contact and provides a direct 4-20 mA output. It has 5 m cable length. It can be used in petrochemical condition monitoring, coal conveyors and automotive painting application. It is certified to ATEX, IECEx and TIIS standards<BR/>IP65 sealed<BR/>Rescalable output and adjustable emissivity setting
