Castle GA 2002 Vibration Meter Castle GA2002 is a small, lightweight, reliable instrument providing all the fundamental vibration measurements in a single key stroke, at an economical price. It is designed for production managers, maintenance engineers and anyone carrying out machinery condition-monitoring tasks. Features and Benefits Integral mechanical and linear filtersData-logging of 9 data pointsAcceleration, Velocity & Displacement parametersMeasurement in rms, Max rms and peak valuesCan be used in conjunction with a sound level meter to trace the source of a sound Applications Construction engineeringMaintenance operators the simple nature of the GA2002 means that you do not need to mess about with usb cables or software, you simply store the reading or write it down for later use.Supplied withAccelerometer, cable, spike probe, magnet, case

Castle GA116L Sonus Class 1 Data-logging Sound Level Meter Castle GA116L is designed for industrial safety officers and safety managers, for compliance with ’The Control of Noise at Work regulations 2005’. It is fully compliant with European and International standards. The GA257L is supplied with dBdataPro LITE PC software for downloading data from the instrument. Multiple file saving using on board Flash memoryDual channel measurements for Lp, Leq and LmaxSimultaneous measurement of Lp, Leq, Lmax, Apeak or Cpeak or Zpeak, Lep,d, LAE, Dose, Dose / Hour, Pa2H, L10, L90 and L(user)Channel independent Frequency weighting selection ’A’, ’C’ or ’Z’Channel independent Time weighting selection ’Slow’, ’Fast’ or ’Impulse’Sound pressure (Lp) to 0.1dB resolutionIntegrated equivalent level (Leq) measurementPersonal sound exposure level (Lep,d)Single event sound exposure level (LAE)Percentile levels (L10, L90 and a user selectable level)Noise dose%, noise dose per hour%, pascal squared hoursLmax - maximum Lp (rms) levelApeak, Zpeak or Cpeak – maximum Frequency weighted peak levelElapsed time (running time hrs, min, sec)Interval periodOver Load and Under Range indicationHoused in tough, crack-resistant ABS plastic

Castle GA116i Sonus Class 1 Integrating Sound Level Meter The GA116i is designed for industrial safety officers, safety managers and engineers, for compliance with the Control of Noise at Work regulations 2005. It is fully compliant with European and International standards. The GA116i will provide all necessary sound measurement information for completing noise at work risk assessments. Simultaneous measurement of Lp, Leq, Lmax, Cpeak, Lep,d, LAE, Dose, Dose / Hour, Pa2H'A' and 'C' frequency weighting (toggle)'Slow' and 'Fast' Time constants (toggle)Sound pressure (Lp) to 0.1dB resolutionIntegrated equivalent level (Leq) measurementPersonal sound exposure level (Lep,d)Single event sound exposure level (LAE)Noise dose%, noise dose per hour%, pascal squared hoursLmax - maximum Lp (rms) levelCpeak - maximum C weighted peak levelElapsed time (running time hrs, min, sec)Over Load and Under Range indicationHoused in tough, crack-resistant ABS plastic

Castle GA216L Sonus Class 2 Data-logging Sound Level Meter Castle GA216L is fully compliant with European and International standards. It is designed for use by industrial safety officers, safety managers and engineers, for compliance with the Control of Noise at Work regulations 2005. GA216L will provide all the necessary sound measurement information for completing noise at work risk assessments. Multiple file saving using on board Flash MemoryDual channel measurements for Lp, Leq and LmaxSimultaneous measurement of Lp, Leq, Lmax, Apeak or Cpeak or Zpeak, Lep,d, LAE, Dose, Dose / Hour, Pa2H, L10, L90 and L(user)Channel independent Frequency weighting selection ’A’, ’C’ or ’Z’Channel Independent Time weighting selection ’Slow’, ’Fast’ or ’Impulse’Sound pressure (Lp) to 0.1dB resolutionIntegrated equivalent level (Leq) measurementPersonal sound exposure level (Lep,d)Single event sound exposure level (LAE)Percentile levels (L10, L90 and a user selectable level)Noise dose%, noise dose per hour%, pascal squared hoursLmax - maximum Lp (rms) levelApeak, Zpeak or Cpeak – maximum Frequency weighted peak levelElapsed time (running time hrs, min, sec)Interval periodOver Load and Under Range indicationHoused in tough, crack resistant ABS plastic

Castle GA2008 Exilis General Purpose Pocket Vibration Meter Castle GA2008 is a small, lightweight, reliable instrument providing all the fundamental vibration measurements in a single key stroke, at an economical price. It is designed for production managers, maintenance engineers and anyone carrying out condition-monitoring tasks. Integral mechanical and linear filtersData-logging of 9 data pointsAcceleration, Velocity & Displacement parametersMeasurement in rms, Max rms and peak valuesCan be used in conjunction with a sound level meter to trace the source of a sound

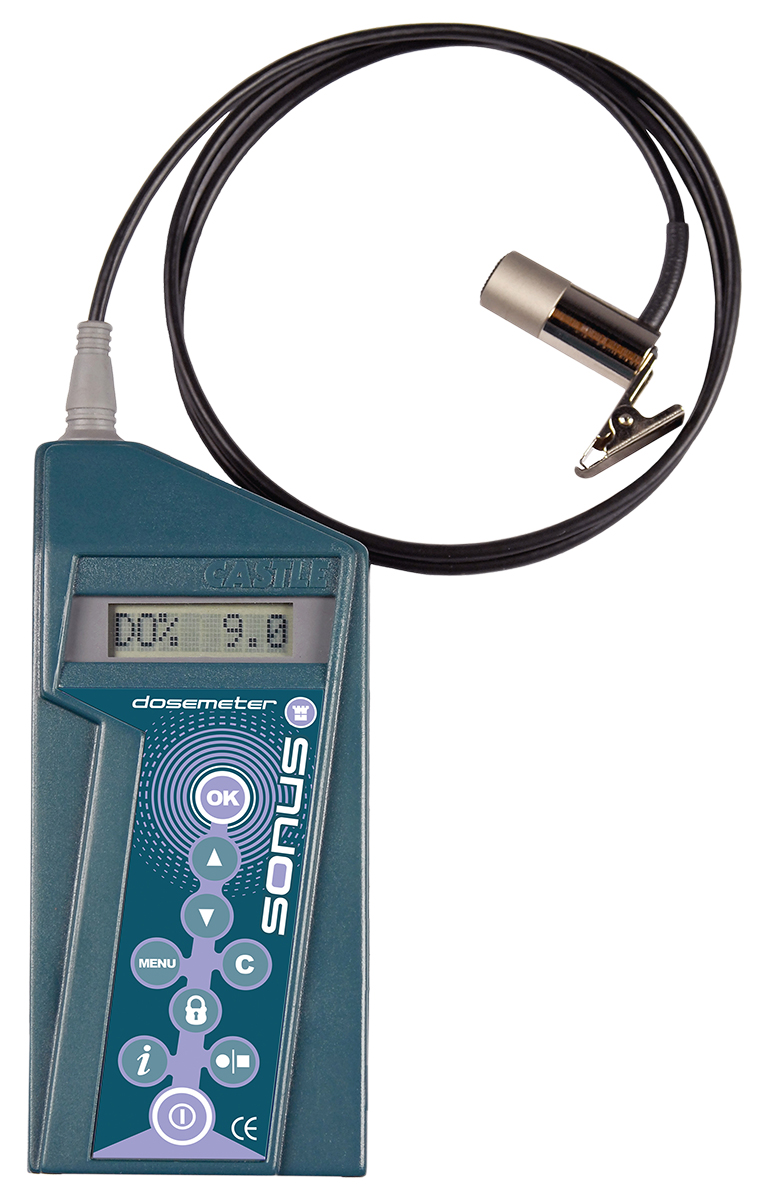

Castle GA257B Sonus Personal Noise Exposure Meter Castle GA257B is a high specification personal sound exposure meter fully compliant with IEC 61252-1. It is designed for industrial safety officers and safety managers, for compliance with ’The Control of Noise at Work regulations 2005’, and is especially suited for users who move around in the execution of their work. This meter gives simultaneous Lex (sound exposure) and peak measurement for assessments to the Control of Noise at Work Regulations 2005. It has a high specification measurement microphone and is cased in tough, crack-resistant ABS plastic. Simultaneous measurement of Lp, Leq, Zpeak, Lep,d, Dose, Dose / Hour, Pa2H'A' frequency weighting'Slow' Time weightingSound pressure (Lp) to 0.1dB resolutionIntegrated equivalent level (Leq) measurementPersonal sound exposure level (Lep,d)Noise dose%, Noise dose per hour%, Pascal squared hoursZpeak - maximum Z weighted peak levelElapsed time (running time hrs, min, sec)Over Load and Under Range indicationHoused in tough, crack resistant ABS plasticDimensions 60mm x 30mm (excluding pocket clip) x 135mm (210mm with microphone)Weight 200g (without battery)

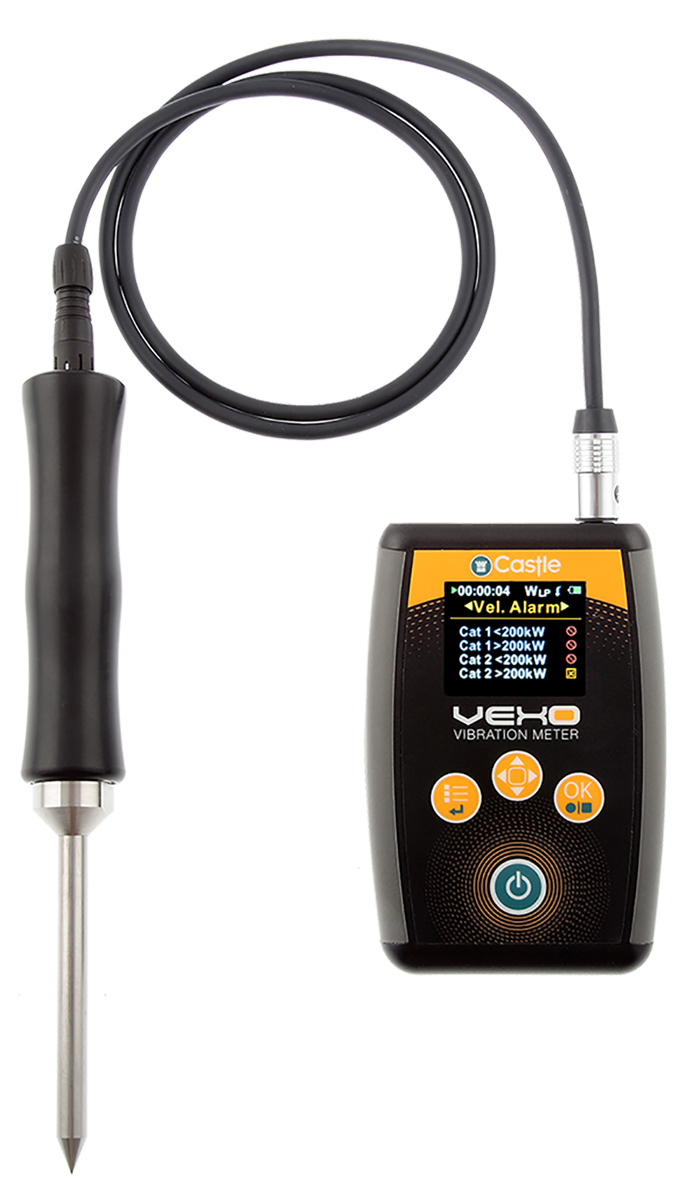

Castle GA2006S Vexo Single Axis General Purpose Vibration Meter Castle GA2006S is a robust vibration meter dedicated to the assessment of machinery, condition-monitoring and general industrial measurements. A full colour display and rechargeable battery pack make this unit a powerful industrial tool. Stores up to 992 individual recordingsAcceleration, Velocity & DisplacementParameters: rms, max rms, Time Averaged, Peak (Pk to Pk for Displacement), Crest FactorOver Load and Under Range indicatorsOperating mode selection for simple setup: Bearings, Machine, Pump, UserVisual alarms for modes: Bearings, Machine, Pump Can be used in conjunction with a sound level meter to trace the source of a sound

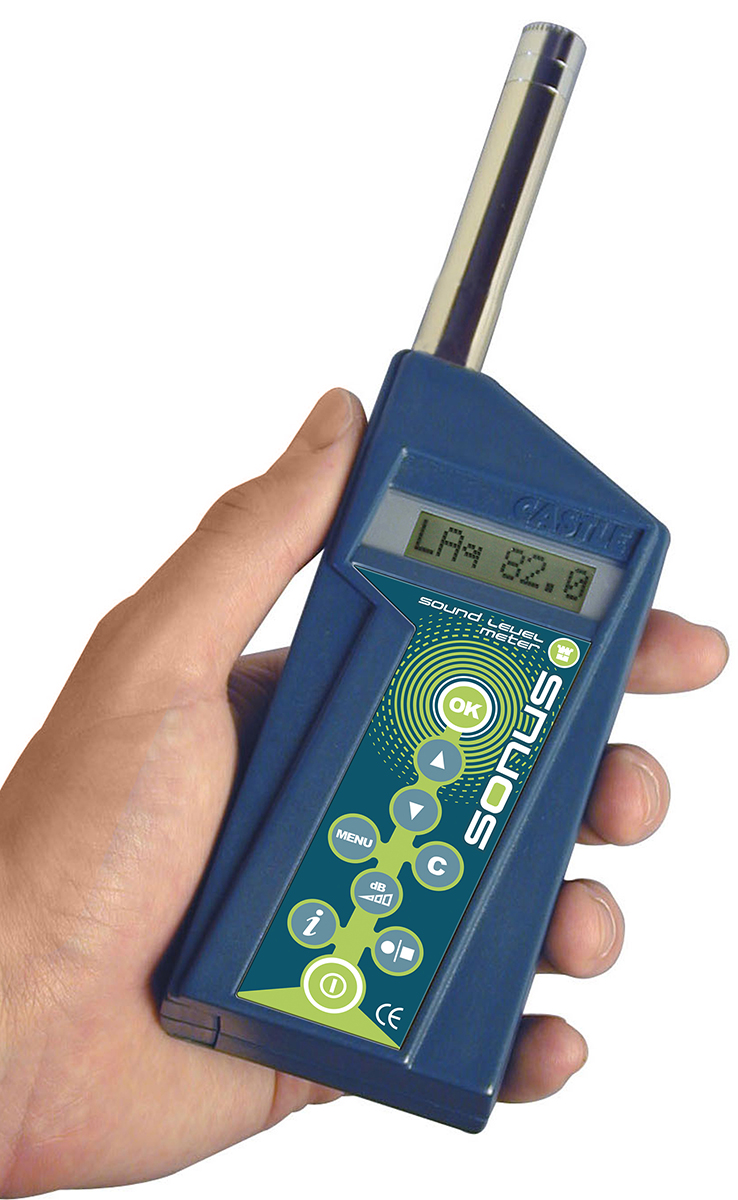

Castle GA216i Sonus Class 2 Integrating Sound Level Meter The Castle GA216i is designed for industrial safety officers, safety managers and engineers, for compliance with the Control of Noise at Work Regulations 2005. It will provide all necessary information for completing risk assessments. The feature-packed instrument is fully compliant with IEC 61672-1:2002 Class 2, IEC 60651: 1979 Type 2 and IEC 60804: 2001 Type 2. This meter gives simultaneous Leq (rms average) and peak measurement for assessments to the Noise at Work Regulations 1989 and general engineering applications. Simultaneous measurement of Lp, Leq, Lmax, Cpeak, Lep,d and LAE'A' and 'C' Frequency weighting (toggle)'Slow' and 'Fast' Time constants (toggle)Sound pressure (Lp) to 0.1dB resolutionIntegrated equivalent level (Leq) measurementPersonal sound exposure level (Lep,d)Single event sound exposure level (LAE)Lmax - maximum Lp (rms) levelCpeak - maximum C weighted peak levelElapsed time (running time hrs, min, sec)Over Load and Under Range indicationHoused in tough, crack-resistant ABS plastic

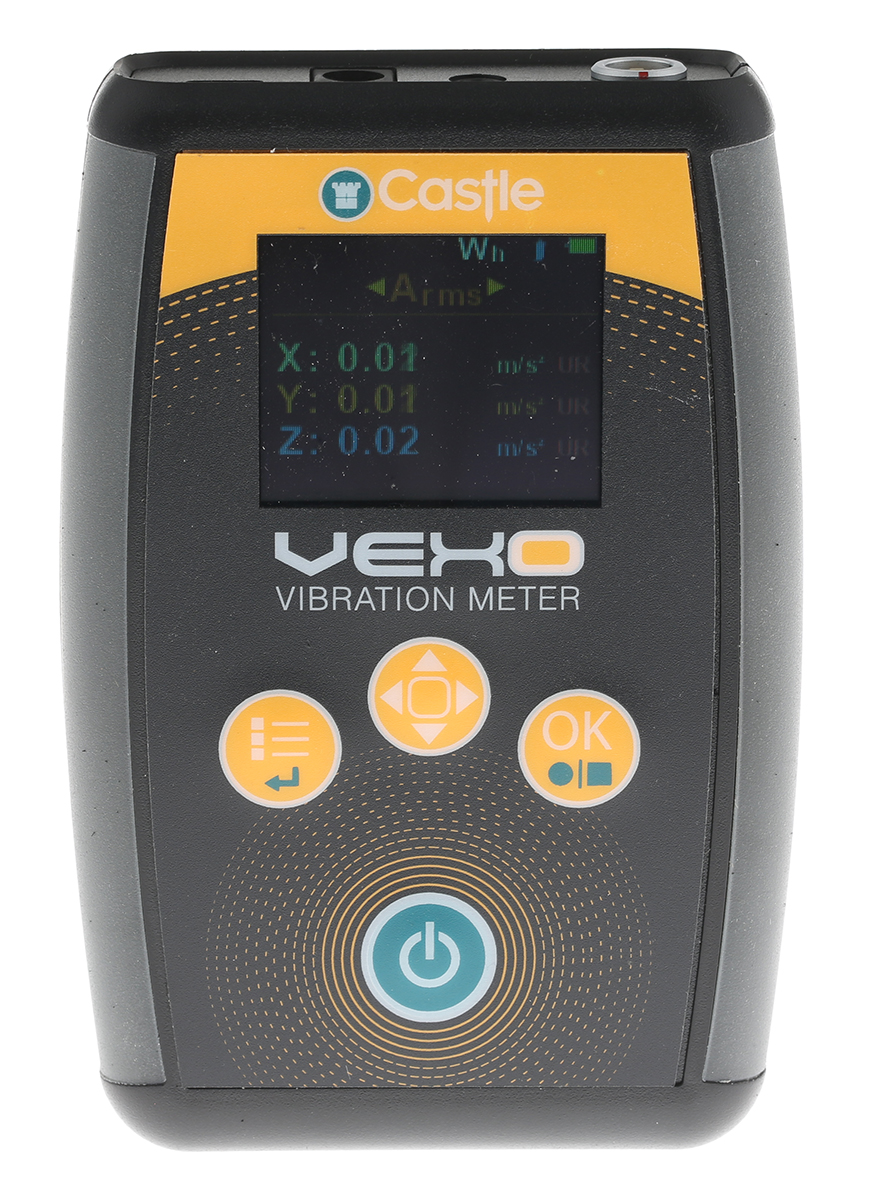

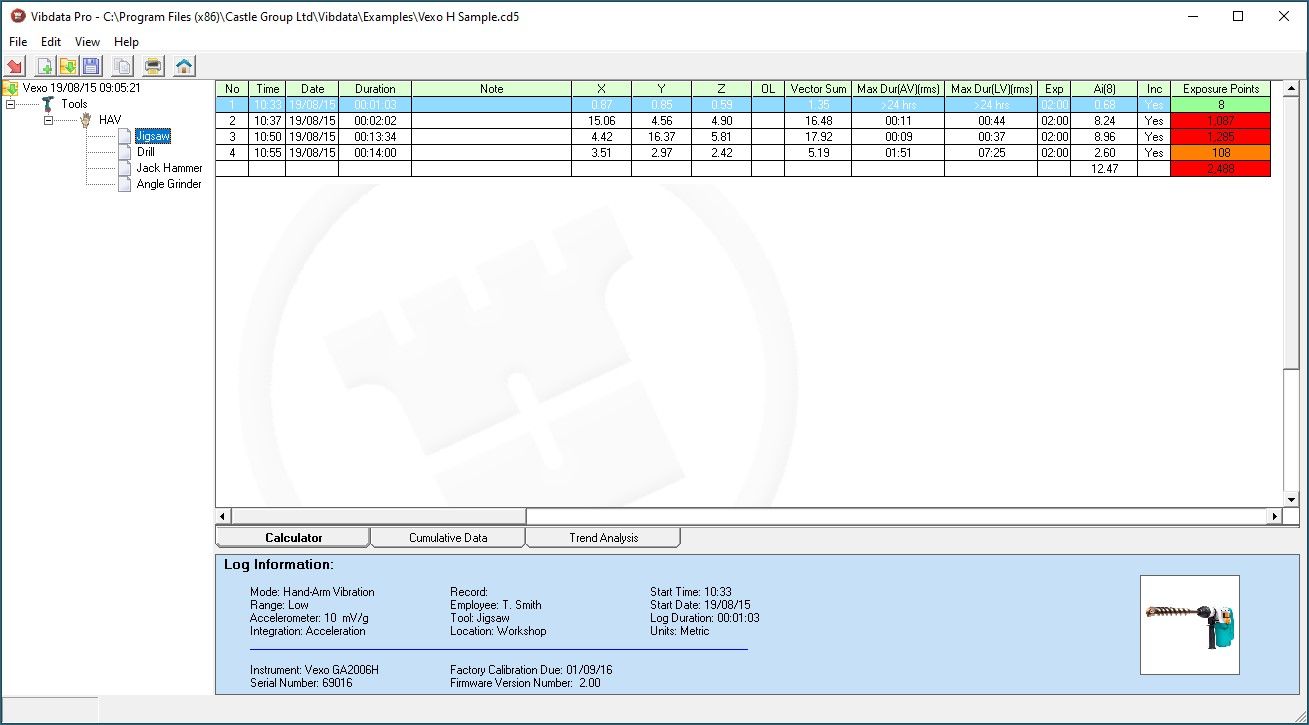

Castle Vexo H Hand Arm Vibration Meter The Castle Vexo H (GA2006H) is a dedicated hand-arm vibration meter used by health and safety departments or professionals for compliance with The Control of Vibration at Work Regulations 2005. The dedicated nature of this meter means it is incredibly simple to use, with no initial set up required and results given in the exact format required for the regulations. Features and Benefits Dedicated Hand Arm Virbation MeasurementTriaxial AccelerometerClear OLED displaySimple three-button operationLarge dynamic rangeLarge flash memory and can store up to 992 individual recordingsOverload and under range indicatorsRechargeable battery pack and chargerRugged accelerometer and cableVibDataLITE software included The Vexo H has acceleration ranges between 0.005g and 204g. It is supplied with a triaxial accelerometer with which simultaneous X, Y and Z readings are taken and displayed on the screen in real-time. The measurements are taken in metres per second squared or 'g', and output is given for Aeq, Peak and Vector Sum. Included with the meter is an accelerometer with 1m cable, a mounting plate, vibdataLITE PC software, USB cable, rechargeable battery pack, battery charger, instrument carry case, pen, quick start guide, and user manual. It has an OLED display to show all the measurement parameters.Note:The VibdataLITE PC software (supplied) enables USB Download direct from the instrument and offers a simple, visual display of data. It can be upgraded to the separately-available option software VibdataPro (909-1901). Certifications Acceleration ranges between 0.005g and 204gSimultaneous X, Y and Z readingsMetres per second squared or 'g'Aeq, Peak and Vector Sum parametersHSE points displayTime to reach to Action and Limit Values
