The Chauvin Arnoux power & energy logger are single-phase power & energy logger, it is use to record voltage, current, power and energy on alternating current distribution grids (50 Hz or 60 Hz). It is designed to operate in 690 V, logger has 1V / 1I channel. The logger has backlit LCD (blue) with double display. It can measure up to 690 V. data can store on device. Network frequencies DC, 50 Hz, 60 Hz<BR/>Voltage 10 Vac to 690 Vac<BR/>Mounting magnet<BR/>Phase cos ϕ, tan Φ, PF

The Chauvin Arnoux earth stake comes in a T shape. It is used with earth kit

The Chauvin Arnoux cable coil has a 10 meter length and with earth testers for reliable and safe measurements. It is black in colour

<B>Chauvin Arnoux CA40 Gauss Meter</B> Designed to measure the electromagnetic radiation levels the CA40 is designed for use on electrical current lines, home appliances and industrial equipment.<BR/>As a high-performance portable device, the design and calibration allow measurement of radiation on a base of 50//60 Hz. The probe is separated from the box for ease of use, making it user friendly and assisting with measurements in hard to reach areas.<BR/><BR/>Delivered in a hard case with 1 probe, a battery and user manual. (5 language user manual)<BR/>Dimensions: 163 X 68 X 24 mm <B>Features and Benefits:</B> &#149; Battery operated<BR/>&#149; 30 to 300 Hz<BR/>&#149; Low-frequency magnetic fields measurement<BR/>&#149; Easy to handle unidirectional probe<BR/>&#149; 285g weight <B>How Does a Gauss Meter Work?</B> Gaussmeters are a Hall probe, a test current is sent by the meter through the probe. This Hall affect produces a voltage and the meter then records this. Often the highest voltage detected is used or frozen by the meter as voltage fluctuation is common given that magnetic fields are rarely static. <B>Did you know?</B> Carl Friederich Gauss born in 1777 developed one of the first devices that could measure direction and strength of a magnetic field. He was a pioneer in this type of study and a great mathematician. He created the system used to measure magnetism and is the reason the modern unit of flux density is named Gauss and why we call these units Gauss meters.

CA6470 Earth and Resistivity Tester Tester for complete and rapid appraisal of earths.<BR/>Multi-function measurement:<BR/>Earth resistance, earth coupling, soil resistivity and continuity/resistance.<BR/>Ergonomic:<BR/>Rugged, watertight field enclosure with giant backlit LCD display.<BR/>Direct access to measurements by selector switch.<BR/>Battery can be recharged from mains or using a vehicle cigar lighter.<BR/>Uses conventional rod methods for earth measurement.<BR/>Automatic recognition of poor connections or of parasitic signals.<BR/>Extensive measurement range: resistance from 0.01 → 100 kΩ.<BR/>Possibility of selecting measurement frequency from 41 Hz → 512 Hz.<BR/>Automatic calculation of earth coupling coefficient and of ground resistivity.<BR/>Product packaging:<BR/>CA6470 delivered with external charger + mains plug, user manual on CD-Rom.<BR/>Data export software and communication cable.

Industrial tachometers Tachometers that provide excellent legibility, intended for numerous functions and measurements: rotation speed, linear speed, count, frequency and period 7 different units (rpm, m/min, Hz, ms, Duty%, ft/min)<BR/>MIN/MAX and HOLD functions<BR/>SMOOTH function (calculates a rolling average of the 10 most recent measurements)<BR/>Counter function (CA1727 only)<BR/>Two-level alarm function (CA1727 only)<BR/>Data saving and analysis with USB connection and TACHOGRAPH software (CA1727 only)

Industrial tachometers Tachometers that provide excellent legibility, intended for numerous functions and measurements: rotation speed, linear speed, count, frequency and period 7 different units (rpm, m/min, Hz, ms, Duty%, ft/min)<BR/>MIN/MAX and HOLD functions<BR/>SMOOTH function (calculates a rolling average of the 10 most recent measurements)<BR/>Counter function (CA1727 only)<BR/>Two-level alarm function (CA1727 only)<BR/>Data saving and analysis with USB connection and TACHOGRAPH software (CA1727 only)

CA8230 Power Quality Analyser Portable hand held single phase power quality analyzer ideal for maintenance, inspection and testing of electrical installations and electrical networks. It can be used for a snapshot of the main characteristics of a network and to track variations of the different parameters over time.,The multi-tasking measurement system simultaneously performs all functions required for the measurement of the various quantities, detection, continuous recording and display.,Comprehensive measurement capability enables a complete analysis of power and energy in single phase and balance three phase systems. Large colour VGA (320 X 240 pixels) graphical display<BR/>Power measurement up to 250kW (dependant on clamp selection)<BR/>600V rms and up to 6,500A (with clamp)<BR/>Harmonics (IEC 1000-4-7) display up to 50th order<BR/>MIN, MAX, AVERAGE, PEAK and Crest Factor display<BR/>W, VA, VAR power, DF, THD, Cos<BR/>Short term voltage flicker calculation<BR/>Recording, time stamping, and characterisation of disturbances including voltage overloads, brown- and blackouts, overshooting of powers and harmonic thresholds<BR/>Calculation of the K factor for the current in transformer applications<BR/>Personalised alarm settings enable up to 4096 events to be captured.<BR/>Simultaneous recording of all parameters, alarms and motor start up currents.<BR/>Rechargeable batteries<BR/>RS232 direct output to PC<BR/>CA8230: includes Dataviewer® software enabling screenshot capture; histogram or curve representations,; average value of numerous parameters according to time; management & log of measurement campaigns & report printing<BR/>Select AC current probes separately :-<BR/>Ampflex A193: 10 to 6500Aac (10Hz to 20kHz) 450mm long flexible probe<BR/>MN93A: 0.2 to 120Aac (40Hz to 10kHz): Jaw size 20mm dia.

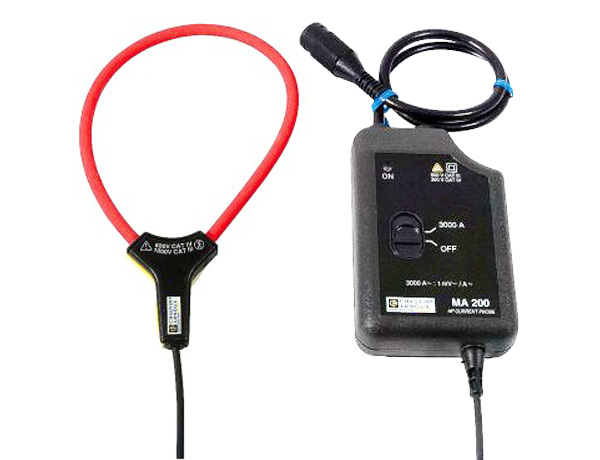

AmpFLEX™ Power Quality Clamp Compatible with all PEL and Qualistar Power Quality Analysers including the: CA8333, CA8336, CA8345 and the PEL 103. The Chauvin Arnoux AmpFLEX™ range offers various clamping diameters, lengths and a measurement range of 0.5 A to 10 kA ac. The patented system enables the instrument to recognise the clamp, which provides an easy connection with faster and more accurate measurements.

The FTV500 PHOTOVOLTAIC TESTER is a device designed and manufactured to meet all the needs of technicians during installation, testing, commissioning, troubleshooting and maintenance of photovoltaic generators according to international standards. Five measurements in 1 instrument : <BR/>Inverter efficiency: DC/AC efficiency test (DC/AC efficiency, PRP performance), simultaneously up to 3 strings <BR/>2- I-V curve (with quick check): Checking the I-V curve (on string, module or PV cell) <BR/>3- Continuity: Checking the low continuity resistance of the ground connections. <BR/>4- Off and on insulation: Insulation test with system in voltage mode (without the need to interrupt the power supply) <BR/>5- Data logger: DC/AC Logger function (short-term monitoring of all PV system values), simultaneously for up to 3 strings <BR/><BR/>- Management and direct report generation from the device<BR/>- Remote unit with wireless transmission (Irradiation/temperature) VNC for remote display and control sharing USB and Wi-Fi interfaces <BR/>- Touch screen display with anti-glare technology<BR/>- Compliance with international standards, It is designed to test and validate installations to IEC 62446.

PAC500 1.4kA DC current clamp for photovoltaic tester FTV500 Current range : 0,5 to 1400 A DC<BR/>Clamping diameter: 39mm cable or 50x12.5mm copper bar<BR/>Connection: with 3 meter cable and FRB01 connector<BR/>Power supply: 9V alkaline battery <BR/>Battery charge indicator: green LED when battery voltage> 6.5V <BR/>Battery autonomy: 50 hours with alkaline battery <BR/>Micro-USB socket for external power supply via mains power supply (option) <BR/>OL overload indicator: red LED <BR/>Dimensions: 236 x 97 x 44mm <BR/>Weight: 520g <BR/>Electrical safety: EN61010-1 or EN BS 61010-1, EN61010-2-032 or EN BS 61010-2-032, Cat.III 600V, Cat.IV 300V - Electromagnetic compatibility: EN61326-1 or EN BS 61326-1

Set of red and black MC4 type leads for photovoltaic installations<BR/><BR/>Useful accessory for the FTV500 Photovoltaic Tester (274-1323)
