The Linear Potentiometer Position Sensor has a conductive plastic potentiometer. It is suitable for use in special machine construction, positioning drives, attachment and equipment construction. It is a versions with and without reset spring. Very compact dimensions<BR/>High service life<BR/>Good linearity and good resolution<BR/>RoHS compliant

The high-quality electrical sensor designed for precise measurements. With a nominal resistance of 5 kOhm and independent linearity of ±1% of measurement range, this sensor offers excellent performance and reliability. Its compact dimensions and design flexibility make it suitable for various applications. The sensor features a recommended wiper current of max 1 μA and can withstand up to 5 million cycles, ensuring long-lasting durability. With a power rating of 0.5 W/40°C and a very good resolution, this sensor guarantees accurate and consistent results. Compact dimensions for easy installation<BR/>Design flexibility for versatile applications<BR/>Recommended wiper current of max 1 μA<BR/>Long-lasting durability with up to 5 million cycles<BR/>Power rating of 0.5 W/40°C for consistent performance<BR/>Very good resolution for accurate measurements

The Angular Position Sensor 150° 5 kOhm angle position sensor features a 0.25% accuracy, 5kOhm resistance, and is designed for wall mounting with a cable clamp, offering IP63 protection.

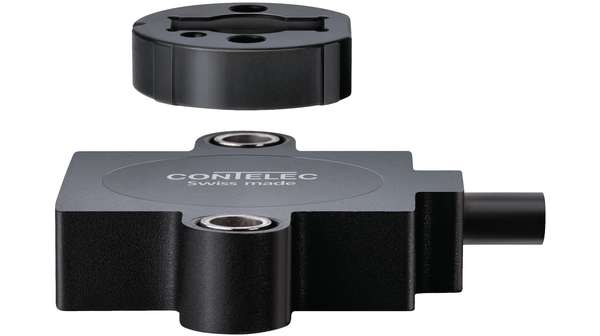

The high-quality sensor designed to provide accurate and reliable measurements in a variety of applications. With features like a resolution of 14 bits, a system propagation delay as low as 2500 μs, and a mechanical range of 360° continuous rotation, this sensor offers precise and efficient performance for your needs. Features a resolution of 14 bits for precise measurement accuracy<BR/>Provides a fast system propagation delay of 2500 μs for quick response times<BR/>Offers a mechanical range of 360° continuous rotation for versatile applications<BR/>Highly accurate with an independent linearity of ±0.1%<BR/>Compact dimensions for easy integration into different setups<BR/>Contactless measuring for convenience and reliability

The high-quality sensor designed for precise measurements in a variety of applications. With its IP68 protection class, compact dimensions, and non-contact measuring method, this sensor is ideal for applications that require accuracy and reliability. Resolution of 14 bit for detailed measurements<BR/>High accuracy with a max. temperature coefficient of the output signal of 100 ppm/°K<BR/>Long life span with MTTFd / MTBF of 147 years<BR/>Wide measuring range of 0° to 360° for versatile applications<BR/>Reverse polarity protection of power supply for added safety<BR/>Low current consumption without load for energy efficiency

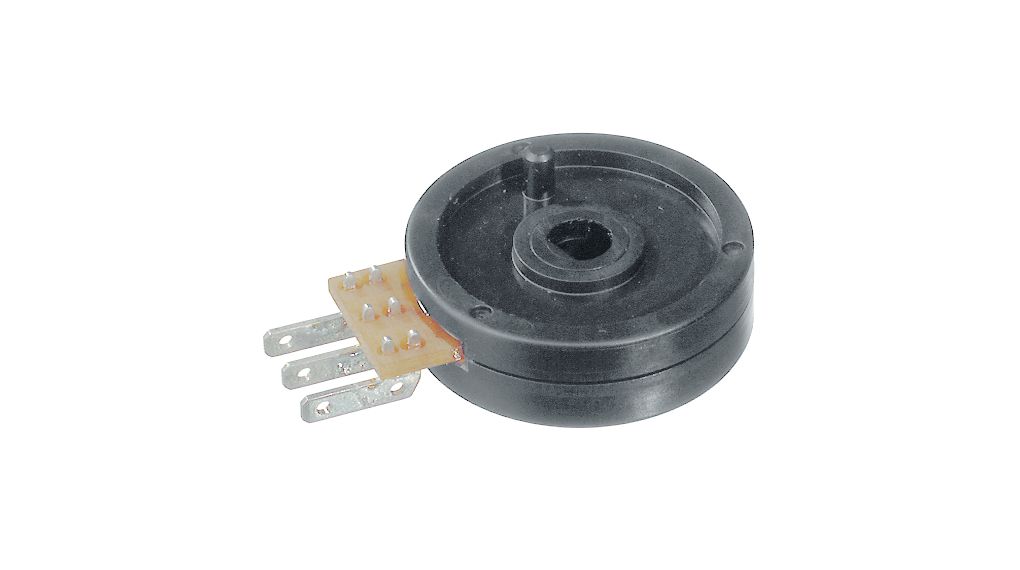

The conductive plastic potentiometric sensor from the WAL300/305 Series offers precise angle measurement with a very high resolution, ensuring constant and accurate results throughout its service life. With a hollow shaft and low-cost design, this sensor is ideal for various applications. Nominal resistance options of 1/5/10 kOhm for flexibility in applications<BR/>Independent linearity of ±1% of the measurement range for accurate readings<BR/>Electrical angle of 340° and repeatability max of 0.1° for precise positioning<BR/>Temperature coefficient of the voltage divider at 50 ppm/°C for stability in temperature changes<BR/>Hollow shaft design for easy integration into different systems<BR/>Recommended wiper current max of 1 μA and max wiper current in case of malfunction at 10 mA for safety<BR/>2 Mio. cycles lifespan for durability and longevity<BR/>Mechanical range of 360° continuous rotation for versatile applications<BR/>Linearity of ±0.5% for increased accuracy

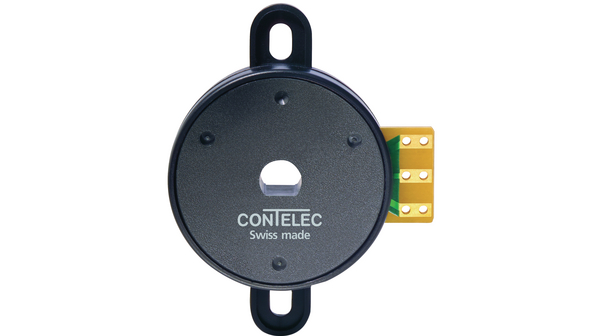

The conductive plastic potentiometric sensor from the WAL300/305 Series offers precise angle measurement with a very high resolution, ensuring constant and accurate results throughout its service life. With a hollow shaft and low-cost design, this sensor is ideal for various applications. Very high resolution - better than 0.3°<BR/>Precise angle measurement<BR/>Hollow shaft design for versatility<BR/>Low-cost yet high-quality components<BR/>Resistance value of 5 kΩ for accurate readings<BR/>Temperature range of -25...+75 °C for versatile usage

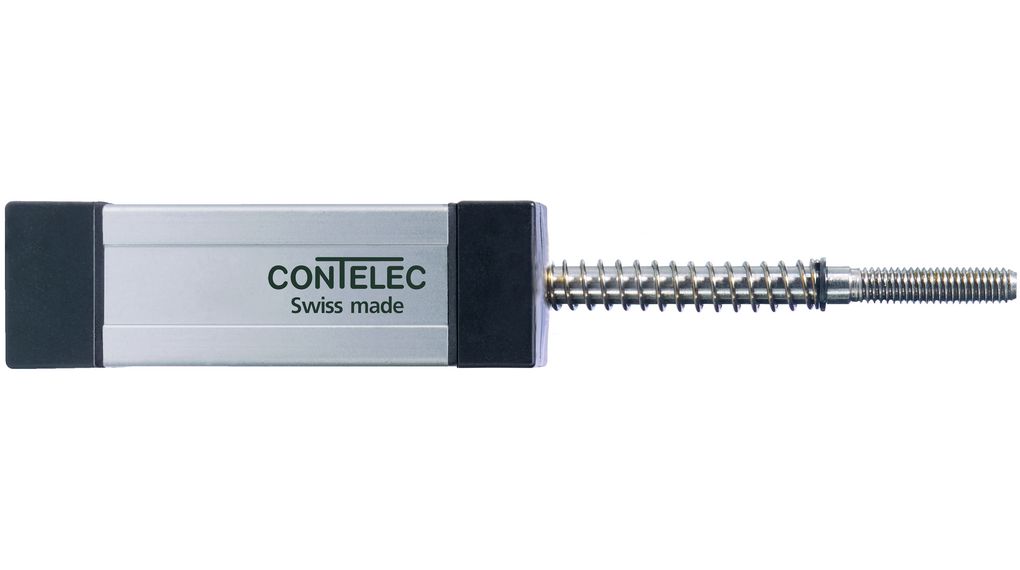

The Linear Position Sensor is designed to meet the demanding needs of various applications. With a focus on high-quality performance and reliability, this product is a must-have for professionals in the industry. Integrated technology for seamless operation<BR/>Durable design for long-lasting use<BR/>High performance capabilities for efficient results<BR/>Compact size for easy installation<BR/>Versatile applications for multi-functional use

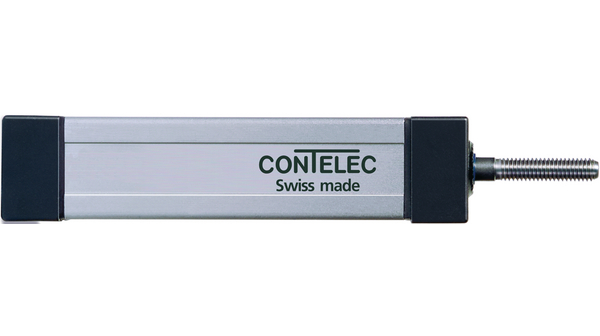

The Linear Position Sensor is a high-quality electrical component designed for precision applications. With excellent linearity and a compact design, this product is perfect for demanding projects that require reliability and accuracy. Nominal resistance of 5 kOhm for accurate measurements<BR/>Electrical travel of 100 mm for versatile applications<BR/>Repeatability of 0.05 mm for consistent performance<BR/>Temperature coefficient of the voltage divider of 50 ppm/°C for stable operation<BR/>Power rating of 0.5 W/40°C for efficient power management<BR/>Mechanical travel of 100 mm for flexibility<BR/>Adjusting force of the push rod max 3 N for precision control<BR/>Protection class IP65 for durability in various environments<BR/>Insulating resistance of 10 GOhm for reliable insulation<BR/>Dielectric strength of 700 V for safe use
