Cree CP4 Series LEDs The P4 series from Cree are a family of high power LEDs with a unique package design. These LEDs can be mounted closely next to each other for a uniform appearance. Due to their high power output and optical package design, fewer LEDs are required to achieve the same appearance that you would get from other LED packages.<BR/>Their low profile package also makes the P4 LEDs easy to couple with lenses and reflectors to achieve the desired lighting appearance.<BR/>Available in a range of different colours, the P4 LEDs are ideal for applications such as vehicle lamps, entertainment lighting and other general lighting applications.<BR/> Features of the P4 LEDs:<BR/>Through-hole mounted<BR/>4-pins<BR/>Flat top or domed top lens<BR/>Low profile package<BR/>Variety of single colours<BR/>Footprint: 7.6 x 7.6 mm<BR/>

Cree XLamp XD16 LEDs The Cree XLamp XD16 series of white LEDs offer a high lumen density of up to 264lm per square meter. XD16 LEDs come in the Cree Dmax™ package, providing high light output and high lumens per watt. XD16 LEDs also provide excellent thermal performance and reliability.<BR/>Suitable applications include; street lghting, high bays and other high performance luminaire designs.<BR/><BR/><B>Features and Benefits:</B><BR/>70, 80 or 90 CRI available<BR/>High lumen density<BR/>Wide viewing angle<BR/>NX Technology Platform package<BR/>Footprint: 1.6 x 1.6 mm

Cree XLamp XD16 LEDs The Cree XLamp XD16 series of white LEDs offer a high lumen density of up to 264lm per square meter. XD16 LEDs come in the Cree Dmax™ package, providing high light output and high lumens per watt. XD16 LEDs also provide excellent thermal performance and reliability.<BR/>Suitable applications include; street lghting, high bays and other high performance luminaire designs.<BR/><BR/><B>Features and Benefits:</B><BR/>70, 80 or 90 CRI available<BR/>High lumen density<BR/>Wide viewing angle<BR/>NX Technology Platform package<BR/>Footprint: 1.6 x 1.6 mm

Cree XLamp XP-G Series LEDs The Cree XLamp XP-G LED series provides high lumen output and efficacy from a single die light emitting diode (LED), the devices are ideal for high lumen directional lighting applications. The devices have an electrically neutral thermal path, unlimited floor life, symmetrical package and a wide viewing angle. The XP-G LEDs are ideal for when high lumen output and efficacy are necessary, for example LED light bulbs, indoor lighting and solar-powered lighting.<BR/> High efficiency<BR/>Wide viewing angle: 125°<BR/>Symmetrical package<BR/>Electrically neutral thermal path<BR/>Maximum drive current 1500mA<BR/>Low thermal resistance 6°C/W<BR/>Applications include: LED light bulbs, outdoor lighting, portable lighting, indoor lighting and solar-powered lighting

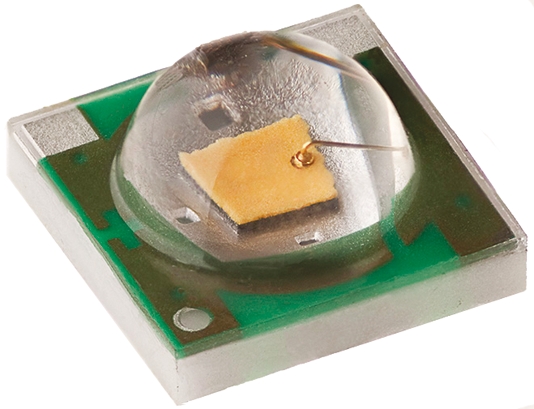

Cree XLamp XP-C Series LEDs The XP-C LED series from Cree offers a combination of lighting-class performance and reliability within a small footprint. The XP-C&#146;s symmetrical package, wide viewing angle, unlimited floor life and electrically neutral thermal path allows the device to be suitable for a wide range of lighting applications. This includes colour-changing lighting, portable/personal lighting, indoor directional lighting, commercial lighting and emergency-vehicle lighting. <BR/> Maximum drive current: up to 500mA<BR/>Low thermal resistance: 12°C/W<BR/>Wide viewing angle: 110 to 125°<BR/>Reflow solderable - JEDEC J-STD-020C compatible<BR/>Electrically neutral thermal path<BR/>Variety of colours available

Cree XLamp CXA1512 Series LED Arrays The Cree XLamp CXA1512 LED array falls into a family of high-flux multi-die arrays within a small, easy to use platform. The CXA1512 devices use lighting class reliability and deliver high lumen output and high efficacy within a single package; this eliminates any requirement for reflow soldering. A small, uniform emitting surface of just 9mm allows for both directional and non-directional lighting applications, for example lamp retrofit and luminaire designs. Alternative applications include GU10 LED bulbs and commercial downlights. The CXA1512 LED arrays are available in 2 step and 4 step colour consistency.<BR/> Forward voltage options: 18V and 37V<BR/>85 °C binning and characterisation<BR/>Drive current: 1200mA (18V), 600mA (37V) (maximum)<BR/>115° viewing angle<BR/>Top-side solder connections<BR/>Thermocouple attach point<BR/>NEMA SSL-3 2011 standard flux bins

Cree XLamp CXA1507 Series LED Arrays The XLamp CXA1507 LED array, from Cree, is a small, uniform emitting surface which is suited to both directional and non-directional lighting applications. It is a high flux LED array with multiple dies and also benefits from XLamp&#146;s lighting-class reliability. The CXA1507 is available is 2 step and 4 step colour consistency and offers high levels of flux and efficacy within a single, easy to use package. System level performance allows the CXA1507 to be used for applications from GU10 LED bulbs to commercial downlights. <BR/> 85°C binning and characterisation<BR/>Drive current: 750mA (18 V), 375mA (37 V) (maximum)<BR/>115° viewing angle<BR/>Top-side solder connections<BR/>Thermocouple attach point<BR/>NEMA SSL-3 2011 standard flux bins

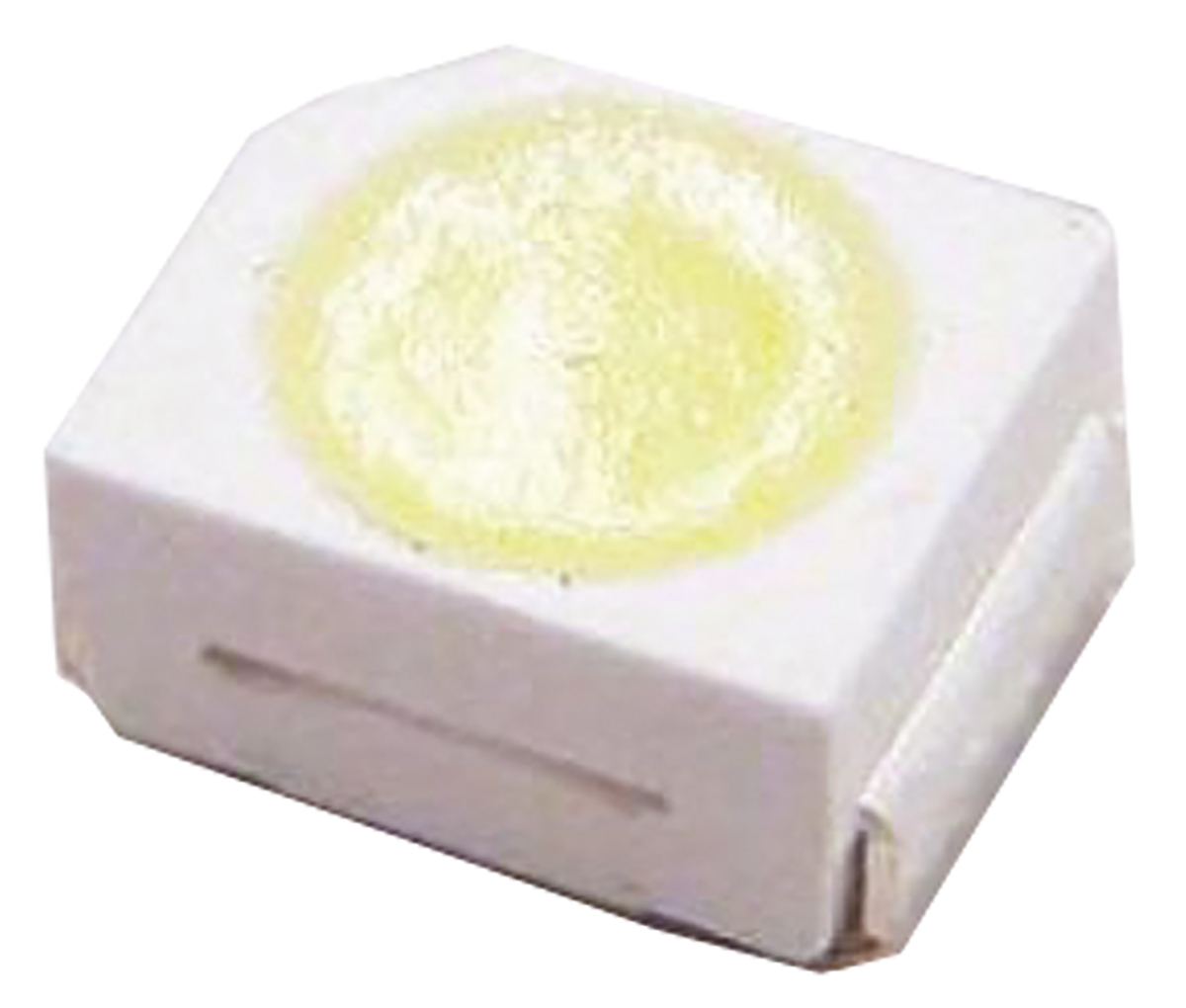

Cree High Brightness SMD White LEDs The High Brightness SMD White LEDs, from Cree, have a high reliability performance. This allows the LEDs to work under a wide range of environmental conditions and be suitable for use under illumination application conditions. Their wide viewing angle makes these LEDs suitable for applications such as channel letter, or general backlighting and illumination. The flat top emitting surface, available with black or white face for some ranges, allows the LEDs to mate easily with light pipes. The High Brightness SMD White LEDs are available in both cool and warm whites.<BR/> Industry standard packages<BR/>Viewing angle: 120° (CLN6 series: 115°)

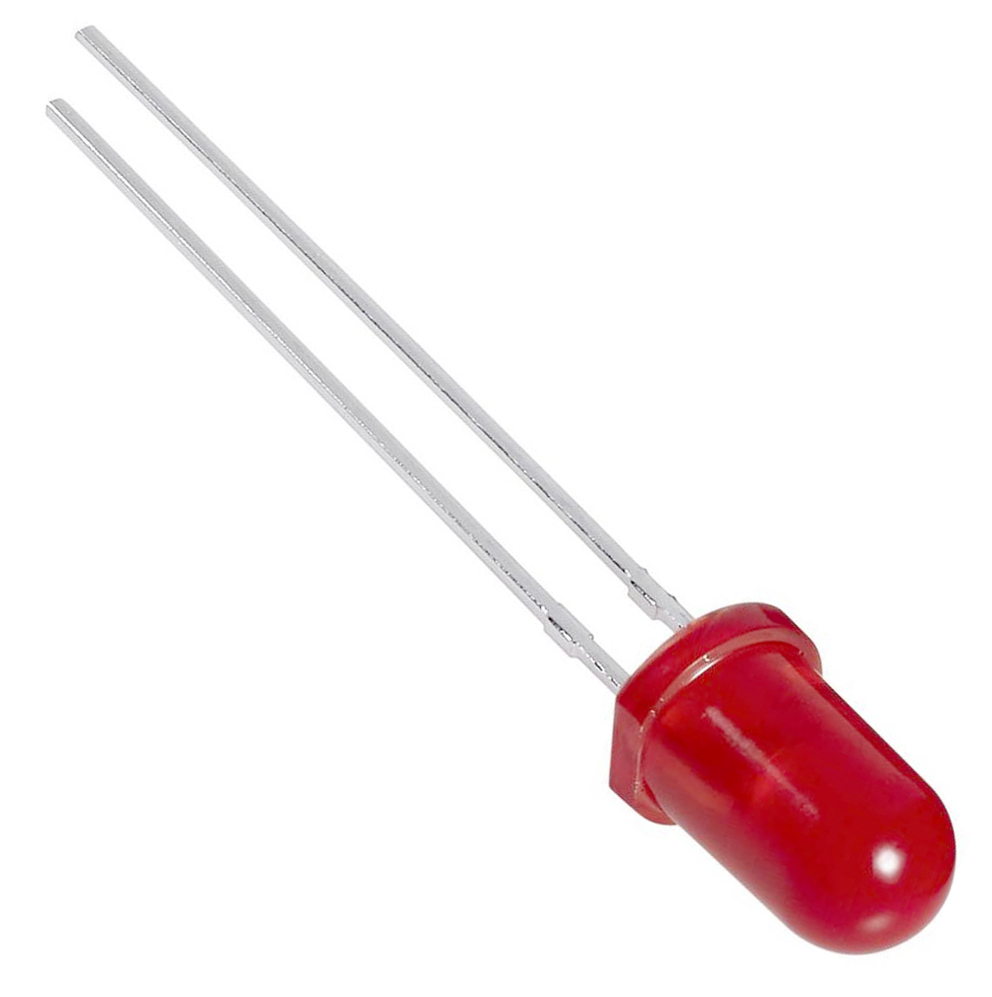

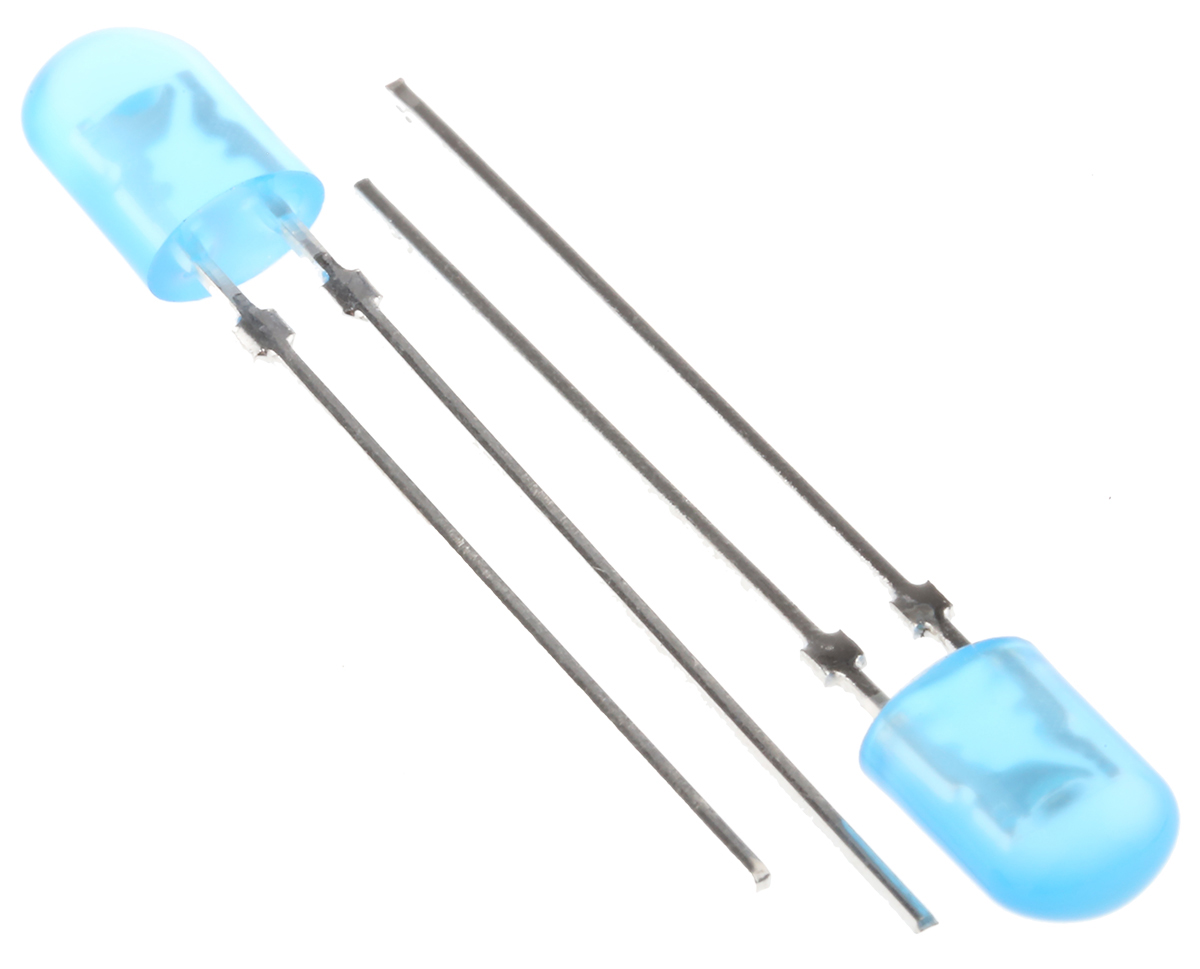

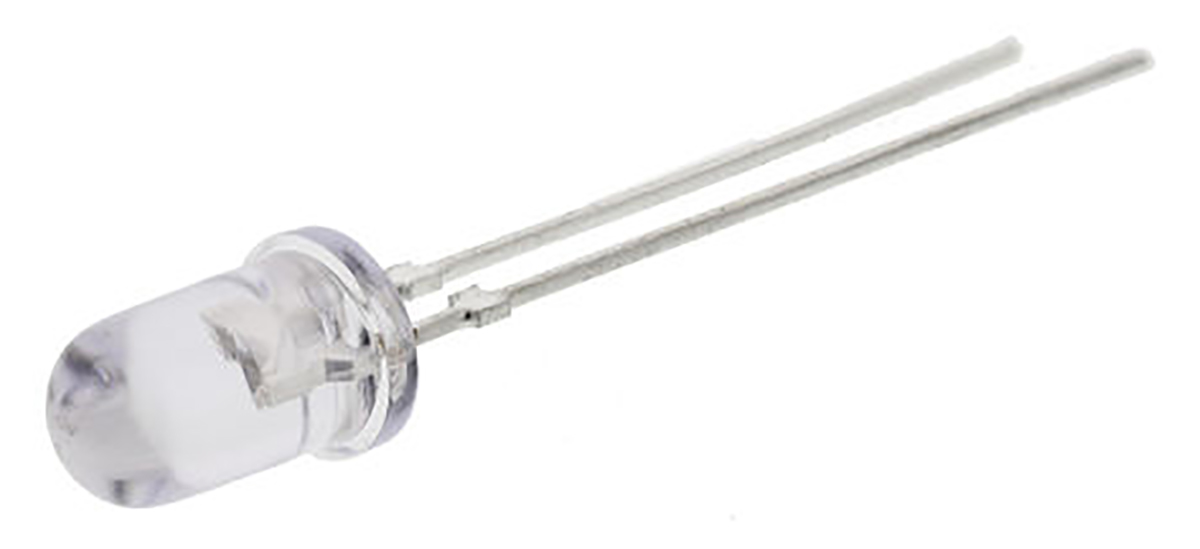

Cree C503 Series Colour LEDs The C503 series from Cree consists of 5mm round light emitting diodes (LEDs). These coloured LEDs offer high lumen output for excellent readability in sunlight. The C503 series provides dependable performance and a stable light output over long periods of time. The LED lamps are manufactured using an optical-grade epoxy resin which offers temperature and moisture resistance for outdoor signal and sign applications.<BR/> Electronic signs and signals (ESS)<BR/>Motorway signs<BR/>Variable message sign (VMS)<BR/>Advertising signs<BR/>Petrol signs<BR/>Amusement

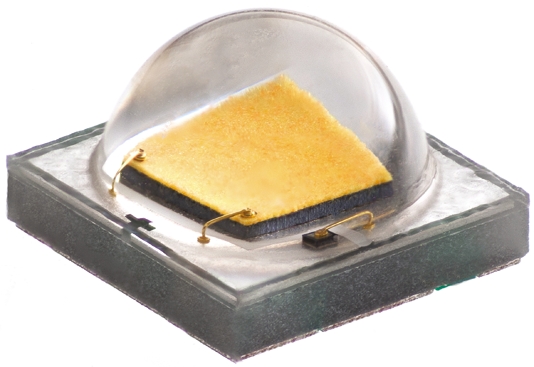

Cree XLamp XP-G2 Series LEDs The XLamp XP-G2 LED, from Cree, uses their silicon carbide SC³ technology platform to deliver high performance. The XLamp XP-G2 is optically compatible with the XP-G LED series, providing drop-in-ready performance enhancements to shorten the LED fixture design cycle. This seamless upgrade opportunity can be used to achieve up to 20% increased lumen output, making the XP-G2 ideal for lighting applications where high lumen output and maximum efficacy are necessary. Possible applications include LED light bulbs, outdoor lighting, portable lighting, indoor lighting and solar-powered lighting. ANSI-compatible chromaticity bins<BR/>Binned at 85°C<BR/>Drive current: 1500mA (maximum)<BR/>Low thermal resistance: 4°C/W<BR/>Wide viewing angle: 115°<BR/>Electrically neutral thermal path<BR/>JEDEC J‑STD‑020C Standard for moisture/reflow sensitivity

Cree XLamp XP-G2 Series LEDs The XLamp XP-G2 LED, from Cree, uses their silicon carbide SC³ technology platform to deliver high performance. The XLamp XP-G2 is optically compatible with the XP-G LED series, providing drop-in-ready performance enhancements to shorten the LED fixture design cycle. This seamless upgrade opportunity can be used to achieve up to 20% increased lumen output, making the XP-G2 ideal for lighting applications where high lumen output and maximum efficacy are necessary. Possible applications include LED light bulbs, outdoor lighting, portable lighting, indoor lighting and solar-powered lighting. ANSI-compatible chromaticity bins<BR/>Binned at 85°C<BR/>Drive current: 1500mA (maximum)<BR/>Low thermal resistance: 4°C/W<BR/>Wide viewing angle: 115°<BR/>Electrically neutral thermal path<BR/>JEDEC J‑STD‑020C Standard for moisture/reflow sensitivity

<B>Cree XLamp XM-L2 LEDs</B> The Cree XM-L2 LEDs are high-performance white LEDs which follow on from the previous Cree XM-L series. The XM-L2 LEDs feature the same 5 x 5mm footprint as the XM-L range, but instead offer a 20% higher lumen output. So it is really straight forward to upgrade your existing designs. You could even use the XM-L2 LEDs to decrease the number of LEDs used in a design to lower costs without reducing light output or quality.<BR/> • 5050 package<BR/>• ANSI‑compatible chromaticity bins<BR/>• Binned and tested at 85°C<BR/>• Maximum drive current: 3000 mA<BR/>• Low thermal resistance: 2.5 °C/W<BR/>• Wide viewing angle: 125°<BR/>• Electrically neutral thermal path<BR/> <B>Where are they used?</B><BR/>XM-L2 single-die LEDs are the perfect choice for any application that requires both high lumen output and reliability. This includes:<BR/>• Directional lighting<BR/>• High Bay<BR/>• Low Bay<BR/>• Street lighting <BR/>• Car Parks<BR/>• Portable Devices<BR/>• Solar-powered lighting<BR/> <B>SC³ Technology</B><BR/>Cree SC³ technology is advanced silicon carbide technology. SC³ LED chips feature technology-leading architecture and phosphor. It offers a higher lumen output with higher efficiency. <BR/>
