Delphi Metri-Pack 150.2 Pull-to-Seat Automotive Device Connectors Metri-Pack 150.2 Pull-to-Seat automotive device connectors with triple rib silcone rubber seals for environemntal protection. These Metri-Pack 150.2 Pull-to-Seat automotive device connectors are for use with specific automotive applications.Stock numbers 801-1017 and 801-1011 are for use with temperature sensorsStock numbers 801-1020 and 801-1023 are for use with crankshaft sensorsStock number 801-1027 is for use wth distributor modulesStock number 801-1036 can be used in various applicationsFor pull-to-seat crimp terminals see stock numbers 801-1095 and 801-1099

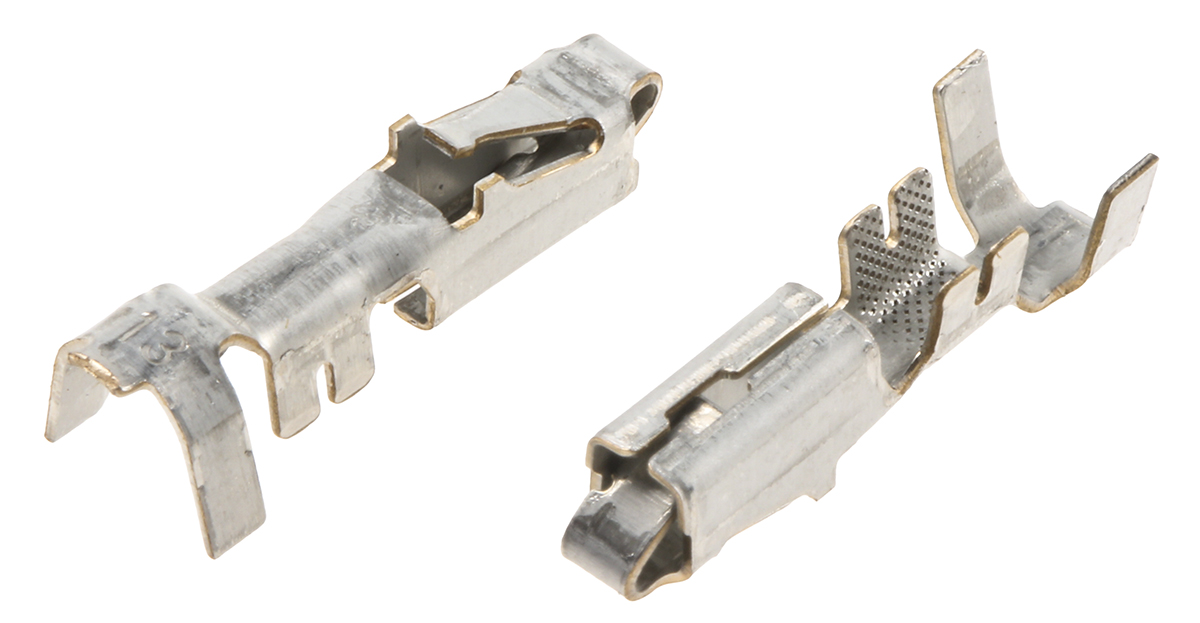

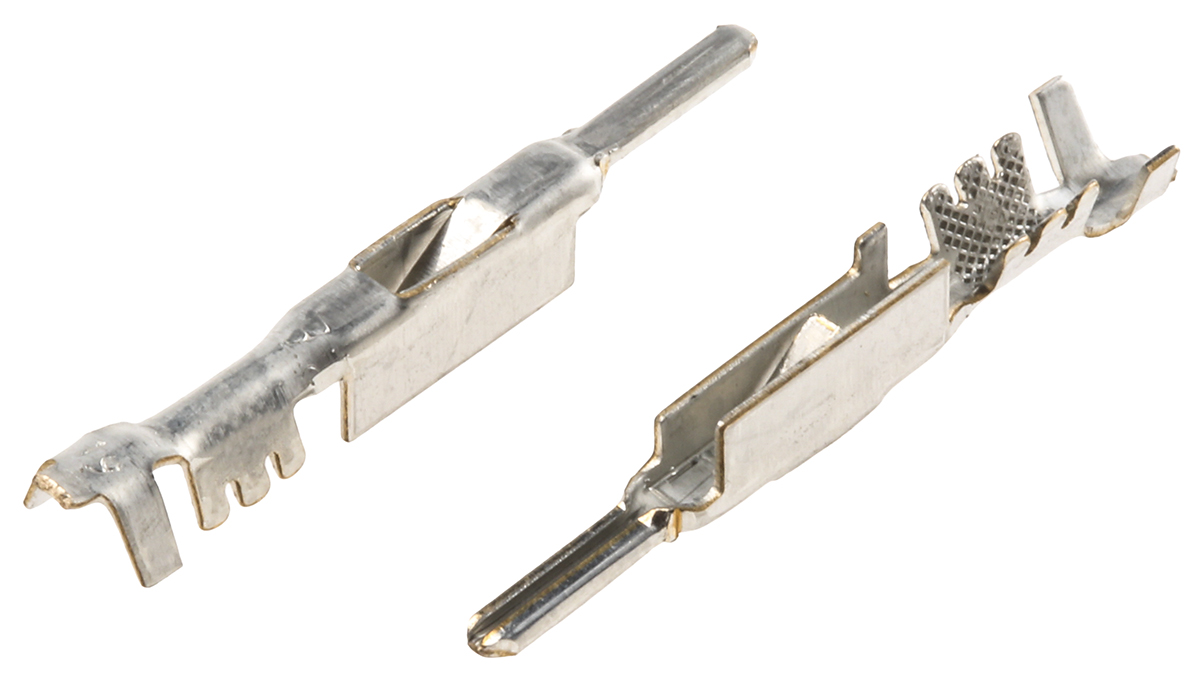

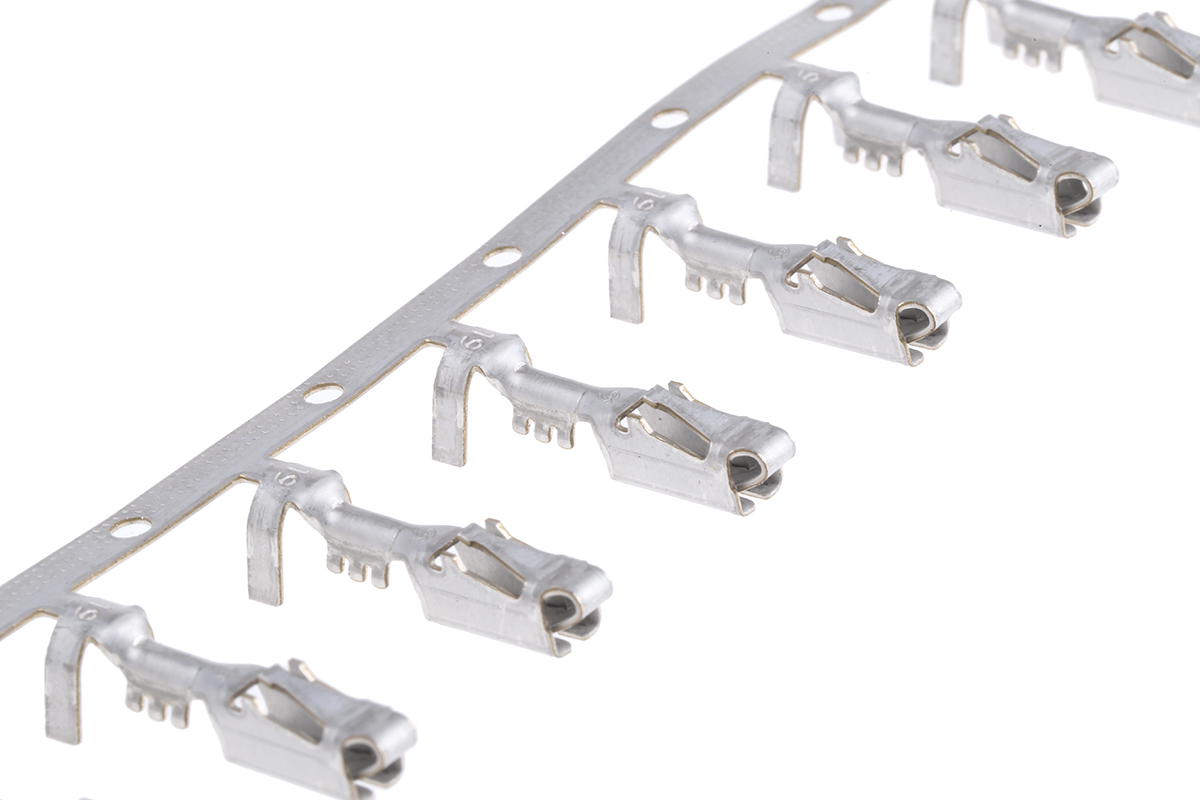

Delphi Metri-Pack 280 Sealed Crimp Terminals for Automotive Connectors A range of Metri-Pack 280 male and female sealed crimp contacts for use with Metri-Pack 280 automotive connectors. These Metri-Pack 280 male and female sealed crimp contacts are made from tin brass with a tin plating.Stock numbers 801-1073 (female) and 801-1089 (male) are for use with a 3.0 to 2.0 mm2 cable rangeStock numbers 801-1086 (female) and 801-1092 (male) are for use with a 0.50 to 0.35 mm2 cable rangeStock number 801-1077 (female) is for use with a 1.0 to 0.50 mm2 cable rangeStock number 801-1083 (male) is for use with a 0.80 to 0.50mm2 cable range

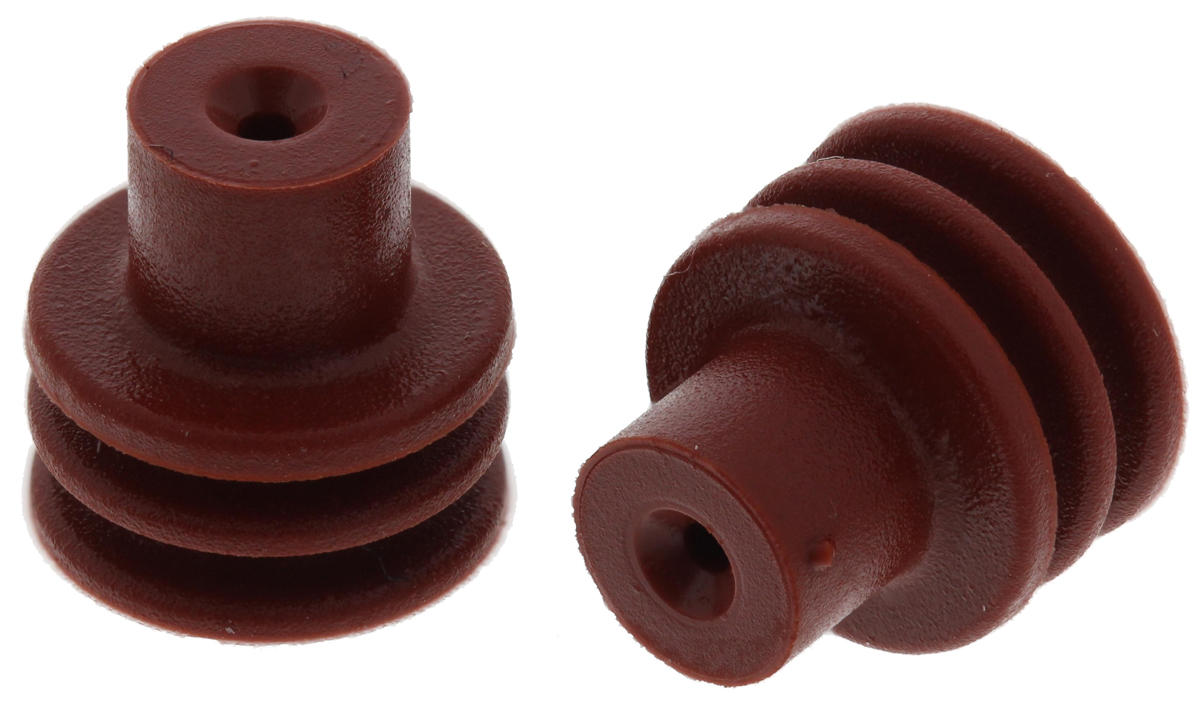

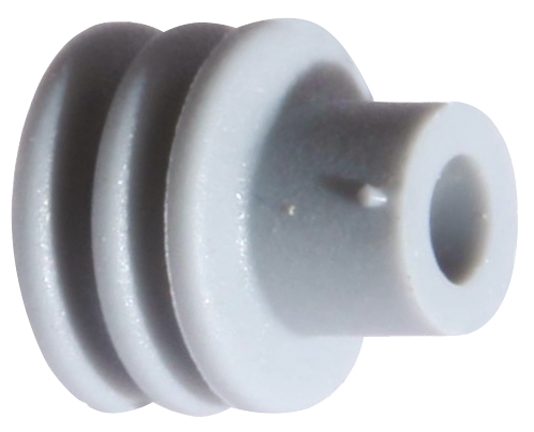

Delphi Metri-Pack 280 Cable Seals for Sealed Female Automotive Connectors A range of cable seals for use with the Metri-Pack 280 series automotive connectors. These Metri-Pack 280 cable seals are available to fit a variety of cable sizes and are made from colour coded silicone.Stock number 801-0816 is blue and is for use with a cable diameter of 4.30 to 3.45mmStock number 801-0812 is grey and is for use with a cable diameter of 3.49 to 2.81mmStock number 801-0800 is green and is for use with a cable diameter of 2.85 to 2.03mmStock number 801-0819 is dark red and is for use with a cable diameter of 1.70 to 1.29mm

Delphi Metri-Pack 150 Sealed Male Automotive Connectors Metri-Pack 150 sealed male automotive connectors with triple rib silcone rubber seals for environemntal protection. These Metri-Pack 150 sealed male automotive connectors have a low energy, low voltage capability, a maximum continuous current of 14 A, offer a high resistance to chemicals and abrasion and withstand a wide temperature range of -40 to 125°C. Typical applications for these Metri-Pack 150 automotive connectors include critical low energy electronic underhood vehicle applications where environmental protection is essential. For mating halves and accessories please see table.

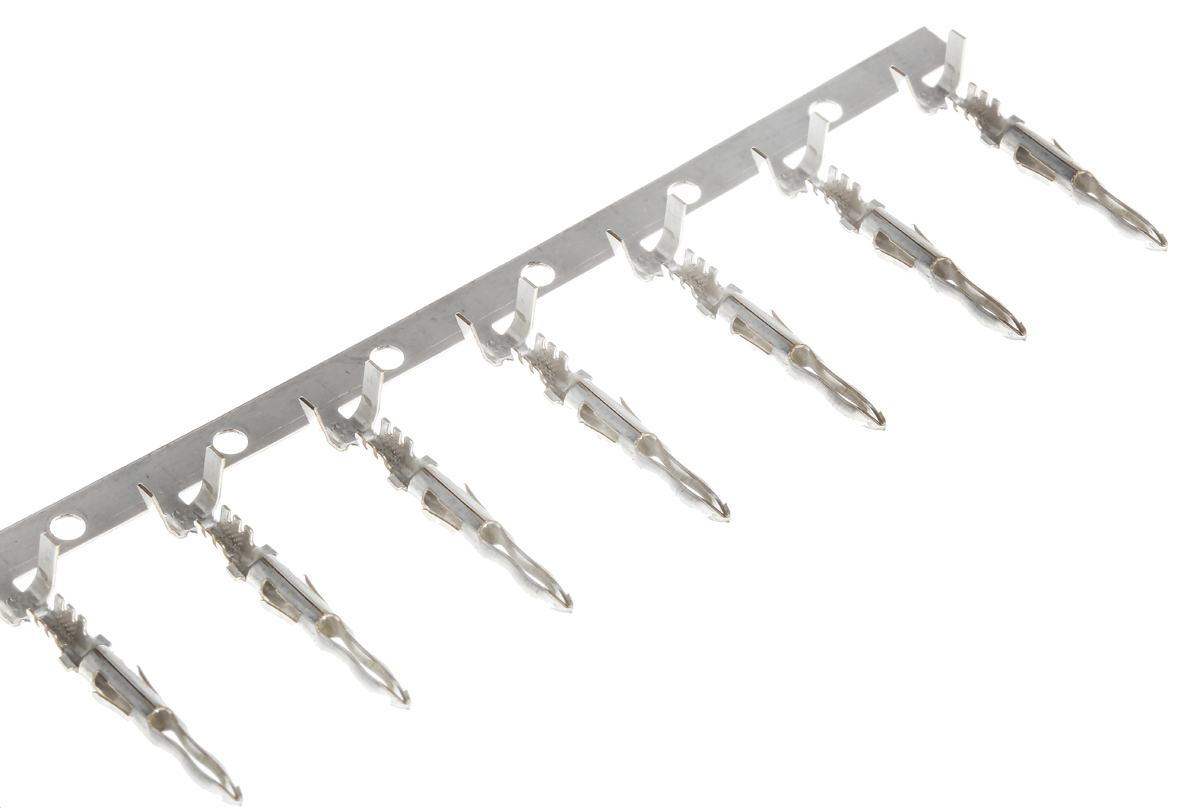

Delphi Weather-Pack Sealed Male Automotive Connector Assemblies Weather-Pack sealed male automotive connector assemblies with triple ribbed silicone connector and cavity seals designed to withstand extreme temperatures, chemicals and fluids. The terminals of these Weather-Pack automotive connectors are tin plated and have special core wings that allow crimp only connections so solder is not needed, the dual tangs on the terminals help prevent backing out. These Weather-Pack automotive connectors have positive locking indexing to prevent mismating along with secondary lock and Connector Position Assurance (CPA)Typical applications for these Weather Pack sealed automotive connectors are low energy, low voltage automotive applications in harsh environments such as commercial vehicle and marine applications.For mating connectors, crimp terminals and cable seals please see table.

Delphi Metri-Pack 280 Sealed Crimp Terminals for Automotive Connectors A range of Metri-Pack 280 male and female sealed crimp contacts for use with Metri-Pack 280 automotive connectors. These Metri-Pack 280 male and female sealed crimp contacts are made from tin brass with a tin plating.Stock numbers 801-1073 (female) and 801-1089 (male) are for use with a 3.0 to 2.0 mm2 cable rangeStock numbers 801-1086 (female) and 801-1092 (male) are for use with a 0.50 to 0.35 mm2 cable rangeStock number 801-1077 (female) is for use with a 1.0 to 0.50 mm2 cable rangeStock number 801-1083 (male) is for use with a 0.80 to 0.50mm2 cable range

Delphi Metri-Pack 280 Cable Seals for Sealed Female Automotive Connectors A range of cable seals for use with the Metri-Pack 280 series automotive connectors. These Metri-Pack 280 cable seals are available to fit a variety of cable sizes and are made from colour coded silicone.Stock number 801-0816 is blue and is for use with a cable diameter of 4.30 to 3.45mmStock number 801-0812 is grey and is for use with a cable diameter of 3.49 to 2.81mmStock number 801-0800 is green and is for use with a cable diameter of 2.85 to 2.03mmStock number 801-0819 is dark red and is for use with a cable diameter of 1.70 to 1.29mm

Delphi Weather-Pack Sealed Female Automotive Connector Assemblies Weather-Pack sealed female automotive connector assemblies with triple ribbed silicone connector and cavity seals designed to withstand extreme temperatures, chemicals and fluids. The terminals of these Weather-Pack automotive connectors are tin plated and have special core wings that allow crimp only connections so solder is not needed, the dual tangs on the terminals help prevent backing out. These Weather-Pack automotive connectors have positive locking indexing to prevent mismating.Typical applications for these Weather Pack sealed automotive connectors are low energy, low voltage automotive applications in harsh environments such as commercial vehicle and marine applications.For mating connectors, crimp terminals and cable seals please see table.

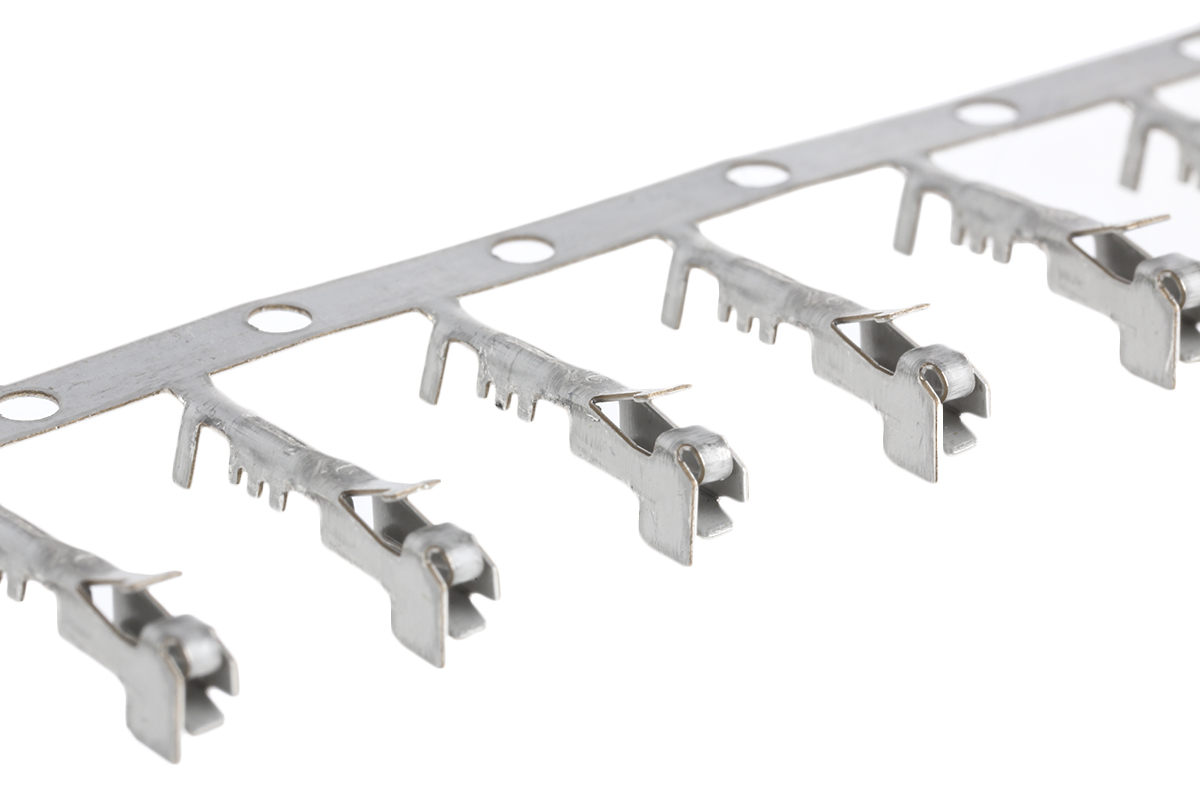

Delphi Metri-Pack 150.2 Pull-to-Seat Female Crimp Terminals Metri-Pack 150.2 Pull-to-Seat female crimp terminals for use with Metri-Pack 150.2 Pull-to-Seat automotive device connectors. These Metri-Pack 150.2 Pull-to-Seat crimp terminals are made from silicon bronze with a tin platingStock number 801-1095 is for use with a cable range of 1.0 to 0.80 mm2Stock number 801-1099 is for use with a cable range of 0.50 to 0.35 mm2

Delphi Metri-Pack 280 Sealed Crimp Terminals for Automotive Connectors A range of Metri-Pack 280 male and female sealed crimp contacts for use with Metri-Pack 280 automotive connectors. These Metri-Pack 280 male and female sealed crimp contacts are made from tin brass with a tin plating.Stock numbers 801-1073 (female) and 801-1089 (male) are for use with a 3.0 to 2.0 mm2 cable rangeStock numbers 801-1086 (female) and 801-1092 (male) are for use with a 0.50 to 0.35 mm2 cable rangeStock number 801-1077 (female) is for use with a 1.0 to 0.50 mm2 cable rangeStock number 801-1083 (male) is for use with a 0.80 to 0.50mm2 cable range

Delphi Metri-Pack 150 Sealed Female Automotive Connectors Metri-Pack 150 sealed female automotive connectors with triple rib silcone rubber seals for environemntal protection. These Metri-Pack 150 sealed female automotive connectors have a low energy, low voltage capability, a maximum continuous current of 14 A, offer a high resistance to chemicals and abrasion and withstand a wide temperature range of -40 to 125°C. Typical applications for these Metri-Pack 150 automotive connectors include critical low energy electronic underhood vehicle applications where environmental protection is essential. For mating halves and accessories please see table.

Delphi Metri-Pack 150 Sealed Female Automotive Connectors Metri-Pack 150 sealed female automotive connectors with triple rib silcone rubber seals for environemntal protection. These Metri-Pack 150 sealed female automotive connectors have a low energy, low voltage capability, a maximum continuous current of 14 A, offer a high resistance to chemicals and abrasion and withstand a wide temperature range of -40 to 125°C. Typical applications for these Metri-Pack 150 automotive connectors include critical low energy electronic underhood vehicle applications where environmental protection is essential. For mating halves and accessories please see table.
