DEUTSCH DT, DTM, and DTP series environmentally sealed connectors are designed for cable to cable and cable to board applications. The DT connectors are used in harsh environment applications where even a small degradation in connection may be critical. Thermoplastic housings offer a wide operating temperature range and silicone rear wire and interface seals allow the connectors to withstand conditions of extreme temperature and moisture. The DEUTSCH DT series general purpose connectors will provide reliability and performance on the engine or transmission, under the hood, on the chassis, or in the cab. DT SERIES OVERVIEW DEUTSCH DT series connectors offer field proven reliability and rugged quality. The DT design strengths include optional flange mounting, multi-pin arrangements, and design flexibility. The DT series offers the designer the ability to use multiple size 16 contacts, each with 13 amp continuous capacity, within a single shell. DEUTSCH DT housings are available in 2, 3, 4, 6, 8, and 12 pin counts and use size 16 DEUTSCH contacts, each with 13-amp continuous capacity. The housings feature an integrated latch for mating.

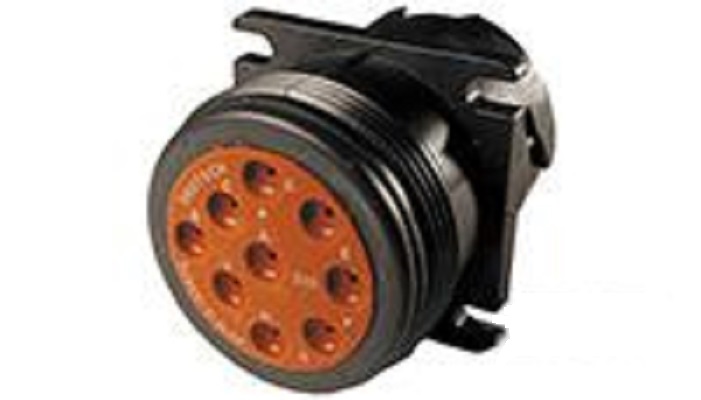

HD10 Plugs From Deutsch, this HD 10 Series cable mount connector offers a sturdy and versatile plug for heavy duty connections with corresponding HD 10 receptacles. Available in 3, 6 and 9 pole contact arrangements, this HD 10 Series plug is very well suited to industrial applications.

Universal Crimp Tool for Deutsch Connectors Deutsch HDT-48-00 is universal crimp tool designed to crimp Deutsch contacts to appropriate wiring for insertion into Deutsch heavy-duty connectors. It has an eight-indent crimp designed to be used with solid contacts sizes 12, 16 and 20. Used with both pin and socket contacts, the crimp tool features a simple screw adjustment for height/contact size, and a dial to select applicable wire sizes. This universal hand crimp tool is compatible with connector ranges DT, HD10, HDP20 and HD30.Features and Benefits:• Adjusting screw includes a jam nut• Compatible with a wide range of Deutsch connector crimps• Lightweight and comfortable to useTypical Applications:• Maintenance & repair • Electrical Installations• Cable assemblies• Automotive industryFAQ's:What is the difference between un-insulated and insulated crimp tools?Un-insulated crimp tools are typically used for general applications, whereas the insulated crimp tools have been VDE tested up to 1000 V, designed for use where electrical current is present. How do you maintain the product?• Axles and other movable parts should be regularly lubricated.• Lubrication* is recommended at least every 10,000 cycles whenever the tool is exposed to contaminants • Adjustment of the crimping die nests should also be checked. Readjustment of the pressure adjustment axle is necessary when the pre-load of the tool decreases significantly.The Importance of a High-Quality CrimpWhen a crimping tool is used on a terminal, two crimps take place at the same time. One is the electrical connection between the conductor and terminal. The other is the insulation crimp which provides strain relief against vibration and tension. It is important that the electrical connection is gas-tight without any voids between the wire strands and the terminal. If there any voids present, then corrosion can occur causing resistance and excessive heat which damages the electrical connection. Using a good quality crimping tool will ensure that a full, gas-tight crimp is produced preventing future deterioration of the electrical connection and insulation breakage.

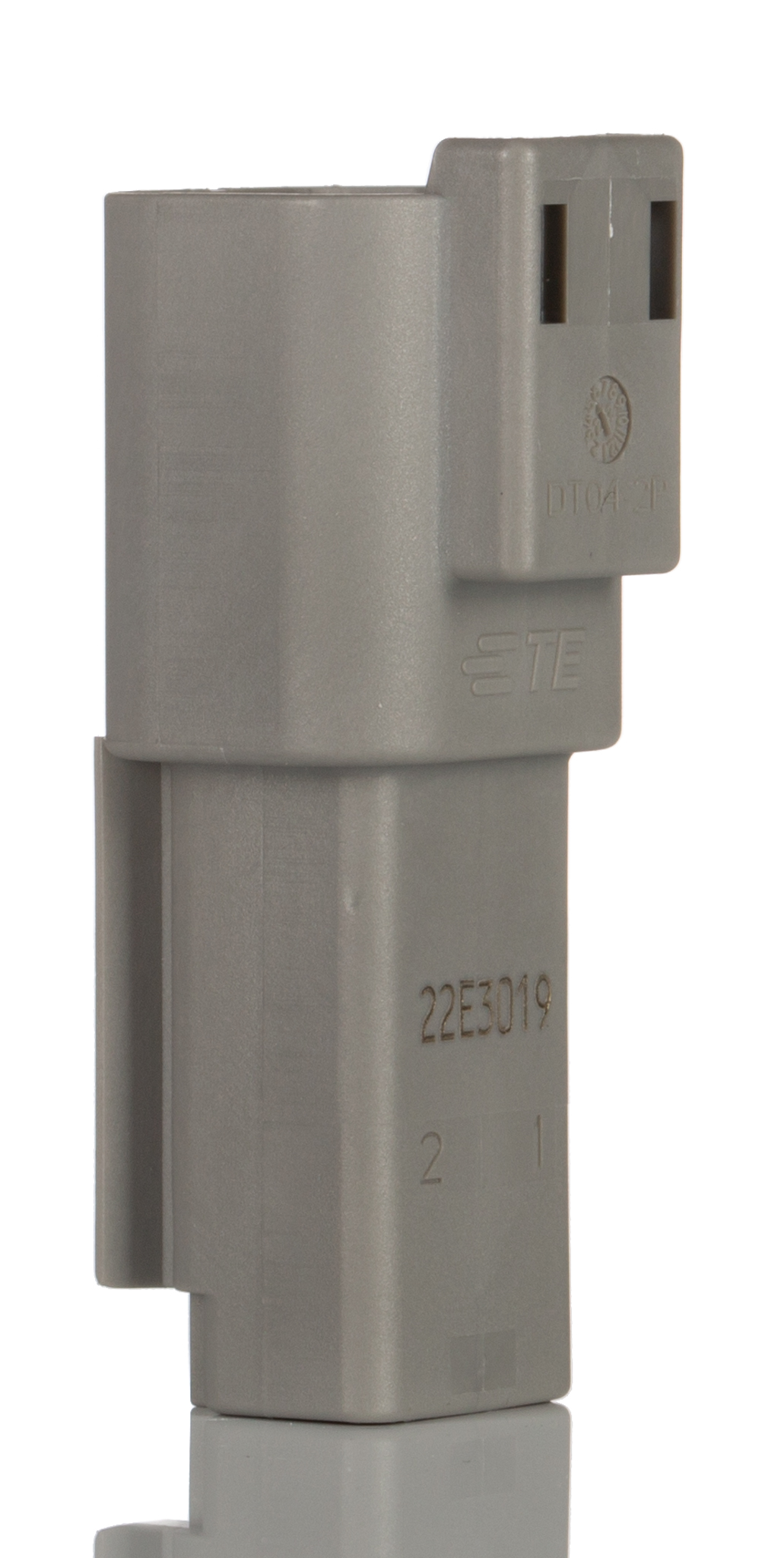

DT Receptacles From Deutsch, this DT Series receptacle is designed for cable to cable connections, and when mated is sealed to a high degree of environmental protection. Safe, versatile and reliable, DT receptacle connectors are ideal for automotive applications. Features and Benefits • IP68 • Wire-to-Wire Connection System• Operating Temperature Range of -55 to +125 Available in this Range • Stock No. 425-765 is a 2 Way Receptacle Connector Housing for Male Terminals• Stock No. 425-531 is a 3 Way Receptacle Connector Housing for Male Terminals• Stock No. 425-632 is a 4 Way Receptacle Connector Housing for Male Terminals• Stock No. 425-705 is a 6 Way Receptacle Connector Housing for Male Terminals• Stock No. 425-709 is an 8 Way Receptacle Connector Housing for Male Terminals• Stock No. 425-418 is a 12 Way Receptacle Connector Housing for Male Terminals• Stock No. 915-6534 is a 2 Way Receptacle Connector Housing for Male Terminals• Stock No. 915-6531 is a 4 Way Receptacle Connector Housing for Male Terminals• Stock No. 915-6540 is a 6 Way Receptacle Connector Housing for Male Terminals• Stock No. 915-6543 is an 8 Way Receptacle Connector Housing for Male Terminals

DEUTSCH DT Series Plugs DEUTSCH DT plug housings are designed for cable to cable connections. Their seals provide a robust seal with a high degree of environmental protection. Safe, versatile and reliable, DT plug connector housings are made from a thermoplastic which is ideal for automotive applications.You will not struggle for choice as the DT plugs are available in 2 to 12 pin options. They use size 16 DEUTSCH contacts, each with 13-amp continuous capacity. The housings feature an integrated latch for mating. Features and Benefits • IP68 waterproof rating• 14-20 AWG (2.5-0.5mm²)• Wire-to-wire connection• 2/3/4/6/8/12 cavity arrangements• In-line, flange or PCB mount options• Integrated latch for mating• Wedgelocks confirm contact alignment and retention• Operating Temperature: -55°C to +125°C

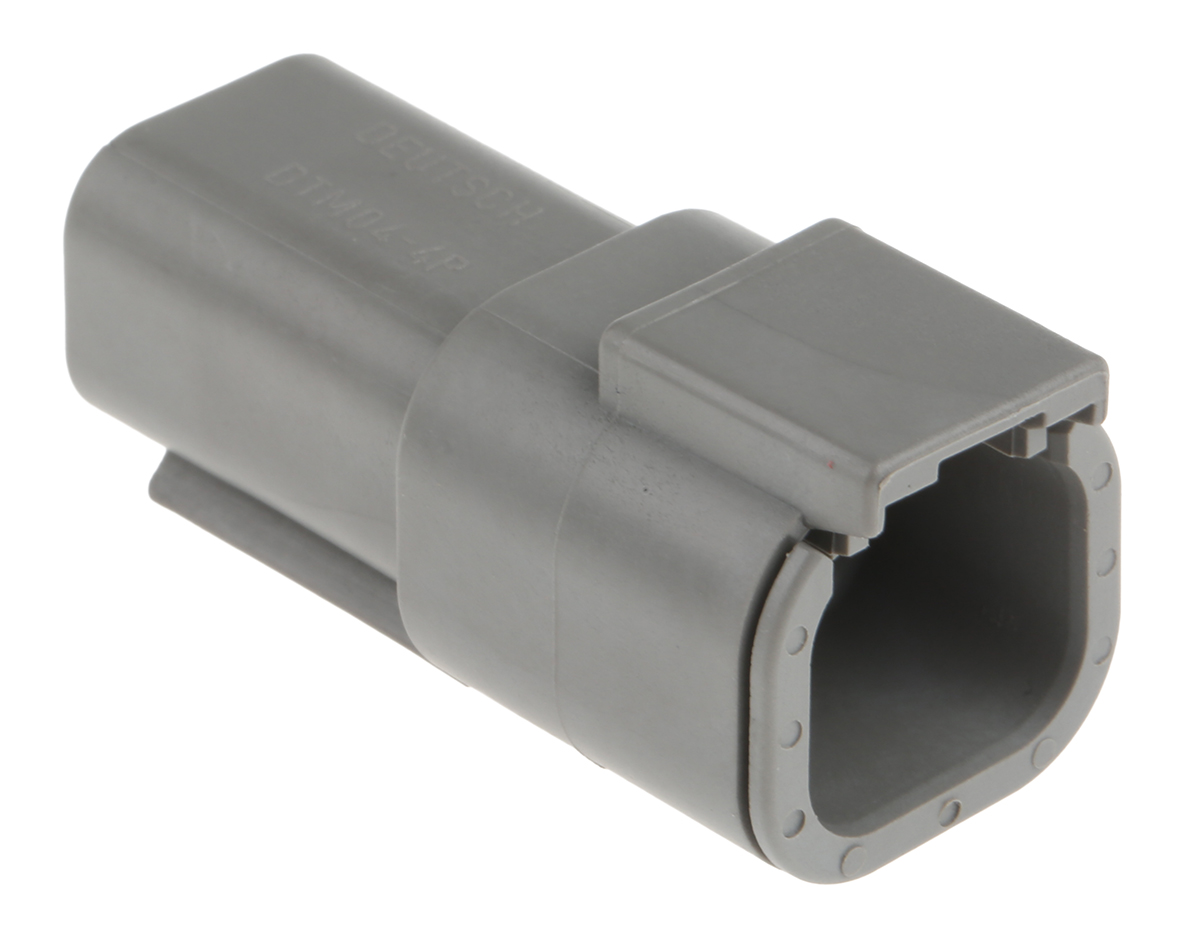

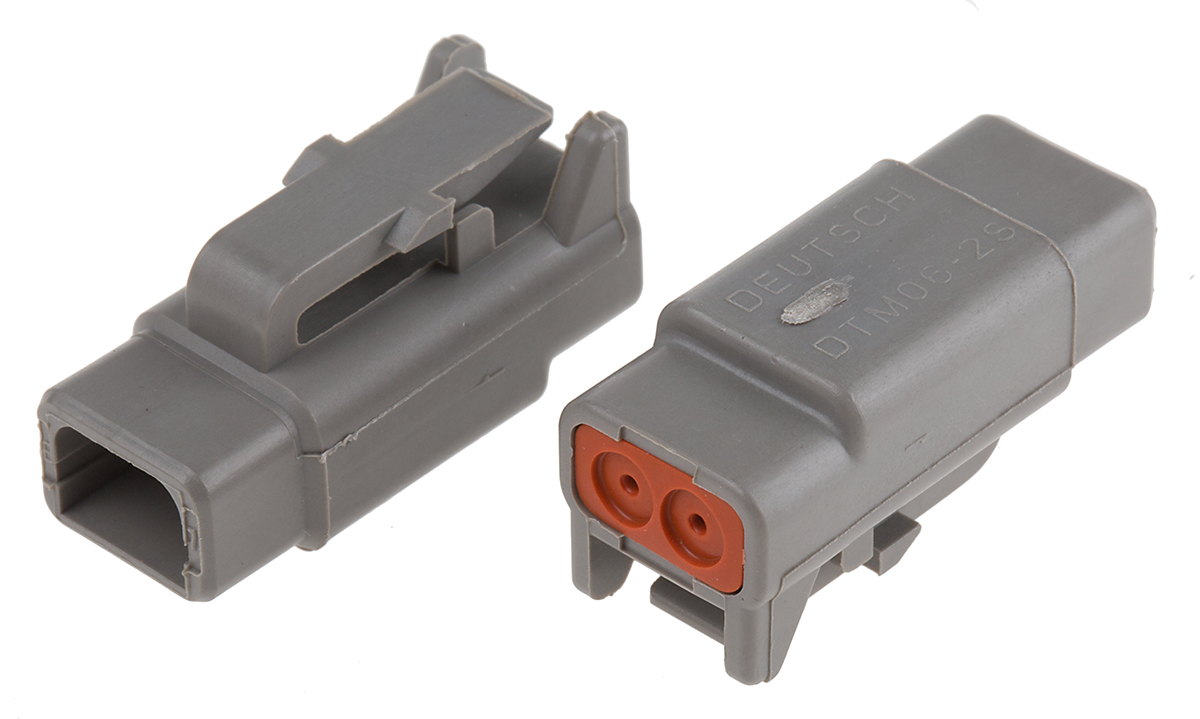

DTM Series Connectors Plugs Deutsch DTM Series connectors are ideal for transport and other harsh environment signal connector applications. THey are often used in engine compartments and transmission tunnels. The DTM series features a smaller contact and enhanced design in comparison to the DT series connector. Features and Benefits • Tactile and audible connector mating• Rugged thermoplastic connector housing• Hand insertable/removable contacts• Operating temperature range: -55 → +125 °C• Dielecric withstand voltage 1500 V ac• Nickel plated copper alloy contacts (available separately)• Positive contact retention• Suitable for Size 20 Contacts Available in this Range • Stock No. 724-2292 is a 3 way wire to wire Plug Housing for Socket Terminals• Stock No. 724-2298 is a 2 way wire to wire Plug Housing for Socket Terminals• Stock No. 724-2302 is a 4 way wire to wire Plug Housing for Socket Terminals• Stock No. 724-2305 is a 6 way wire to wire Plug Housing for Socket Terminals• Stock No. 724-2309 is a 8 way Plug Housing for Socket Terminals with Boot Adaptor• Stock No. 915-6575 is a 2 way Plug Housing for Socket Terminals• Stock No. 915-6607 is a 4 way Plug Housing for Socket Terminals

DEUTSCH DT Series Plugs DEUTSCH DT plug housings are designed for cable to cable connections. Their seals provide a robust seal with a high degree of environmental protection. Safe, versatile and reliable, DT plug connector housings are made from a thermoplastic which is ideal for automotive applications.You will not struggle for choice as the DT plugs are available in 2 to 12 pin options. They use size 16 DEUTSCH contacts, each with 13-amp continuous capacity. The housings feature an integrated latch for mating. Features and Benefits • IP68 waterproof rating• 14-20 AWG (2.5-0.5mm²)• Wire-to-wire connection• 2/3/4/6/8/12 cavity arrangements• In-line, flange or PCB mount options• Integrated latch for mating• Wedgelocks confirm contact alignment and retention• Operating Temperature: -55°C to +125°C

DT Receptacles From Deutsch, this DT Series receptacle is designed for cable to cable connections, and when mated is sealed to a high degree of environmental protection. Safe, versatile and reliable, DT receptacle connectors are ideal for automotive applications. Features and Benefits • IP68 • Wire-to-Wire Connection System• Operating Temperature Range of -55 to +125 Available in this Range • Stock No. 425-765 is a 2 Way Receptacle Connector Housing for Male Terminals• Stock No. 425-531 is a 3 Way Receptacle Connector Housing for Male Terminals• Stock No. 425-632 is a 4 Way Receptacle Connector Housing for Male Terminals• Stock No. 425-705 is a 6 Way Receptacle Connector Housing for Male Terminals• Stock No. 425-709 is an 8 Way Receptacle Connector Housing for Male Terminals• Stock No. 425-418 is a 12 Way Receptacle Connector Housing for Male Terminals• Stock No. 915-6534 is a 2 Way Receptacle Connector Housing for Male Terminals• Stock No. 915-6531 is a 4 Way Receptacle Connector Housing for Male Terminals• Stock No. 915-6540 is a 6 Way Receptacle Connector Housing for Male Terminals• Stock No. 915-6543 is an 8 Way Receptacle Connector Housing for Male Terminals

DEUTSCH DT housings are available in 2, 3, 4, 6, 8, and 12 pin counts and use size 16 DEUTSCH contacts, each with 13-amp continuous capacity. The housings feature an integrated latch for mating. FAQs: Are these flange mount? No, the Deutsch DT Series Mount Plug Housing are not flange mount.

DEUTSCH DT housings are available in 2, 3, 4, 6, 8, and 12 pin counts and use size 16 DEUTSCH contacts, each with 13-amp continuous capacity. The housings feature an integrated latch for mating.

DEUTSCH DT Series Plugs DEUTSCH DT plug housings are designed for cable to cable connections. Their seals provide a robust seal with a high degree of environmental protection. Safe, versatile and reliable, DT plug connector housings are made from a thermoplastic which is ideal for automotive applications.You will not struggle for choice as the DT plugs are available in 2 to 12 pin options. They use size 16 DEUTSCH contacts, each with 13-amp continuous capacity. The housings feature an integrated latch for mating. Features and Benefits • IP68 waterproof rating• 14-20 AWG (2.5-0.5mm²)• Wire-to-wire connection• 2/3/4/6/8/12 cavity arrangements• In-line, flange or PCB mount options• Integrated latch for mating• Wedgelocks confirm contact alignment and retention• Operating Temperature: -55°C to +125°C

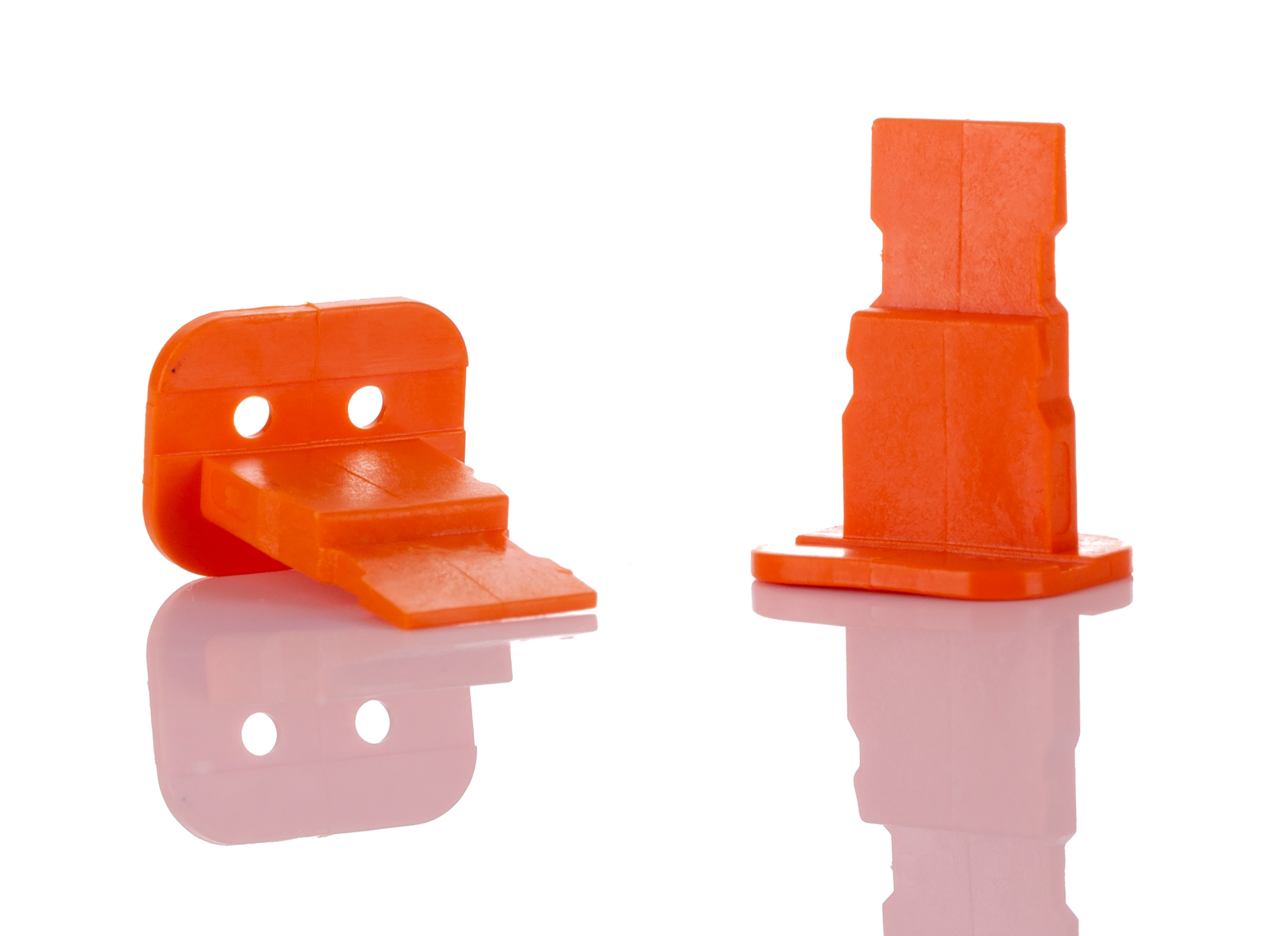

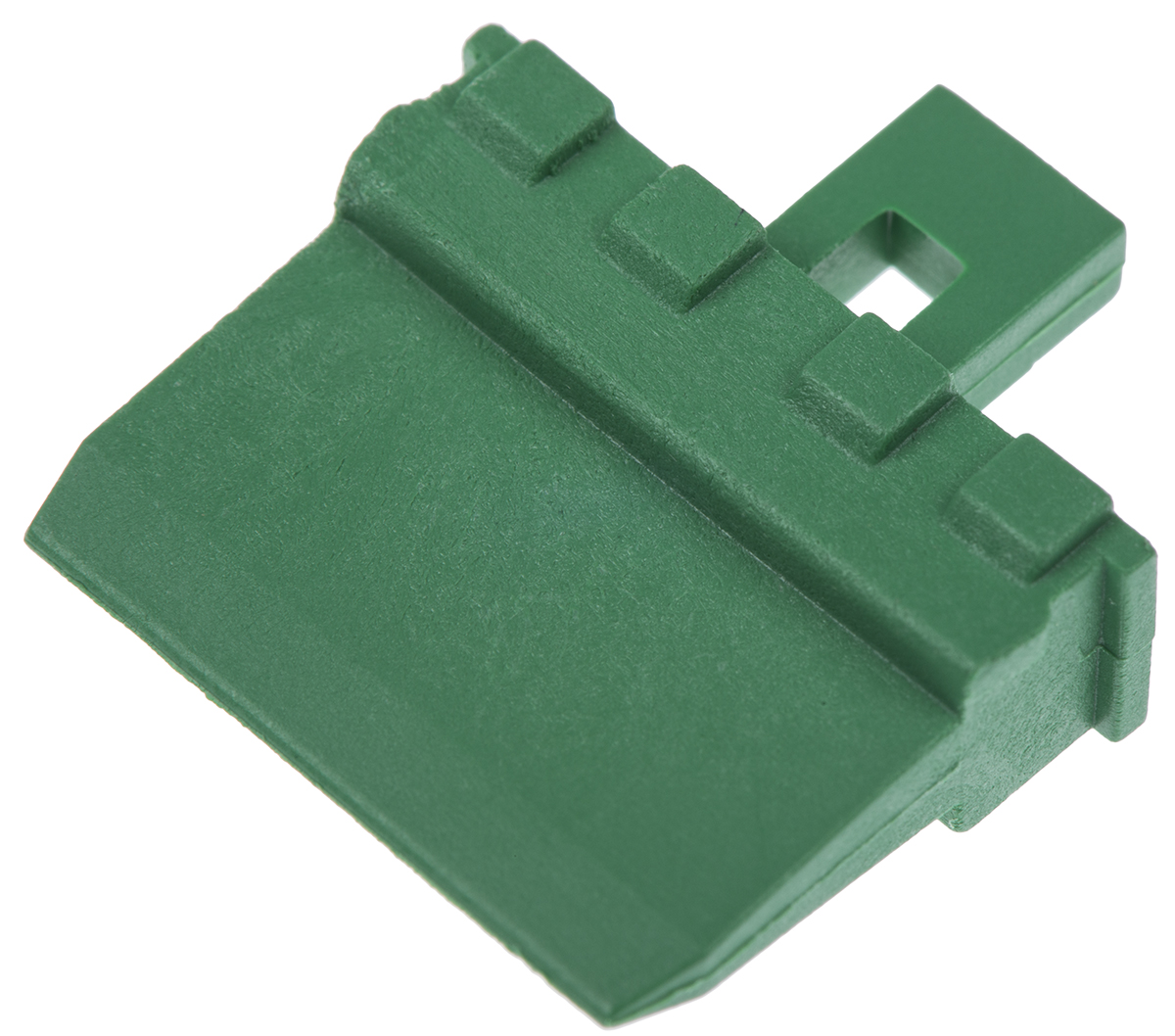

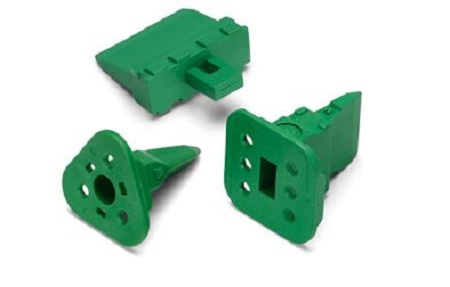

The Deutsch wedgelocks help confirm proper contact alignment within each connector. Secondary wedgelocks are assembled at the mating interface and press into place. If by chance the secondary wedgelocks are not properly seated during assembly, they will be pressed into locked position during the mating of the connector. For 2 way plug
