Type K4 — High-Temperature Cable Sensor, PT100 Screw-in resistance thermometerTemperature measurement and monitoring on diverse application sitesTemperature range -50 °C → +200 °C or +400 °CAnti-kink springStainless steel screw with connection leadTwo or three-conductor circuitAccuracy class B2.5 m connection leadStainless steel screw M8 x 40 mm (200 °C) or M10 x 40 mm (400 °C)400 °C version with cable sheathing reinforced with fibre glass

Resistance thermometer type 412 Small screw-in resistance thermometer

The temperature-logging module type DTM5081is connected to the computer via a USB-cable (USB/MUSB). One channel is well suitable for transmitting the data recorded by temperature-resistance sensors such as Pt100/1000, Ni100/1000 as well as by other types of resistance sensors up to a maximum value of 2.1kΩ. The purpose of the second channel is to transmit the temperature values supplied by thermocouples. Finally, the corresponding temperature or resistance value is output. A data acquisition program supplied by the manufacturer records the measurement values and stores them if required. Due to the control via simple characters, the data can also be recorded using programming languages like C or Visual Basic without any problem. The module is characterised particularly by its high accuracy and ease of handling and, furthermore, a very reasonable price. It has been designed for accurate measurements in a wide temperature range. A high overall accuracy of the device is achieved through the connection of the sensor using four-wire technology and the use of a precise sensor. For the thermocouple channel, the reference junction compensation is carried out internally. A neutral miniature thermocouple socket establishes the connection, which allows a large number of thermocouple types to be included. The resolution of the device is 0.01K for the resistance sensors, and 0.1K for the thermocouples.

The Electrotherm thermoelectric lead is shielded FEP cable for thermocouples. Temperature range -100 to +205°CProof voltage 2500 V

The Electrotherm thermocouple is a bendable sheathed thermocouple 1xN with mini connector plug. The thermocouple sensor used to measure temperature in a range of different processes. The thermocouple is flexible, has a very fast response and high accuracy. A thermocouple consists of two wire legs made from different metals joined together at their two ends to form two junctions. Its miniature or standard size quick disconnect connector. Thermocouples are ideal tools for the measurement of high temperatures and are a popular choice and they are a robust, reliable and affordable solution. Its measuring range is 0...1000°C (on plug max. 220°C). Its insulated from sheath. ThermocoupleMeasuring range 0 to 1000°C (on plug max. 220°C)1x type N (NiCrSi-NiSi) DIN EN 60584Insulated from sheathSheathed material 2.4816Diameter of sheathed material ø1,5 mm and ø3 mmLength 300 mmMini connector plug

The Electrotherm compensating lead is shielded FEP cable for thermocouples. Temperature range -100 to +205°CProof voltage 2500 V

Resistance thermometer type 412 Small screw-in resistance thermometer

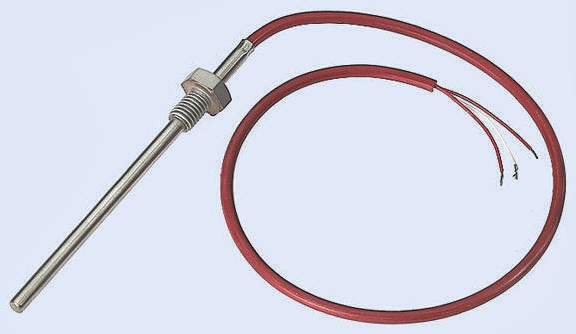

Type K5 - high-temperature cable sensor, Pt100 Screw-in resistance thermometerTemperature measurement and monitoring on diverse application sites

Room Temperature Sensor, type 308, PT100 Wall-mount room resistance thermometerDimensions 70 x 70 x 27Temperature measurement and monitoring in roomsSlotted plastic housing1x PT100 (308-E-3LS) or 2x PT100 (308-D-3LS)Three-conductor circuitAccuracy class BBase values and limit deviations according to DIN EN 60751Working temperature range 0 °C → +80 °CProtection system IP20

The Electrotherm resistance thermometer is a combination of resistance and glass thermometer for synchronous measuring and displaying of temperature. Its connection head in form F. Resistance thermometers, also called resistance temperature detectors (RTDs), are sensors used to measure temperature. The resistance thermometer use Pt100 sensor. A Pt100 sensor is typically the most accurate temperature sensor with high levels of stability and repeatability. Resistance thermometerConnection head from FDegree of protection IP 20 acc. DIN EN 60529 1 x Pt 100 F0,3 DIN EN 60751 in 4-wire-circuitMeasuring range 0 °C to 60 °C and 0 °C to 120 °CProtective tube material 1.4571Insert length L1 - 100 mmThread G1/2 A

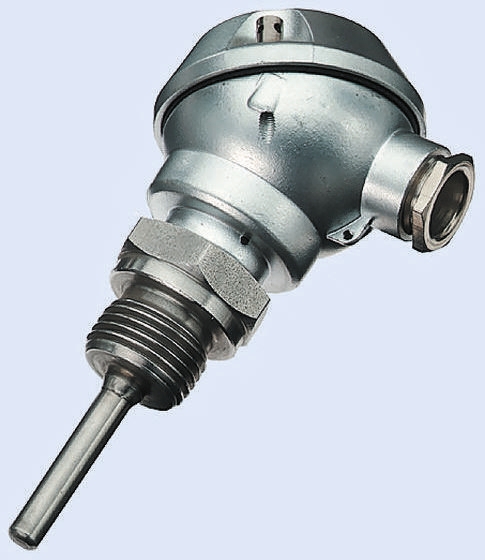

The Electrotherm resistance thermometer for screwing in with exchangeable measuring insert and integrated transmitter. It is used for measurement in pipelines and containers. Connection head form B according to DIN 43 729Protective tube material stainless steel

The Electrotherm bendable sheathed thermocouple has mini or standard plug and implementation of the measuring point is insulated from sheath. Bending radius of the sheathed material is greater than equal to 5 x diameter dSheathed material stainless steel
