Fused Feedthrough Lever-action carrier accepts 20x5mm and 25x5mm fuses

Isolating Feedthrough (Double Deck) A double-deck terminal with knife action isolation and feed through termination <B>Fused Circuit and Test Terminals</B>

Sensor/Actuator Connection Terminals Terminals with four conductor entry points<BR/>Two of the entry points have hard linked sensor/actuator points<BR/>A dedicated end plate is also available<BR/>Colour grey

Standard IDC Terminals Insulation Displacement (IDC) technology achieves speed of assembly and reliability. A simple cable insertion tool is used to insert the unprepared wire into the terminal. Two styles of terminals are offered, IDC to IDC and IDC to screw. Two sizes within these two types are available to cater for different wire sizes.Thus the options are as follows:,IDC to IDC - 0.34-1.5mm² (both sides),IDC to IDC - 1.0-2.5mm² (both sides),IDC (0.34-1.5mm²) to screw (0.22-4mm²),IDC (1.0-2.5mm²) to screw (0.22-6mm²),System uses jumper bars, markers, etc. common to the 5000 series (see stock no. 447-428 – typical of range) No wire stripping or preparation<BR/>Vibration/corrosion tested to DIN57611<BR/>Pull-out exceeds IEC947-7.1

IDC Cable Inserters Two neat alternatives for inserting and removing the cables from the terminals are offered. The recommended ratchet assisted inserter ensures that the cable is fully pushed home every time and also features a cable cutter and remover (stored in handle). For maintenance and occasional use the hand inserter is ideal as it is an economical alternative. It relies on hand pressure to insert the cable home and includes integral cable cutter and cable remover (folds into handle). Supplied with instructions.

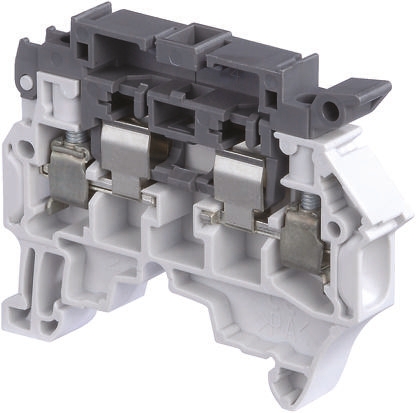

Fuse Terminals Accept both 5<font face="symbol">´</font>20mm and 5<font face="symbol">´</font>25mm fuses. Available in the same combinations as the standard terminals IDC to IDC and IDC to screw. Rated at 630V/ 6.3A
