EPCOS B65888 RM 14 Accessories EPCOS offer accessories to complement their B6588 ferrite cores and coil formers. Clamp The clamp has solderability to IEC 60068-2-20 at +235°C for two seconds. The clamp is constructed from 0.5 mm thick stainless spring steel (tinned) with a ground terminal. Insulating Washer The insulating washer is for use with double clad PCBs. It is a natural colour and constructed from 0.25 mm thick Makrofol FR7-2 polycarbonate.

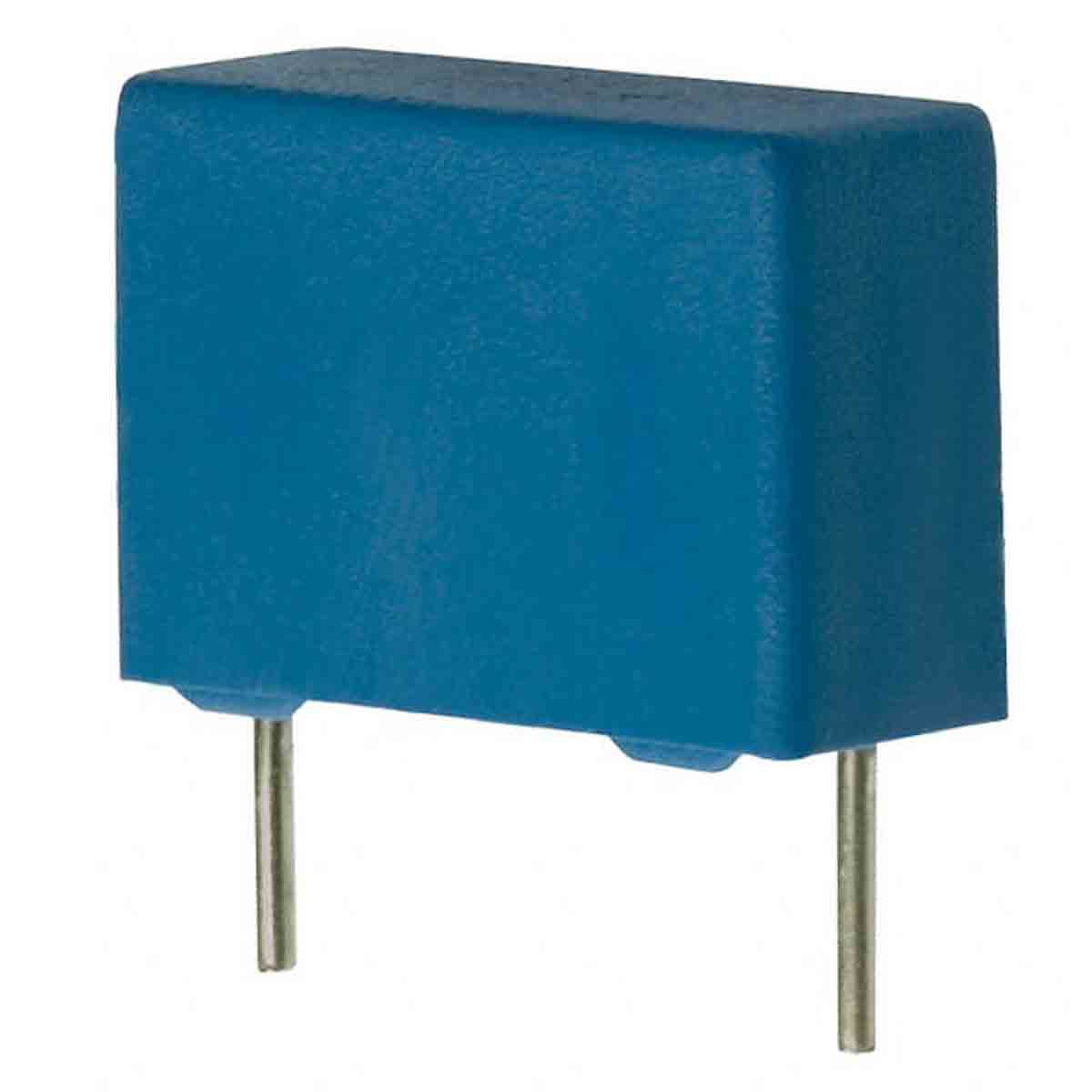

B32651...B32656 Series Construction Wound capacitor technology with internal series connection for VR ≥1250VdcPlastic case (UL 94 V-0)Epoxy resin sealing Features High pulse strengthHigh contact reliabilitySmall dimensions Typical Applications TV S-correctionTV flybackElectronic ballast circuits

B32651...B32656 Series Construction Wound capacitor technology with internal series connection for VR ≥1250VdcPlastic case (UL 94 V-0)Epoxy resin sealing Features High pulse strengthHigh contact reliabilitySmall dimensions Typical Applications TV S-correctionTV flybackElectronic ballast circuits

EPCOS B65646 PM50/39 Ferrite Cores EPCOS B65646 PM50/39 ferrite cores are suitable for use in transformers handling powers in the frequency range up to 300 kHz, also for use in telecommunications and industrial electronics. The core shape offers various advantages: wide flux area for high power at a minimum number of turns, so only low magnetic leakage and stray capacitance. The ferrite cores have good shielding owing to the closed form, precisely ground air gaps, easy assembly and economic mounting.

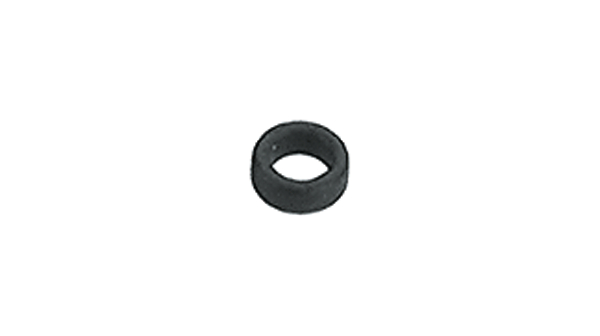

Coated Ring Cores B64290 EPCOS ferrite ring cores are coated with polyamide or epoxy resin that provides insulation as well as protection for the edges. Suitable applications for these ferrite rings include chokes, baluns, pulse transformers and broadband transformers.

Epcos B82721A Series Common Mode Choke Current-compensated ring core double chokes with a ferrite core in flame retardant potting and case to (UL94V-0)High resonance frequency by virtue of the unique winding technique usedApplications include switch-mode power supplies for computers, televisions and other sensitive electronic equipment. Additionally the B82721/2/3/4/5A ranges of chokes are suitable for electronic ballasts in lamps, and the B82725J range of chokes is ideally suited for washing machines and chargers.Low profile horizontal (-A/-B) versionsVertical (-J/-K) versions save PCB space

RM 6, 8 & 10 Cores Cores without centre hole for transformer applicationsDelivered as sets

The EPCOS aluminium electrolytic capacitor is a long life grade capacitor. This capacitor has radial leads and high ripple current capability. High reliabilityLow ESRRoHS compatibleApplicable in automotive electronics

Coated Ring Cores B64290 EPCOS ferrite ring cores are coated with polyamide or epoxy resin that provides insulation as well as protection for the edges. Suitable applications for these ferrite rings include chokes, baluns, pulse transformers and broadband transformers.

B84143-Ax-R Series Very high insertion lossLow leakage currentOptimised for long motor cables under full loadApplications include frequency converters for motor drives including lifts, pumps, traction systems, conveyor systems, air conditioning systems, wind-driven power plants, and power supplies

The TDK Feedthrough components Filters are connected to the line side of electronic devices and are used mainly for suppressing conducted EMI disturbances. High insertion lossEasy to installCompact dimensions

The TDK EMC 3-line filters for converters and power electronics help to mitigate the Electromagnetic Interference (EMI) and Radio Frequency Interference (RFI) present in the power and signal lines. Easy to installVery compact designLow weight
