NiZn Cores Only recommended for common mode inductor applications<BR/>Ring configuration optimises ferrite material properties<BR/>Cores are supplied burnished to remove sharp edges<BR/>A_L values tested at 10kHz and <10 gauss

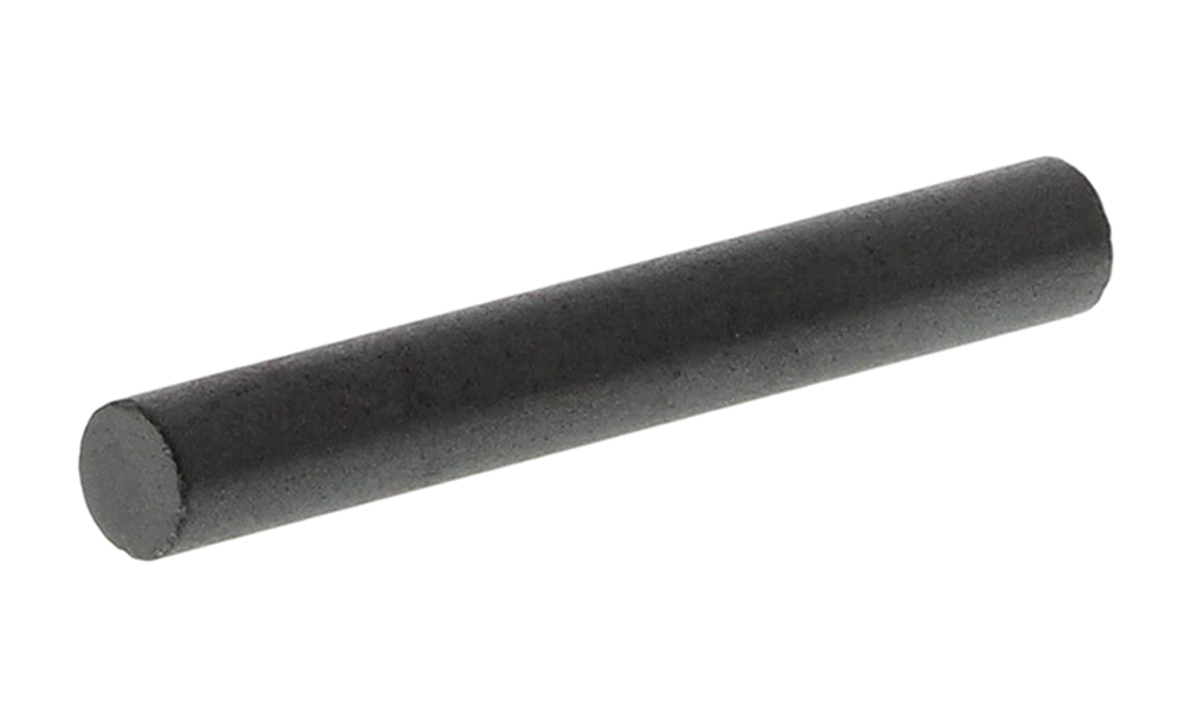

RFID Rods From Fair-Rite, these ferrite rods are for use in RFID (Radio Frequency IDentification) and antenna applications. The 78 material is recommended for 125kHz applications, and 61 material is recommended for 13.56MHz applications.

The Fair-Rite toroid ferrite ring. It is made from 67 Material and has diameter of 22.1mm. Ring material 67<BR/>The overall dimensions of ring is 22.1 x 13.7 x 6.35mm <B> </B>

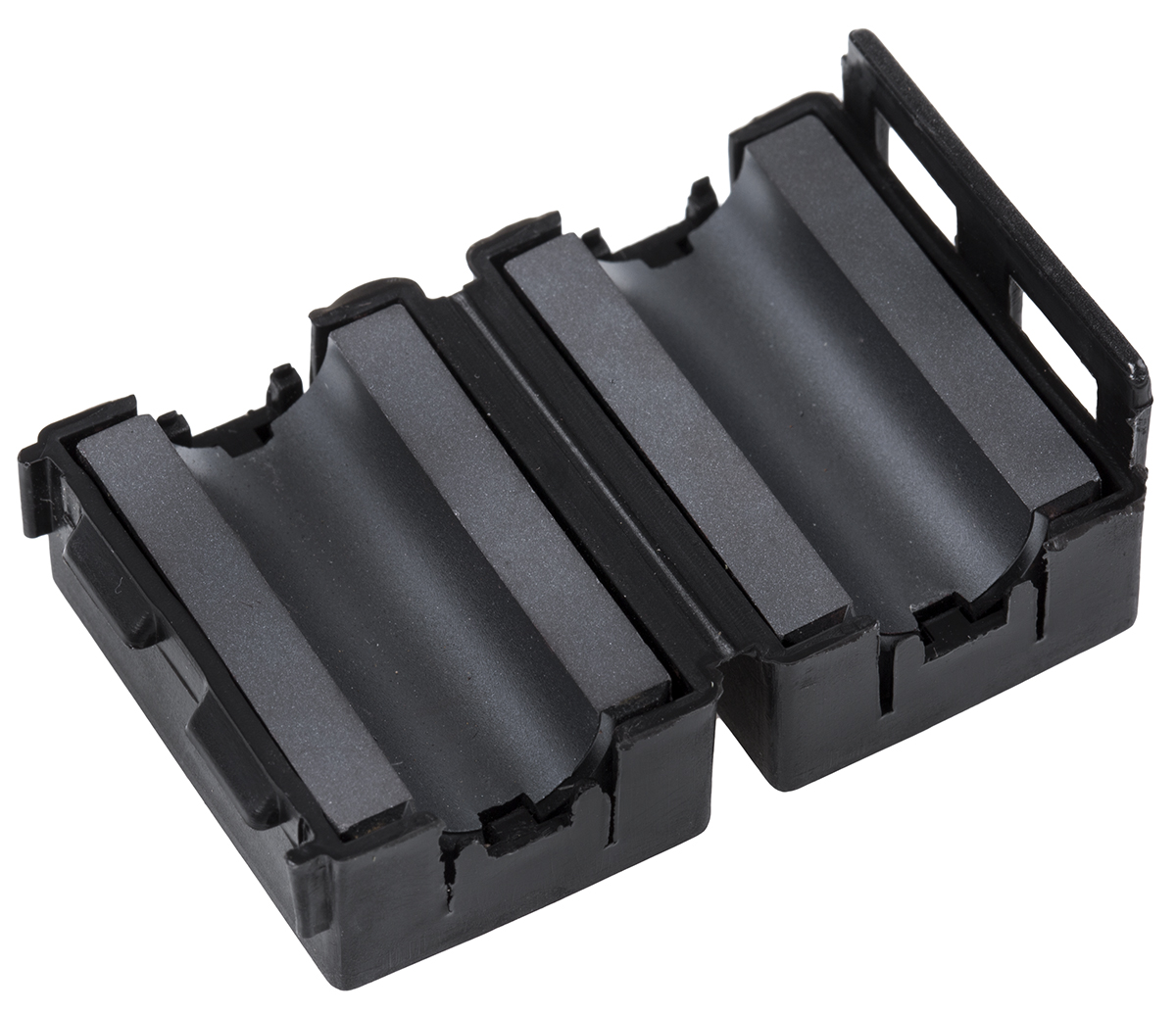

The Fair-Rite flat cable snap-Its for use on multi-conductor flat cables to suppress common-mode conducted EMI from 1MHz to hundreds of MHz. These flat cable snap-Its are available in two ferrite materials, 31 and 43. The polypropylene cases are meeting the RoHS restrictions of hazardous substances<BR/>The case have a flammability rating of UL 94 V-0 <B> </B>

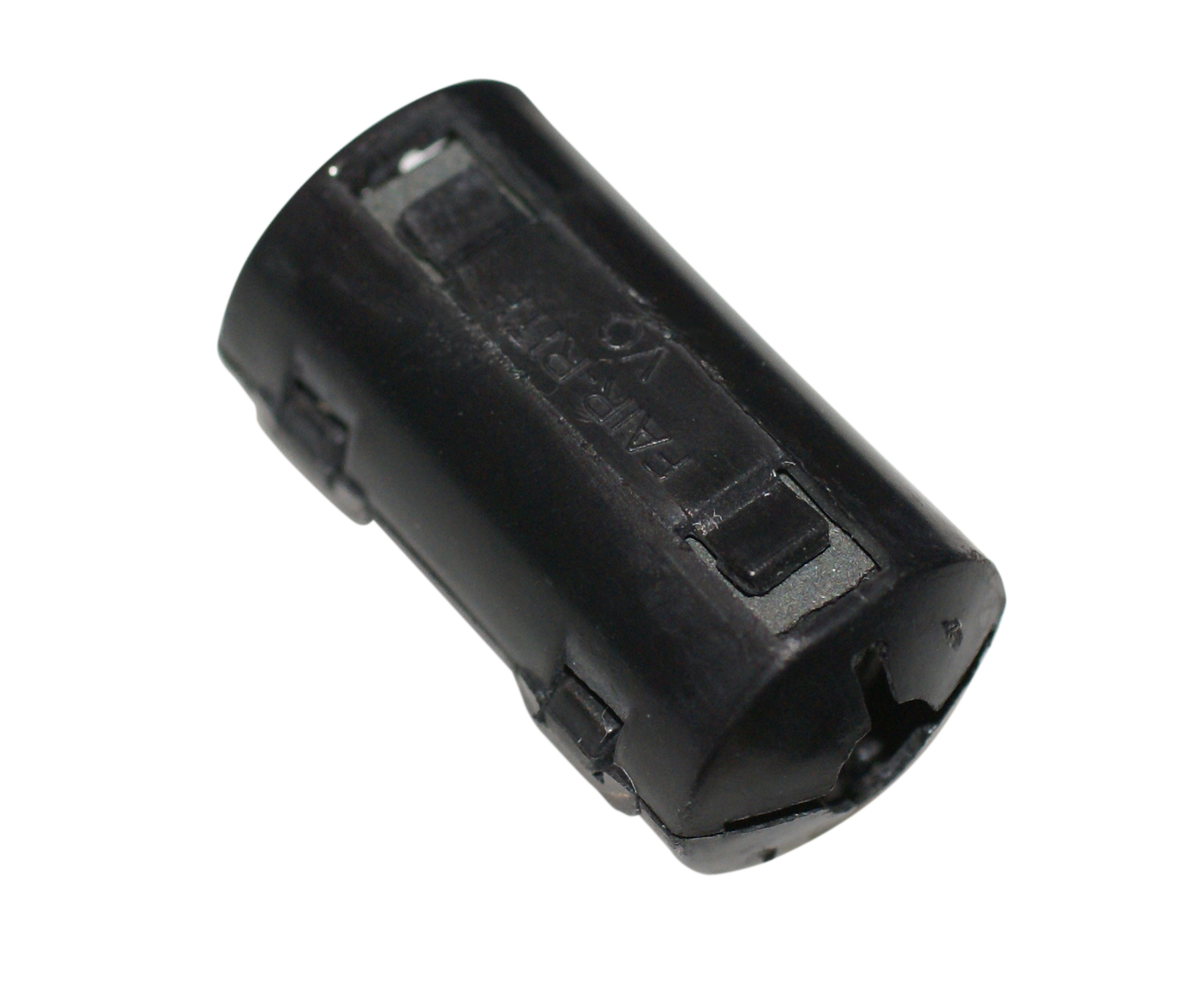

Round Cable Snap-Its These cable cores will provide common-mode filtering for multi-strand cables and differential-mode filtering for single conductors<BR/>Polypropylene cases have UL 94-V0 rating<BR/>Suppresses frequencies up to 2000MHz<BR/>Accommodates round cables with diameters from 5.35mm to 25mm *Nylon 6//6 case, flammability rating UL94-V

The Fair-Rite round cable snap-its can easily accommodate round cables or bundled wires with diameters from 2.5 mm (0.100) to 25.4 mm (1.000). These assemblies are available in four ferrite material classes to suppress differential or common-mode conducted EMI from 1 MHz into the GHz region. The polypropylene cases are meeting the RoHS restrictions of hazardous substances<BR/>The case have a flammability rating of UL 94 V-0 <B> </B>

The Fair-Rite Flexible M1Ferrite sheet. It has total thickness of 0.23. Material grade M1<BR/>Sheet Size 120 x 120 mm<BR/>Ferrite thickness 0.2 mm

The Fair-Rite toroid ferrite ring. It is made from 43 Material and has diameter of 25.4mm. Ring material 43<BR/>The overall dimensions of ring is 25.4 x 15.5 x 12.7mm <B> </B>

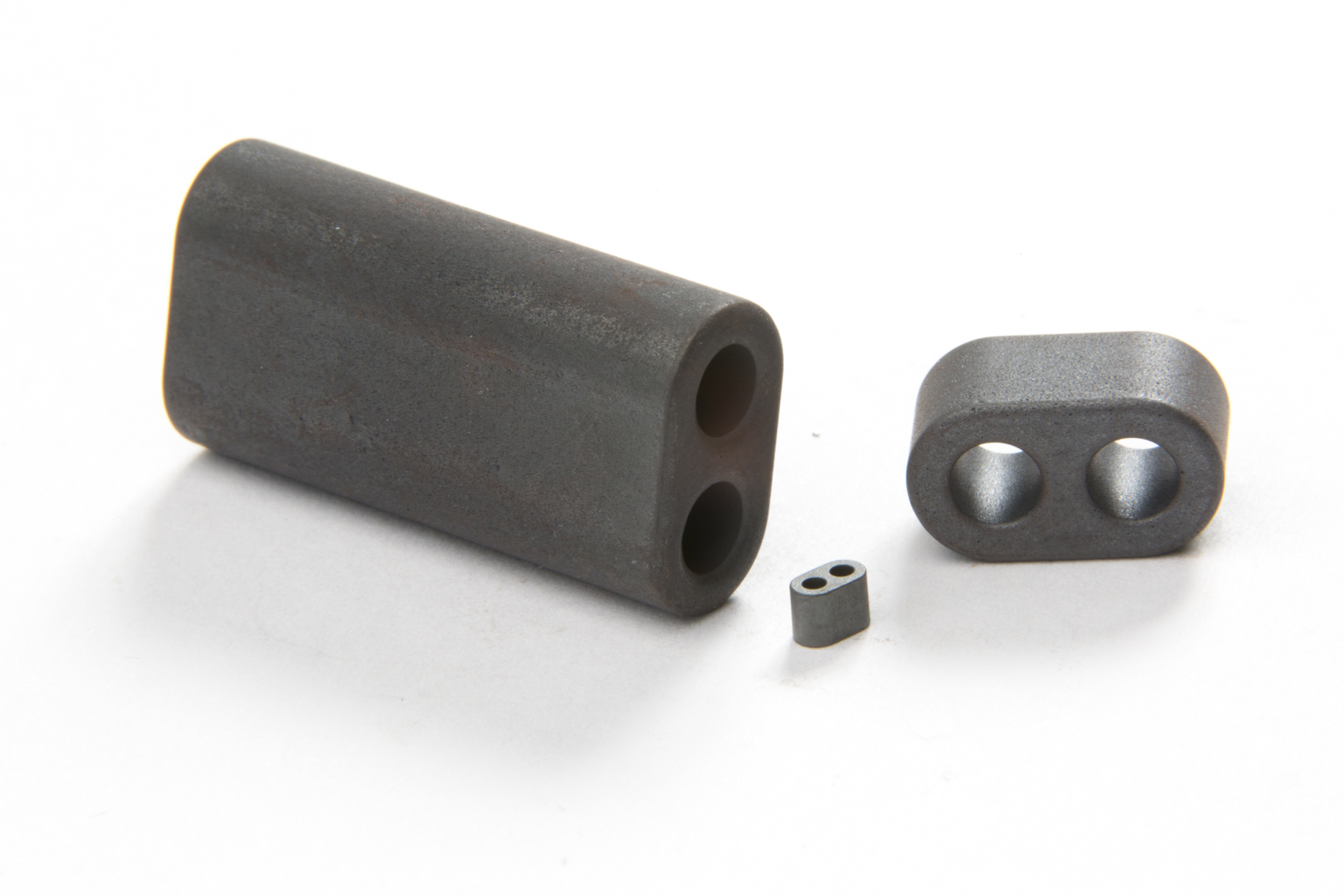

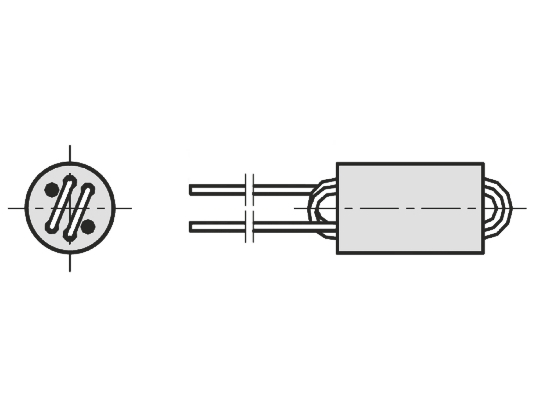

Multi -Turn Ferrite Beads Multi-aperture cores are used in balun (balance-unbalance) transformers<BR/>Applications as broadband transformers in communication and CATV circuits<BR/>Also employed in auto air bag circuits to guard against accidental activation

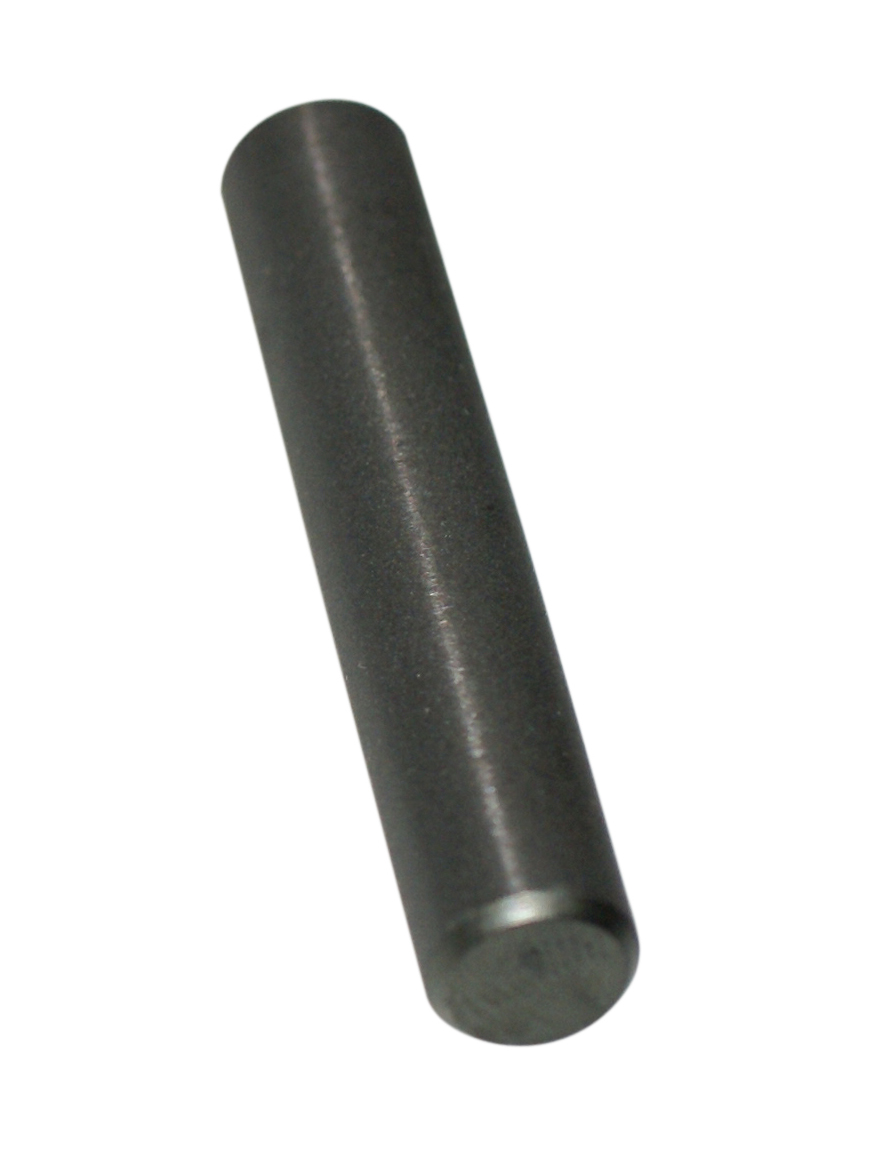

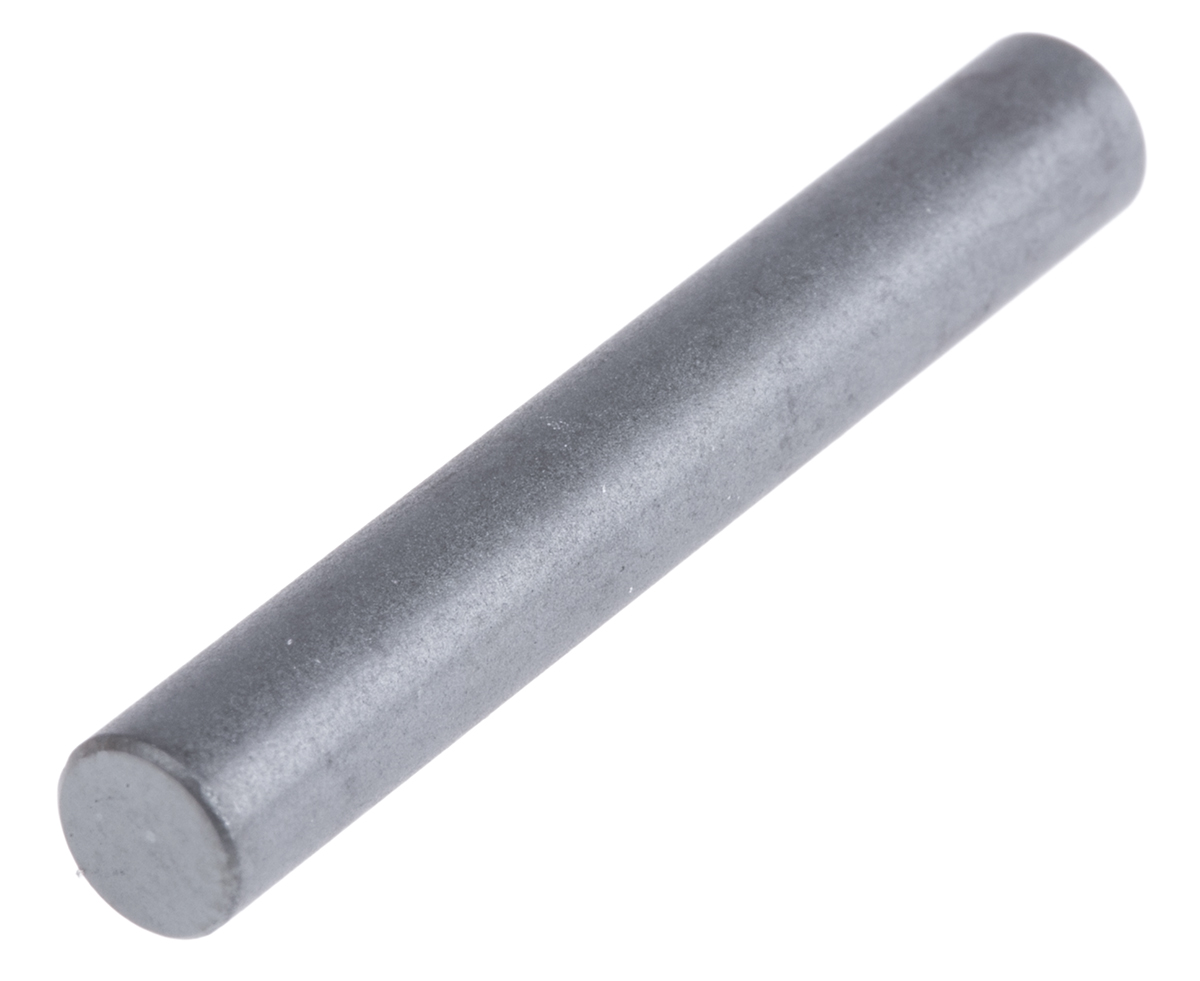

The Fair-Rite plain Ferrite solid rod. It has size of 6.35x31.75mm. It is made from material 77<BR/>Diameter of rod is 6.35mm <B> </B>

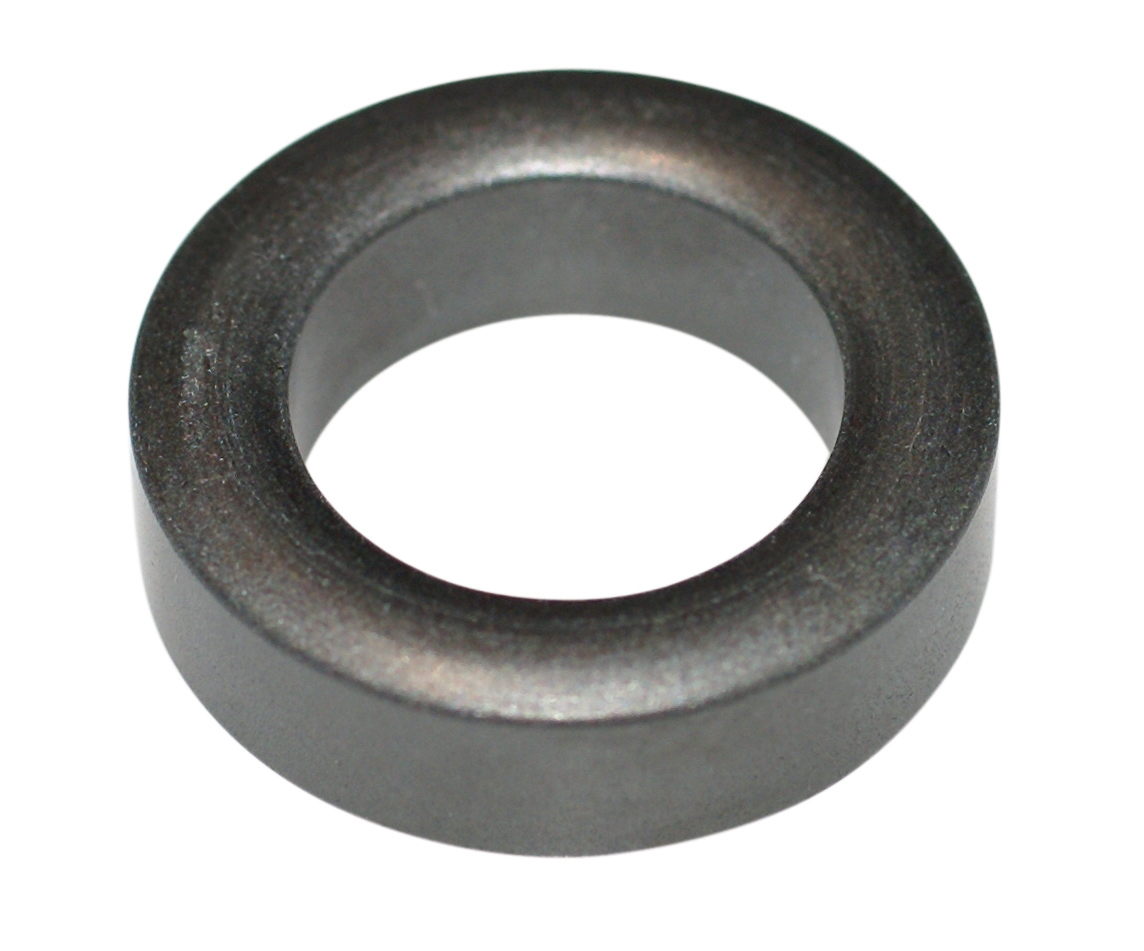

The Fair-Rite toroid ferrite ring. It is made from 61 Material and has diameter of 12.7mm. Ring material 61<BR/>The overall dimensions of ring is 12.7 x 7.15 x 4.9mm <B> </B>

The Fair-Rite multi-aperture cores are used in suppression applications and in balun (balance-unbalance) and other broadband transformers. They are also employed in airbag designs to prevent accidental activation. Core material 43<BR/>It has diameter of 3.8mm
