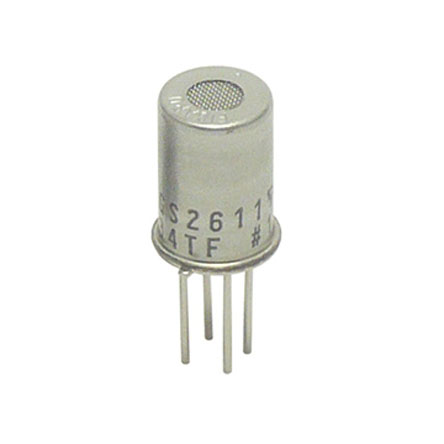

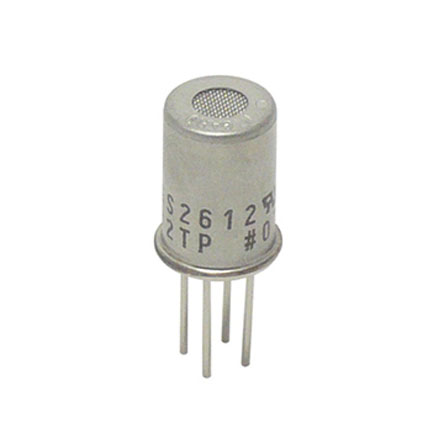

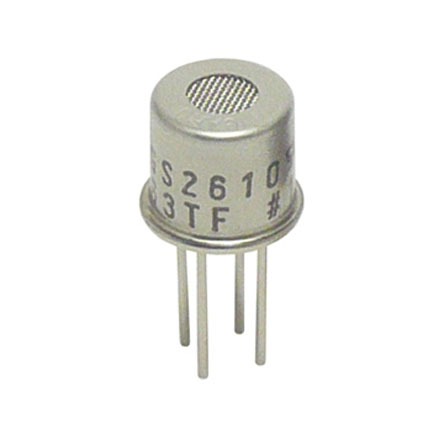

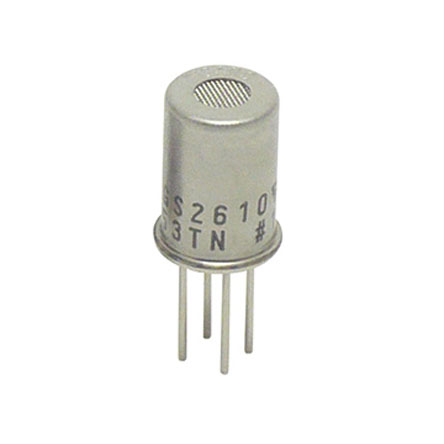

TGS2610/2611/2612 Methane and LP Gas Sensors Compact PCB mounting gas sensors from Figaro for use in the detection of methane and LP (liquefied petroleum) gas products. Type TGS2610 has high sensitivity to LP gas and its components such as propane and butane; type TGS2611 has high sensitivity to methane; TGS2612 has high sensitivity to methane, propane and butane with similar sensitivity (at same %LEL levels) for both methane and LP gases. Parts with suffix –C00 have a smaller package size with a faster response time; parts with –D00 & -E00 suffix have a larger package incorporating filter materials to reduce the effects of interference gases. &#149; Compact 4-lead TO-5 package<BR/>&#149; Low power consumption<BR/>&#149; Long life and low cost<BR/>&#149; Uses simple electrical circuit

TGS2610/2611/2612 Methane and LP Gas Sensors Compact PCB mounting gas sensors from Figaro for use in the detection of methane and LP (liquefied petroleum) gas products. Type TGS2610 has high sensitivity to LP gas and its components such as propane and butane; type TGS2611 has high sensitivity to methane; TGS2612 has high sensitivity to methane, propane and butane with similar sensitivity (at same %LEL levels) for both methane and LP gases. Parts with suffix –C00 have a smaller package size with a faster response time; parts with –D00 & -E00 suffix have a larger package incorporating filter materials to reduce the effects of interference gases. &#149; Compact 4-lead TO-5 package<BR/>&#149; Low power consumption<BR/>&#149; Long life and low cost<BR/>&#149; Uses simple electrical circuit

Evaluation Module for TGS8100 Air Quality Sensor A PCB module from Figaro which allows evaluation of the on-board TGS8100 air quality sensor. Operation is simplified by using a continuous output signal generated by the module. Although the TGS8100 operating mode uses intermittent detection via a 1-second cycle, the periodic sensor output is converted into a continuous voltage signal by the module's microprocessor. The TGS8100 sensor is mounted on a replaceable daughter-board and is sensitive to most common air contaminant gases. The module requires a regulated supply of 5Vdc and produces an output of 0-3V.

Figaro Gas Sensor PCB Mounting Sockets A range of durable PCB mounting sockets suitable for Figaro gas sensors. The sockets hold the sensors securely in place and can be used for over 100 insertion and removal cycles. The following types are available:<BR/>SR2 for TGS8xx Gas Sensors (6-pin)<BR/>SR4 for TGS8xx Gas Sensors (6-pin with mounting ears)<BR/>SR6 for TGS24xx & TGS26xx Gas Sensors (4-pin with locking tabs)<BR/>SR8 for TGS38xx Gas Sensors (3-pin polarised)

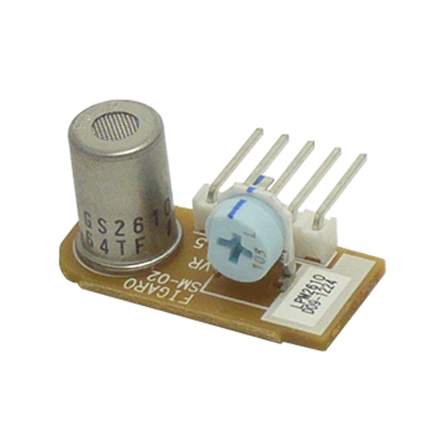

LPM2610-D09 LP Gas Sensor Module The LPM2610 from Figaro is a pre-calibrated sensor module for LP (liquefied petroleum) gas alarms which has been accurately calibrated in Figaro&#146;s temperature and humidity controlled facility. The module uses the TGS2610-D00 gas sensor which incorporates a filter to reduce the influence of interference gases such as alcohol, resulting in highly selective response to LP gas. A temperature compensation circuit with a built-in thermistor and individually adjusted load resistor are also incorporated in the module, which is designed to meet the performance requirements of EN50194 and UL1484. &#149; Factory calibrated<BR/>&#149; Temperature compensation circuit<BR/>&#149; 5V operating voltage<BR/>&#149; Compact module size<BR/>&#149; Meets RoHS regulations

TGS821, TGS822, TGS823 & TG826 Gas Sensors A range of gas sensors from Figaro utilising tin dioxide (SnO2) semiconductor technology. In clean air the devices have low conductivity which increases in the presence of a detectable gas. A simple electrical circuit can be used to convert the change in conductivity to an output signal proportional to gas concentration. &#149; Type TGS821 has high sensitivity and selectivity to hydrogen gas. The sensor can detect concentrations as low as 50ppm, making it ideal for a variety of industrial applications.<BR/><BR/>&#149; Types TGS822 & TGS823 have high sensitivity to the vapours of organic solvents and a variety of combustible gases such as carbon monoxide, making them good general purpose sensors; type TGS823 has a ceramic base able to withstand temperatures of up to 200°C.<BR/><BR/>&#149; Type TGS826 has high sensitivity to ammonia gas and can detect concentrations as low as 30ppm. It is ideally suited to critical safety-related applications such as the detection of ammonia leaks in refrigeration systems and ammonia detection in the agricultural field.

TGS832 Chlorofluorocarbon (CFC) Gas Sensors Gas sensors from Figaro for the detection of Chlorofluorocarbon (CFC) or Halocarbon gases. These devices utilise tin dioxide (SnO2) semiconductor technology to provide an output proportion to gas concentration. The sensors have high sensitivity to the refrigerant gases commonly used in air conditioning systems and refrigerators, such as R-134a, R-404a, R-407c and R-410. &#149; Type TGS832-A00 has a gas diffusion hole in the sensor cap as well as in the sensor base and by using the sensor with a suction pump, response speed can be accelerated, making it suitable for portable gas leakage checkers.<BR/><BR/>&#149; Type TGS832-F01 uses filter material in its housing to eliminate the influence of interference gases such as alcohol, resulting in a highly selective response to CFCs. This feature makes the sensor ideal for stationary type leakage detectors which require durability and a high degree of resistance to interference gases.

TGS2600/2602/2603 Air Contaminants Sensors Compact PCB mounting gas sensors from Figaro for use in the detection of gaseous air contaminants. Three types are available: TGS2600 has high sensitivity to gases such as hydrogen, ethanol and carbon monoxide; TGS2602 has high sensitivity to VOCs and odorous gases such as ammonia and hydrogen sulphide; TGS2603 has high sensitivity to food odours, and to amine-series and sulphurous odour gases. All of the sensors feature low power consumption, long operating life and utilize simple electrical circuitry.

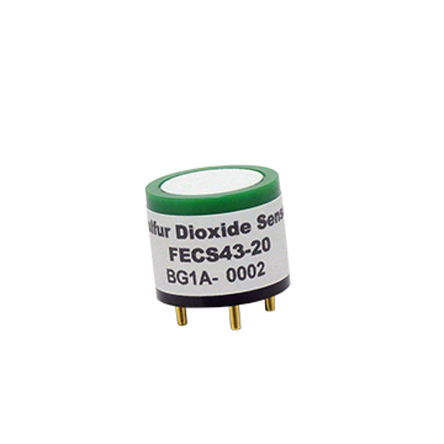

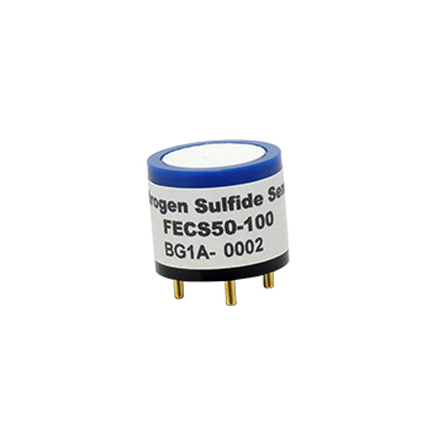

Figaro FECS Series Gas Sensors A range of electrochemical sensors from Figaro for the detection of various gases. The FECS series of compact PCB mounting gas sensors feature a unique leak-proof construction and high selectivity of the specified gas type. The sensors have a quick response time and provide a linear output with a stable baseline level. The following sensors are available: FECS40-1000 - Carbon monoxide<BR/>FECS41-250 - Nitric Oxide<BR/>FECS42-20 - Nitrogen Dioxide<BR/>FECS43-20 - Sulphur Dioxide<BR/>FECS44-100 – Ammonia (low concentration)<BR/>FECS44-1000 – Ammonia (high concentration)<BR/>FECS45-10 - Chlorine<BR/>FECS50-100 - Hydrogen Sulphide

TGS3830 Halocarbon Gas Sensor A compact PCB mounting halocarbon gas sensor from Figaro. A primary application for this type of sensor is as a key component in portable refrigerant leak detectors. &#149; High sensitivity to R-134a refrigerant gas<BR/>&#149; Fast response<BR/>&#149; Low power consumption

TGS2610/2611/2612 Methane and LP Gas Sensors Compact PCB mounting gas sensors from Figaro for use in the detection of methane and LP (liquefied petroleum) gas products. Type TGS2610 has high sensitivity to LP gas and its components such as propane and butane; type TGS2611 has high sensitivity to methane; TGS2612 has high sensitivity to methane, propane and butane with similar sensitivity (at same %LEL levels) for both methane and LP gases. Parts with suffix –C00 have a smaller package size with a faster response time; parts with –D00 & -E00 suffix have a larger package incorporating filter materials to reduce the effects of interference gases. &#149; Compact 4-lead TO-5 package<BR/>&#149; Low power consumption<BR/>&#149; Long life and low cost<BR/>&#149; Uses simple electrical circuit

TGS3870 Methane and Carbon Monoxide A gas sensor from Figaro using a micro-bead structure suitable for the detection of both methane and carbon monoxide. The device is housed in a compact 3-pin PCB mounting package. &#149; High sensitivity and selectivity to both methane and carbon monoxide<BR/>&#149; Low sensitivity to alcohol vapour<BR/>&#149; Low power consumption<BR/>&#149; Long life and low cost
