USB to RS-232/RS-422/RS-485 Converter PCB, FTDI Chip These USB to RS-232 / RS-422 / RS-485 converters provide a fast and simple method to convert serial UART to USB. The USB connector contains a small circuit board featuring the FTDI FT232RQ (RS 730-0168) serial UART interface IC to handle all the USB signalling and protocols. There are two LEDs to indicate data being received and transmitted. The RS-232 has a maximum UART Baud Rate of 1 Mbaud while the RS-422 and RS-485 both have a maximum of 3 Mbaud.These converters are supported with Microsoft WHQL certified VCP drivers for Windows, Apple Mac, and Linux. All of which are available, royalty-free from FTDI website. http://www.ftdichip.comVersions Available:(687-7825) - USB to RS232 UART Serial Converter(687-7840) - USB to RS422 UART Serial Converter(687-7837) - USB to RS485 UART Serial Converter

FTDI Chip USB To UART Cable The FTDI chip USB to UART cable is a fast and simple way to connect devices with a TTL level serial interface to USB. It is available with TTL logic level of 3.3V. Each cable contains a small internal electronic circuit board, utilising the FT232R, encapsulated into the USB connector at the end of the cable. The cable has a gauge of 24AWG and diameter of 5mm. They are terminated by a standard 3.5mm Audio Jack (AJ) connector. The circuit is powered from the USB using 5V power pins and any Vcc connection, always at 5VDC. These cables are supported with Microsoft WHQL certified VCP drivers for Windows, Apple Mac, and Linux. Features and Benefits Connect directly to a microcontroller UART or I/O pinsData transfer rate is up to 3MbpsHas 35mm audio jackLow USB bandwidth consumptionOperating temperature ranges between -40°C and 85°CProvides a USB to TTL Serial interface with various end connectorsPowered from USB connectorTwo core and spiral cable with length of 1.8mUHCI/OHCI/EHCI host controller compatibleUnique serial number attached, used for security purposes while transferring files via cableUSB 2.0 full speed compatibleVarious UART-end connector options available Applications CommunicationEmbedded system Certifications CEFCC approved

FTDI Chip USB To UART Cable The FTDI Chip USB to UART cable provides a fast and simple way to connect devices with a TTL level serial interface to a USB. Each cable contains a small internal electronic circuit board, utilising the FT232R, which is encapsulated into the USB connector at the end of the cable. The circuit is powered from the USB using 5V power pins and any VCC connection is always at 5VDC. However, this cable is available with signal TTL logic level of 3.3V. This cable is supported with Microsoft WHQL certified VCP drivers for Windows, Apple Mac, and Linux. Features and Benefits USB 2.0 compatibleCable length of 1.8mData transfer rate is up to 3Mbps Unique serial number attached, used for security purposes while transferring files via cablePowered from USB connectorVarious UART-end connector options availableMaximum output of 250mA on VCCLow USB bandwidth consumptionUHCI/OHCI/EHCI host controller compatibleOperating temperature ranges between -40°C and 85°C2mm pitch connector for use with FTDI VDRIVE2 or VMUSIC2 modules Applications USB to serial TTL level converterUpgrading legacy peripherals to USBInterface microcontroller UART or I/O to USBInterface FPGA/PLD to USBInterface to FTDI VDRIVE2 or VMUSIC2 modulesReplace MAX232 type level shifters allowing for direct connection of the products to PC via a USBUSB instrumentation PC interfaceUSB industrial controlUSB software/hardware encryption dongles Certifications CEFCC certified

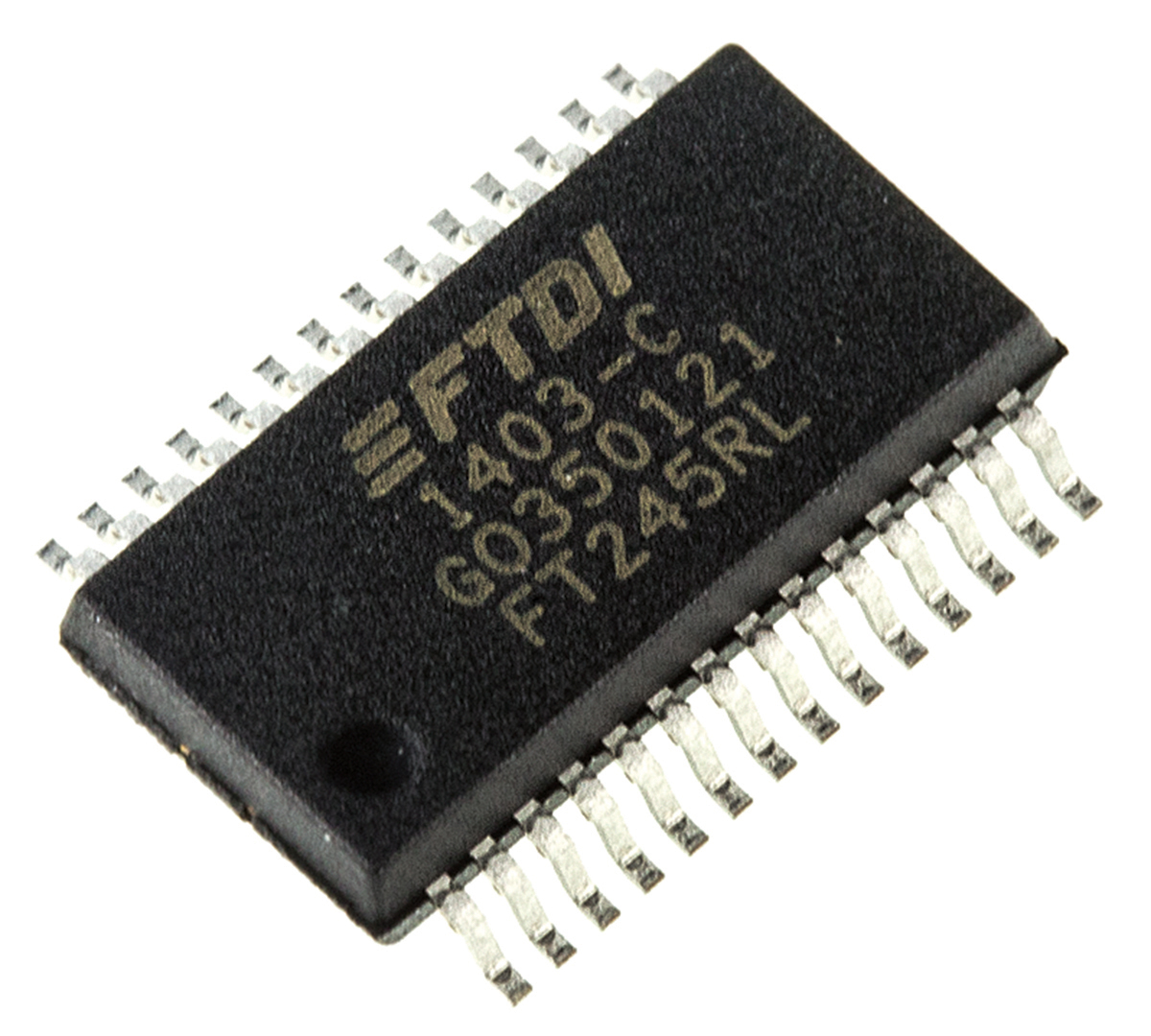

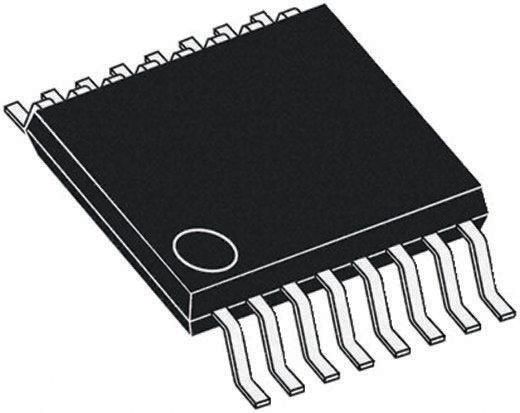

The FTDI Chip has the FT232RNL which is a USB to serial UART interface with optional clock generator output, and the new FTDIChip-ID security dongle feature. The FT232RNL device is added to FTDI’s range of USB UART interface Integrated Circuit Devices. FIFO receive and transmit buffers for high data throughputAuto transmit buffer control for RS485 applications

FTDI Chip Adapter Board The FTDI Chip adapter board provides a simple method of adapting two legacy RS232 serial devices to a modern USB port. This is accomplished by incorporating the industry standard USB2.0 hi-speed serial bridge chip. This module uses a standard USB-miniB device connector for connecting to an upstream host or hub port. This module requires USB device drivers, which is used to make the module appear as two Virtual COM Port (VCP). This allows existing serial communications software, such as HyperTerminal to exchange data through the module to a legacy RS232 peripheral device. Features and Benefits Easy plug and play installation and RS-232 device connection Industry Standard FTDI chip set and device drivers for maximum compatibilityPowered by USB port, no external power adapter requiredSerial port speed up to 1MbpsLEDs indicate USB enumeration, RxD and TxD for monitoring port status and easy diagnostics Operating temperature ranges between -40°C and 85°CTwo DE-9P male connectorsData rate is 1Mbps Applications Embedded systems Communication Certifications ANSI/ESD S20.20:2014BS EN 61340-5-1:2007CE FCC certified

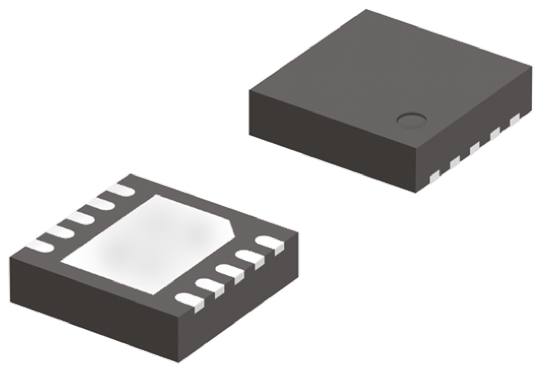

The FTDI Chip USB2.0 Full Speed IC offers a compact bridge to I2C devices. The device is an I2C slave, capable of operating up to 3.4MBit/s, with low power consumption (8mA). The FT201XD includes the complete FT-X series feature set and enables USB to be added into a system design quickly and easily over an I2C interface. Single chip USB to I2C interface Low USB bandwidth consumptionUHCI/OHCI/EHCI host controller compatibleUSB 20 Full Speed compatibleExtended operating temperature range: -40°C to 85°CCompact Pb-free 10 Pin DFN package (RoHS compliant)

The FT4222H is a High/Full Speed USB2.0-to-Quad SPI/I2C device controller in a compact 32-pin QFN package. The device requires an external crystal at 12MHz in order for the internal PLL to operate. It supports multi-voltage IO: 1.8/2.5 and 3.3V and provides 128 bytes one-time-programmable (OTP) memory space for storing vendor-specific information.This device contains both SPI and I2C configurable interfaces. The SPI interface can be configured as master mode with single, dual and quad bits data width transfer, or slave mode with single bit data width transfer. The I2C interface can be configured in master or slave mode.The FT4222H is available in in a space saving Pb-free 32-pin QFN package.

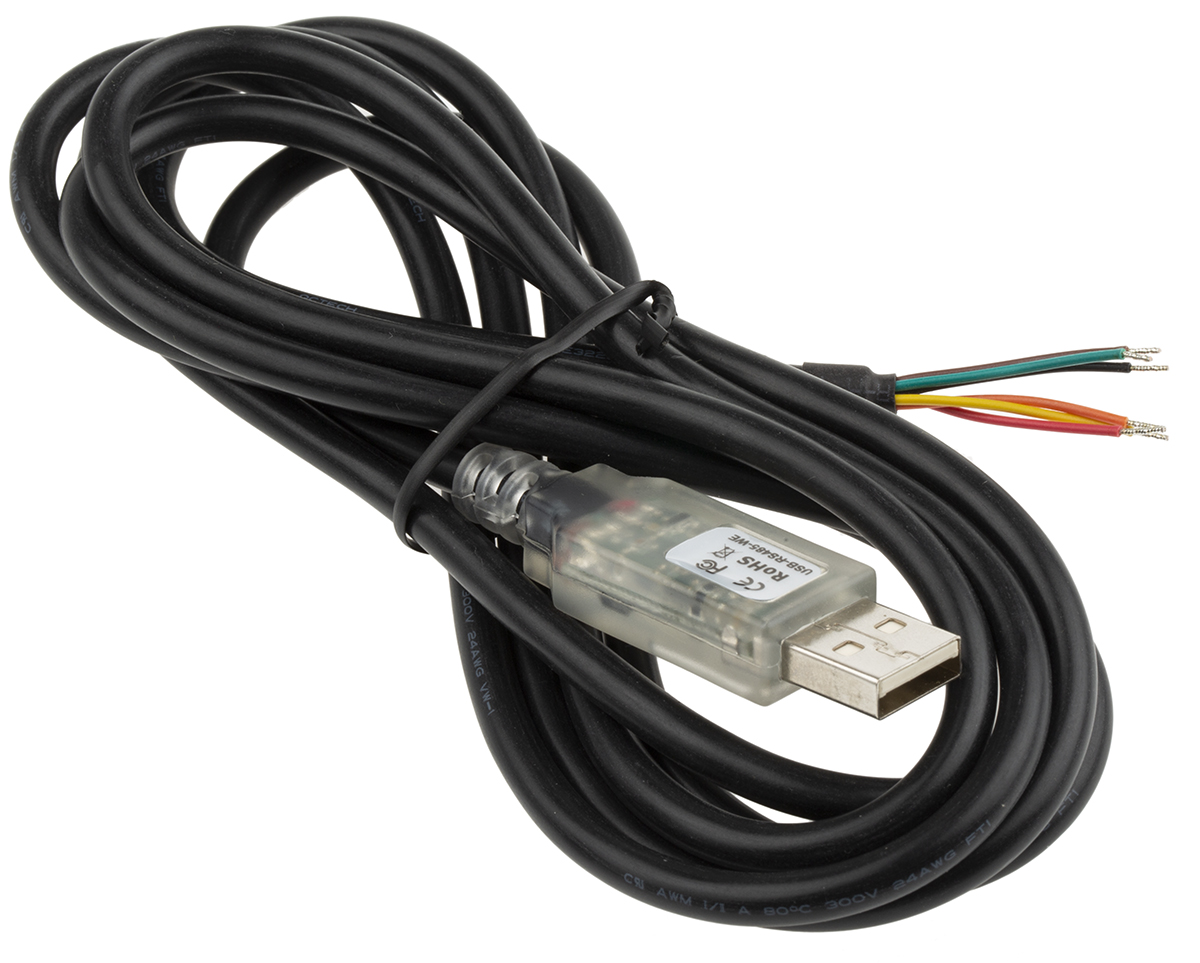

FTDI Chip USB to RS232 serial Converter Cables Wire Ended with LED. USB to RS232 cables are serial UART converter cables that include an FTDI FT232RQ serial to UART interface IC. This cable will deliver all USB signalling plus are a fast and efficient converter. The cable incorporates a small circuit board within the USB connection and the other end of the cable is bare, with tinned wire connections which are easily converted to other connecters. All the converter cables are RoHS, FCC and CE compliant. This is a powered USB plus is USB 2.0 full speed compatible. Features and Benefits. • USB to RS232 serial UART converter cable.• USB protocol electronics within the cable.• EIA/TIA-232 and V.28/V.24 interface communication.• UART interface support for 7 or 8 data bits (1 or 2 stop bits).• Internal EEPROM.• Built-in LED (traffic monitoring).• USB Connector is transparent.• Data transfer rate 300 baud to 1 Mbaud.• Low USB bandwidth consumption.• UHCI, OHCI, EHCI Host compatible.• USB 2.0 Full speed compatible.• ESD Protection.• Various cable lengths available.• Cable colour is black. Typical Applications. • USB to serial RS232 level converter.• Upgrading legacy peripherals to USB.• Interface microcontroller UART or I/O to USB.• Interface FPGA or PLD to USB.• USB instrumentation OC interface.• USB Industrial control.• USB Password protected file transfers. Converter Cables Available. No Voltage Output. • Stock number 6877828, Part USB-RS232-WE-1800-BT 0.0, black, cable length 1.8m. • Stock number 6877815, Part USB-RS232-WE-5000-BT 0.0, black, cable length 5 m. +3.3 V Optional Output Voltage • Stock number 7300158, Part USB-RS232-WE-1800-BT_3.3, black, cable length 1.8 m. • Stock number 7300152, Part USB-RS232-WE-5000-BT_3.3, black, cable length 5 m. +5 V Optional Voltage Output. • Stock number 6877821, Part USB-RS232-WE-1800-BT 5.0, black, cable length 1.8 m. • Stock number 6877819, Part USB-RS232-WE-5000-BT 5.0, black, cable length 5 m. Converter Support Available. Converters are supported with Microsoft WHQL certified VCP (Virtual Com Port) drivers for Windows, Apple Mac, and Linux. All of which are available, royalty-free from FTDI website. http://www.ftdichip.com.

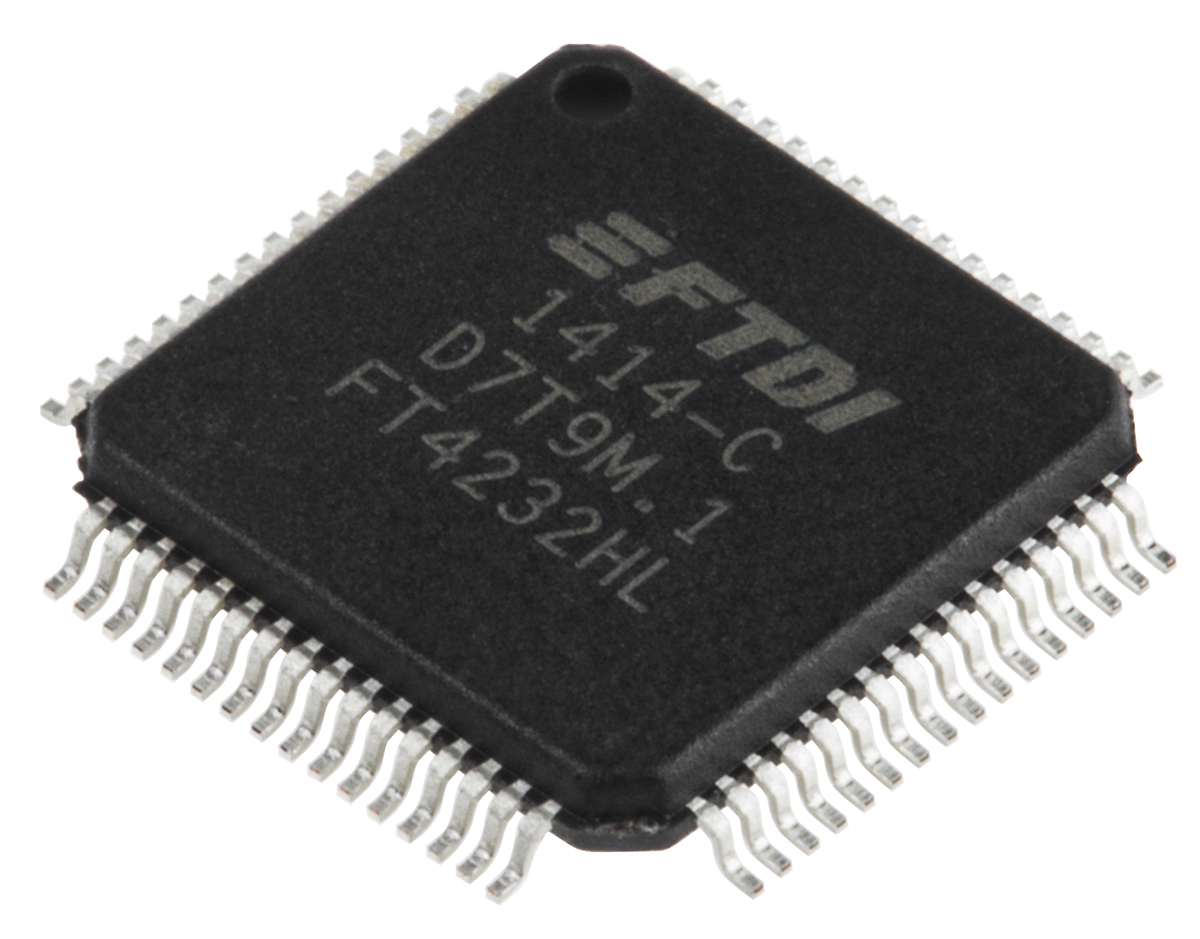

FTDI Chip USB To Rs485 Adapter Board The FTDI chip USB to RS485 adapter board incorporates FTDI’s FT4232H Hi-Speed USB2.0 (480Mb/s) to quad serial UART interface IC device. It handles all the USB signalling and protocols. The adaptor provides a fast and simple way to connect devices with an RS485 interface to USB. The integrated electronics circuit utilise the FT2232H and include RS485 level shifters plus TXD/RXD LEDs to provide a visual indication of data traffic through the module. This module uses a standard USB mini-B device connector for connection to an upstream host or hub port. This board supports Windows Server 2008, 2003, Vista, XP, 2000, Windows CE, Linux, and Mac OS X. Features and Benefits Adds four RS-485 serial ports by connecting to a USB 2.0 Hi-Speed interfaceCOM port number can be changed to any available COM port number to support HyperTerminal or any other serial communications software application running in WindowsData transfer rate is up to 10MbpsEasy plug & play installationInstalls as a standard Windows COM portsLEDs indicate USB enumeration, RxD, TxD for monitoring port status and easy diagnostics Operates with USB 1.1 & 2.0 Host and Hub portsOperating temperature ranges between -40°C and 85°CPowered by USB port, no external power adapter requiredTwo modes: Echo and non-echo Applications CommunicationEmbedded system Certifications ANSI/ESD S20.20:2014BS EN 61340-5-1:2007

USB-COM-PLUS Modules The USB-COM-PLUS modules provide a simple method of adapting legacy serial devices with RS-232, RS-422 or RS-485 interfaces to modern USB ports. Versions Available: (687-7730) USB-COM232-Plus1 - USB to RS232 Adapter(687-7749) USB-COM232-Plus2 - USB to Dual RS232 Adapter(687-7742) USB-COM232-Plus4 - USB to Quad RS-232 Adapter(687-7752) USB-COM422-Plus1 - USB to RS422 Adapter(687-7761) USB-COM422-Plus2 - USB to Dual RS422 Adapter(687-7764) USB-COM422-Plus4 - USB to Quad RS422 Adapter(687-7746) USB-COM485-Plus1 - USB to RS485 Adapter(687-7755) USB-COM485-Plus2 - USB to Dual RS485 Adapter(687-7758) USB-COM485-Plus4 - USB to Quad RS-485 Adapter

The FTDI Chip USB to TTL cable uses FT232RQ IC which is housed inside the USB ’A’ connector, and is terminated at PCB pads with RXD, TXD, RTS, CTS and GND signals provided. It has support +3.3V logic level UART signals and +3.3V/50mA rated power output. Operating temperature range is -40°C to +85°C Low USB bandwidth consumption

The FTDI Chip is a high speed USB Serial/FIFO bridge evaluation module with two type-C USB PD ports, with PD1 port supporting both power sink and source roles (Initial Sink), and PD2 port only supporting a power sink port role. Both PD ports support 5V, 9V,12V,15V, and 20V PDO profiles, and these profiles are configurable through the external EEPROM at power up. Supports the self powered and bus powered operationExternal EEPROM for configurable options
