GCE Inline Fuel Flashback Arrestor GCE safe guard 3 flash back arrestor which is regulator mounted, incorporates an improved sintered filter and thermal trip device. The thermal trip device, activated by heat, permanently cuts off the gas supply. The non return valve prevents the reverse flow of gases. The safe guard 3 also includes a flame arresting element giving users extra safety barriers. FEATURES and BENEFITS: Sintered filterSintered flame arresting elementThermal trip device – heat activatedNon return valveImpedes flame upstreamAvoids build-up of explosive mixtures inside hosesProtects in case of fireProtects stop pressure wave in gas linesRequires no regular maintenance other than checks for external leaksSealed and tested

Superguard Flashback Arrestors Resettable flashback arrestors for use with oxygen and acetylene, fully compliant with EN730 Lift-to-reset operation with status indicationH & SE approved flame-arresting elementNon-return valve to prevent reverse gas flowIncorporates both pressure and thermal trip devicesColour-coded bodies (Blue - oxygen, Red - acetylene)3/8in BSP connections

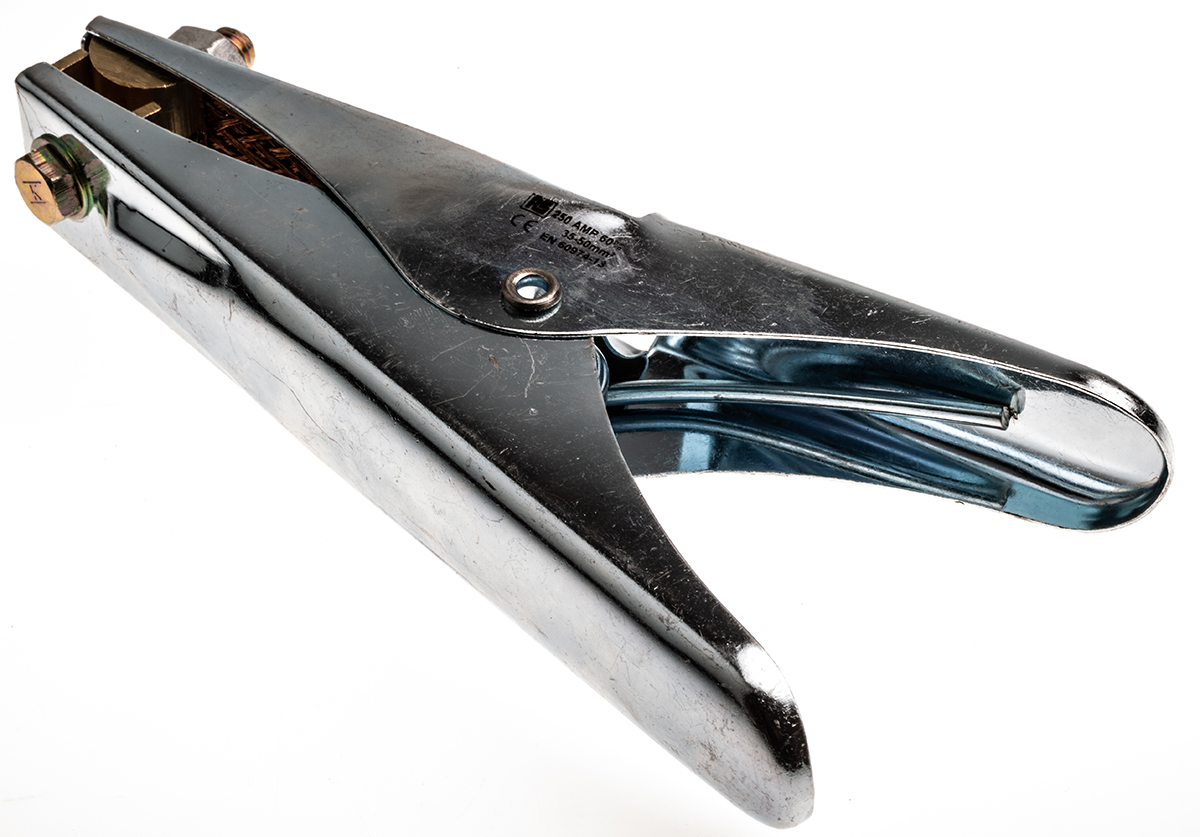

Industrial 250A Earth Clamp Crocodile type clampBrass jaws with a maximum opening of 2·5inBraided copper saddleZinc plated armsRobust spring for maximum conductionOverall length 210mm, fixing thread size 3/8in

GCE Flow Meter GCE Precision welding flow meter has a brass finish with BSP connections and the flow guage operates at 0 to 30 LPM FEATURES and BENEFITS:Precision flow meterBrass finish3/8 inch BSP connectionsFlow rate 0 to 30 LPM

GCE PNM Series Cutting Nozzles GCE Hand cutting nozzles style PNM. This range of short pattern cutting nozzles have a 9 spline inner are 76 mm long and use Propane fuel gas. FEATURES and BENEFITS:Style PNMShort pattern9 Spline inner76 mm longUse Propane fuel gasVarious sizes availableVarious cutting ranges available

GCE Orbit Nozzle Nut GCE Orbit c/a nozzle nut can bes used along with the Orbit shank and the Orbit cutting attachments. Using the Orbit type nozzles and acetylene fuel gas gives you a cutting capacity of over 20 mm. FEATURES and BENEFITS:Can be used with other Orbit welding and cutting accessories

GCE ANM Series Cutting Nozzles GCE Hand cutting nozzles style ANM. This range of short pattern cutting nozzles have 6 heating holes are 76 mm long and use acetylene fuel gas. FEATURES and BENEFITS:ANM styleShort pattern6 heating holes76 mm longUse Acetylene fuel gasVarious sizes availableVarious cutting ranges available Various sizes:1/16” (1.6 mm) Stock Number 918-6793, 1/32” (0.8 mm) Stock Number 918-6796, 3/64” (1.2 mm) Stock Number 918-6790

GCE ANM Series Cutting Nozzles GCE Hand cutting nozzles style ANM. This range of short pattern cutting nozzles have 6 heating holes are 76 mm long and use acetylene fuel gas. FEATURES and BENEFITS:ANM styleShort pattern6 heating holes76 mm longUse Acetylene fuel gasVarious sizes availableVarious cutting ranges available Various sizes:1/16” (1.6 mm) Stock Number 918-6793, 1/32” (0.8 mm) Stock Number 918-6796, 3/64” (1.2 mm) Stock Number 918-6790

GCE Unicontrol Single Stage Regulators UNICONTROL single stage cylinder regulators are pressure regulators that conform to ISO2503. The regulators are designed to give you excellent performance complete with robustness, durability and safety. The well proven regulators use a fully encapsulated which is filter protected. The single stage regulators have a bottom entry plus an integrated pressure relief valve. The valve is at the rear of the body preventing users changing the factory settings. The zinc die-cast bonnet is protected by a double layer powder painting, ensures corrosion resistance in aggressive environments. FEATURES and BENEFITS: Colour coded control elementsNon-detachable ergonomic plastic control knobMaximum outlet pressure locked for operation safetyInlet connections complying with BS-341 standardsCorrosion resistant die-cast bonnetClear and precise 63 mm gaugesTechnical data marked on rear side of bodySafety on the rear of the body – non-adjustableBonnet powder painted for corrosion resistanceBody is forged from high-quality brass TECHNICAL DATA: Diaphragm – 55 mm diameter – reinforced EPDM rubberEncapsulated valve – Brass body sealed by PA or high grade chloroprene rubberPressure gauges – Non-bulkhead 63 mm, class 2.5%, scale calibrated in barIntel stem and nut – Brass, geometry complying with BS-341 standardSafety valve – Non-adjustable, plastic housingControl elements – Ergonomic PA control know, captive pressure adjusting screw

Superguard Flashback Arrestors Resettable flashback arrestors for use with oxygen and acetylene, fully compliant with EN730 Lift-to-reset operation with status indicationH & SE approved flame-arresting elementNon-return valve to prevent reverse gas flowIncorporates both pressure and thermal trip devicesColour-coded bodies (Blue - oxygen, Red - acetylene)3/8in BSP connections

GCE Welding Hose Oxygen GCE welding rubber hose is for use with oxygen in the cutting and welding process. A hard wearing rubber hose that is resistant to welding gases but is not suitable for LPG, MPS and CNG. FEATURES and BENEFITS:Oxygen hoseResistant to welding gasesReinforced high tensile synthetic textileInner tube – synthetic rubberColour – BlueExternal cover is synthetic rubberAbrasion and weather resistantNon return valve in the outletWorking pressure 20 barBursting pressure 60 barTemperature range -20°C to +60°CSafety factor 3:1Hose – ISO 3821Hose assembly – EN 1256 RS Stock No. 918-6774 is 20m long, RS Stock No. 918-6771 is 10m long

GCE PNM Series Cutting Nozzles GCE Hand cutting nozzles style PNM. This range of short pattern cutting nozzles have a 9 spline inner are 76 mm long and use Propane fuel gas. FEATURES and BENEFITS:Style PNMShort pattern9 Spline inner76 mm longUse Propane fuel gasVarious sizes availableVarious cutting ranges available
