TK - pressure transducer, relative Pressure transducer for relative pressureThick film DMS operating principleIndustrial grade, for hydraulics, pneumatics and general applications

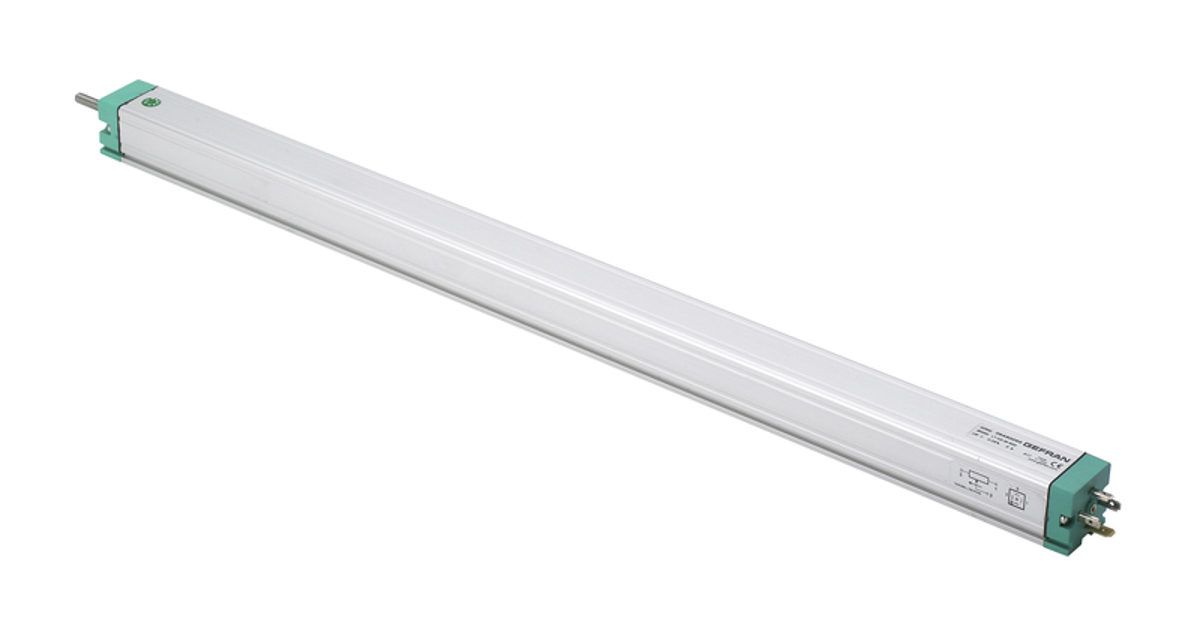

Gefran LT Rectilinear Transducer These models are based on potentiometric technology for every kind of linear displacement measurement. The recently improved transducer offers greater reliabilty across all uses. Stronger structure for applications with heavy vibrationsEasy installationIdeal for use on plastic injection presses, vertical presses and other processing machinesRepeatability to 0.01 mmRated to IP60Linear movement sensors for servo control cylinder positionAxle drive with M5 thread size and mounting with mobile stirrupsNo variation of electrical output signal outside theoretical electrical strokeConnector outputs, type DIN 43650 - ISO 4400 4 pins

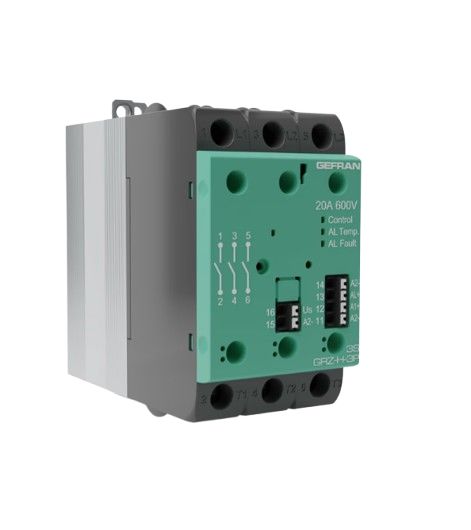

The Gefran solid state relay has zero crossing switching type and surface mounting type. Alternating current solid state relayZero crossing switchingCopper/semiconductor coupling technology

The Gefran solid state relay has zero crossing switching type and surface mounting type. Alternating current solid state relayZero crossing switchingCopper/semiconductor coupling technology

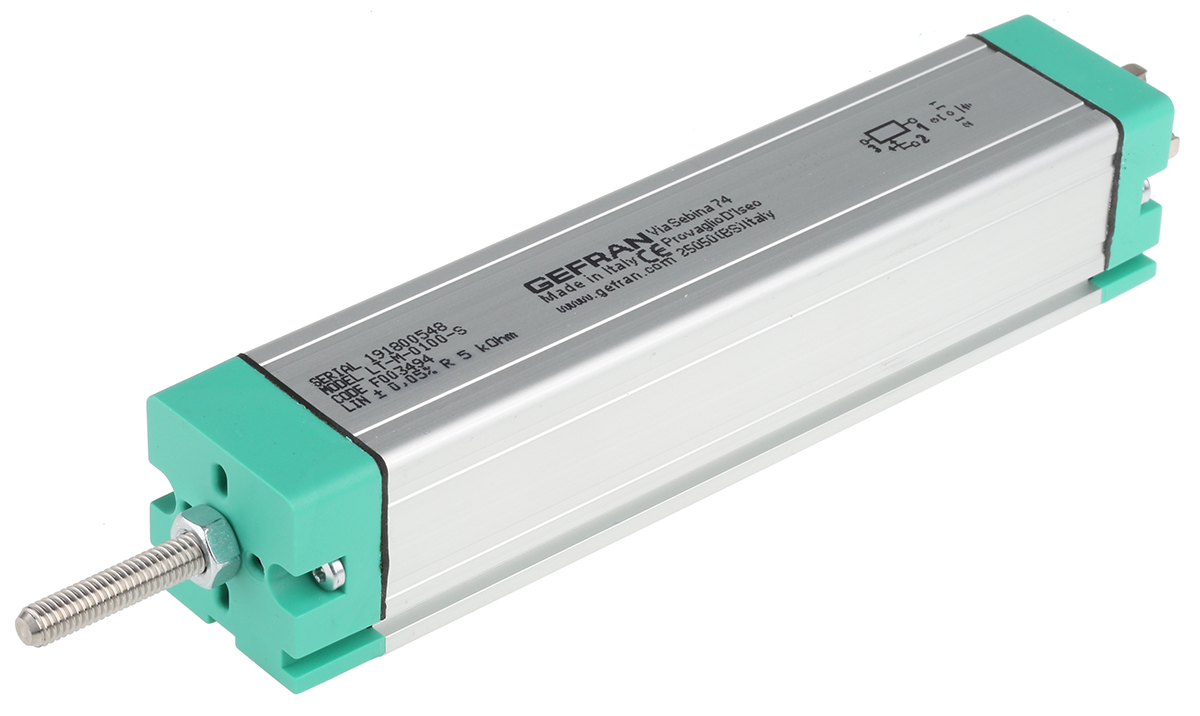

Gefran LT series linear position transducers Main characteristics: 50 → 900 mm strokesPull shaft, M6 threadedIndependent linearity: ±0.05%Infinite resolutionAbsence of electrical signal variation in output, outside the theoretical electrical strokeMaximum displacement speed 5 m/sOperating temperature: -30 → 100°CElectrical connections:       3-pole LTH connector      4-pole LTM connector DIN43650-ISO4400 Life duration: >25 ´ 106m strokes, or >100 ´ 106 manoeuvres, whichever is less (within C.E.U.)Degree of protection IP60

PZ67 – linear transducer with cylindrical housing Potentiometric technologyHigh IP67 protection ratingCompact designIdeal for applications in cutting, glass washing, grinding or sand-blasting machines where the sensor is directly exposed to liquids or steam.Attached using terminal blocks supplied

PZ67 – linear transducer with cylindrical housing Potentiometric technologyHigh IP67 protection ratingCompact designIdeal for applications in cutting, glass washing, grinding or sand-blasting machines where the sensor is directly exposed to liquids or steam.Attached using terminal blocks supplied

Indicators with configurable threshold and 40T series universal input Universal process indicators that are fully configurable with linear input signal range, thermoresistance, thermocouple or thermistor.2 configurable alarm outputs and normally open contact (N/O).Indication of the size measured by an adhesive label on the front face (for most common physical units).Indication of over or under-scale measurement for linear inputs.Identification of temperature probe cut-out or short circuit.Version 48 x 96 with 4 / 20mA recopy output or with 4 / 20 mA sensor supply and recopy.The model with 4 / 20 mA sensor power supply and recopy features a 3rd output relay.

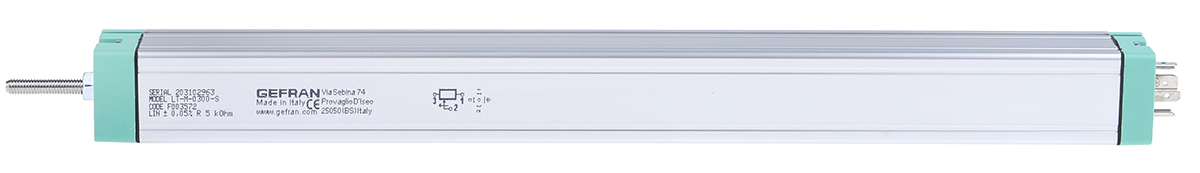

Gefran LT series linear position transducers Main characteristics: 50 → 900 mm strokesPull shaft, M6 threadedIndependent linearity: ±0.05%Infinite resolutionAbsence of electrical signal variation in output, outside the theoretical electrical strokeMaximum displacement speed 5 m/sOperating temperature: -30 → 100°CElectrical connections:       3-pole LTH connector      4-pole LTM connector DIN43650-ISO4400 Life duration: >25 ´ 106m strokes, or >100 ´ 106 manoeuvres, whichever is less (within C.E.U.)Degree of protection IP60

Gefran PY1 series linear position transducers Main characteristics: 50 mm strokeMechanical linkage using joint with take up of play, M4 threadIndependent linearity up to ±0.05%Infinite resolutionAbsence of electrical signal variation in output, outside the theoretical electrical strokeMaximum displacement speed 10m/sOperating temperature: -30 → 100°C5-pole electrical connectorsLife duration: >100´106operations (within C.E.U.)Double support of the control rodDegree of protection IP40

Gefran TK Series Pressure Sensors TK Series pressure sensors specially designed for applications requiring long-distance signal (4 mA) transmission or in smart control systems. TK series transmitters are based on the extensimetric thick film measuring principleThe primary measuring element is directly deposited on the membrane using a thick film serigraphy processAll parts that are in contact with the fluid are in stainless steelThe 4-pole DIN 43650 electrical connector provides IP65 protectionAvailable in 0 → 2.5 to 0 → 400 bar

Gefran TK Series Rectilinear Displacement Transducer Rodless rectilinear displacement transducer ideal for applications on plastic injection presses, vertical presses, and on many other processing machines. Mechanical stroke with play uptake connecting head, M5 threadIndependent linearity up to ±0.05%Repeatability: 0.01 mmInfinite resolutionAbsence of electrical signal variation in output, outside the theoretical electrical strokeMaximum displacement speed: 4 m / secOperating temperature:from -30 to +100 °CIP40 protection
