Glenair Micro D Pigtail Connectors Single Row, Low Profile, GMSM Series Glenair micro D Pigtail single row connectors come with 18 inch 10 colour repeating 26AWG Teflon® wire are manufactured in accordance to MIL-DTL-83513 and offer high performance and fully potted cables, excellent temperature resistance and durability in a smaller form factor than standard Micro D connectors, whilst retaining all of the key benefits. These single row connectors are reduced in height compared to two-row Micro-D connectors and suited for connector applications with limited available space. Nickel plated connector shell with through hole for desired hardware10 colour repeating 26 AWG wire, M22759/11 Teflon®, 18 inchesSocket connectors have fluorosilicone interfacial sealsGold plated Twistpin contacts rated at 3 AmpsMachined aluminium connector shells, fully potted with epoxyDielectric withstand voltage 600 Vac Sea level, 150 Vac (70,000 ft)Low level contact resistance 32 mΩ max.Connector mating morce (10 Ounces) x (# of Contacts)

Jack Screw & Jack Post Stainless steel jackscrew and jackposts used for locking coupled Micro D connectors. Suitable for both metal and plastic types, including preterminated and solder bucket connectors Jackposts are supplied in bags containing 2 jackposts , 2 washers and 2 hex nutsJackpost length is 12.45mm Jackscrews are supplied in bags containing 2 jackscrews and 2 c-clipsSuitable for all connectors from 9 to 51 way

Metal Shell Unterminated Solder cups will accommodate 26 AWG cable and smallerSplayed solder cup rows to aid user assembly

MIL-C-5015 IT Series connectors, cable mount

Metal Shells 90° PCB

Metal Shell Unterminated Solder cups will accommodate 26 AWG cable and smallerSplayed solder cup rows to aid user assembly

Metal Shell Unterminated Solder cups will accommodate 26 AWG cable and smallerSplayed solder cup rows to aid user assembly

Metal Shell Unterminated Solder cups will accommodate 26 AWG cable and smallerSplayed solder cup rows to aid user assembly

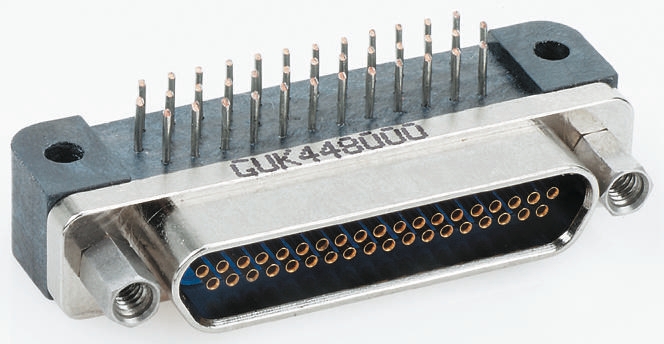

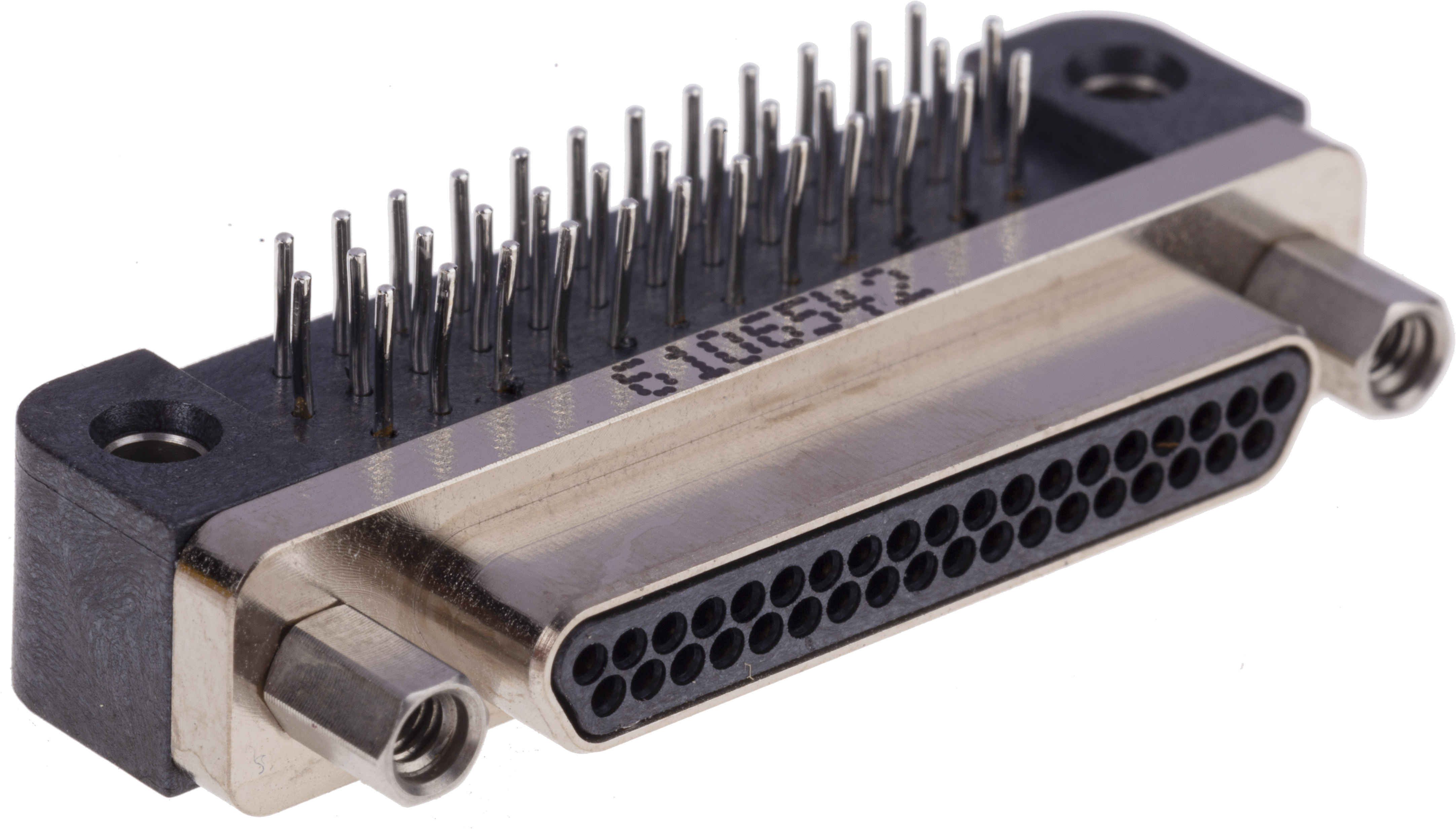

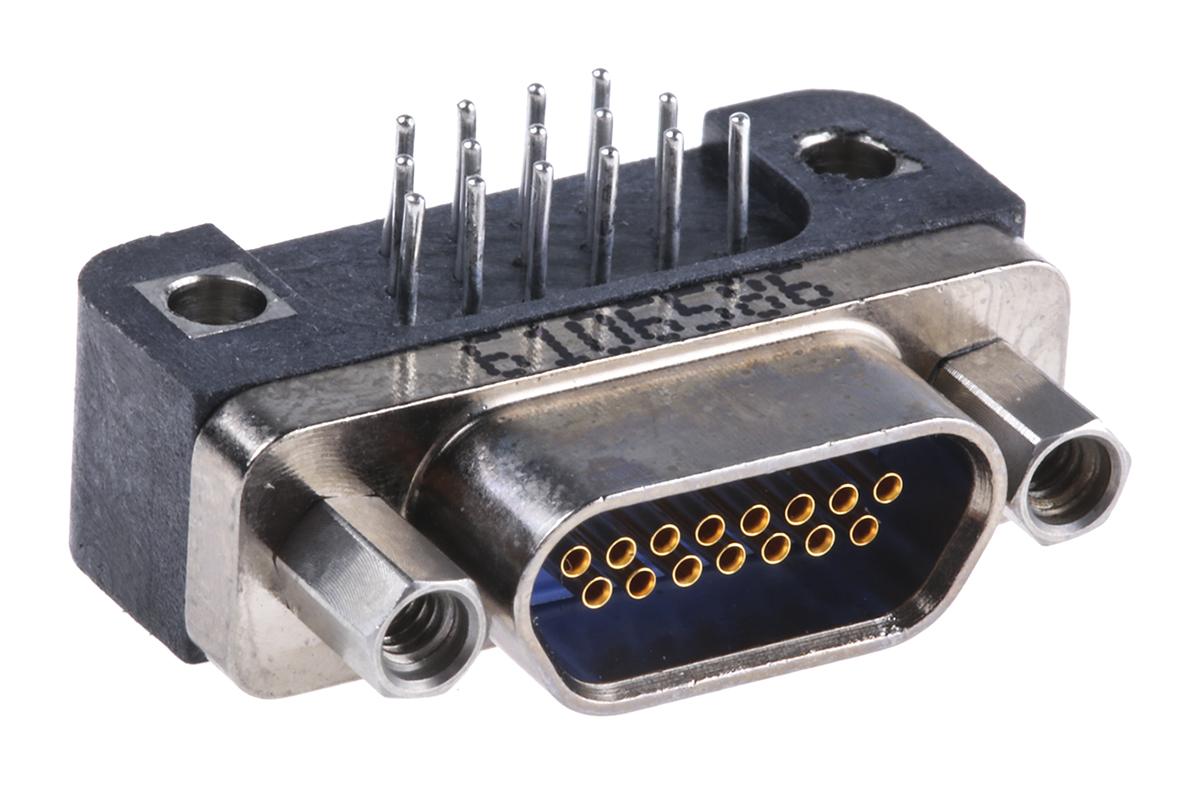

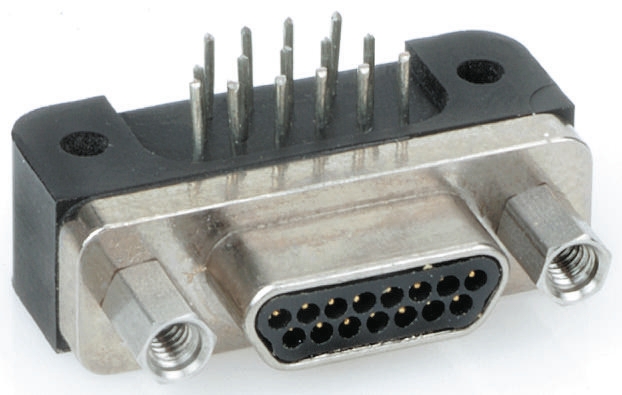

90° Metal Shells 0.100 inch x 0.100 termination grid0.02 inch diameter copper termination tailsHorizontal narrow profile, right angle mountingJackposts supplied installed

Glenair MWDM Series COTS Micro-D Plug and Socket Connectors with Pigtail Wire Termination MWDM series COTS (Commercial Off The Shelf) Micro-D plug and socket connectors with mil spec colour-coded pre-wired pigtail terminations. Their rugged design ensures outstanding performance in extreme conditions, and a high resistance to shock and vibration. These Micro-D plug and socket connectors have gold plated TwistPin contacts that have a robust design and superior wire attachment resulting in low contact resistance, the sleeves of these TwistPin contacts allow a gas tight crimp to be formed. The bodies of these MWDM Micro-D connectors are made from nickel plated aluminium with an LCP insulator and can withstand up to 125°C operating temperature in demanding environments. MWDM Micro-D connectors are also environmentally sealed via epoxy sealing and interfacial seals. The wire terminations of these Micro-D plug and socket connectors are 26 AWG and 18 inches in length.

Earth Bond The Glenair® Earth Bond offers a reliable way of allowing attachment to metallic structures when used with the hydraulic setting tool. It is a method of electrical grounding that is widely used in Industries such as Automotive, Railway, Military Vehicles, and Rolling stock. An Equipotential bond is created and it is suitable where lightning strike protection is required, for EMC where low resistance electrical connections must be maintained. The Earth terminal can be used in hazardous area where a naked flame is not allowed. Ideal for applications where there is no access behind a structure as it can be installed from the one side. Requires no welding, cleaning and is suitable for use on uneven surfacesManufactured with non-corroding materialsConsistent low electrical resistance connectionProduces a high strength jointAvailable for Steel and Aluminium plates ranging from 1.5-4mm thickness

Metal Shell Unterminated Solder cups will accommodate 26 AWG cable and smallerSplayed solder cup rows to aid user assembly
