Collimating Lenses Three high-quality adjustable lenses for the Beta CW, Beta TX and Acculase laser ranges. The singlet lens produces a highly collimated beam over short, medium and long distances<BR/>The line generator lenses produce a 'fan' of light resulting in a line on the target object<BR/>Two line lenses are available: narrow (16°) and wide (106°)

Collimating Lenses Three high-quality adjustable lenses for the Beta CW, Beta TX and Acculase laser ranges. The singlet lens produces a highly collimated beam over short, medium and long distances<BR/>The line generator lenses produce a 'fan' of light resulting in a line on the target object<BR/>Two line lenses are available: narrow (16°) and wide (106°)

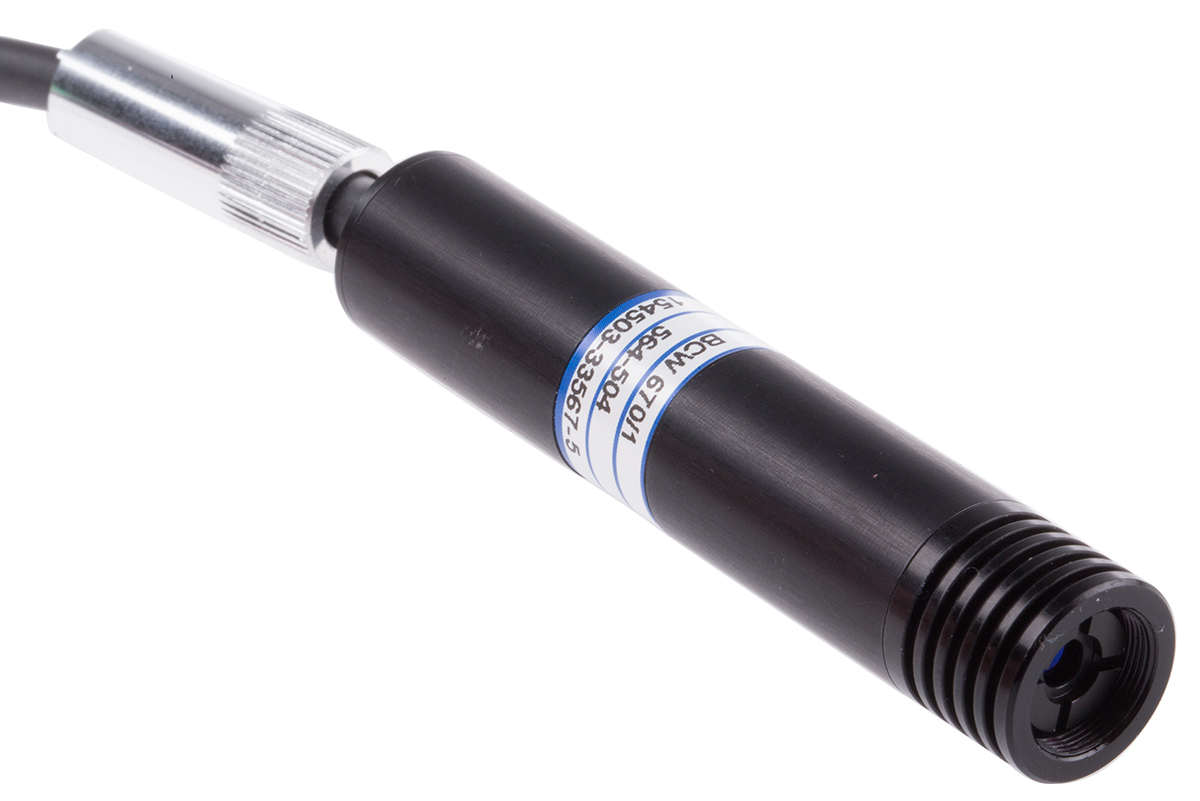

Beta CW Series The Beta CW series from Global Laser consists of high-quality continuous wave visible laser diode modules. The modules combine a laser diode, driver circuitry and collimating lens, all housed in a black powder coated brass body. The module body is electrically isolated<BR/>The Beta CW laser modules also incorporate a high-quality adjustable lens. Standard units produce a highly collimated beam<BR/>The visible laser spot size is adjustable by shining the beam onto a suitable target and adjusting the size with the focusing tool provided. This adjustability makes the Beta CW lasers ideal for alignment, position sensing and targeting applications. The 635 nm visible modules are 8 times brighter than 670 nm modules making them ideal for applications where visibility is important<BR/>Line generator units produce a fan shaped output beam with an angle of 16°. The wide angle line generator unit produces a fan shaped output beam with an angle of 106°. The beam can be altered to produce a fine clean line using the focusing tool provided making it ideal for alignment and profile vision applications<BR/>For suitable detectors, refer to the RS range of photodiodes. A replacement standard singlet lens and two types of line generator lens are available and are suitable for use with these modules<BR/>

Beta CW Series The Beta CW series from Global Laser consists of high-quality continuous wave visible laser diode modules. The modules combine a laser diode, driver circuitry and collimating lens, all housed in a black powder coated brass body. The module body is electrically isolated<BR/>The Beta CW laser modules also incorporate a high-quality adjustable lens. Standard units produce a highly collimated beam<BR/>The visible laser spot size is adjustable by shining the beam onto a suitable target and adjusting the size with the focusing tool provided. This adjustability makes the Beta CW lasers ideal for alignment, position sensing and targeting applications. The 635 nm visible modules are 8 times brighter than 670 nm modules making them ideal for applications where visibility is important<BR/>Line generator units produce a fan shaped output beam with an angle of 16°. The wide angle line generator unit produces a fan shaped output beam with an angle of 106°. The beam can be altered to produce a fine clean line using the focusing tool provided making it ideal for alignment and profile vision applications<BR/>For suitable detectors, refer to the RS range of photodiodes. A replacement standard singlet lens and two types of line generator lens are available and are suitable for use with these modules<BR/>

Beta CW Series The Beta CW series from Global Laser consists of high-quality continuous wave visible laser diode modules. The modules combine a laser diode, driver circuitry and collimating lens, all housed in a black powder coated brass body. The module body is electrically isolated<BR/>The Beta CW laser modules also incorporate a high-quality adjustable lens. Standard units produce a highly collimated beam<BR/>The visible laser spot size is adjustable by shining the beam onto a suitable target and adjusting the size with the focusing tool provided. This adjustability makes the Beta CW lasers ideal for alignment, position sensing and targeting applications. The 635 nm visible modules are 8 times brighter than 670 nm modules making them ideal for applications where visibility is important<BR/>Line generator units produce a fan shaped output beam with an angle of 16°. The wide angle line generator unit produces a fan shaped output beam with an angle of 106°. The beam can be altered to produce a fine clean line using the focusing tool provided making it ideal for alignment and profile vision applications<BR/>For suitable detectors, refer to the RS range of photodiodes. A replacement standard singlet lens and two types of line generator lens are available and are suitable for use with these modules<BR/>

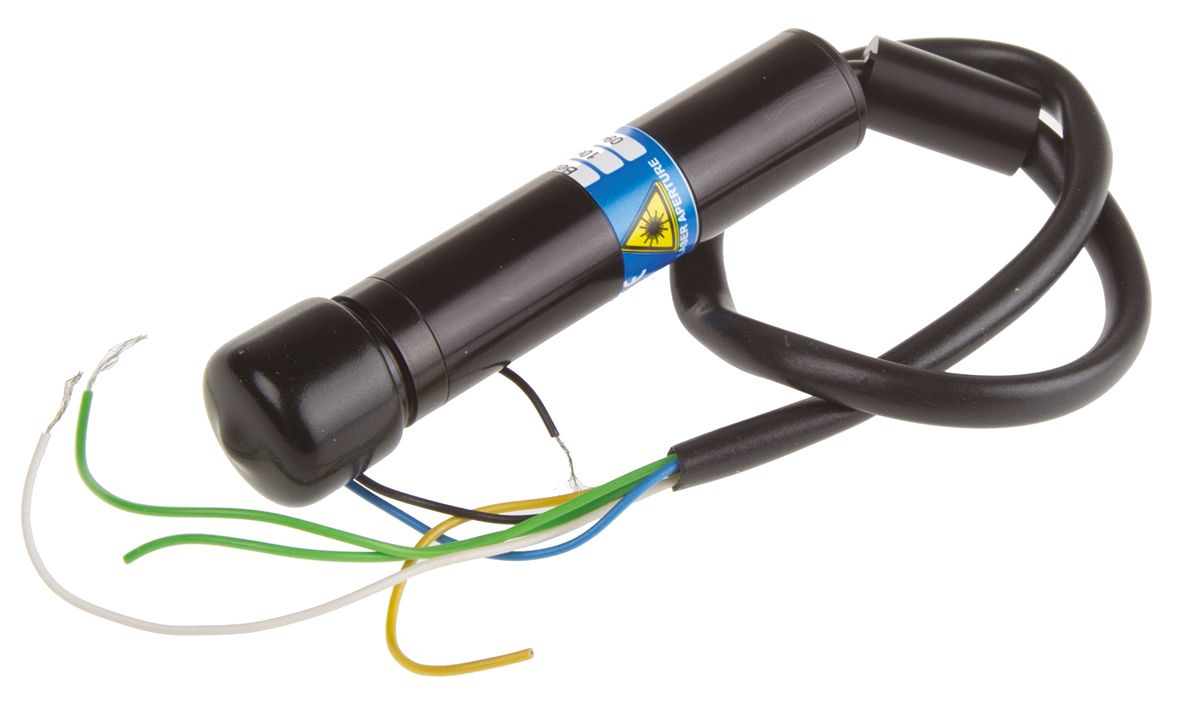

Beta TX Series The Beta TX series from Global Laser consists of high-quality laser diode modules. These modules combine a laser diode, a driver and modulation circuitry, and a collimating lens. All housed in a black powder coated brass body which is electrically isolated<BR/>A high-quality adjustable lens enables the Beta TX modules to provide a highly collimated visible beam. This quality is ideal for precision applications such as alignment, edge detection and targeting.<BR/>The visible laser spot size is adjustable by simply shining it onto a suitable target and adjusting using the focusing tool provided. <BR/>The lasers can be amplitude modulated using digital or analogue signals over a frequency range of 100 Hz to 50 MHz. This feature makes them ideal for use in data transmission and audio/video communications.<BR/> Electrical Connections:<BR/>Black: -Vcc<BR/>Green: 0v<BR/>White: Interlock<BR/>Blue: TTL disable<BR/>Green & yellow (twisted pair): Modulation<BR/>

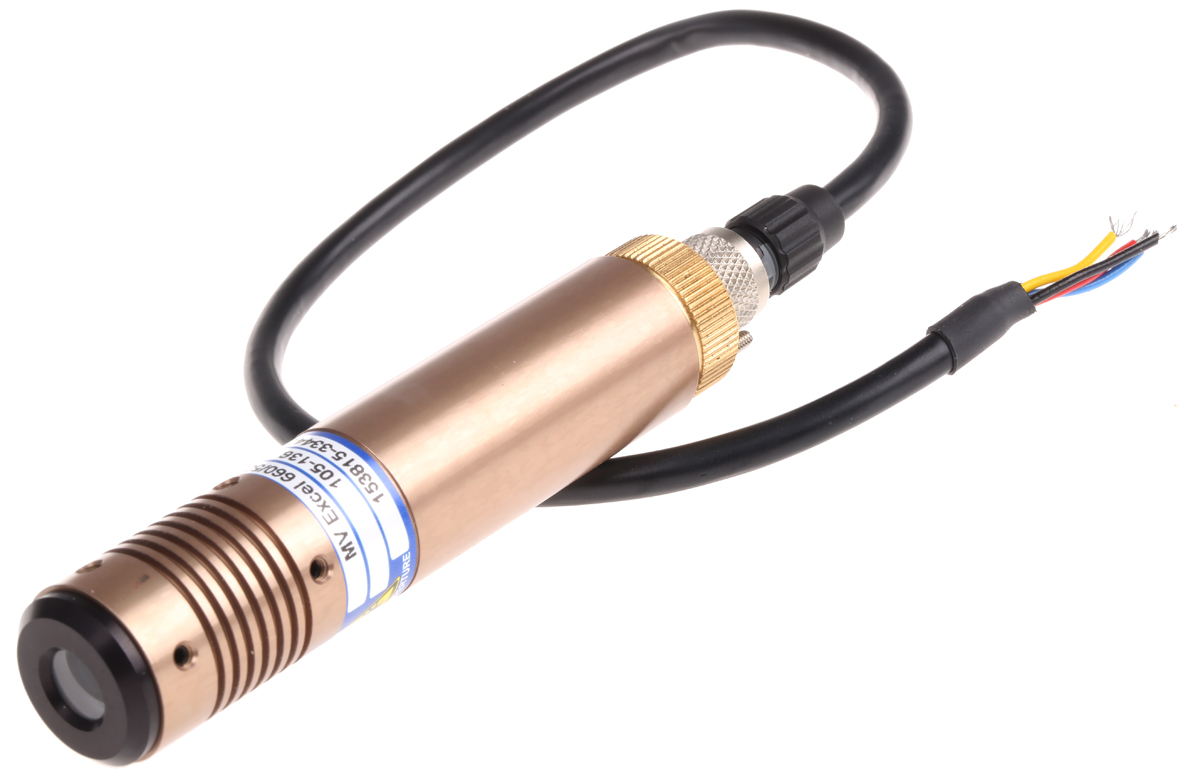

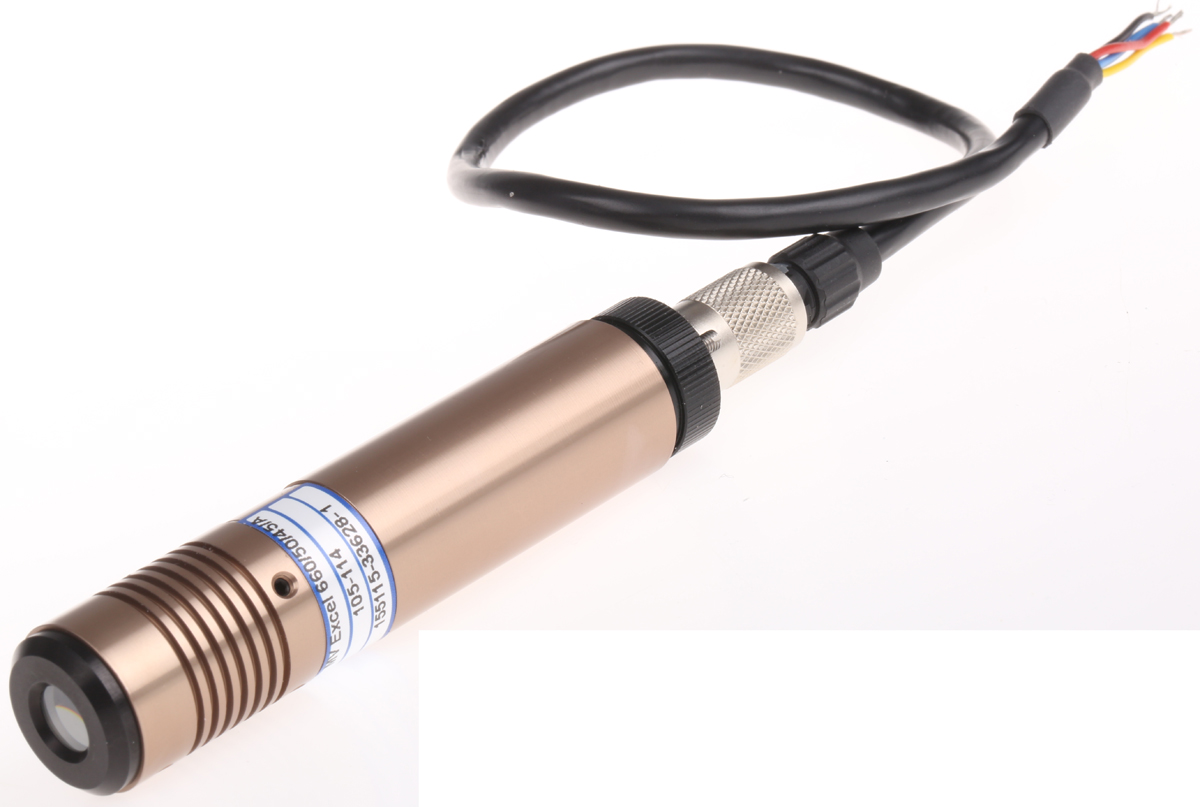

Lyte-MV-Excel Machine Vision Laser The Lyte-MV-Excel range of laser modules provides reliable high power, industrial laser light sources with well-defined line,illuminations. Unique user adjustable focus without removing line optics<BR/>Uniform non-Gaussian line<BR/>Laser classification maintained during focus adjustment<BR/>Excellent focus & line quality

Lyte-MV-Excel Machine Vision Laser The Lyte-MV-Excel range of laser modules provides reliable high power, industrial laser light sources with well-defined line,illuminations. Unique user adjustable focus without removing line optics<BR/>Uniform non-Gaussian line<BR/>Laser classification maintained during focus adjustment<BR/>Excellent focus & line quality

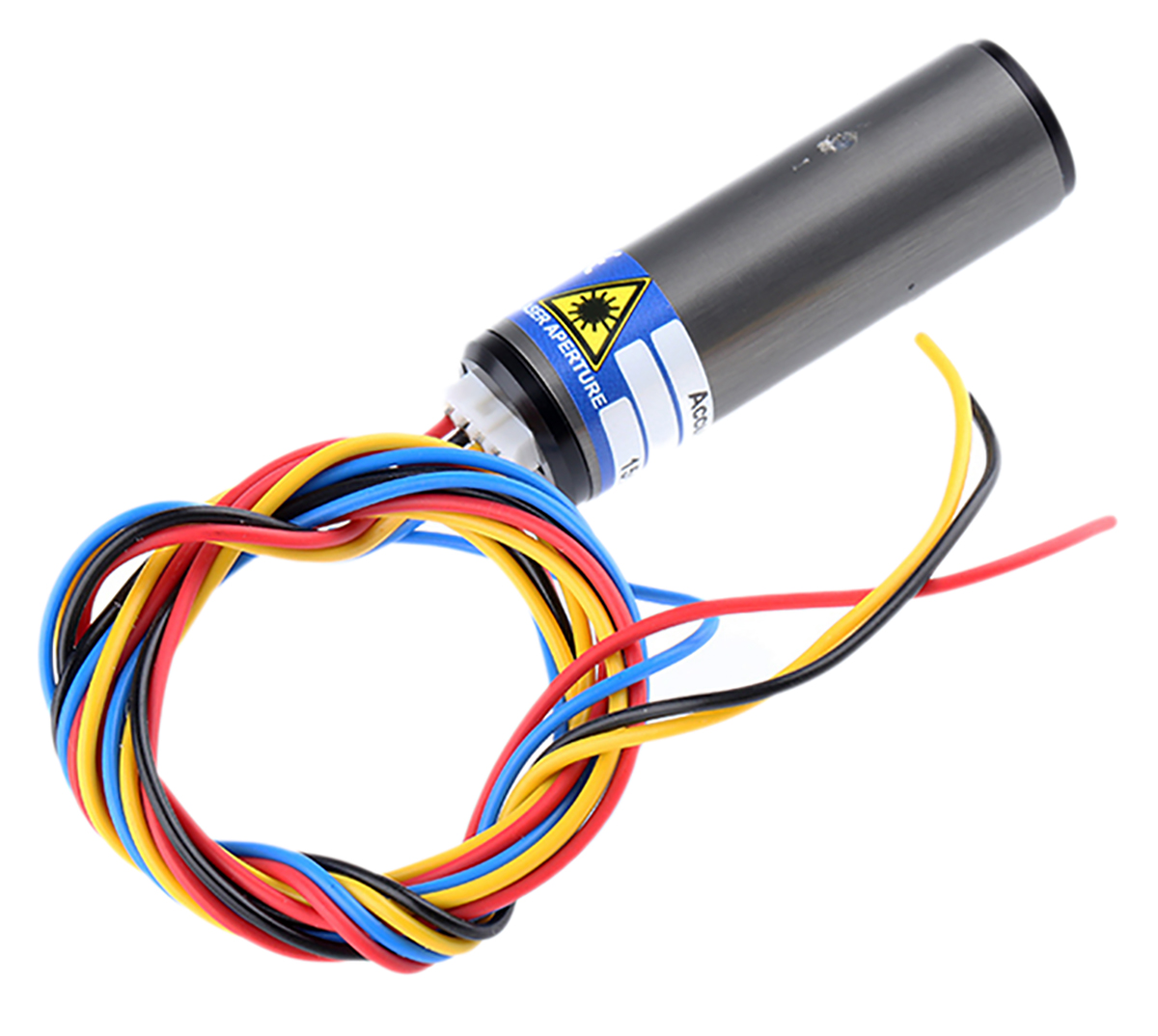

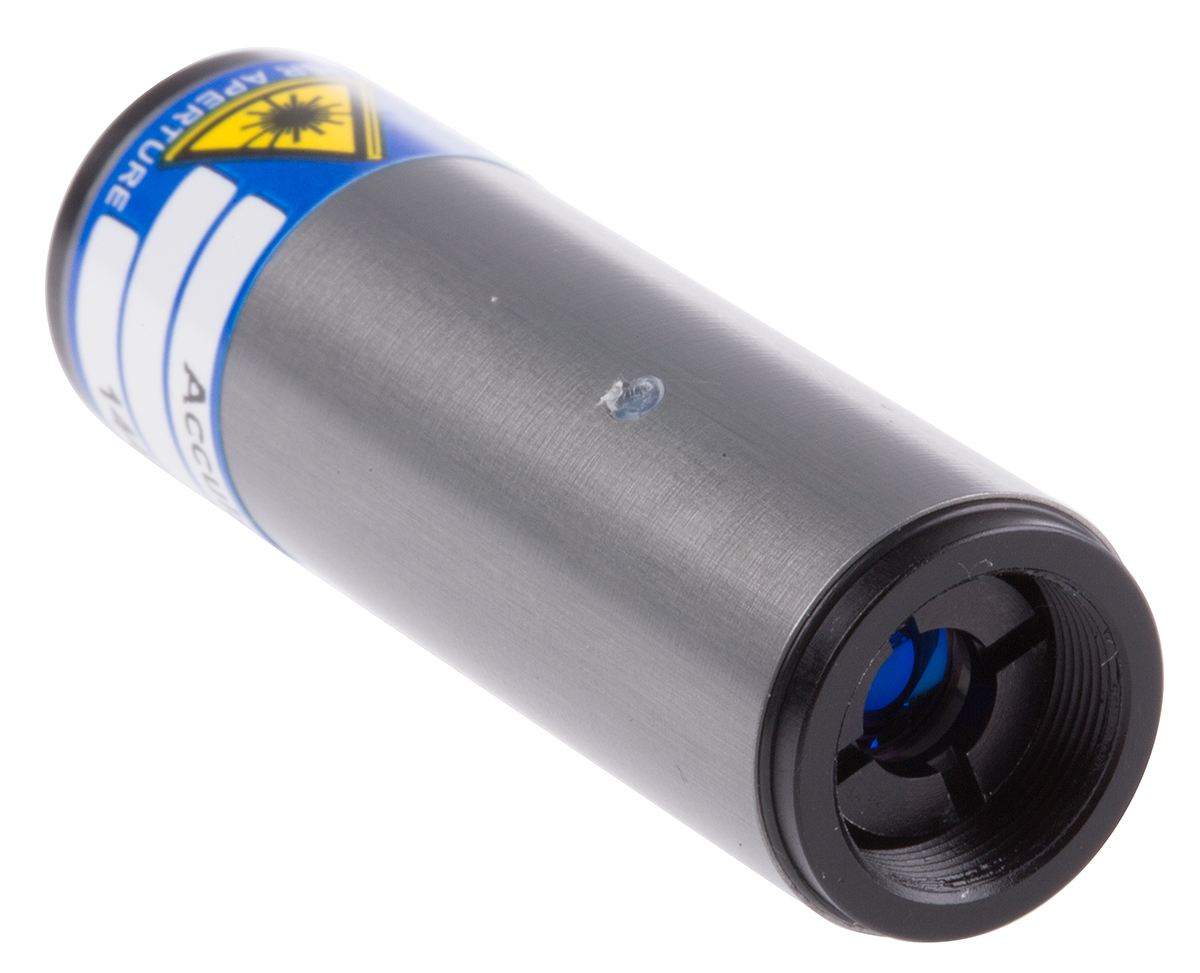

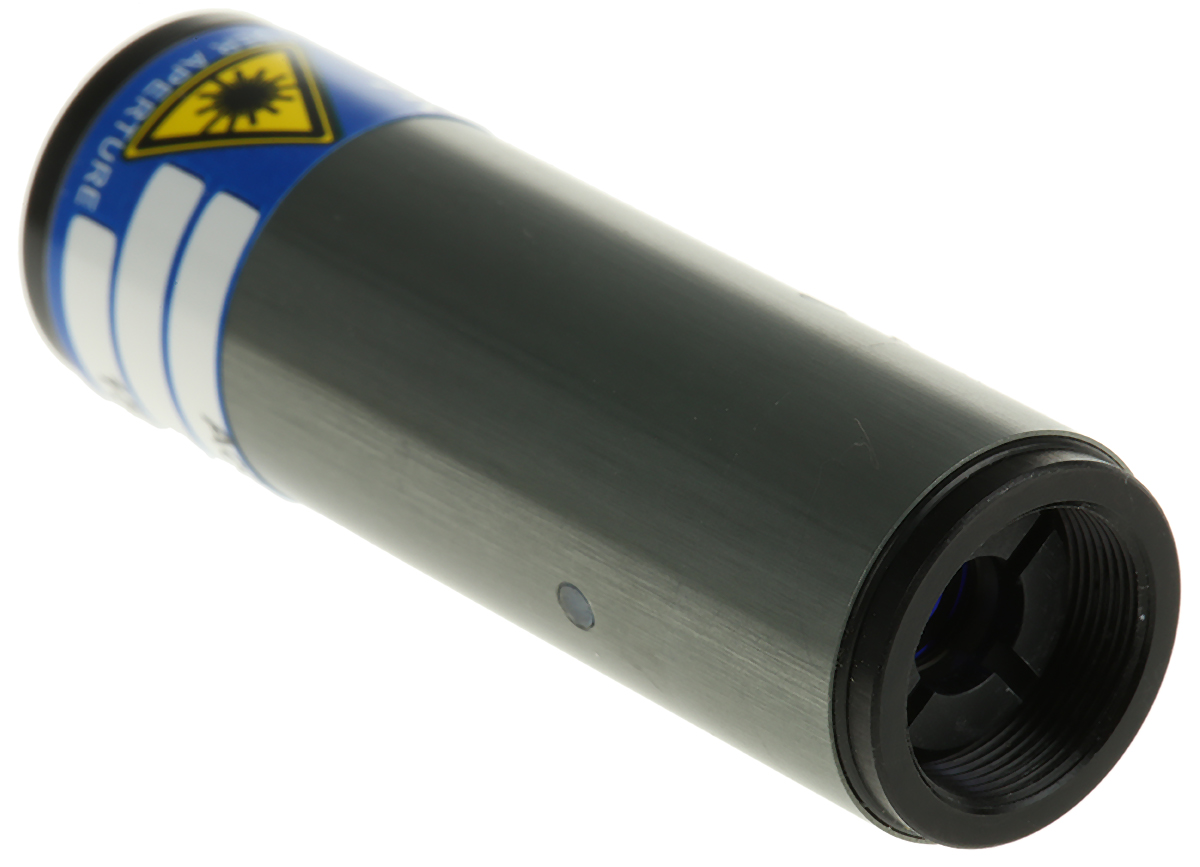

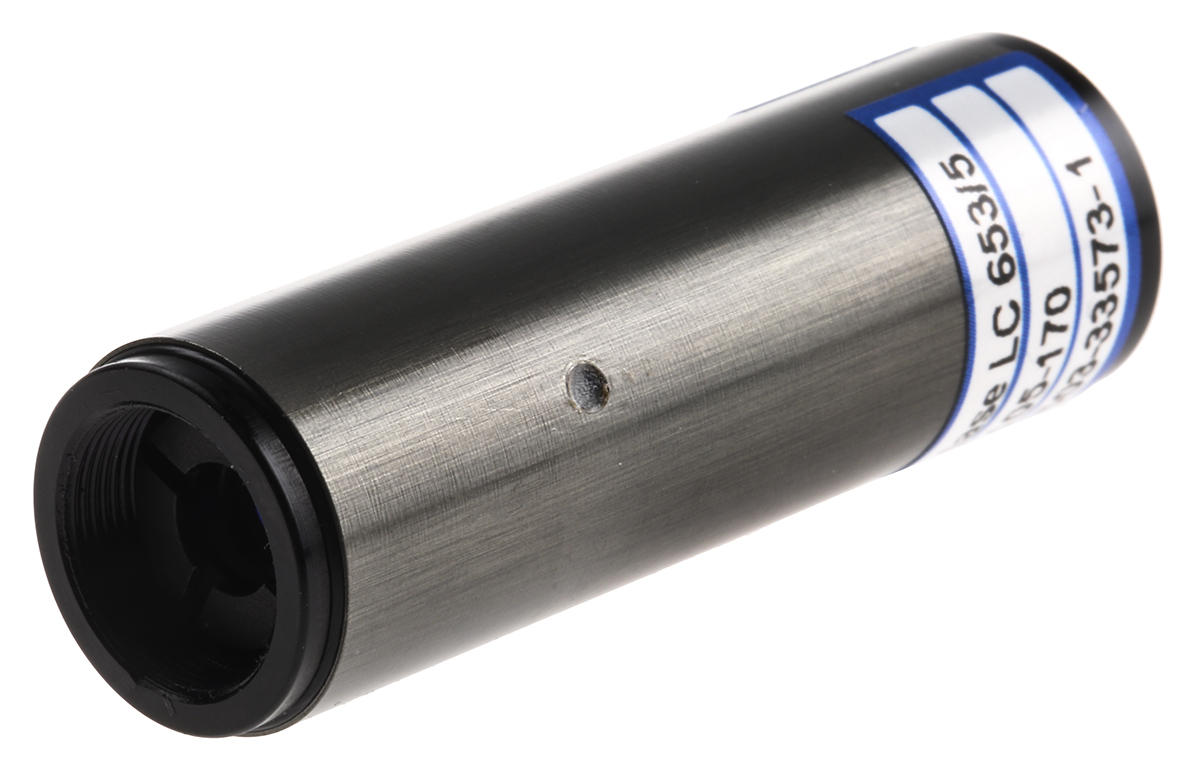

Acculase LC & PWM Red Laser Modules The Global Laser Acculase range of red laser diode modules offers a variety of output powers and lens options to provide a high level of optical and electrical performance. The lasers are precision set during manufacture to ensure accurate beam alignment with the outer casing of the modules making it quick and easy to get the lasers up-and-running. Two methods of output intensity control are available: LC types use a linear analogue control voltage whilst the PWM types use a digital control input to vary the duty cycle. Typical applications for the Acculase laser modules include graphics displays, alignment systems, medical applications and telemetry. High efficiency 635 or 650nm red LED laser module<BR/>High pointing accuracy < 1mRad<BR/>Fitted lens provides circular/elliptical beam<BR/>Internal driver circuitry<BR/>0 – 1V Linear input control voltage (LC types)<BR/>5V TTL PWM input (PWM types)<BR/>Electrically isolated case<BR/>Reverse polarity protected

Acculase LC & PWM Red Laser Modules The Global Laser Acculase range of red laser diode modules offers a variety of output powers and lens options to provide a high level of optical and electrical performance. The lasers are precision set during manufacture to ensure accurate beam alignment with the outer casing of the modules making it quick and easy to get the lasers up-and-running. Two methods of output intensity control are available: LC types use a linear analogue control voltage whilst the PWM types use a digital control input to vary the duty cycle. Typical applications for the Acculase laser modules include graphics displays, alignment systems, medical applications and telemetry. High efficiency 635 or 650nm red LED laser module<BR/>High pointing accuracy < 1mRad<BR/>Fitted lens provides circular/elliptical beam<BR/>Internal driver circuitry<BR/>0 – 1V Linear input control voltage (LC types)<BR/>5V TTL PWM input (PWM types)<BR/>Electrically isolated case<BR/>Reverse polarity protected

30V to 5V DC Converter PSU An in-line DC-DC converter from Global Laser which will provide a regulated 5V DC output from an input of 6 to 30V DC. The unit is enclosed in a robust, compact aluminium housing and is ideal for use with the standard 24V DC supplies found in industrial environments. &#149; Input voltage: 6 to 30V DC<BR/>&#149; Input connection: 500 mm long flying leads<BR/>&#149; Output voltage: 5V DC @ 150mA<BR/>&#149; Output connection: 2.5mm female DC Power Jack<BR/>&#149; Dimensions: 14mm diameter x 48mm long<BR/>&#149; Electrically isolated case<BR/>&#149; Reverse polarity protected<BR/>&#149; Operating temperature range: -10 to +50°C

GuideLine 2 Alignment Laser Modules The GuideLine 2 series from Global Laser provides reliable and robust industrial laser modules suitable for a wide range of alignment applications. They feature IP67 protection, a threaded barrel for easy mounting and the ability to operate from typical industrial power sources such as 24Vdc.<BR/>The lasers allow user adjustment of focus via an external control ring. The 635nm red lasers are available in two power levels, and a 520nm green laser is available for more visually demanding applications. A 1m long power cable terminated with bare ends is available for the GuideLine 2 Laser Modules; see <a href="/web/p/products/1271565">127-1565</a>. IP67 rated protection<BR/>M18 mounting thread with mounting nuts<BR/>User adjustable focussing<BR/>Operating voltage: 5 to 30Vdc (Green Laser 10 to 30Vdc)<BR/>Electrically isolated case<BR/>Reverse polarity protected
