METRISO 5000 A insulation tester High-voltage insulation measurement deviceAdditional measurement ranges of 10 kΩ → 1 TΩLogarithmic displayMeasured voltages: 100 V, 250 V, 500 V, 1000 V, 1500 V, 2000 V, 2500 V, 5000 VMeasurements to 2000 V in acc. with DIN VDE 0413Measuring range 100 kΩ → 100 MΩ (1000 V)Voltage measurements to 2000 VDC / ACGuard connection to eliminate surface currentsOptional crank inductorPower supply: 6 x 1.5 V single cells, IEC R20 Optional accessories Generator 5000 A: crank inductor for Metriso 5000A (stock no.: 327-4636)F2000: carry case for measuring instrument and accessories (stock no.: 375-4069)KY 5000 A: crocodile clips 5 kV type (stock no.: 327-4642)Guard 5000 A: guard cable and 1 crocodile clip (stock no.: 327-4658)

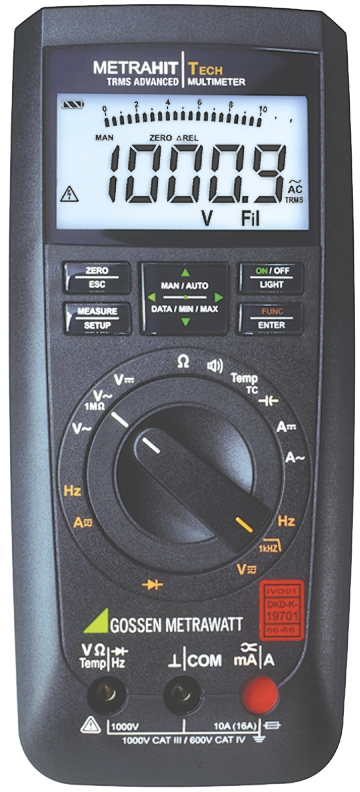

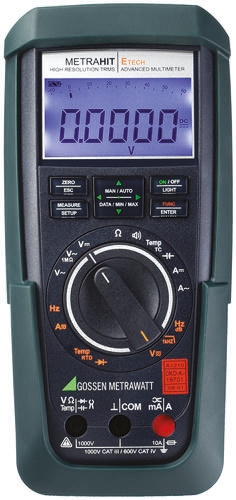

METRAHIT BASE PRO TECH MetraHit digital multimeters are suitable for universal with various applications. An excellent multimeter for using in the field as it is equipped an internal and mains-independent power supply. Automatic shut-down takes place when any measured values remain unchanged for any given period between 10 and 59 minutes, saving battery power. Your multimeter is protected from the elements and impact damage by the soft rubber cover that has a tilt stand and test probe holder. Features and Benefits: Large light blue illuminated display with extra-large figures (15 mm) and bargraph display12 multimeter functionsEffective value measurement (AC, AC+DC)Automatic reading range selectionCurrent measuring via external current sensorsMIN / MAX / data hold storageDiode test and continuity testAutomatic jack disable (ABS) - prevents incorrect connection of measuring leadsOne single jack prevents current ranges being interchangedSafety: CAT IV 600V, CAT III 1000 V Additional "PRO" features 16 multimeter functionsCurrent measurement up to 10 A AC / DC directly possibleLow pass filter ( 1kHz) Additional "TECH" features 20 multimeter functionsCurrent measurement up to 10 A AC / DC directly possibleLow pass filter ( 1kHz)Capacitance Applications: Electrical engineering Electrical installation Laboratory applications Telecommunications Training Many other applications What Is Included: Multimeter Pair of safety measurement cables 1.2 m 4 mm test probes CAT III, 600 V CAT IV (KS17-2) 2 Batteries 1.5 V Type AA Operating instructions English/German CD Rom, Content operating instructions English/German DAkkS Calibration certificate

VDE 0701-0702 testing device, METRATESTER 5+ The Gossen Metrawatt METRATESTER 5+ is a versatile electrical safety tester designed for comprehensive testing of various electrical devices and installations. Primarily used for Portable Appliance Testing (PAT), ensuring the safety of electrical equipment and basic electrical testing. Test types: Insulation Resistance - measures the resistance of the insulation between the live and earth, and between the live and neutral conductors.Earth Bond Test - measures the resistance of the earth connection in Class I appliances.Touch Current Test - measures the current that could flow through a person touching the appliance under fault conditions. Continuity Test - checks the continuity of the protective earth conductor.Voltage Measurement - measures the mains voltage. Current Measurement - measures the current drawn by the appliance.RCD Test - tests the operation of Residual Current Devices (RCDs). For testing electrical safety in accordance with DIN VDE 0701-0702Differential current measurement in accordance with DIN VDE 0701-0702All measurements are easy to read from a large digital displayLimit overruns signalled optically and in some cases also audiblyAvailable with plug and socket for F/CZLarge digital LCD display, tests the mains connection by finger contact and signal lamp Optional accessories Z745A: rotary current adapter, 3-phase

PROFiTEST MF XTRA Master Set The Gossen Metrawatt PROFiTEST MF XTRA Master Set makes your investment decision easy because it’s especially well-suited for your testing tasks, for example within the framework of DGUV regulation 3, with accessories which are perfectly matched to your requirements. Professional logging of test objects and documentation of the test. Context-sensitive colour graphic displayPreconfigured and user programmable test sequences for testing electric systems quicklyStorage concept for up to 50000 data records

LSP Series laboratory power supplies, programmable Floating output at 100 WSecure electrical isolationON / OFF output switchVoltage and current control (square characteristics)Rotary transducer for setting voltage and currentButton option for settingsMultifunctional LCD displayMemory for 10 device settingsSafety featuresTable-top device designed for 19" panel mountRS232 interface available (K910A)RS232 / 485 interface available (K911A)RS485 interface available (K911B)

PROFiTEST MF TECH The Gossen Metrawatt PROFITEST MF TECH provides all measuring and test functions for testing the effectiveness of protective measures at stationary electrical installations – with predefined, or optionally with programmable test sequences which are required in accordance with test standards IEC 60364-6 (DIN VDE 0100-600) and EN 50110-1 (DIN VDE 0105-100). Measuring category: 300 V CAT IV / 600 V CAT III. Intuitive operation thanks to innovative user promptingTest sequences for efficient workStandards-compliant testing in accordance with ZVEH

PROFiTEST MF TECH Starter Set The Gossen Metrawatt PROFiTEST MF TECH Starter Set makes your investment decision easy because it’s especially well-suited for your testing tasks, for example within the framework of DGUV regulation 3, with accessories which are perfectly matched to your requirements. Professional logging of test objects and documentation of the test. Defined accessories for special measuring tasksIntuitive user prompting with help function which provides support for pending measuring tasks4 wire measuring method and no compensation of the measurement cables is required

The Gossen Metrawatt METRAHIT IM TECH BT is a Multi- and Milliohmmeter with Data Logger. It is well suited for service and diagnostics for electric machines and systems, in electric machinery manufacturing and in aviation technology as well as for test and measurement in laboratories and test fields. Colour graphics display and rechargeable lithium polymer batteryOptional sequence function for automated measurementsHigh End TRMS Multimeter with 100 kHz TRMS bandwidth

USB X-TRA Interface Adapter Bi-directional IR / USB interface adapterIsolated transmission of measured data to the USB interface on the PCMETRAwin 10 software available as separate item (order no.: 292-1331)Compatible with METRAHIT X-TRA, TECH, T-COM

The Gossen Metrawatt profitest emobility is test adapter for standards-compliant testing of single and 3-phase, mode 2 and 3 charging cables with simulation of faults. Wire reversals Failure of individual conductors

The Gossen Metrawatt telescoping rod for RLO and RISO measurement, CAT III 600 V / CAT IV 300 V, 1 A. Retracted/extended 73.5 cm/180 cm, 250 g

The Gossen Metrawatt cable reel is 50 m measurement cable coiled onto a plastic drum. Connection to the inside end of the cable is made possible with two sockets integrated into the drum. The other end is equipped with a banana plug. Cable resistance can be compensated for with the rotary selector switch in the RLO position
