Side entry hoods with internal screening From Harting, these side entry hoods are for use with the Harting series of D-sub connectors. The hoods are constructed from grey thermoplastic and feature internal tin-plate screening, so a robust housing is assured. With a metal lamp and screws, these hoods guarantee a secure cable termination. The knurled screw is not included, but is available as an accessory (see stock number 692-5889.)

Harting DIN 41612 Type F Backplane Power Connectors A durable range of DIN 41612 Type F backplane power edge connectors suitable for many applications including railway transportation and power supplies, allowing reliable board to board PCB and cable to board connections. Robust and hardwearing and available in a variety of termination methods.Stock numbers 757-7939, 757-7910, 757-7914, 757-7973, 757-7923 and 757-7982 are railway approved with a railway classification of NFF 16-101, Smoke index: F1, Flammability class: I2 5.08mm contact pitchOperating temp -55 to +125 °C6A max per contactContact resistance up to 15mΩThermoplastic resin - glass fibre filledCopper alloy contacts

Han-Eco B Housings and Hoods

Harting Full Metal Top and Side Entry D-Sub Connector Hoods with Knurled Screws A range of top and side entry d-sub connector hoods or backshells made from metal with knurled screw fastenings. these d-sub connector backshells are supplied with grommet set halves.Part numbers 0967xxx0343 are backshells with a top cable entry and 4-40 UNC knurled screwsPart numbers 0967xxx0348 are backshells with a top cable entry and M3 knurled screwsPart numbers 0967xxx0333 are backshells with a side cable entry and 4-40 UNC knurled screwsPart numbers 0967xxx0336 are backshells with a side cable entry and M3 knurled screwsStock number 873-9857 is a spare M3 knurled screw With short screws 4-40 UNCWith metal cable clamp, screws and rubber bushing

Harting DIN 41612 Type C Backplane Signal Connectors Harting DIN 41612 Type C backplane signal connectors are designed for PCB connection. Hard wearing and durable with a good mating cycle life these DIN 41612 type C PCB backplane signal connectors offer a economical solution to many electronic signal connector design applications. Mating first at positions a1 and a31.Stock numbers 757-7951, 757-7945, 757-7970, 757-7936, 757-7954, 757-7926, 757-7998, 757-7967 and 757-7958 are railway approved with a railway classification of NFF 16-101, Smoke index: F1, Flammability class: I2 • Operating temp -55 to +125 °C• Test voltage 1kV• Contact resistance up to 20mΩ• Thermoplastic resin - glass fibre filled• Copper alloy contacts• Mating first at positions a1 and a31Available with 4.5mm connectors (RS 406-284) and 13mm connectors (RS 740-6723)

Harting DIN 41612 Type C Backplane Signal Connectors Harting DIN 41612 Type C backplane signal connectors are designed for PCB connection. Hard wearing and durable with a good mating cycle life these DIN 41612 type C PCB backplane signal connectors offer a economical solution to many electronic signal connector design applications. Mating first at positions a1 and a31.Stock numbers 757-7951, 757-7945, 757-7970, 757-7936, 757-7954, 757-7926, 757-7998, 757-7967 and 757-7958 are railway approved with a railway classification of NFF 16-101, Smoke index: F1, Flammability class: I2 • Operating temp -55 to +125 °C• Test voltage 1kV• Contact resistance up to 20mΩ• Thermoplastic resin - glass fibre filled• Copper alloy contacts• Mating first at positions a1 and a31Available with 4.5mm connectors (RS 406-284) and 13mm connectors (RS 740-6723)

Harting Han F+B Series Benefits: • Helps reduce downtimes in the food & beverage industry • Connectors are many times faster in plugging compared to other hard wired solutions • One type of hood/housing for all types of transmission in the industrial lifelines of data, signals & power • Enables modularisation of machines & plants, as well as the introduction of future-proof concepts • Reduces expenses on installation & maintenance of equipment as well as the resulting downtimes Applications: • Machines for the food/beverage industry • Bottling plants • Packaging machines Suitable for food processing zones: • Interfaces inside the splash zone • Resistant to chemical cleaning agents even at high cleaning density

Bulkhead /Panel Sockets Harting Heavy Duty Power Connectors (HAN Series) are perfect for industrial applications with harsh requirements. Harting has developed this series to help provide a solution for a wide range of needs in mechanical and plant engineering. They are also used in the design, Construction of equipment, In medical technology and construction machinery.Harting provide kits as complete solutions to the HAN connector series. The Harting kits offer one part number solutions that make it easier to order and control inventory. Each Han-Kit includes male and female inserts, screw terminated contacts, side or top entry hood, bulkhead mounted housing, and cable gland. Various HAN metal kits availableAvailable with metal or plastic hoodsRight angled or straight bulkhead mount housing available

Han Eco Bulkhead Connector Housing From Harting, this Han Eco bulkhead mounting housing has a single locking lever. Constructed from fibre-glass reinforced polyamide, the housing is for use with Han-Eco connectors in industrial applications. Features and Benefits • IP65 Degree of Protection• Operating Temperature: -40°C to +125°C • Stock No. 125-6860 is a size 10A bulkhead mount housing• Stock No. 125-6861 is a size 10A bulkhead mount housing with thermoplastic cover• Stock No. 125-6875 is a size 10A bulkhead mount housing• Stock No. 125-6876 is a size 16A bulkhead mount housing with thermoplastic cover

Hoods and Housings 24B Brought to you by Harting, a comprehensive offering of hoods and housings from the Han 24B range. Compatible with a wide range of inserts, modules, frames including appropriate inserts from the Han D, DD, E, ES, EE, Com, E and Modular series. A strong metal body ensures optimum protecting for its relevant connectors. All models are highly reliable and excellent quality. Features & Benefits Metal bodied Metric and Imperial cable glands are available separately, see stock no. 405-8845 and 212-7668 Option of 1 or 2 locking levers on the hoods, and the bulkhead or surface mounting housings

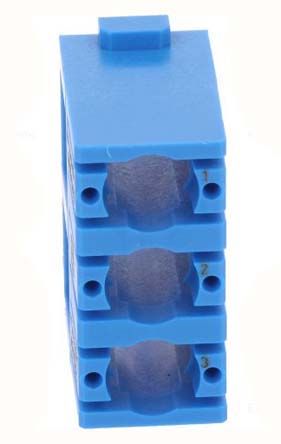

Han® Module Nominal current 10 A.Nominal voltage: 25 V.Available with 6 → 20 poles.

Hoods and Housings 24B Brought to you by Harting, a comprehensive offering of hoods and housings from the Han 24B range. Compatible with a wide range of inserts, modules, frames including appropriate inserts from the Han D, DD, E, ES, EE, Com, E and Modular series. A strong metal body ensures optimum protecting for its relevant connectors. All models are highly reliable and excellent quality. Features & Benefits Metal bodied Metric and Imperial cable glands are available separately, see stock no. 405-8845 and 212-7668 Option of 1 or 2 locking levers on the hoods, and the bulkhead or surface mounting housings
