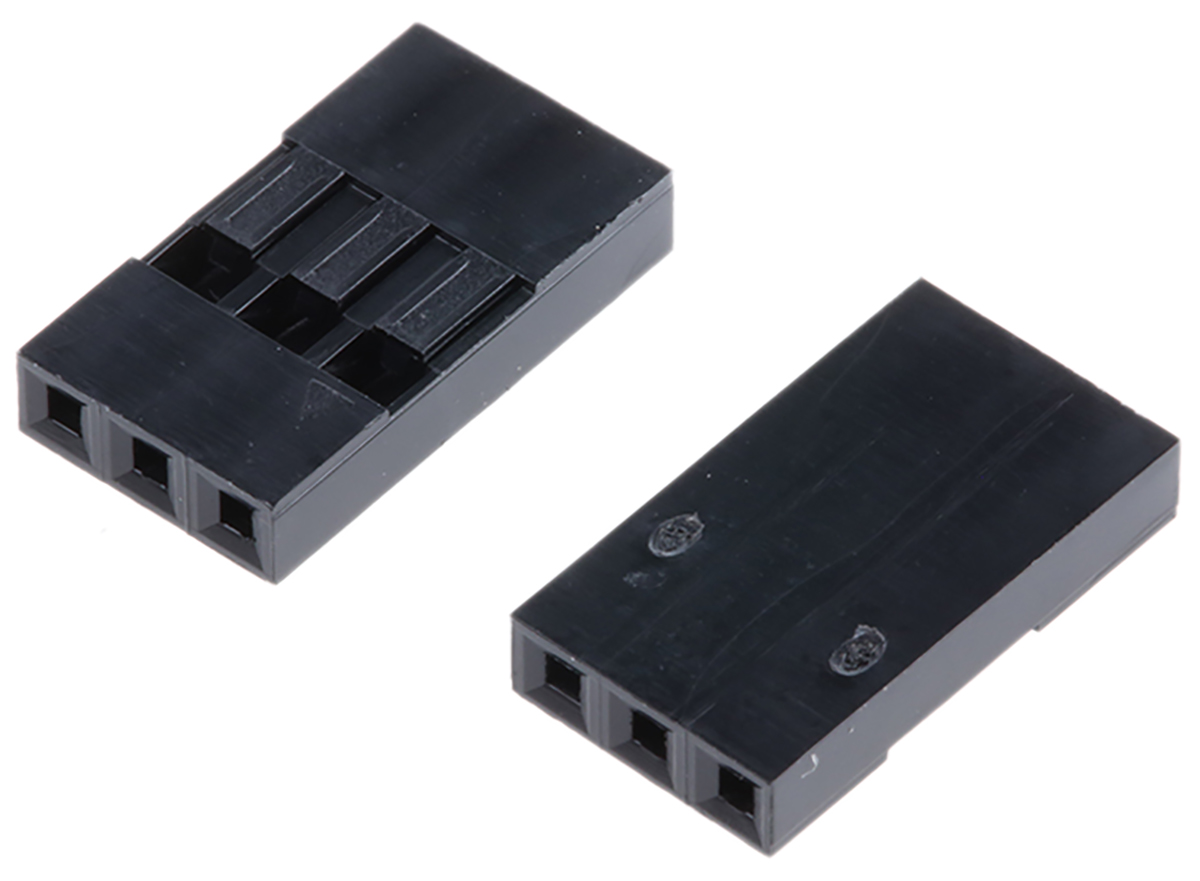

Connectors Crimp housings for use with M20-118 Contacts typical stock number 681-2878

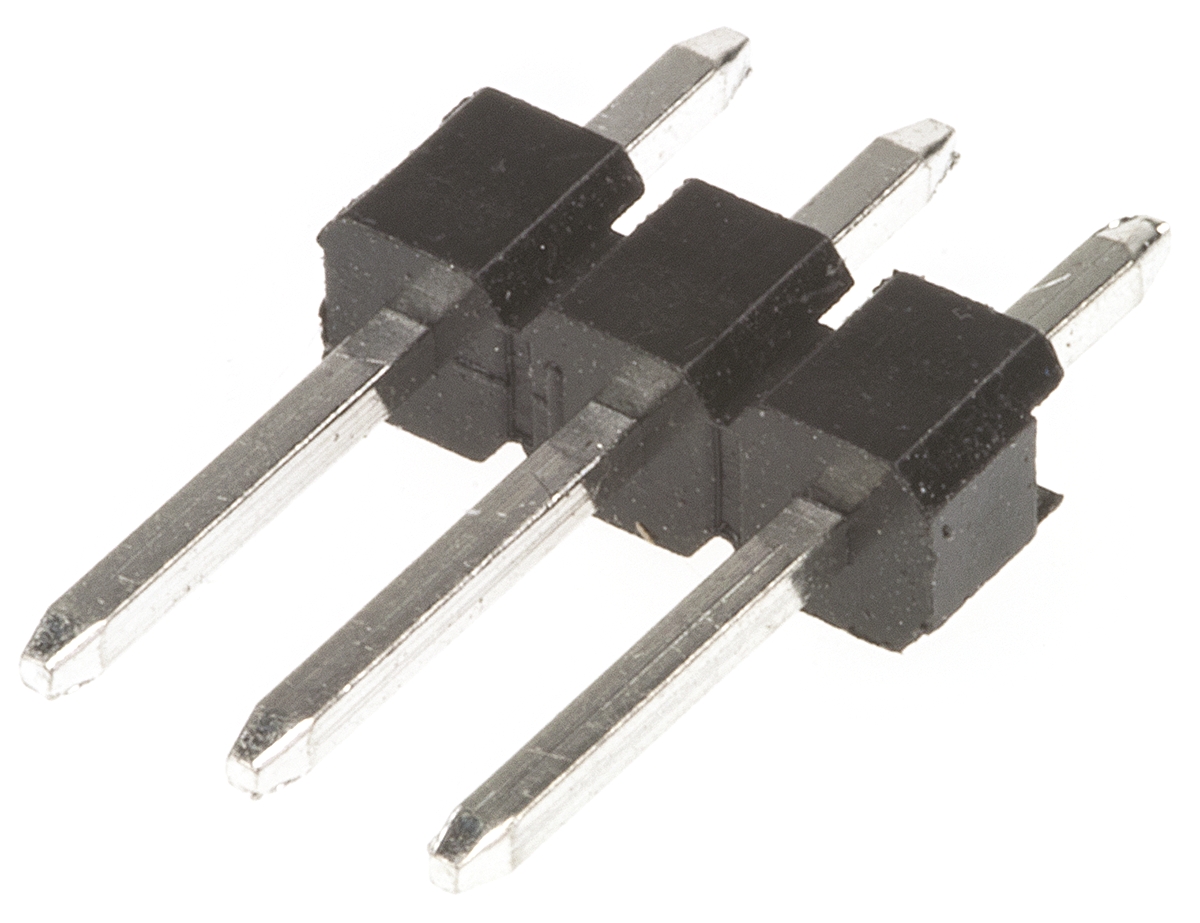

Harwin M20 2.54mm PCB Pin Header Connectors M20 series PCB through hole and SMT mount header connectors with a 2.54mm pitch. These M20 2.54 mm PCB headers are available with dual and single row, vertical and right angle configurations making them a versatile solution for various applications. The housings of these M20 2.54 mm PCB pin header connectors are also supplied with different mating pin lengths: M20-975xxx, M20-976xxx, M20-977xxx = 5.8 mm pin heightM20-995xxx, M20-996xxx, M20-998xxx, M20-999xxx = 6.1 mm pin heightM20-997xxx = 8.5 mm pin heightThe housings of both PCB through hole and SMT headers are made from high temperature thermoplastic enabling them to withstand the same reflow soldering processThe design of the housings incorporates castellations enabling them to be cut to size where required, care should be taken with the tails when doing thisThese M20 2.54 mm PCB pin header connectors mate with the M20 series PCB sockets, socket housings and jumpers. Features and Benefits Multiple configuration options and pin mating lengths for design flexibilityThermoplastic housings can withstand reflow soldering processCan be cut to smaller sizes Applications These M20 2.54 mm PCB headers can be used in a wide range of applications and are established as standard connectors in embedded PCs, motherboards and large electronics systemsApplications include consumer electronics, communications, drives and controls, industrial monitoring and personal computing

Harwin M20 2.54mm PCB Pin Header Connectors M20 series PCB through hole and SMT mount header connectors with a 2.54mm pitch. These M20 2.54 mm PCB headers are available with dual and single row, vertical and right angle configurations making them a versatile solution for various applications. The housings of these M20 2.54 mm PCB pin header connectors are also supplied with different mating pin lengths: M20-975xxx, M20-976xxx, M20-977xxx = 5.8 mm pin heightM20-995xxx, M20-996xxx, M20-998xxx, M20-999xxx = 6.1 mm pin heightM20-997xxx = 8.5 mm pin heightThe housings of both PCB through hole and SMT headers are made from high temperature thermoplastic enabling them to withstand the same reflow soldering processThe design of the housings incorporates castellations enabling them to be cut to size where required, care should be taken with the tails when doing thisThese M20 2.54 mm PCB pin header connectors mate with the M20 series PCB sockets, socket housings and jumpers. Features and Benefits Multiple configuration options and pin mating lengths for design flexibilityThermoplastic housings can withstand reflow soldering processCan be cut to smaller sizes Applications These M20 2.54 mm PCB headers can be used in a wide range of applications and are established as standard connectors in embedded PCs, motherboards and large electronics systemsApplications include consumer electronics, communications, drives and controls, industrial monitoring and personal computing

Harwin M22 Series 2 mm PCB Sockets M22 series PCB through hole mounting industry standard sockets with a fine 2.mm pitch designed for use in board to board applications. With a high quality, compact design these M22 series connectors meet the design requirements for increased PCB density and height restrictions. The housings of these M22 sockets are made from UL94V-0 high temperature Liquid Crystal Polymer and withstand the same reflow soldering processes as SMT versions. Highly durable gold plated dual beam contacts offer an improved electrical connection and increase the overall connector reliability.These M22 PCB socket connectors are available in single and double row configurations and various contact numbers Features & Benefits Fine 2 mm pitchCompact designHigh temperature thermoplastic housingsHighly reliable dual beam contactsUp to 300 mating operationsCurrent rating of up to 2A per contact Product Application Information These M22 series PCB sockets are suitable for use in a wide range of applications and established as standard connectors on embedded PCs, motherboards and large electronic systems. Applications include consumer electronics, communications, drives and controls, industrial monitoring and personal computing

Harwin 1.25mm Gecko Series SMT PCB Headers These Gecko series 1.25mm pitch wire to board PCB SMT headers have a dense 1.25mm pin spacing and a low profile miniature design offering both high performance, reliability and PCB space saving. Latches on these Gecko SMT headers provide a secure connection to the mating connector and SMT hold-downs aid PCB retention. These 1.25mm Gecko headers also feature polarization for accurate mating alignment and can withstand extreme temperatures from -65 to +150°C.

PC/104 Stackthrough Connectors

Harwin M22 Series 2 mm PCB Sockets M22 series PCB through hole mounting industry standard sockets with a fine 2.mm pitch designed for use in board to board applications. With a high quality, compact design these M22 series connectors meet the design requirements for increased PCB density and height restrictions. The housings of these M22 sockets are made from UL94V-0 high temperature Liquid Crystal Polymer and withstand the same reflow soldering processes as SMT versions. Highly durable gold plated dual beam contacts offer an improved electrical connection and increase the overall connector reliability.These M22 PCB socket connectors are available in single and double row configurations and various contact numbers Features & Benefits Fine 2 mm pitchCompact designHigh temperature thermoplastic housingsHighly reliable dual beam contactsUp to 300 mating operationsCurrent rating of up to 2A per contact Product Application Information These M22 series PCB sockets are suitable for use in a wide range of applications and established as standard connectors on embedded PCs, motherboards and large electronic systems. Applications include consumer electronics, communications, drives and controls, industrial monitoring and personal computing

Headers M60-604 Series socket headers mate with M60-614 Series plug headers

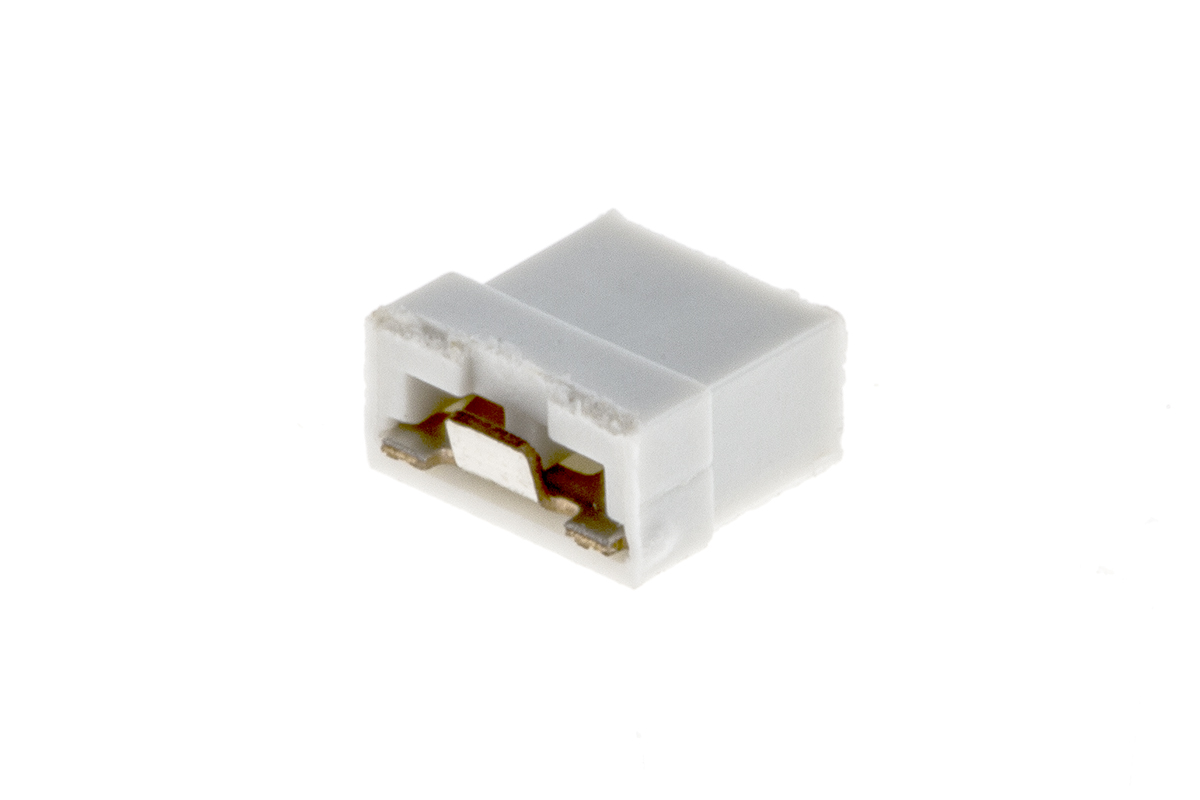

Jumper Links 2-way jumper links on a 2mm pitch with gold or tin plated beryllium copper contactsEnd/side stackable, open tops for test probes

Harwin M20 Series Crimp Receptacle Contacts M20 crimp receptacle contacts made from phosphor bronze with a dual beam design for use in M20 series crimp housings. The dual beam design of these contacts offers high durability, improved repeatable retention and connection resulting in increased connector reliability. These M20 crimp receptacles are for use with a wire size range of 30 to 22 AWG and are available with gold or tin plating on the contact area. For suitable crimp tool please see stock number 717-3666.

Harwin 1.25mm Gecko Series Through Hole Mount PCB Headers These Gecko series 1.25mm pitch wire to board PCB through hole mount headers have a dense 1.25mm pin spacing and a low profile miniature design offering both high performance, reliability and PCB space saving. Gecko PCB headers with part number G125-M XX XX 05 L1 have latches to provide a secure connection to the mating connector. All these Gecko PCB headers have retention barbs to fix the connector securely to the PCB for through hole mounting. These 1.25mm Gecko headers also feature polarization for accurate mating alignment and can withstand extreme temperatures from -65 to +150°C.

Harwin PCB Sockets for 1.00mm Mating Pin PCB through hole mounting socket terminals that mate with 1mm diameter pins. These PCB socket terminals use a 4 finger beryllium copper contact clip that offers resistance against high vibration and shock.Stock number 909-4332 also features knurling on the shell for added pin retention.
