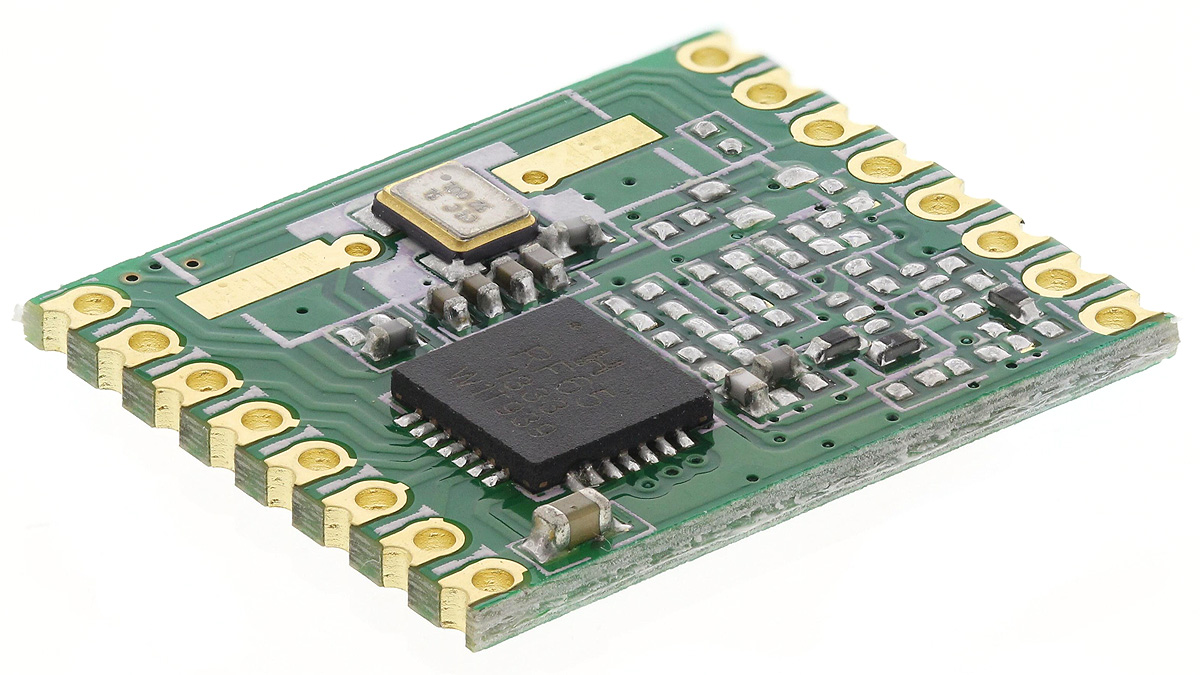

RFM65 433MHz ISM Receiver, HopeRF The RFM65W-433 is a low-cost 433MHz ISM-band receiver module. All major RF communication parameters are programmable and most of them can be dynamically set. The RFM65W offers the advantage of programmable narrow-band and wide-band communication modes. The RFM65W is optimized for low power consumption while offering high sensitivity and channelized operation. In order to better use RFM65W modules, this specification also involves a large number of the parameters and functions of its core RF65 chip, including those IC pins which are not leaded out. All of these can help customers gain a better understanding of the performance of RFM65W modules. RF Carrier Frequency range: 424 to 510MHz<BR/>Modulation: FSK, GFSK, MSK, GMSK or OOK<BR/>Sensitivity: -120dBm at 1.2kbps<BR/>High Selectivity from 16-tap FIR Channel Filter<BR/>Linearity: IIP3 = -18dBm, IIP2 = +35dBm<BR/>80dB Blocking Immunity, no Image Frequency response<BR/>Low current: Rx = 16mA, 100nA register retention<BR/>Constant RF performance over voltage range of module<BR/>FSK Data Rate: 300kbps<BR/>Fully integrated synthesizer with a resolution of 61Hz<BR/>Built-in Bit Synchronizer performing Clock Recovery<BR/>Incoming Sync Word Recognition<BR/>RSSI: 115dB+ Dynamic Range<BR/>Automatic RF Sense with ultra-fast AFC<BR/>Packet engine with CRC, AES-128 encryption and 66-byte FIFO<BR/>Built-in temperature sensor and Low Battery indicator<BR/>SPI serial data interface<BR/>Power supply: +1.8 to +3.6Vdc<BR/>Operating temperature range: -20 to +70°C<BR/>Dimensions: 19.7 x 16 x 1.9mm <BR/>Applications: Automated Meter Reading, Wireless Sensor Networks, Home & Building Automation, Wireless Alarm & Security Systems, Industrial Monitoring & Control, Local communication for the Internet-of-Things (IoT)

RFM31B 868MHz ISM Receiver, HopeRF The <B>RFM31B-868</B> is a highly integrated, low-cost 868MHz ISM-band receiver module. Built-in antenna diversity and support for frequency hopping can be used to extend range and enhance performance. An easy-to-use calculator is provided to quickly configure the radio settings, simplifying customer's system design and reducing time to market. Available in DIP or SMD module format. Module Features • Carrier Frequency Range: 848 to 888MHz ISM band<BR/>• Receiver Sensitivity: –121dBm @ 2kbps, GFSK<BR/>• OTA Data Rate = 0.123 to 256kbps<BR/>• Modulation: FSK, GFSK or OOK<BR/>• Frequency hopping (FHSS) capability<BR/>• Digital RSSI<BR/>• Wake-up timer<BR/>• On-chip crystal tuning<BR/>• Auto-frequency calibration (AFC)<BR/>• Power-on-reset (POR)<BR/>• Embedded antenna diversity algorithm<BR/>• Packet handler, preamble detector and CRC checker<BR/>• Supports Data Whitening and Manchester Encoding<BR/>• Receiver 64-byte FIFO<BR/>• Low-battery detector<BR/>• Temperature sensor and 8-bit ADC<BR/>• Host communication: serial SPI<BR/>• Power Supply: +1.8 to +3.6Vdc<BR/>• Power-saving modes: Tune, Ready, Sensor, Sleep, Standby, Idle and Shutdown<BR/>• Integrated voltage regulators<BR/>• Operating temperature range: -40 to +85°C<BR/>• Dimensions: 15.5 x 14mm (DIP), 16 x 16mm (SMD)<BR/>• Applications: Remote control, Home security, Telemetry, Personal data logging, Tyre pressure monitoring, Wireless PC peripherals, Remote meter reading, Remote keyless entry, Home automation, Industrial control, Sensor networks, Health monitors and the Internet-of-Things (IoT) RS Product Codes <a href="/web/p/products/7312735">731-2735</a> RFM31B-868-D 14-Pin DIP module

RFM22B 868MHz ISM Transceiver, HopeRF The RFM22B-868 is a highly integrated, low-cost 868MHz ISM-band transceiver module. Built-in antenna diversity and support for frequency hopping can be used to extend range and enhance performance. An easy-to-use calculator is provided to quickly configure the radio settings, simplifying customer's system design and reducing time to market. Carrier Frequency Range: 848 to 888MHz<BR/>RF Output Power: +20dBm<BR/>Receiver Sensitivity: –121dBm @ 2kbps<BR/>Data Rate = 0.123 to 256kbps<BR/>Modulation: FSK, GFSK or OOK<BR/>Digital RSSI<BR/>Wake-up timer<BR/>Frequency hopping capability<BR/>Auto-frequency calibration (AFC)<BR/>Power-on-reset (POR)<BR/>Antenna diversity and TR switch control<BR/>Configurable packet handler<BR/>Preamble detector<BR/>Tx and Rx 64-byte FIFOs<BR/>Low battery detector<BR/>Temperature sensor and 8-bit ADC<BR/>SPI serial data interface<BR/>Power Supply: +1.8V to +3.6Vdc<BR/>Low Power Consumption: 18.5mA receive, 85mA @ +20dBm transmit<BR/>Ultra low power shutdown mode<BR/>Operating temperature range: -40 to +85°C<BR/>Integrated voltage regulators<BR/>Package style: 16-Pin SMD module<BR/>Applications: Remote control, Home security, Telemetry, Personal data logging, Tyre pressure monitoring, Wireless PC peripherals, Remote meter reading, Remote keyless entry, Home automation, Industrial control, Sensor networks, Health monitors and the Internet-of-Things (IoT)
