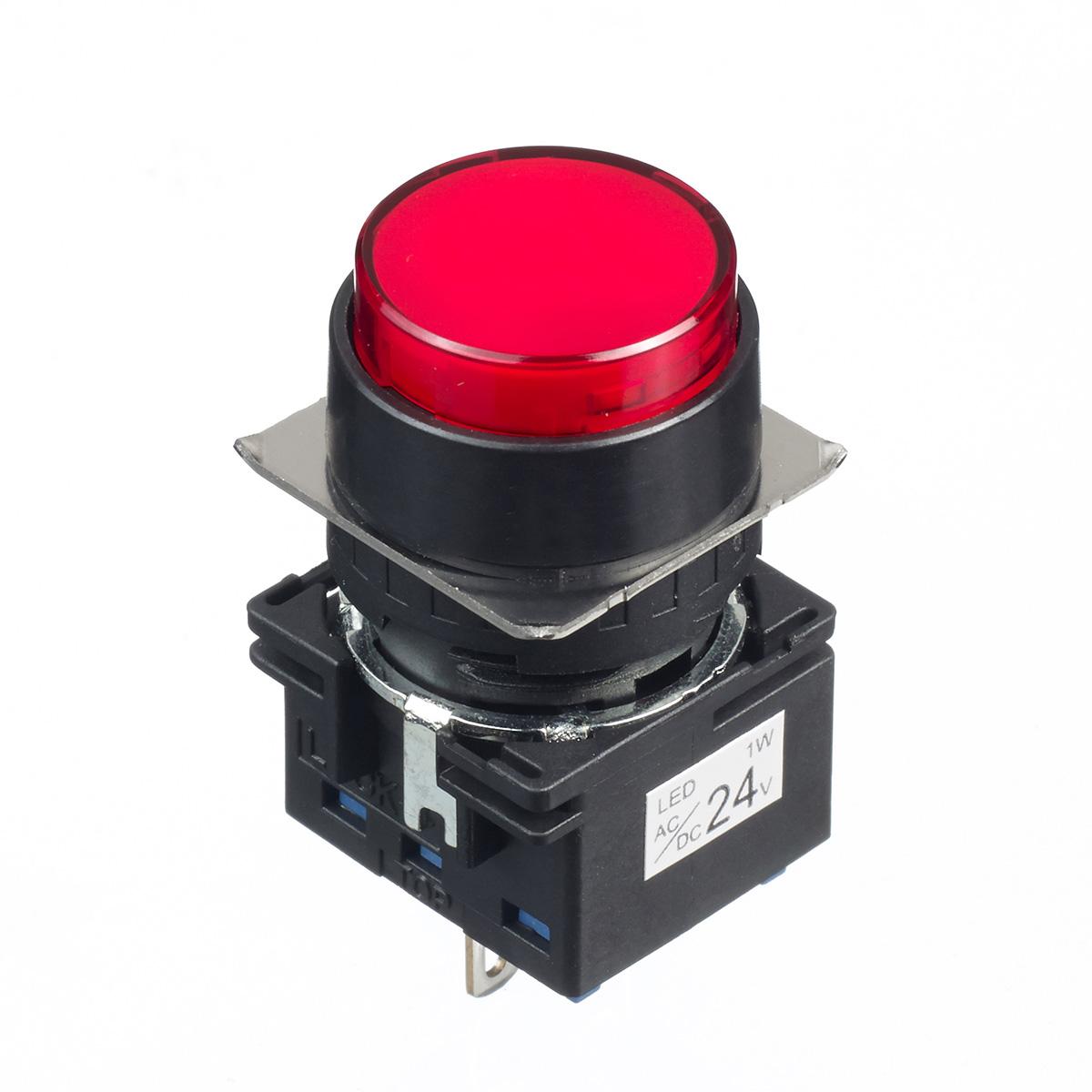

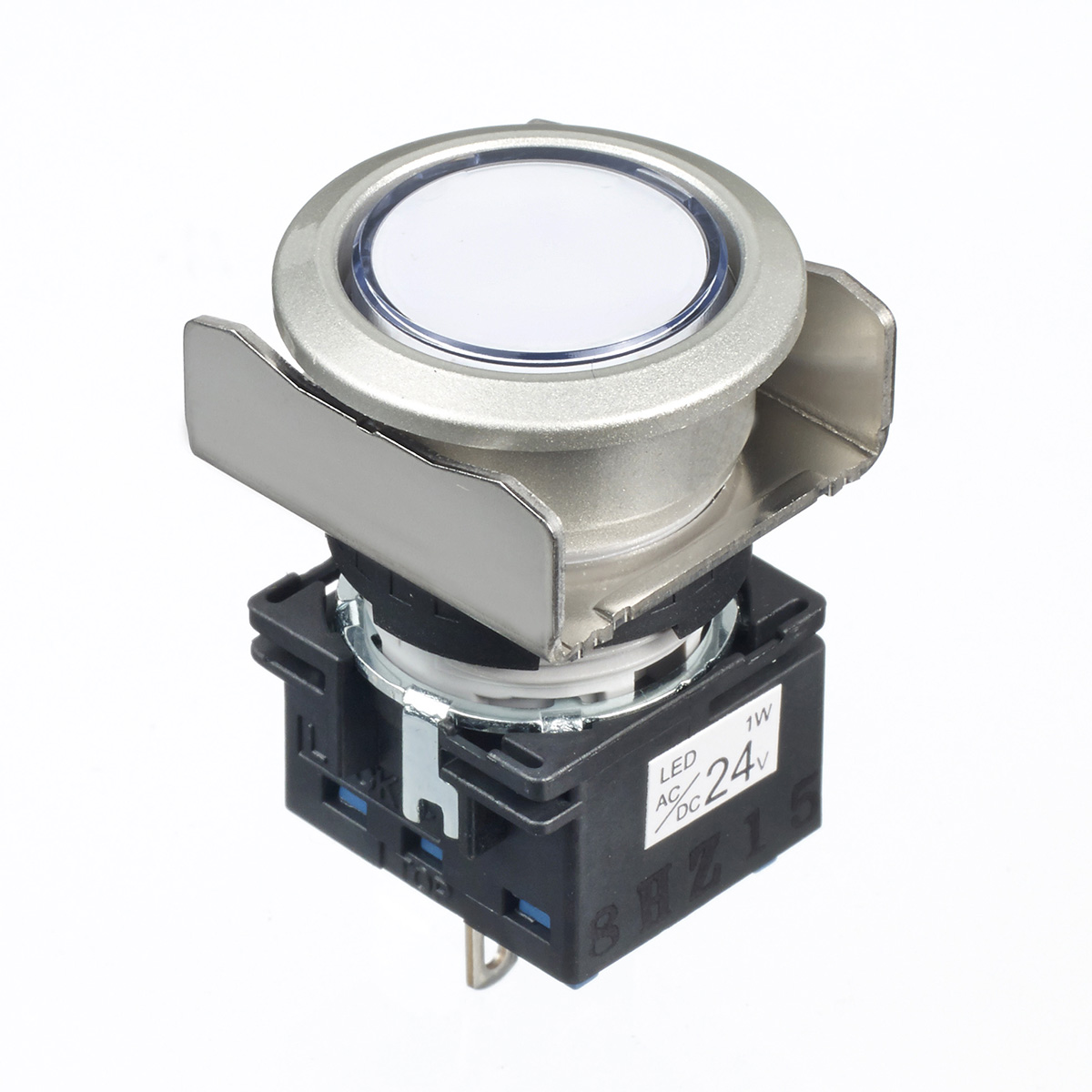

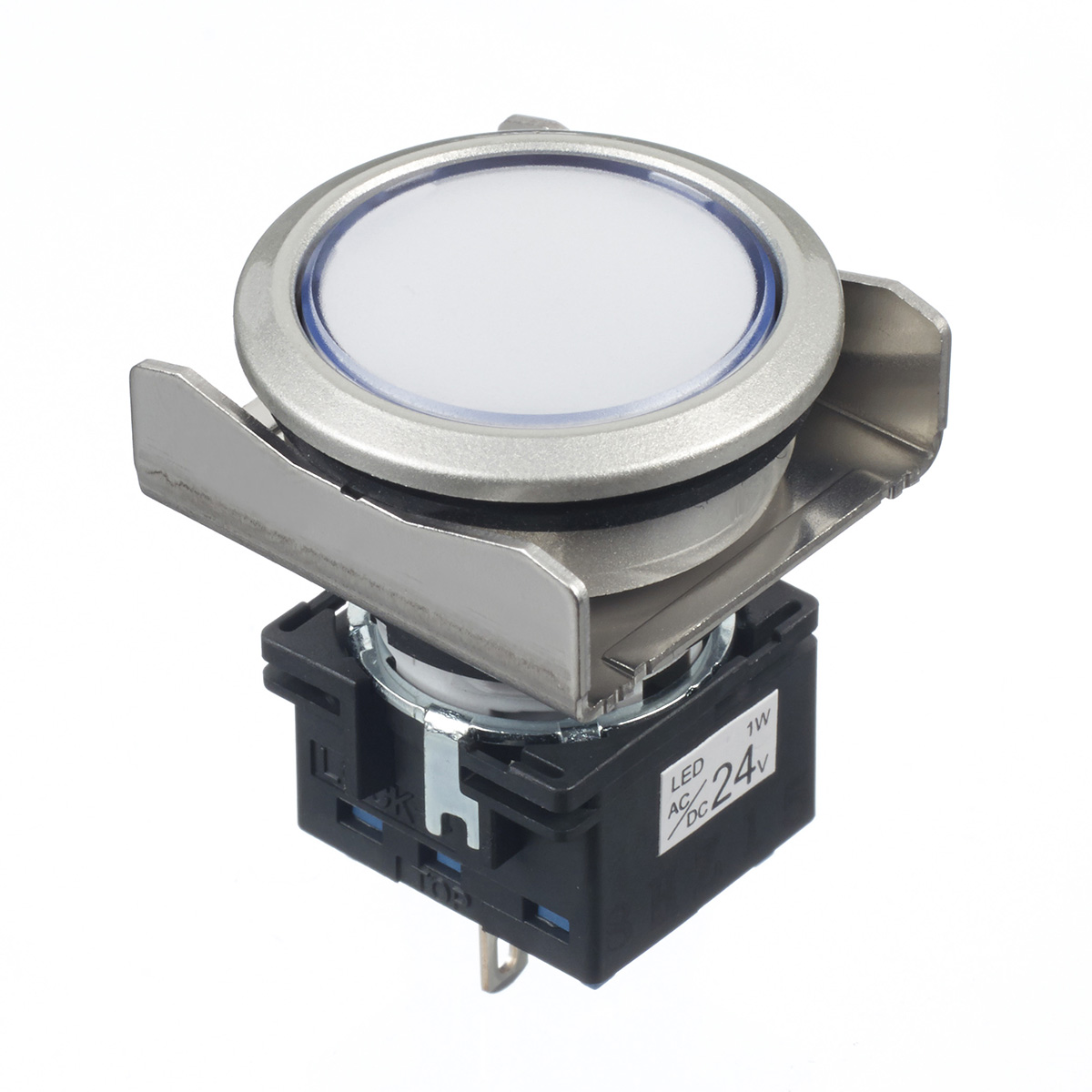

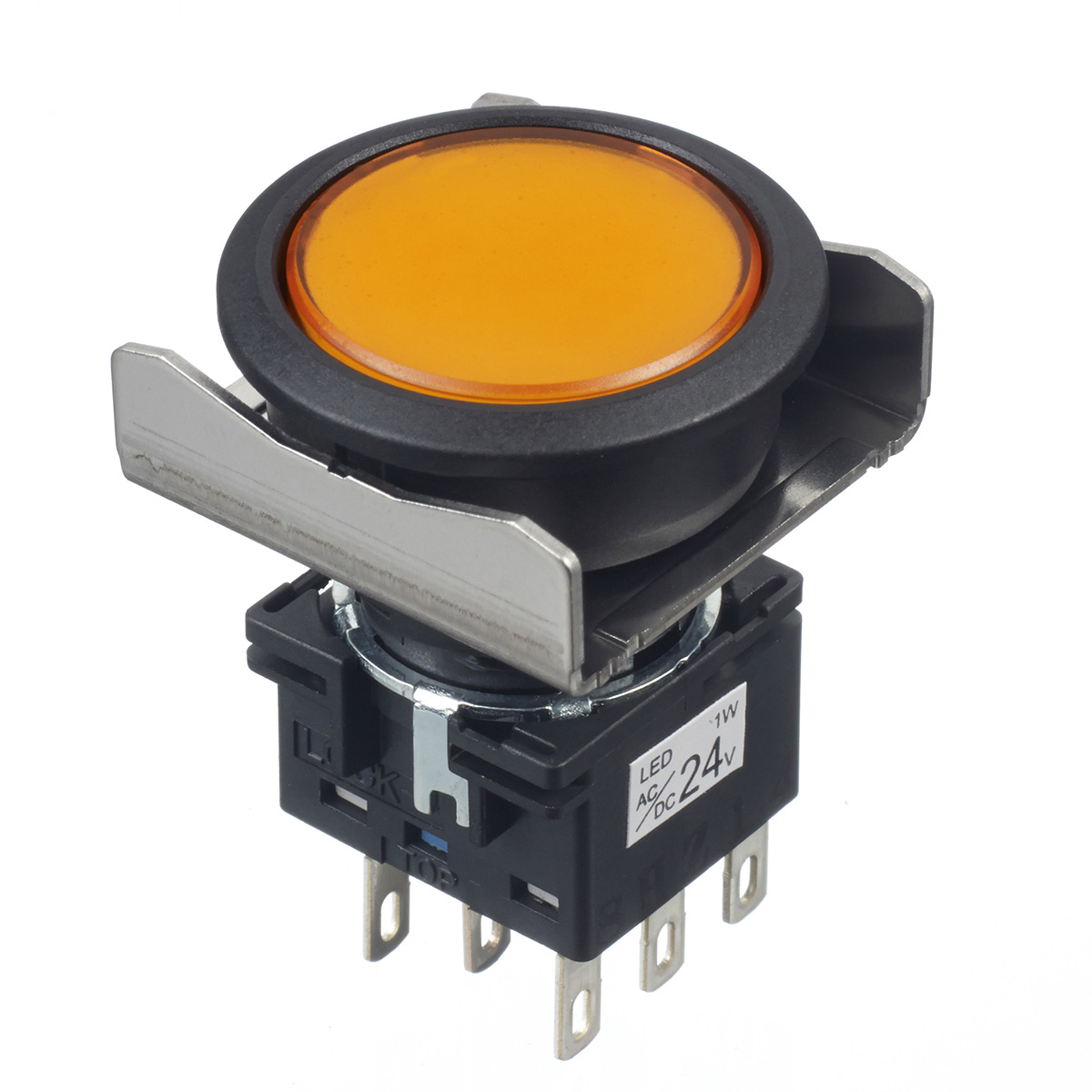

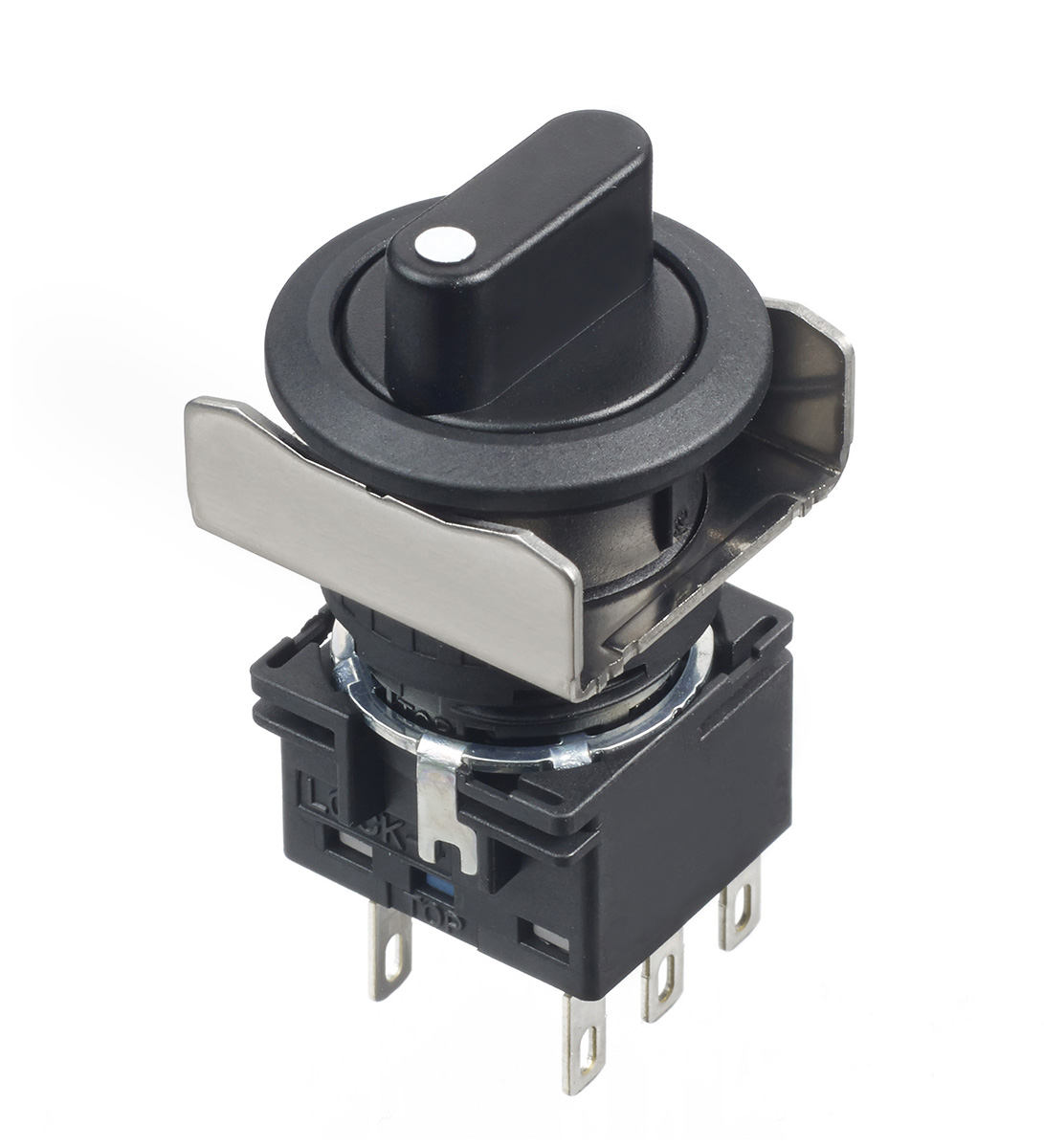

Flush bezel projects only 2 mm from front of panel. Standard bezel with only a panel depth of 27.9 mm. Removable contact blocks ideal for single board mounting. Pushbuttons, selector switches, and key selector switches with up to 3PDT contacts.Wave keys are used for key selector switches to prevent duplication of keys. Six different keys are available besides standard key.Black or metallic flush bezels available.Bright and clear illumination surface. LED illumination.Gold-clad, cross-bar contact, or high-capacity silver contacts. Flush Silhouette LBW Series Selector Switches Knob Operator 45°-3-Position LBW6S-3T6

IDEC YW 22mm Unibody Pilot Lights 24 V The YW series of unibody pilot lights 24 V from IDEC are designed to offer a heavy-duty rugged solution to panel mount signalling applications perfect for use with in harsh wearing industrial environments. The unibody pilot lights feature an IP65 level of ingress protection. The innovative unibody design eliminates the need for additional contact blocks or light modules. The new construction also reduces the time needed for installation and maintenance. Innovative unibody designCompact and light-weightSimple installation and maintenance

Test

G5210230 SENSOR M18 TUBULAR

G5210232 SENSOR M18 TUBULAR

DIFUSE-PHOTO PNP NO-NC M12

Idec CW Series Switches and Pilot Devices The CW Series from Idec features stylish, compact and space saving switches and pilot devices. The inventive two-step locking lever integrated with a guard provides a higher level of safety and the low projection from the panel surface reduces the possibility of unexpected activation or operator damage. The shortest depth behind the panel in its class contributes to reducing machine and control panel size. Black and metallic bezels availableØ22.3mm mounting hole compliant with IEC 60947-5-1Seven different keys can be chosen for key selector switchesIP20 finger-safe screw terminalsUL Type 4X rating3.5mm operator travel for pushbuttons ensures comfortable and reliable operationUp to 6 contacts per switch are possible with use of dual contact blocksContact blocks can be removed by locking lever10A contact rating; up to three contact blocks for non-illuminated and two contact blocks for illuminated models can be connected

IDEC Actuator The IDEC actuator is a safety interlock accessory used with HS1L interlock switches. The actuator is a straight actuator. The head removal detection function turns OFF the main circuit when the head is removed. As it has a double insulation structure, the grounding is eliminated. The head orientation shows eight different ways of entries. Features and Benefits • Contact configuration NC• M3 terminal screws• Tensile force of 1400N Applications • HS5L interlock switches

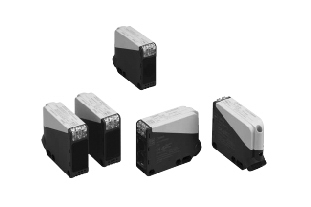

Six sensing methodsCable model (three cable lengths) and M8 connector models are available.NPN output, PNP output, light ON, dark ON can be selected.Sensing range doubled with SA1E-T through-beam and SA1E-P polarized retro-reflective models.Highly stable with excellent resistance against vibration and shock resistance.Coaxial polarized retro-reflective model (SA1E-X) ensures stable detection, unaffected by construction, inclination or shaking of the object, and a high-speed response and small beam ensure reliable counting of target objects moving at high speed.Air blower mounting block for installing an air blower to clean the lens surface. Ideal to maintain a clean lens surface and sensor performance.Nine types of slits for through-beam models available.

G5210130 SENSOR M18 TUBULAR

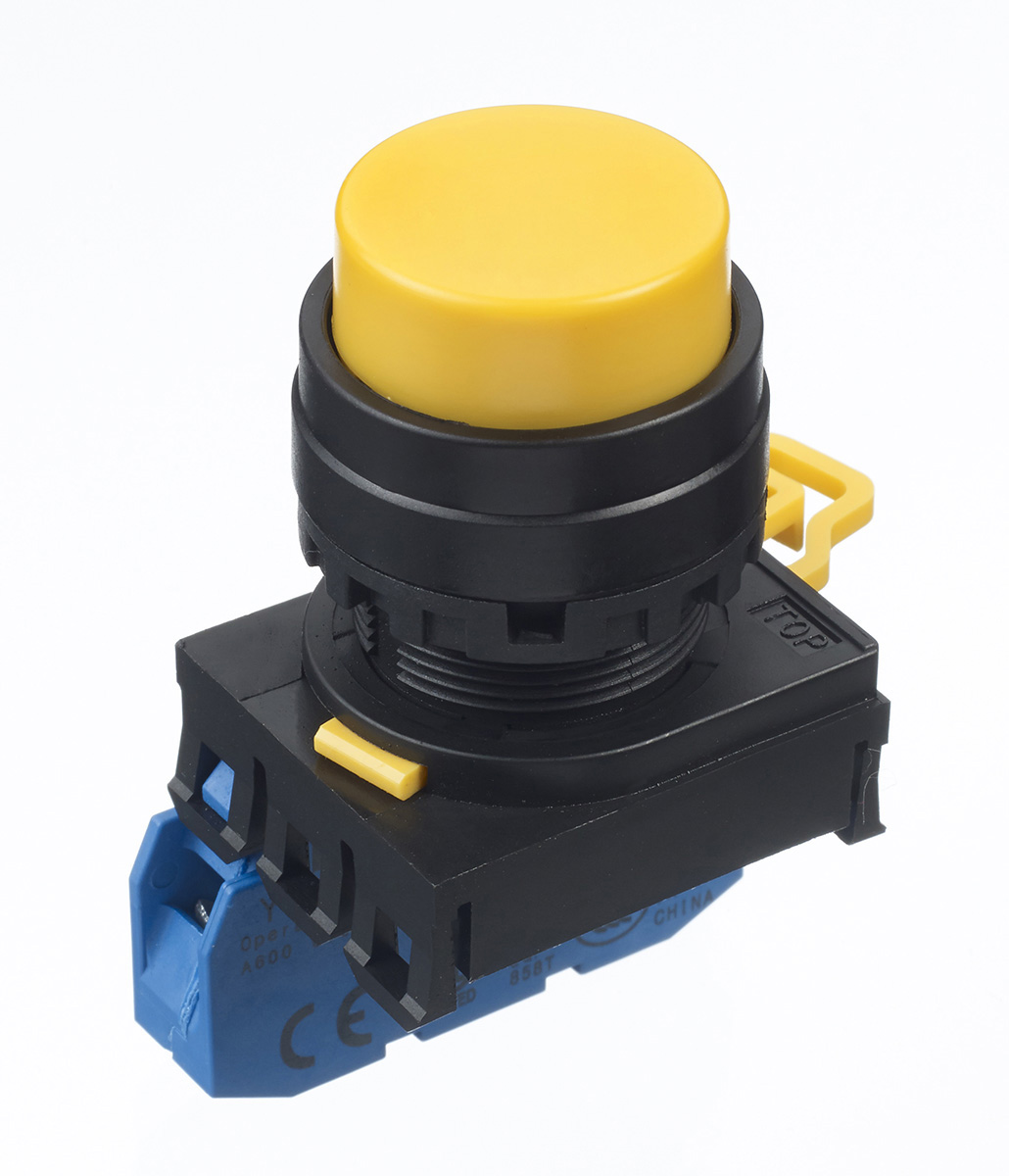

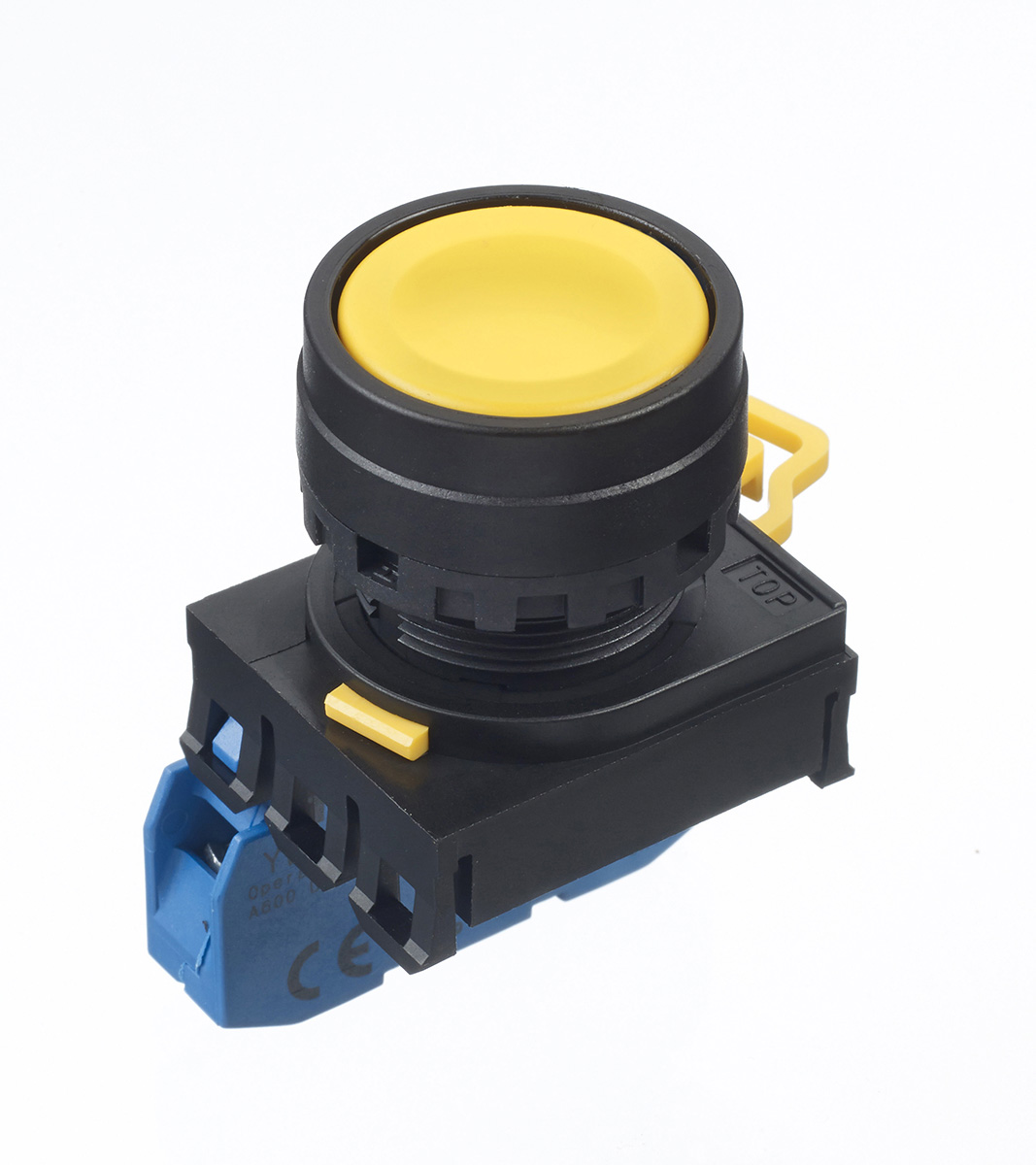

From miniature pilot lights and industrial switches that mount into 8mm panel cut outs through full size industrial switches that mount into 30mm cutouts, we have an industrial switch or indicator for almost any application. Terminations include solder / quick connect terminals, screw terminals, or PC board pins for direct board mounting. Miniature models use snap action gold plated contacts for superior low level switching, whereas larger models use slow-make, double break contacts for switching heavier loads, up to 10A. Compact and light-weightFinger-safe screw terminals 22MM YW Series Illuminated Pushbuttons (Plastic Bezel) Momentary Mushroom LED

964401100 CONTRAST SENSOR
