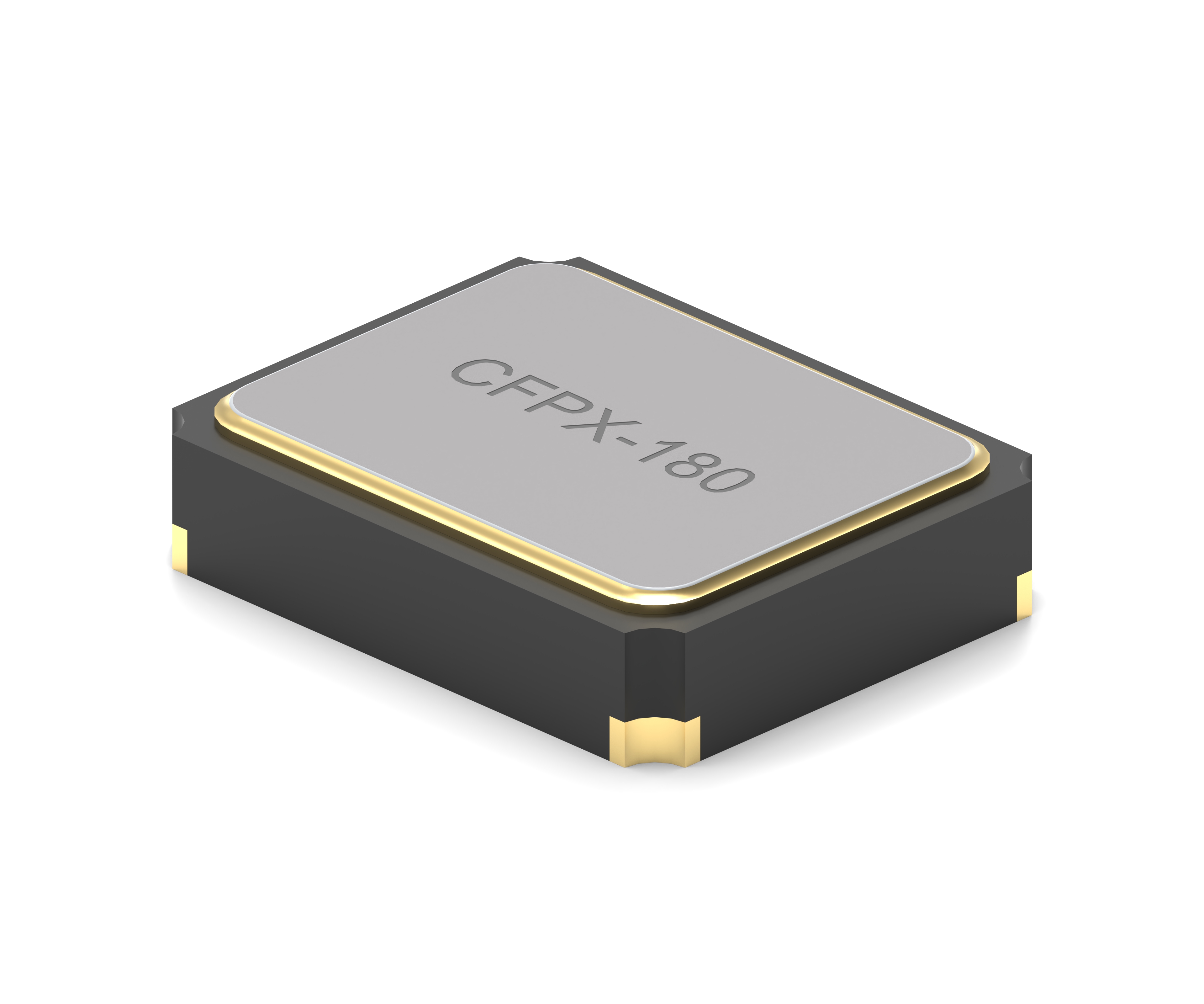

Standard 3.2 x 2.5mm SMD crystal in a ceramic package with a seam sealed metal lid, hermetically sealed.Model CFPX-180Model Issue number 9

The IQD Quartz Crystal is a standard 3.2 x 2.5mm SMD crystal in a ceramic package with a seam sealed metal lid, hermetically sealed. Frequency is 25.0MHzFrequency tolerance is ±20.00ppmTolerance conditions at 25°C

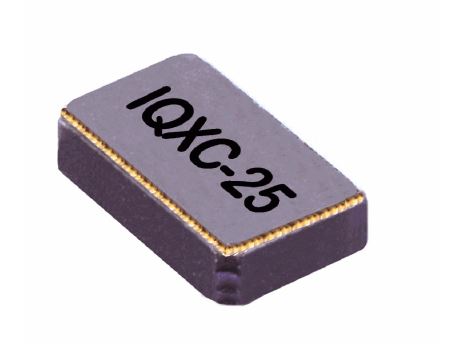

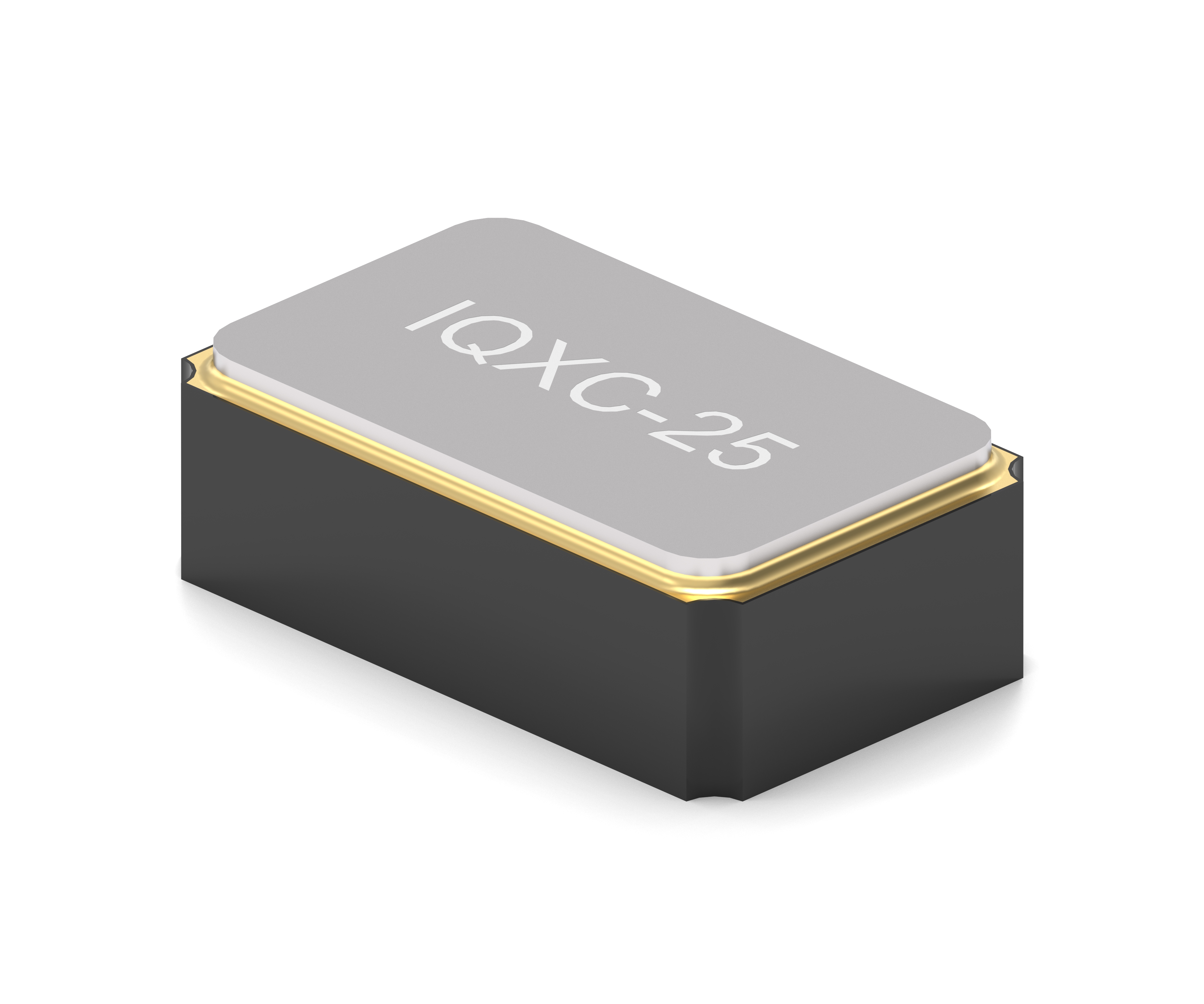

The IQD Quartz Crystal is a 2.0 x 1.2mm SMD crystal in a hermetically sealed ceramic package with an electron beam sealed metal lid. Suitable for real time clock applications. Frequency is 32.7680kHzFrequency tolerance is ±20.00ppmTolerance condition is at 25°C ±5°CStorage temperature range is –40°C to 85°C

CFPS-72 Crystal Oscillators CFPS-7S series crystal clock oscillator. These IQD brand SMD's are cased in ceramic with a hermetically sealed metal lid and feature a good standard of environmental properties in relation to shock and vibration. They are available in a standard 7 x 5mm size and have wide frequency parameters.

The IQD Quartz Crystal is a standard 5x3.2mm SMD crystal with four pads. Ceramic package with a seam sealed metal lid, hermetically sealed. Frequency is 16.0MHzFrequency tolerance is ±50.00ppmTolerance condition is at 25°C

HC49/4H IQD

The IQD Quartz Crystal is a industry standard SMD crystal. Resistance welded, hermetically sealed in an inert atmosphere, glass to metal seals on leads. Lead wires are mounted onto a plastic former to create a gull wing mount. Frequency is 8.0MHzFrequency tolerance is ±30.00ppmTolerance condition is at 25°C ±2°CStorage temperature range is -55°C to 125°C

HC49 & HC49U IQD

The IQD Crystal Clock Oscillator is a standard 7 x 5mm crystal oscillator in a ceramic package with a seam sealed metal lid, hermetically sealed. Frequency is 12.0MHzFrequency stability is ±50.00ppmOperating temperature range is -40°C to 85°CDuty cycle is 45 or 55

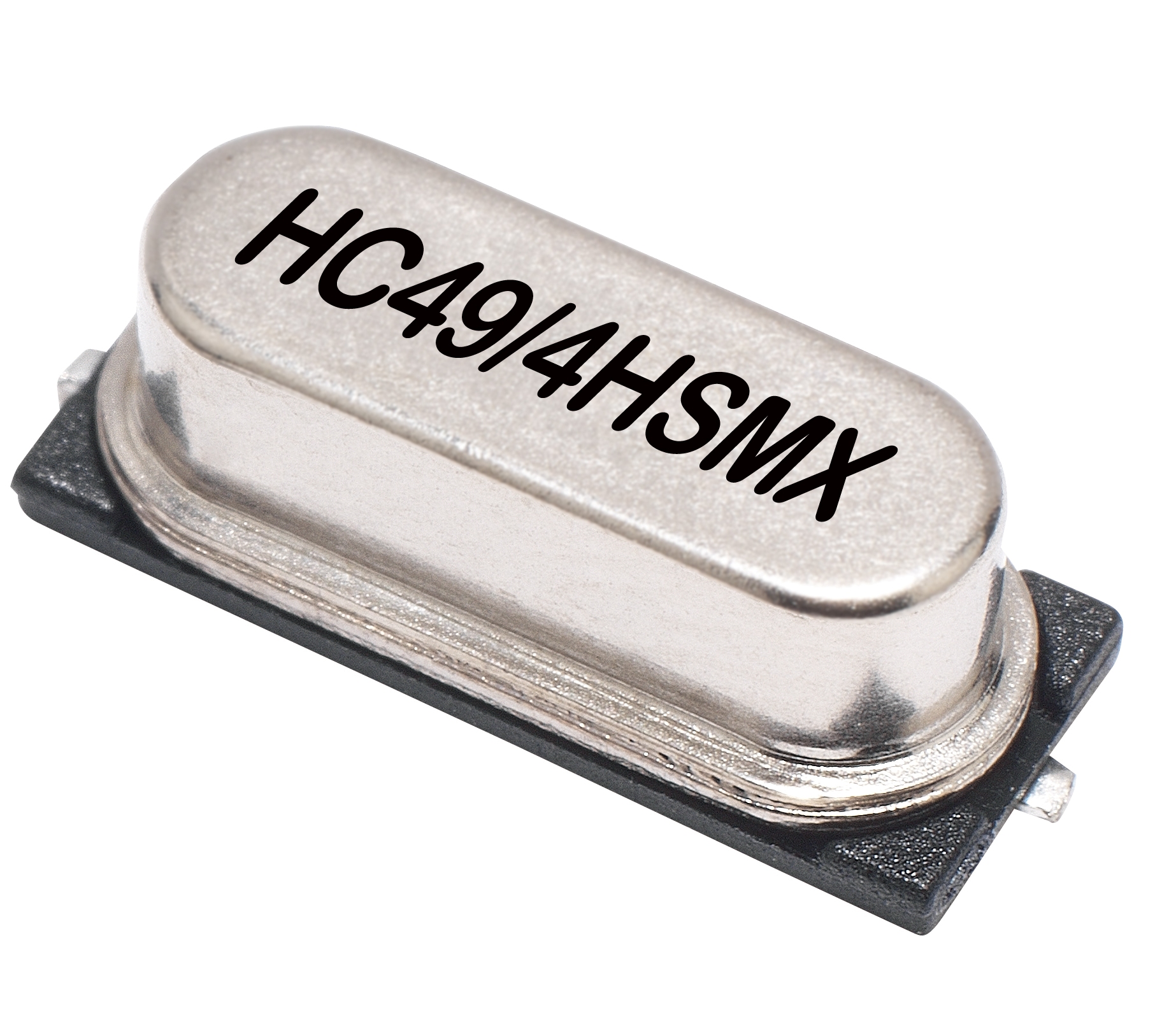

HC49/4H SMX Fundamental resonance mode

The IQD Quartz Crystal is a resistance welded, hermetically sealed in an inert atmosphere, glass to metal seals on leads. It is a standard 2 leg HC49 package. Frequency is 12.0MHzFrequency tolerance ±20.00ppmFrequency stability is ±30.00ppm

The IQD Quartz Crystal is a industry standard SMD crystal resistance welded, hermetically sealed in an inert atmosphere, glass to metal seals on leads lead wires are mounted onto a plastic former to create a gull wing mount. Frequency is 8.0MHzFrequency tolerance is ±30.00ppmTolerance condition is at 25°C ±2°COperating temperature range is -40°C to 85°C
