Optocoupler, Phototransistor Output, Isocom Components

Optocoupler, Transistor Output, Isocom Components

Optocoupler, Transistor Output, Isocom Components

The TLP521-2 are dual channel optocouplers. Each channel is composed of a Gallium Arsenide infra-red emitting diode and a silicon photo transistor. Package style for this devices is 8 pin, with surface mount, butt cut and gull wing options available. Performance guaranteed over -55°C to +125°C temperature rangeHigh current transfer ratio7500V electrical isolation

The PS2502-1, PS2502-2, PS2502-4 series of optically coupled isolators consist of infrared light emitting diodes and NPN silicon photodarlingtons in space efficient dual in line plastic packages. High Current Transfer Ratio (200%min)High Isolation Voltage (5.3kVRMS, 7.5kVPK )All electrical parameters 100% tested APPLICATIONS:Computer terminalsIndustrial systems controllersMeasuring instrumentsSignal transmission between systems of different potentials and impedances

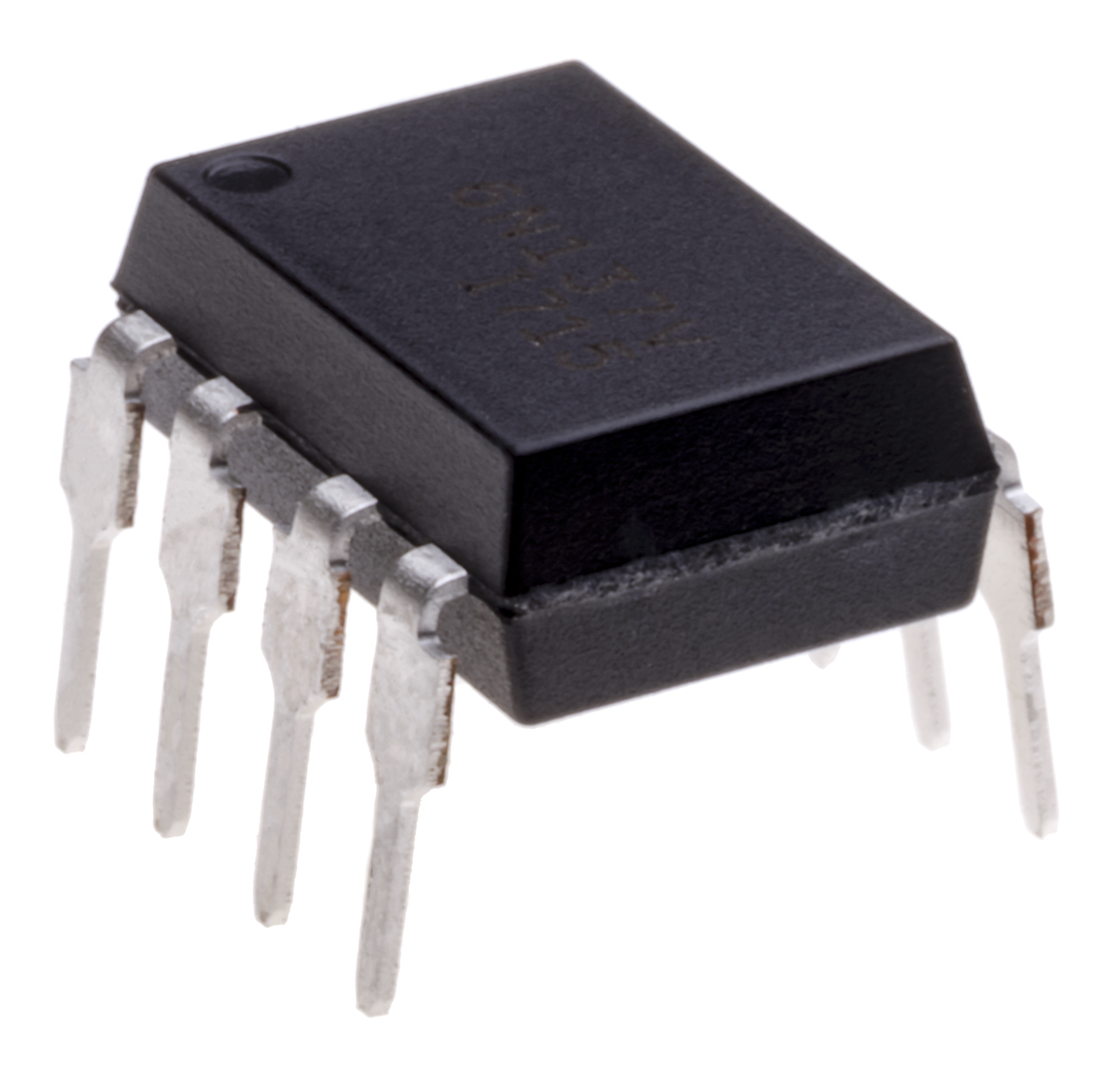

The 6N138 is an optically coupled isolator. It consists of an infrared emitting diode and an integrated high gain photon detector to provide 3000Vdc electrical insulation, 500V/μS common mode transient immunity and extremely high current transfer ratio between input and output. Separate pins for the photo diode and output stage result in TTL compatible saturation voltages and high speed operation. Where desired the VCC and VO terminals may be tied together to achieve conventional photodarlington operation. A base access terminal allows a gain bandwidth adjustment to be made. High CTR - 600% Typical3000V IsolationHigh Output Current - 60mALow Input Current Requirement - 0.5mA

Optocoupler, Triac Output, Isocom Components

The TLP521-2 are dual channel optocouplers. Each channel is composed of a Gallium Arsenide infra-red emitting diode and a silicon photo transistor. Package style for this devices is 8 pin, with surface mount, butt cut and gull wing options available. Performance guaranteed over -55°C to +125°C temperature rangeHigh current transfer ratio7500V electrical isolation

The PS2501-1, PS2501-2 and PS2501-4 series of optically coupled isolator consist of an infrared light emitting diode and an NPN silicon photo transistor in a space efficient Dual In Line Plastic Package. AC Isolation Voltage 5300VRMSCTR Selections AvailableWide Operating Temperature Range -30°C to +100°CAPPLICATIONS:Computer TerminalsIndustrial System ControllersMeasuring InstrumentsSignal Transmission between Systems of Different Potentials and Impedances

The TLP620, TLP620-2, TLP620-4_ Series of Optically Coupled Isolators Consist of Two Infrared Light Emitting diodes connected in Inverse Parallel and NPN Silicon Photo Transistors in Space Efficient Dual in Line Plastic Packages High Isolation Voltage (5.3 kVrms, 7.5kVpk)All Electrical Parameters 100% Tested Computer TerminalsIndustrial Systems ControllersTelephone Sets, Telephone ExchangesSignal Transmission between Systems of Different Potentials and Impedances

The SFH615A-2 is a single channel device in a dual-in-line package suitable for mounting in printed circuit board assemblies. The device incorporates a high radiance LED and photo transistor detector. Current transfer ratio (CTR: min 63%)High Electrical Isolation (2,800VRMS)Compact dual-in-line package

The SFH615A-3 is a single channel device in a dual-in-line package suitable for mounting in printed circuit board assemblies. The device incorporates a high radiance LED and photo transistor detector. Current transfer ratio (CTR: min 100%)High Electrical Isolation (2,800VRMS)Compact dual-in-line package
