Panel Drain Connectors 400A ITT VEAM PowerLock panel drain connectors are field installable power distribution connectors which serve a broad industry base including generator distribution connectors at carnivals, outdoor concerts, sporting events and many other heavy industry applications that require a robust and hard wearing power connector.ITT VEAM PowerLock panel drain connectors are single pole connectors that accept line source connectors of the same colour coding as part of the power supply daisy chain. Supplied with female contact. Rigid IP2Xspring loaded finger proof noseO Ring to guarantee IP67 when mated

ITT 1.27mm Micro-D Connectors - MDM Series MDM series moisture sealed Micro-D connectors with a lightweight, rugged design and high density contact configurations on a 1.27mm pitch. These MDM microminiature D connectors have electroless nickel plated aluminium shells for added strength and EMI and RFI shielding along with silicone elastomer compression interfacial seals that provide protection against moisture and humidity between each contact and contacts and shell. The contacts of these MDM Micro-D connectors are size 24 MICROPIN™ or MICROSOCKET™ contacts which are made from copper alloy with a gold plating. These Micro-D connectors have 2.31mm mounting holes and are available with various termination options:Part numbers: MDM-xxxSB-xxx have solder pot terminations that accept 26AWG max harness wire.Part numbers: MDM-xxxH003B-xxx have harness wire terminations (18", 7 strand 26AWG to MIL-W-16878/4, Type E Teflon, colour coded to MIL-STD-681 system I).Part numbers: MDM-xxxL1B-xxx have 0.5" uninsulated solid 25AWG gold plated copper wire terminations.

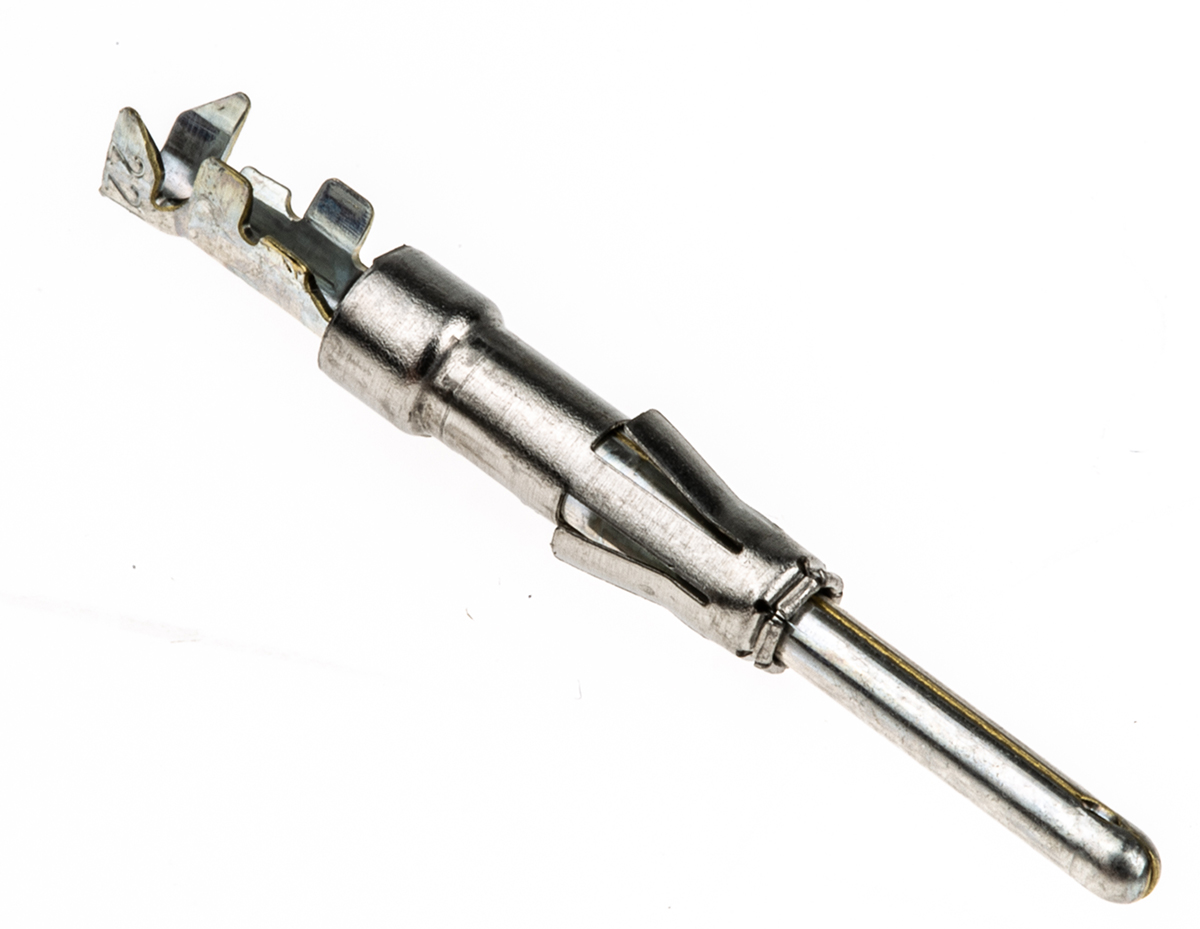

ITT Cannon Crimp Contact The ITT Cannon MS series male socket contact has size 24 and wire size is 26AWG. This contact is made of copper alloy and has 20μin gold over nickel plating. It can be used with the ZIF connectors. Low current:0.5μin gold-plated beryllium copper contacts for plug and socket bodiesFor high speed digital and low current work i.e. 'dry circuit' less than 100mADesign minimises contamination build-upNote:This connector is non-genderedITT DL rangeThe DL range of zero insertion force (ZIF) multi-pole connectors, with high contact densities are commonly used on diagnostic and test and instrumentation equipment in medical, computer, audio, broadcast and avionics industries.High pin counts - 60, 96, 156, 260 and 360 wayLong life - 10000 mating cyclesCam actuated zero insertion force couplingBackshell/strain relief and polarisation optionsMetal and plastic plug and socket bodiesMetal products have excellent shielding propertiesStandard and low current contacts available Features and Benefits Current rating is 5ACable mountCrimp termination

ITT Cannon Circular Connector The ITT Cannon Sure-Seal series black 10-contacts male circular connector has a plug-type connection. This cable mount connector has a voltage rating of 400VAC and a current rating of up to 8A per contact. It is made from nitrile-butadiene rubber with tin-plated copper alloy contacts. It is a simple, one-piece moulded body means that no other parts, apart from the contacts that are required to complete the connection. This connector is coupled with resistance to brake fluid, anti-freeze, fuels and the steam cleaning enables the connector to be used in any harsh environment area of the vehicle.IP67 ITT Sure-Seal and Mini Sure-SealDeveloped to meet the increased requirements for safety and reliability in the automotive field these sealed connectors satisfy all of the parameters defined by automotive/industrial standards covering such areas as vibration, shock, saltwater spray, industrial gas, low milliVolt drop and low contact resistance.The plugs and receptacles are polarised to prevent mismating, using 2 stepped planes on each of the mating faces, which must be properly oriented for the contacts to engageThe mated connectors are IP67 rated and sealing integrity is still maintained with exposure to brake fluid, gasoline, diesel fuel, anti-freeze, ultra-violet, ozone and steam cleaning under normal operating conditionsCable Boots, to seal the wired cable jacket to the connector housing are available and must be ordered separately.Note:Contacts must be ordered separately. Features and Benefits Straight body orientationCrimp termination methodPolarized against mis-matchCompact sizeWater submersible Durability of 50 mating cyclesWire insulation sealing ranging between 1.8mm and 2.8mmOperation temperature ranging between -40°C and 105°C Applications Industrial automation and instrumentationCommercial electronics Certifications IP67 rated

ITT Cannon Circular Connector The ITT Cannon Sure-Seal series black 7-contacts male circular connector has socket type connection. This cable mount connector has a voltage rating of 400VAC and a current rating of up to 8A per contact. It is made from nitrile-butadiene rubber with tin-plated copper alloy contacts. It is a simple, one-piece moulded body means that no other parts, apart from the contacts that are required to complete the connection. This connector is coupled with resistance to brake fluid, anti-freeze, fuels and the steam cleaning enables the connector to be used in any harsh environment area of the vehicle.IP67 ITT Sure-Seal and Mini Sure-SealDeveloped to meet the increased requirements for safety and reliability in the automotive field these sealed connectors satisfy all of the parameters defined by automotive/industrial standards covering such areas as vibration, shock, saltwater spray, industrial gas, low milliVolt drop and low contact resistance.The plugs and receptacles are polarised to prevent mismating, using 2 stepped planes on each of the mating faces, which must be properly oriented for the contacts to engageThe mated connectors are IP67 rated and sealing integrity is still maintained with exposure to brake fluid, gasoline, diesel fuel, anti-freeze, ultra-violet, ozone and steam cleaning under normal operating conditionsCable Boots, to seal the wired cable jacket to the connector housing are available and must be ordered separately.Note:Contacts must be ordered separately. Features and Benefits Straight body orientationCrimp termination methodPolarized against mis-matchCompact sizeWater submersible Durability of 50 mating cyclesWire insulation sealing ranging between 1.8mm and 2.8mmOperation temperature ranging between -40°C and 105°C Applications Industrial automation and instrumentationCommercial electronics Certifications IP67 rated

The ITT Cannon Metal Protecting Caps for Receptacles with Chain is designed according to the VG95234 specification, offering a reliable and versatile connector solution. An improvement over the MIL-C-5015 series, the CA Bayonet features a proven reverse bayonet coupling design that provides excellent vibration protection with a simple 120° turn. Rugged aluminium shell for severe conditionsBayonet coupling with rigid stainless steel roller bolts for fast and reliable matingAudible sound and colour marked snap in position ensure additional coupling security

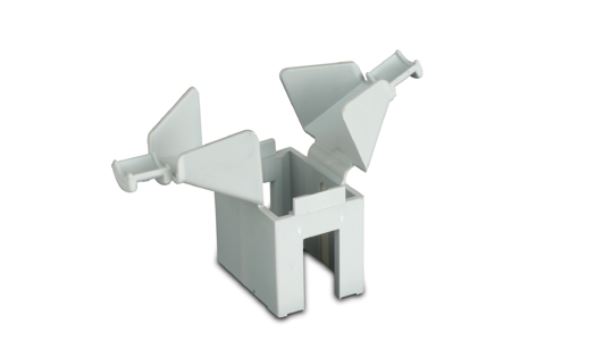

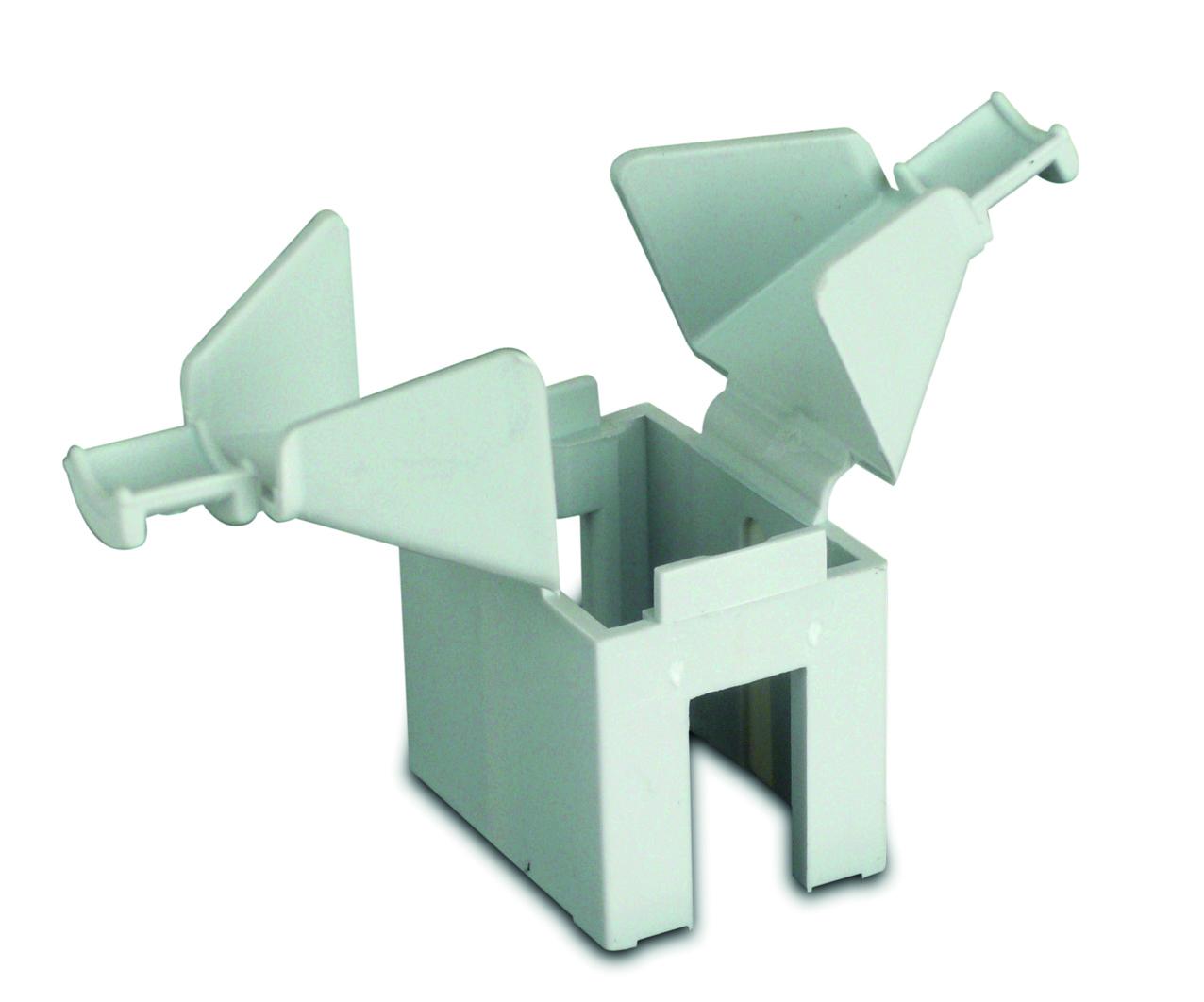

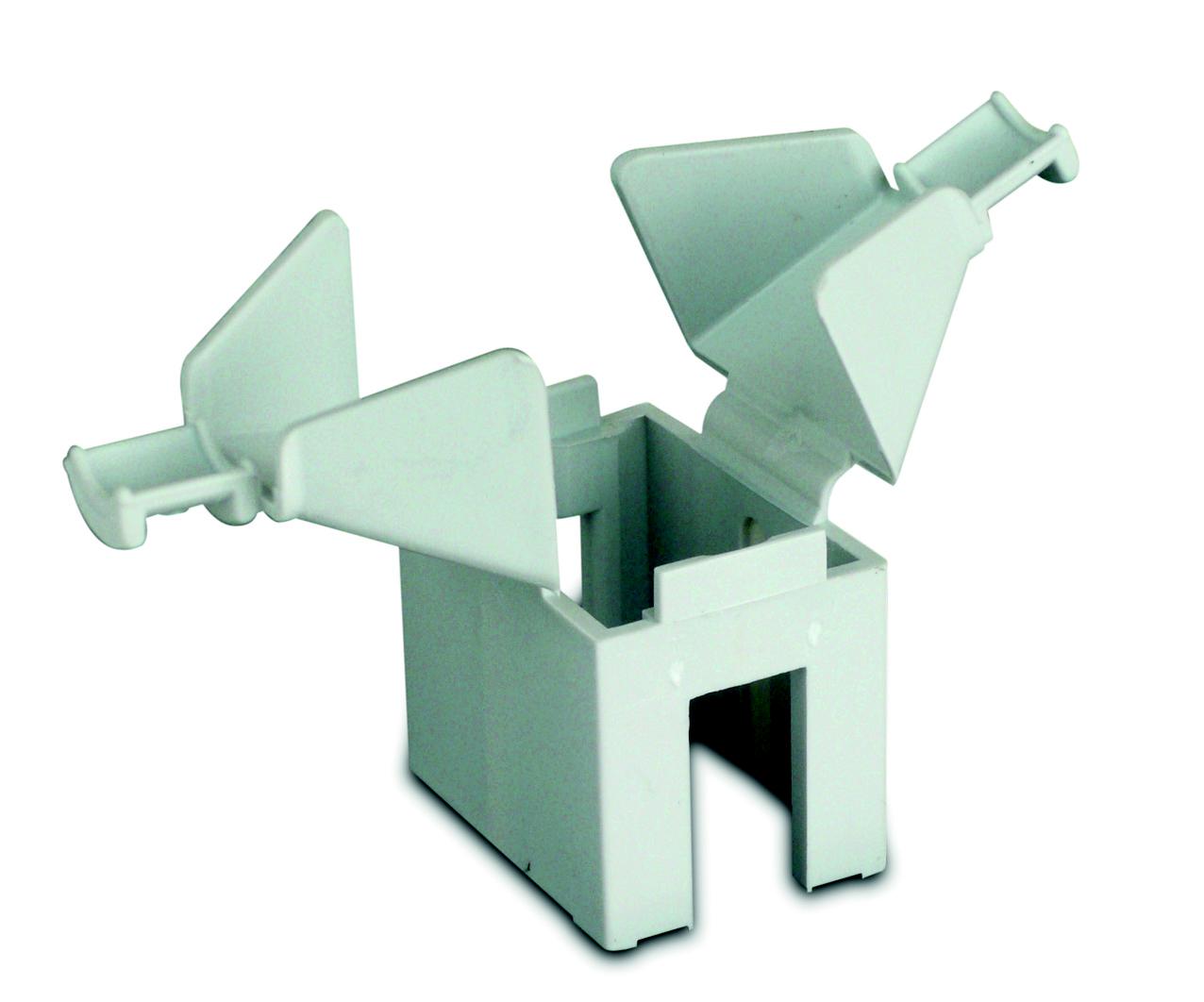

Cable Shells (Type A) Hoods available

The ITT Cannon IT04 series 3 way receptacle without end cap has grey color include N-Seal (larger diameter seal) are used for receptacle connector for housing. Environmentally sealedHarsh environmentCost-effective

Panel Drain Connectors 400A ITT VEAM PowerLock panel drain connectors are field installable power distribution connectors which serve a broad industry base including generator distribution connectors at carnivals, outdoor concerts, sporting events and many other heavy industry applications that require a robust and hard wearing power connector.ITT VEAM PowerLock panel drain connectors are single pole connectors that accept line source connectors of the same colour coding as part of the power supply daisy chain. Supplied with female contact. Rigid IP2Xspring loaded finger proof noseO Ring to guarantee IP67 when mated

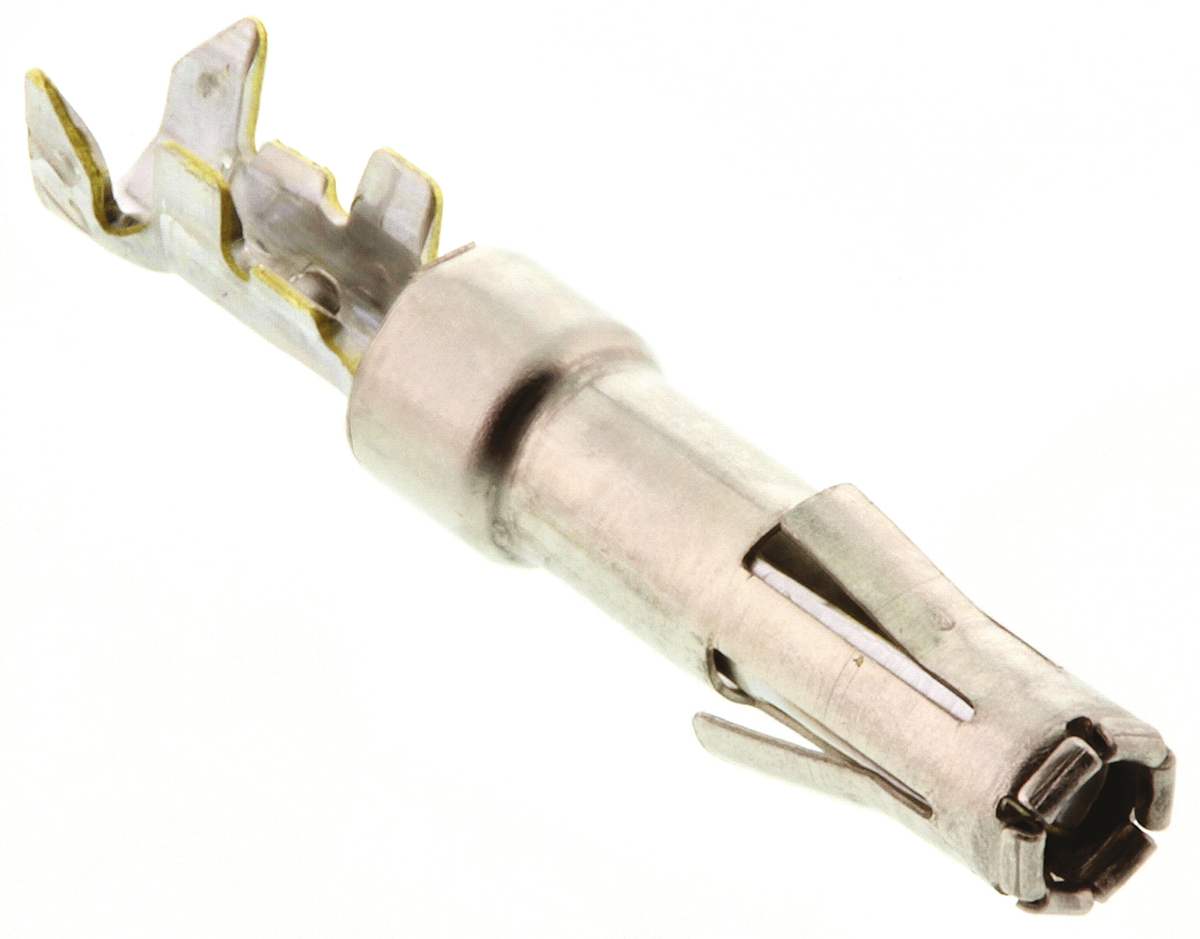

Tinned contacts, in two sections for crimping Crimping on the insulation is provided on all contacts except the 14 AWG model.

ITT Cannon Circular Connector The ITT Cannon Trident TNM series 4-contacts, the male circular connector has a plug(pin)-type connection. This cable mount connector has a voltage rating of 250VAC and a current rating of up to 16A per contact. This connector is made from strong nickel-plated zinc alloy shells with a metal coupling ring for high reliability and durability. This connector provides RF shielding from cable to equipment or cable to cable that satisfies EMC requirements.ITT TNM shieldedSignal versions have the same planform and contact arrangements as the QM range so upgrading and interchangeability can be achieved.Includes a rear rubber seal that enables IP67 rating to be maintained if only some contacts are used. The rubber seal can be discarded if a backshell is to be used. Both are rated to IP67.Cable, chassis and jam nut configurations available in standard and reversed formats.One, two or three-part crimp contacts, also solder cup and PCB terminating contacts available for signal transfer. Power contacts are only required for power/signal connector types.Note:Contacts and crimp tooling must be ordered separately (typical of contact range) for full selection of contacts. Features and Benefits Straight body orientationCrimp termination methodShell size is 10Durability of 200 mating cyclesRF shielding inherent in the full metal constructionOperating temperature ranging between -55°C and 105°C Applications Industrial automationCommercial electronics Certifications IP67 ratedUL approved

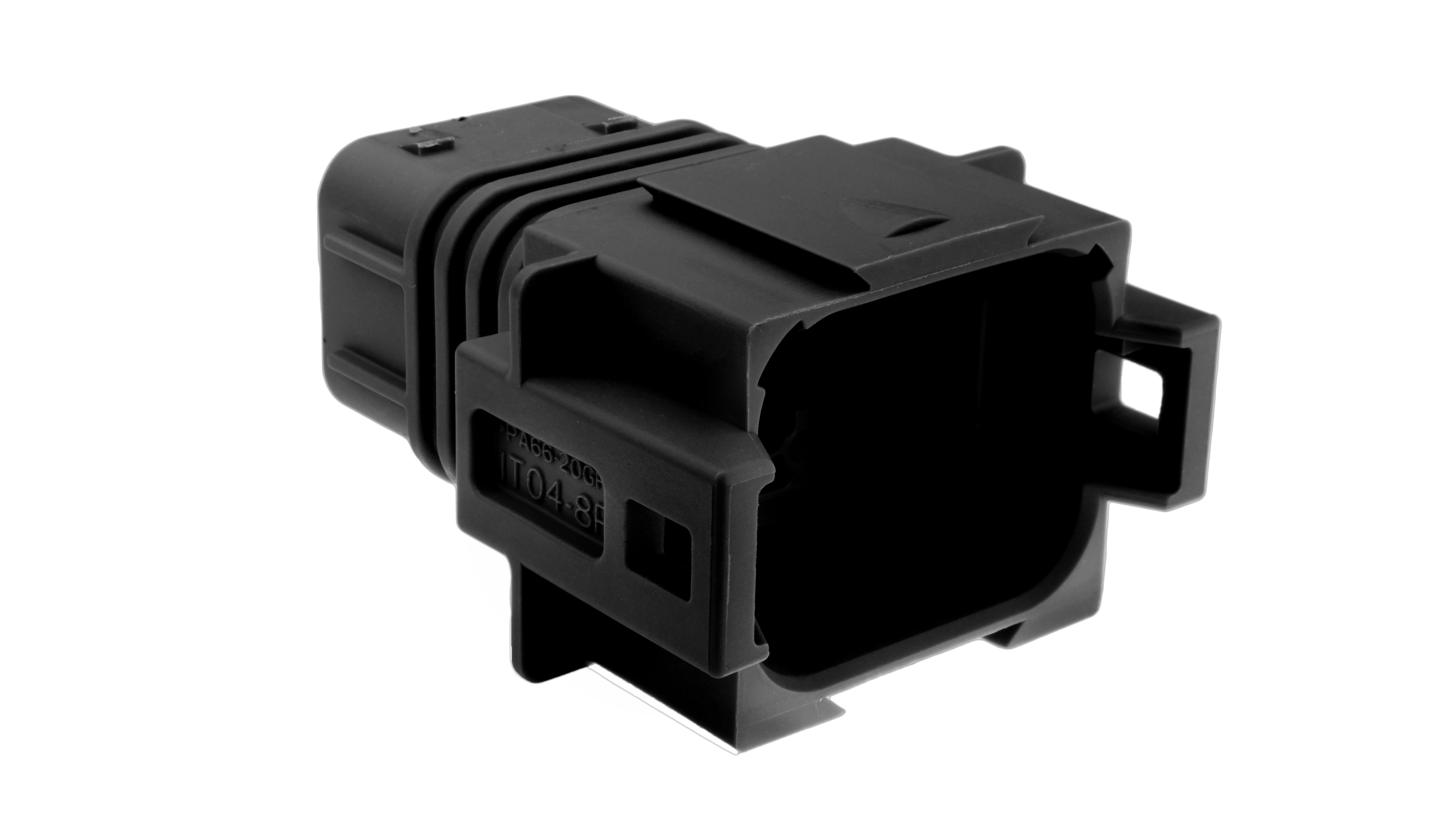

The ITT Cannon IT04 series 6 way receptacle without end cap has black color include E-Seal (reduced diameter seal) are used for receptacle connector for housing. Environmentally sealedHarsh environmentCost-effective
