Standard Chassis Plug and Socket Standard series chassis sockets are also compatible with the ’Rapid’ series cable plug

Chassis Socket

Cable Plug and Socket

Cable Plug and Socket

Cable Plug and Socket

Chassis Socket

Cable Plug/Socket From Jaeger,

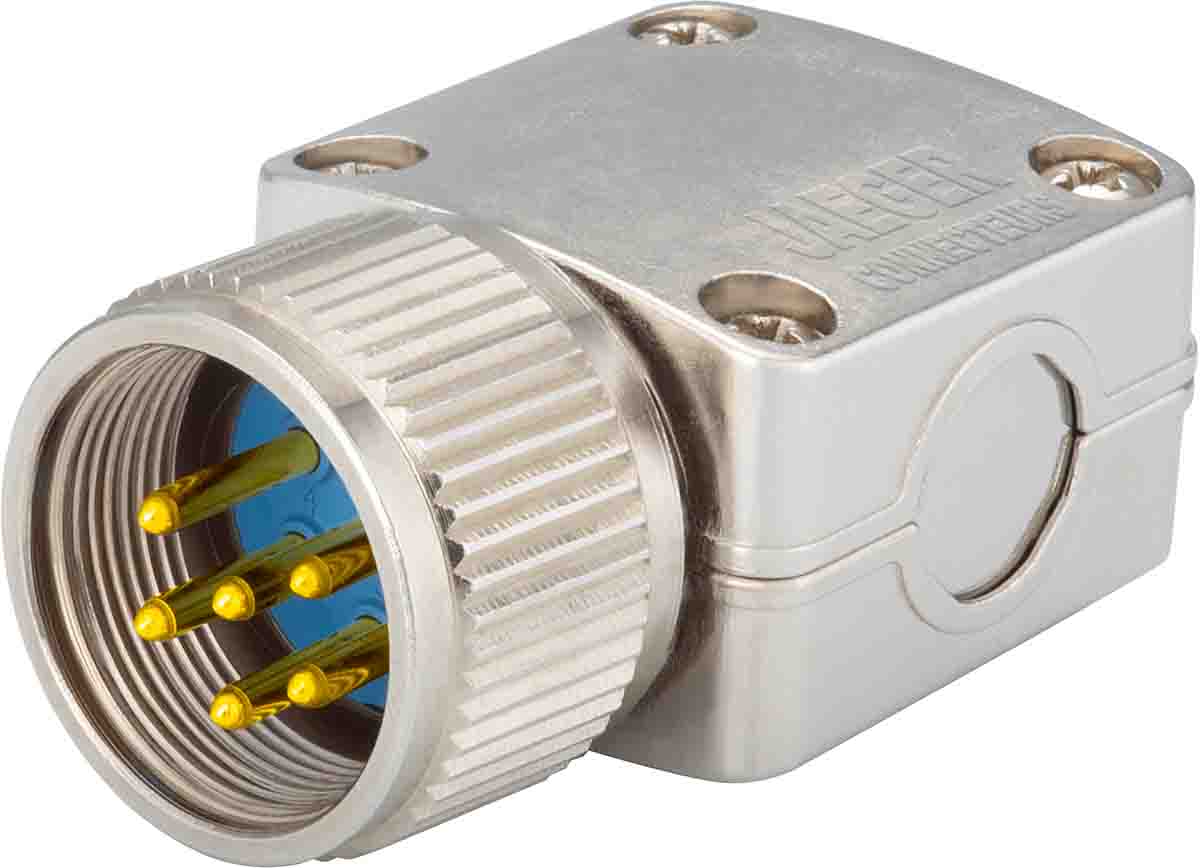

"Industrial" series - Plugs Model with 3 to 7 contacts of 1.6 mm diameter in a size 1 housing, and 12 contacts in a size 2 housing in nickel-plated aluminium alloy.<BR/>Quick click locking system (1//6 of a turn).<BR/>The contacts can be taken apart and may also be crimped (pliers M 22520-1//01 and M 22520-1//02) or soldered to the connecting wires.<BR/>Tool ref. 5774 540 06 (stock no. <a href="/web/p/products/2855161">285-5161</a>) is indispensable for fitting and removal of contacts. The plugs in the ''industrial'' series are available in male or female versions.<BR/>Fitted with a square, rear connector, made up of two half-shells. This connector features three positions for identical cable connections, which are oriented differently and which may be used simultaneously. These openings may accomodate one or more cable grips (available separately). Unused openings must remain plugged by the original blanking plates.

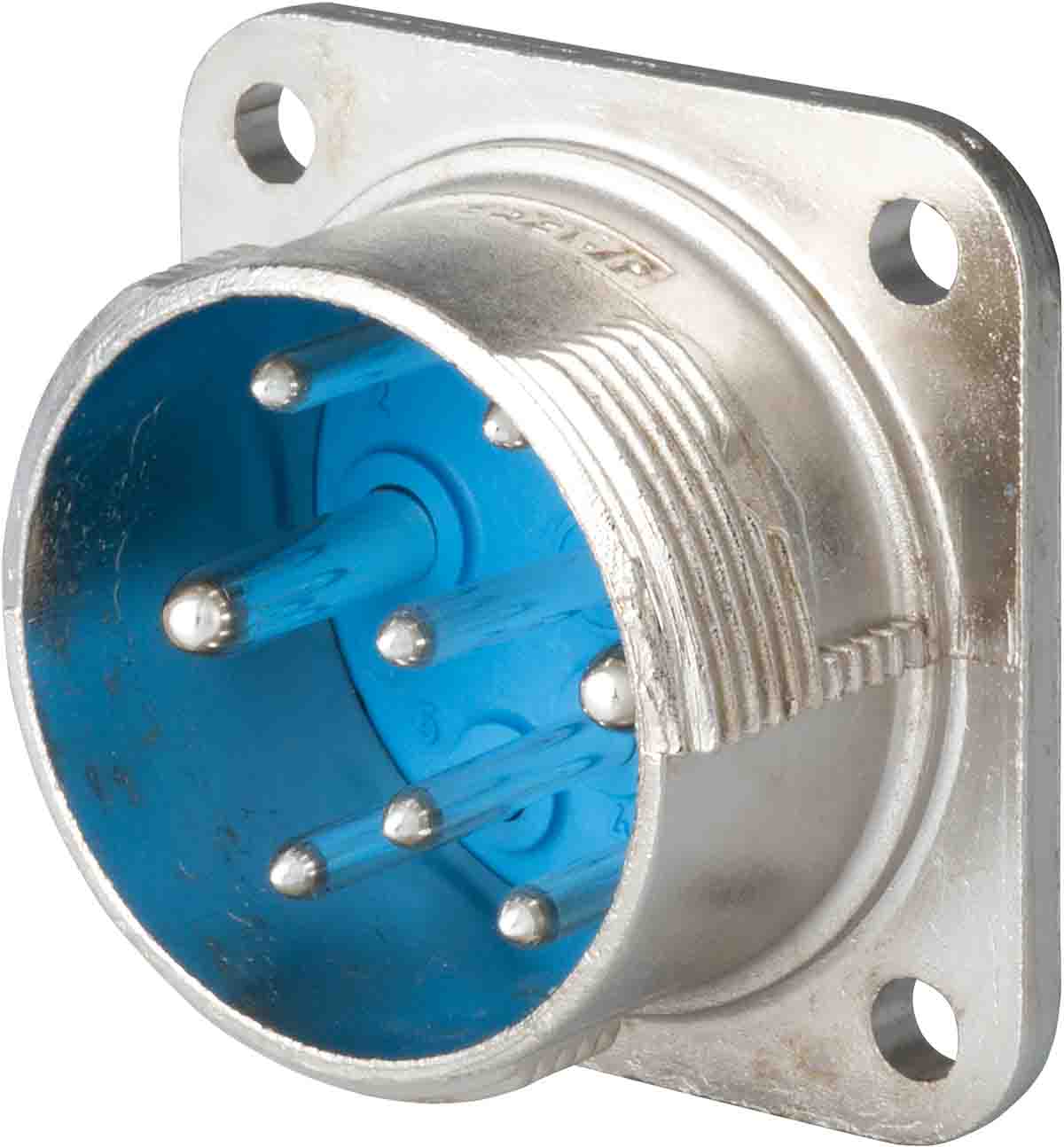

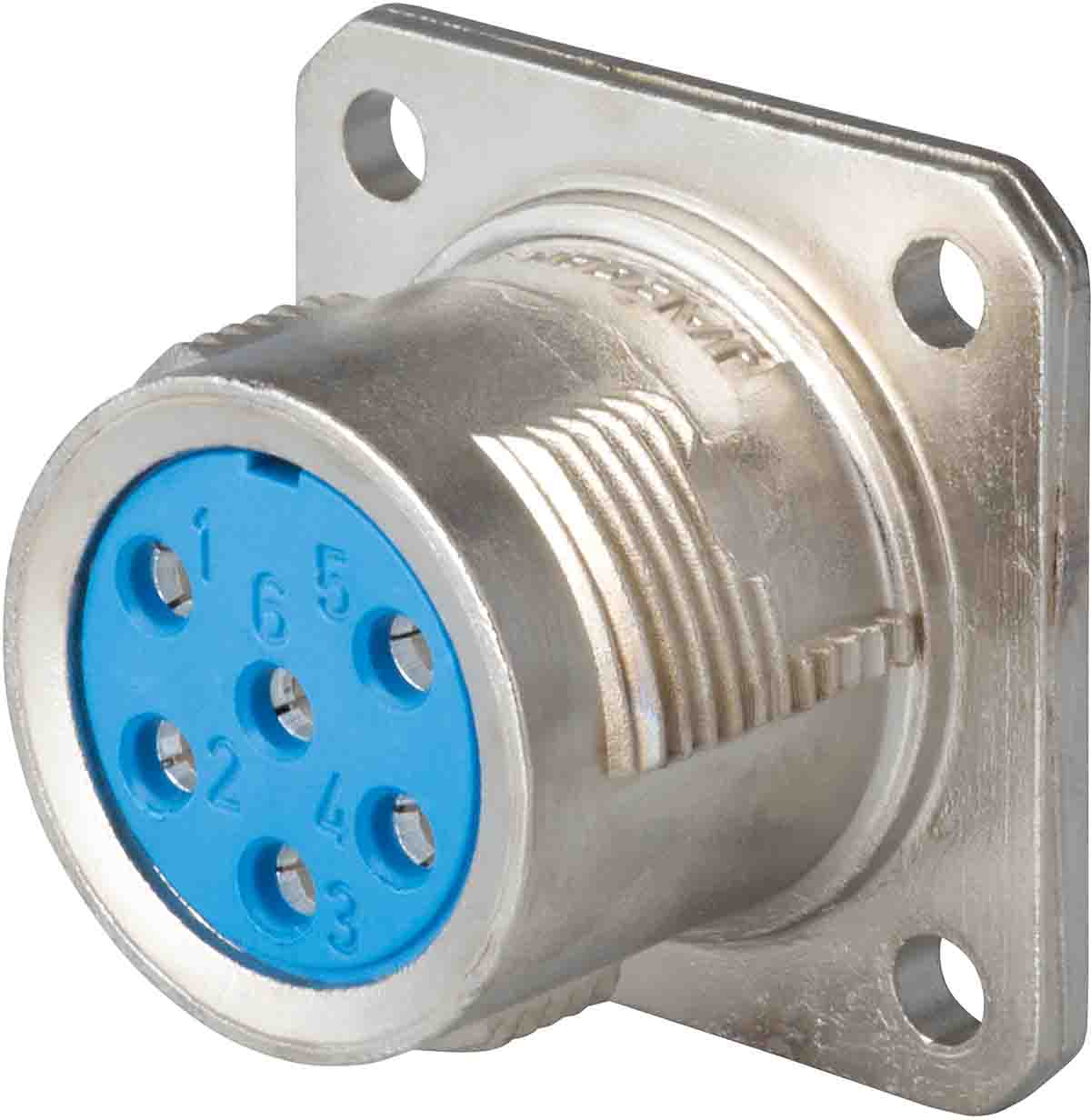

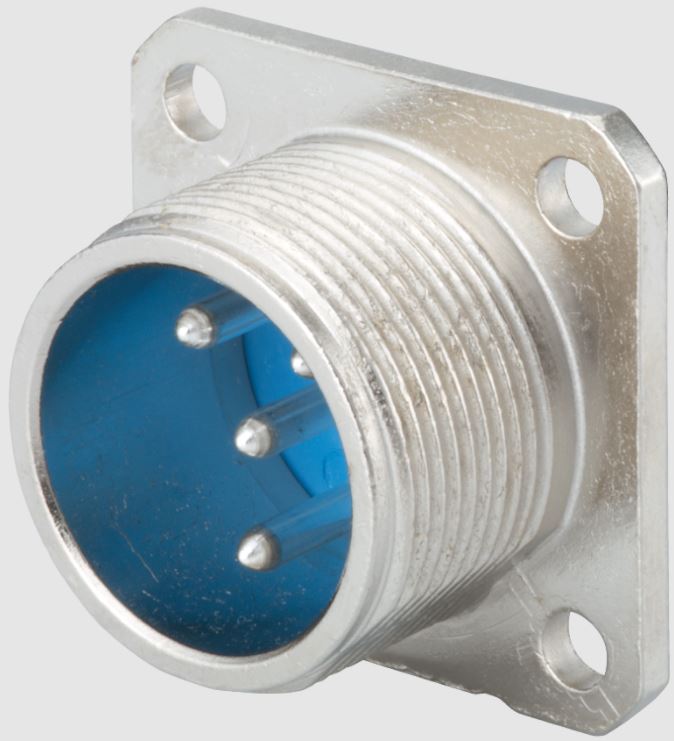

"Industrial" series - Sockets Model with 3 to 7 contacts of 1.6 mm diameter in a size 1 housing, and 12 contacts in a size 2 housing in nickel-plated aluminium alloy.<BR/>Quick click locking system (1//6 of a turn).<BR/>The contacts can be taken apart and may also be crimped (pliers M 22520-1//01 and M 22520-1//02) or soldered to the connecting wires.<BR/>Tool ref. 5774 540 06 (stock no. <a href="/web/p/products/2855161">285-5161</a>) is indispensable for fitting and removal of contacts. The square socket of the "industrial" series is available in male or female versions.

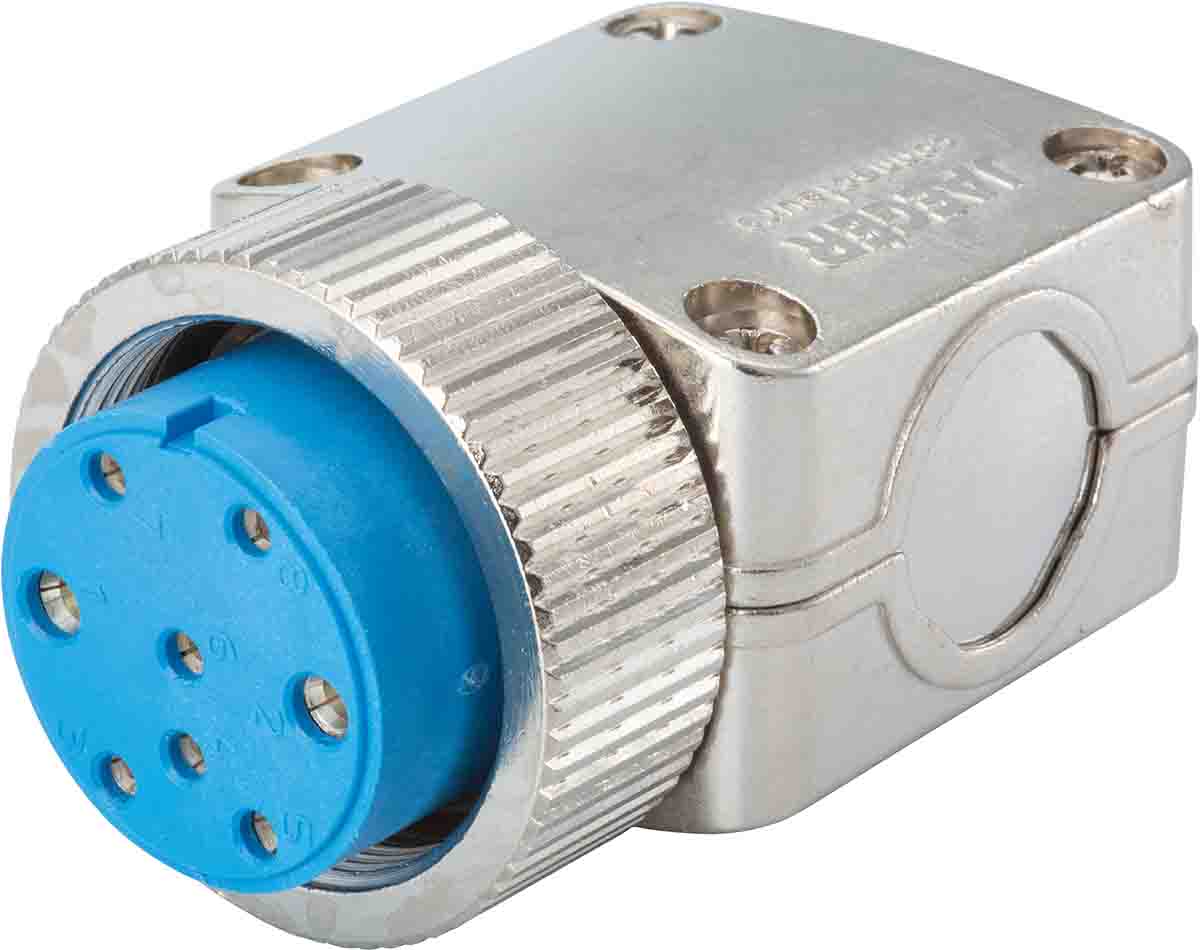

"Quick" series - Plugs "Quick" series plugs are available in sizes 1 and 2, in the most commonly used configurations.<BR/>They lock onto "quick" series sockets with a click after 1/6 of a turn.<BR/>Available in male or female versions.<BR/>Fitted with a square, rear connector, made up of two half-shells. This connector features three positions for identical cable connections, which are oriented differently and which may be used simultaneously. Theseopenings may accomodate one or more cable grips (available separately). Unused openings must remain plugged by the original blanking plates.

&#146;Rapid&#146; Cable Socket Jaeger's 'Rapid' Series quick-disconnect socket insert has contact options ranging from 3 to 12 pin. This connector features a spring loaded coupling system for quick disconnection of the plug.

&#146;Rapid&#146; Cable Socket Jaeger's 'Rapid' Series quick-disconnect socket insert has contact options ranging from 3 to 12 pin. This connector features a spring loaded coupling system for quick disconnection of the plug.
