The electronic thermostat of the JUMO measures the temperature via The electronic thermostat measures the temperature via resistance thermometer, thermocouple or current 0(4) to 20 mA and can be configured as a simple heating or cooling thermostat depending on the set switching behavior.With the timer function, the thermostat function (heating or cooling) can be started or also limited in time. The switching states of the relay and the digital output as well as the actual and setpoint values are shown simultaneously on the display. It has a resolution of 64 x 80 pixels, is backlit and can be switched to the national languages German, English, French and Spanish. The device is operated via 4 keys on the front panel. The electrical connection is made via PCB terminals with push-in technology. A PhotoMOS® relay for limit value monitoring or a digital input for connecting a floating contact are available as options. A setup program for easy configuration, parameterization and readout of the data logger is available as an accessory. Special features- 5 different measurement input groups available- intuitive operation and configuration on the device or with the setup program via USB interface- user level with 8 parameters- dot matrix display 64 x 80 pixels with 4 national languages- data logger function- service and operating hours counter- Connection via PCB terminals with push-in technology- 10A relay (changeover contact)- customer-specific linearization in the setup program- limit value monitoring- timer function- connection diagram can be called up in the LCD display

TYA-201 1-Phase Power Controller The micro-processor controlled single-phase power controller Jumo TYA 201 displays all parameters in a backlighted LCD display and is operated using the 4 keys on the front.SCR power controllers are employed where larger resistive and inductive loads have to be switched, e.g. in industrial kiln construction and in plastics processing. The SCR power controller comprises two SCRs connected in anti-parallel, the insulated cooling body and the control electronics.The operating modes are phase-angle, burst-firing mode, half-wave control, SSR logical operation , fast logical operation, alpha start and soft start.Available subordinate controls are U, U2, I, I2 and P control.Use of a subordinate control ensures that fluctuations in the supply voltage do not affect the control loop during the control process. Single-phase SCR power controllerSimple configuration of the device through plain text displaySetup program for configuration via USB interfaceTransmission of the setup data is possible even without voltage supply to the device (USB port supplies power)Network load optimization through dual energy managementGeneralized phase mode, burst-firing mode, and half-wave controlSoft start functionCurrent limitingResistance monitoring and limitation for MoSi2 heating elementsTeach-in function for the detection of partial load failureIntegrated diagnostic systems (e.g. rotating field detection)

Bimetallic dial thermometer with measurement system Dial thermometer with bimetallic measurement system for universal on-site temperature measurementImpervious to ambient temperatureRobust measurement systemCorrosion-resistant stainless steel housingProtection rating IP54Class 1.0Diameter: 80 mmImmersion tube outlet at centre of the backTA 06 immersion tube with sliding stainless steel compression fitting

Bimetallic dial thermometer with measurement system Dial thermometer with bimetallic measurement system for universal on-site temperature measurementImpervious to ambient temperatureRobust measurement systemCorrosion-resistant stainless steel housingProtection rating IP54Class 1.0Diameter: 80 mmImmersion tube outlet at centre of the backTA 06 immersion tube with sliding stainless steel compression fitting

Bimetallic dial thermometer Dial thermometer with bimetallic measurement system for universal on-site temperature measurementAvailable with immersion tube at the back for 63, 80 and 100 mm diameters and with immersion tube at the bottom for 100 mmMeasurement class 1.5, protection rating IP5101-18 version is at a 90° angle

Fixed value or program controller2 parameter blocksAutotuningSetpoint changeover (4 setpoint values)Ramp functionTimer function4 limit value monitoring functionsService counterIndividual operator levelSeparate application using structured text (ST code, option)Math and logic function (option)Fast wiring through PUSH IN technologyRS485 interface (option)Additional analog and digital inputs via RS485 interfaceApplicationsControl of temperatures, pressures, and other process variables

Surface Mount Thermostat with Rigid Capillary The surface mount thermostat works on the principle of volume expansion, if the temperature of the filling medium inside the probe increases the volume increases which results in the elevation of a diagrapm that triggers a microswitch. IP54 Rated1xSPDT switching contactTemperature control or temperature monitoring functionsDifferential of 3-4%

dTRANS T05 Software Jumo setup software for use with dTRANS T05 Programmable 2-Wire Transmitter.

The electronic thermostat of the JUMO measures the temperature via The electronic thermostat measures the temperature via resistance thermometer, thermocouple or current 0(4) to 20 mA and can be configured as a simple heating or cooling thermostat depending on the set switching behavior.With the timer function, the thermostat function (heating or cooling) can be started or also limited in time. The switching states of the relay and the digital output as well as the actual and setpoint values are shown simultaneously on the display. It has a resolution of 64 x 80 pixels, is backlit and can be switched to the national languages German, English, French and Spanish. The device is operated via 4 keys on the front panel. The electrical connection is made via PCB terminals with push-in technology. A PhotoMOS® relay for limit value monitoring or a digital input for connecting a floating contact are available as options. A setup program for easy configuration, parameterization and readout of the data logger is available as an accessory. Special features- 5 different measurement input groups available- intuitive operation and configuration on the device or with the setup program via USB interface- user level with 8 parameters- dot matrix display 64 x 80 pixels with 4 national languages- data logger function- service and operating hours counter- Connection via PCB terminals with push-in technology- 10A relay (changeover contact)- customer-specific linearization in the setup program- limit value monitoring- timer function- connection diagram can be called up in the LCD display

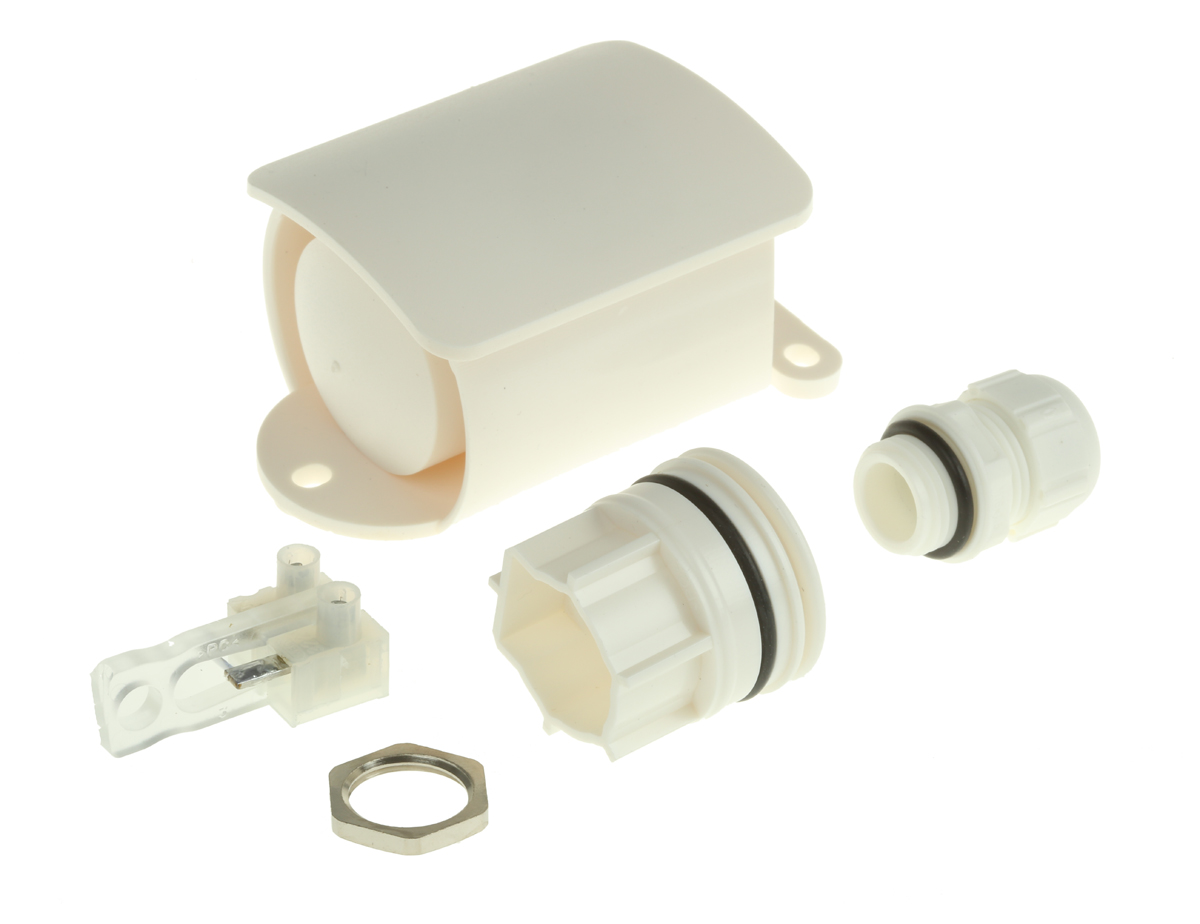

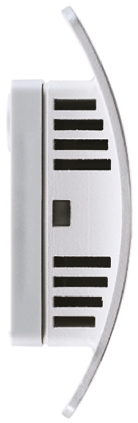

Room / External Temperature Sensor For temperatures between -30 and +80 °CFor use in climate technologyQuick and easy assemblyCan be connected in 2, 3 or 4-conductor circuitProtection rating IP20 for room resistance thermometerProtection rating IP54 for room / external thermometerDimensions (IP20): 54 x 84 x 31 (IP54): 75 x 75 x 65

PT100 Probes with Shockproof Connector This range of PT100 probes enables temperature measurement under pressure in motors, compressors, plant engineering and ship building. They are highly resistant to shock and vibration and easy to connect with shockproof connector. Temperature range -50°C to +300°CTemperature measurement with pressure up to 25 barsGold plated contacts for a better connectivity2 wire PT100 Class B typeProcess connection: M14 x 1.5mmOperating temperature from -40 → 125 °CIP65 protection classStainless steel

The Jumo dTRANS T06 Multifunctional Four-Wire Transmitter in Mounting Rail Case acquires the temperature through an RTD temperature probe or a thermocouple requires DC 24 V input supply. Customer-specific linearizationHigh galvanic signal separationService and operation hours counter
