Keithley 2260B-30-36 Programmable Power Supply, 360W, 1 Output, 0 → 30V, 36A Keithley Series 2260B programmable DC power supplies have constant power outputs to provide a flexible range of voltage and current output combinations. The wide range of output voltages and currents, together with multiple interfaces, make possible applications ranging from environmental test, stress test and accelerated life testing to LED and high power component testing, automotive testing, battery research and test, and production test. If greater output is required then models can be combined in series or parallel and controlled using a master-slave configuration. In such cases the power supply defined as the master unit will show the total voltage and current.• Sources wide range of voltages and currents• Models can be combined to expand outputs• Prevents damage from inrush current• Constant current priority setting• Programmable output resistance• Delivered power is displayed with either output current or output voltage• Choice of analog control, USB interface or LAN interface• Save on bench and test system space Features and Benefits • Single output, high power density, system power supply • 360 W, 720 W and 1080 W versions with voltage up to 800 V and current up to 108 A• Programmable voltage or current rise and fall times preventing damage from inrush current to low impedance loads• Constant current priority setting reduces voltage and current overshoot when powering LEDs• Simulate a battery’s output with a programmable output resistance• Choose from analog control, USB, LAN, or an optional GPIB interface for automated control• Save bench and test system space: six 71mm wide 360 W units or three 142 mm wide 720 W units or two 214 mm wide 1080 W units fit in a standard rack width• Ability to combine two of same model in series or three in parallel to increase voltage / current• Three-year warranty• KickStart Software support Accessories Software OptionsKickstart www.tek.com/en/products/keithley/keithley-control-software-bench-instruments/kickstart Software Updates KickStart www.tek.com/en/products/keithley/keithley-control-software-bench-instruments/kickstartFor full list of accessories, application and software options, please see datasheetKeep your instrument up to date and to enhance the functionality, please visit Tektronix website for the latest software updates at https://www.tek.com/en/products/software Applications Automotive Battery Testing Embedded DesignPower Measurements and AnalysisEducationManufacturing test/troubleshooting

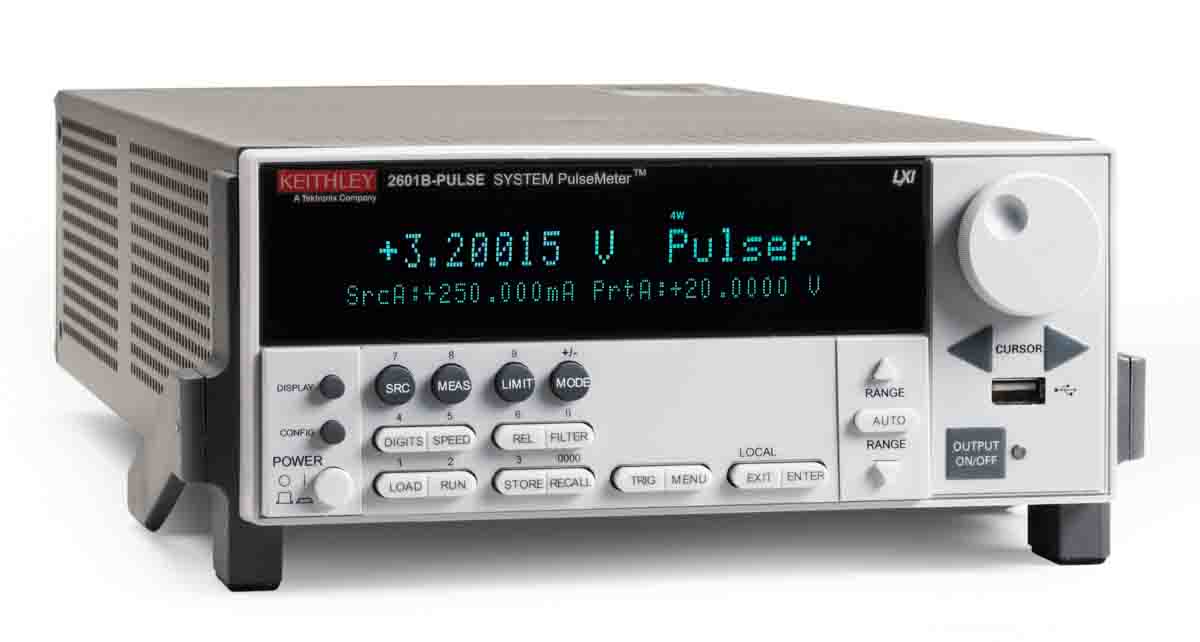

Keithley Source Meter Series 2600B Series 2600B Source Meter current/voltage source and measurement instruments are built from Keithley's 3rd generation SMU technology. Each tightly integrated instrument offers the capabilities of a precision power supply, true current source, 6 digit DMM, arbitrary waveform generator, pulse generator and electronic load. Series 2600B Source Meter models feature built-in Java-based test software which enables true plug & play I/V characterisation through any browser, on any computer, from anywhere in the world. Series 2600B is a family of powerful instruments with unique capabilities in testing components and devices across many applications including R&D, production test, education and QA/FA. Features and Benefits: • 4-quadrant voltage/current source and measure with 6 digit resolution (2-line VFD display)• Choose model from series offering exceptional dynamic range, 10A pulse to 0.1fA and 200V to 100nV• Built-in Java-based test software• Test Script Processing (TSP) technology embeds complete test programs for best-in-class system-level throughput• TSP-Link expansion technology for multi-channel parallel test without a mainframe• USB 2.0, LXI-C, GPIB, RS-232 and digital I/O interfaces• Software drivers and development/debug tools supplied• Model choice includes lower specification (2604B, 2614B, 2634B) instruments Typical Applications: • Semiconductor Structures- Wafers / Thin films• Nanomaterials and Devices- Graphene / Carbon Nanotubes/ Nanowires /Low Power nanostructures• Discrete and Passive Components- Resistors / diodes / Zener Diodes / LEDs, disk drive heads, sensors- small signal bipolar junction transistors (BJT’s), Field Effective Transistors(FET’s)• Organic Materials and Devices- E-links / Printable Electronics• Material Characterization- Resistivity / Hall Effect

Keithley Source Meter Series 2600B Series 2600B Source Meter current/voltage source and measurement instruments are built from Keithley's 3rd generation SMU technology. Each tightly integrated instrument offers the capabilities of a precision power supply, true current source, 6 digit DMM, arbitrary waveform generator, pulse generator and electronic load. Series 2600B Source Meter models feature built-in Java-based test software which enables true plug & play I/V characterisation through any browser, on any computer, from anywhere in the world. Series 2600B is a family of powerful instruments with unique capabilities in testing components and devices across many applications including R&D, production test, education and QA/FA. Features and Benefits: • 4-quadrant voltage/current source and measure with 6 digit resolution (2-line VFD display)• Choose model from series offering exceptional dynamic range, 10A pulse to 0.1fA and 200V to 100nV• Built-in Java-based test software• Test Script Processing (TSP) technology embeds complete test programs for best-in-class system-level throughput• TSP-Link expansion technology for multi-channel parallel test without a mainframe• USB 2.0, LXI-C, GPIB, RS-232 and digital I/O interfaces• Software drivers and development/debug tools supplied• Model choice includes lower specification (2604B, 2614B, 2634B) instruments Typical Applications: • Semiconductor Structures- Wafers / Thin films• Nanomaterials and Devices- Graphene / Carbon Nanotubes/ Nanowires /Low Power nanostructures• Discrete and Passive Components- Resistors / diodes / Zener Diodes / LEDs, disk drive heads, sensors- small signal bipolar junction transistors (BJT’s), Field Effective Transistors(FET’s)• Organic Materials and Devices- E-links / Printable Electronics• Material Characterization- Resistivity / Hall Effect

Keithley 2220-30-1 and 2220G-30-1 Programmable Dual DC Power Supplies The Model 2220-30-1 programmable dual channel DC power supply combines two channels of output power to cost-effectively characterise and test a wide range of devices, circuit boards, modules and products that require more than one power source. Each channel is capable of outputting up to 30V and up to 1.5A. The 2220-30-1 offers performance, versatility and ease of use to maximise the information from characterisation or test as quickly and as easily as possible. It performs as effectively in automated test systems as in manual instrument configurations. USB interface is standard, for remote control, and the 'G' version adds a GPIB interface.

Keithley 7705 40-channel Single-pole Control Module The Keithley 7705 plug-in module offers 40 channels of independent switching. These channels ase designed to control power to the DUT and switching loads. They can also be used to directly control devices such as indicators and relays. The 7705 is for use with Keithley systems 2700 ( 760-0354 , 7600357 ), 2701 ( 760-0351 ) and 2750 ( 760-0360 ). 300V, 2A capacityTwo 50-pin female D-sub connectors are standard for hook-up and quick teardownRelay closures stored in onboard memory

Keithley 7709 6x6 Matrix Module The Keithley 7709 6x6 Matrix Module is a plug-in module which can connect any combination of 6 differential channels of instrumentation to any combination of 8 differential device-under-test channels. Typical instrumentation includes AC and DC sources, internal or external meters and oscilloscopes. This matrix configuration enables wide flexibility for complex test systems. The 7709 is for use with Keithley systems 2700 ( 760-0354 , 7600357 ), 2701 ( 760-0351 ) and 2750 ( 760-0360 ). Automatic 2-wire or 4-wire connection to DMM6 row x 8 column matrixExpandable to larger switch configurations by daisy-chaining or cascading multiple modules2 female D-sub connectors are standard for secure hook-up and quick teardown300V, 1A capacity

Keithley 2260B-30-72 Programmable Power Supply, 720W, 1 Output, 0 → 30V, 72A Keithley Series 2260B programmable DC power supplies have constant power outputs to provide a flexible range of voltage and current output combinations. The wide range of output voltages and currents, together with multiple interfaces, make possible applications ranging from environmental test, stress test and accelerated life testing to LED and high power component testing, automotive testing, battery research and test, and production test. If greater output is required then models can be combined in series or parallel and controlled using a master-slave configuration. In such cases the power supply defined as the master unit will show the total voltage and current.• Sources wide range of voltages and currents• Models can be combined to expand outputs• Prevents damage from inrush current• Constant current priority setting• Programmable output resistance• Delivered power is displayed with either output current or output voltage• Choice of analog control, USB interface or LAN interface• Save on bench and test system space Features and Benefits • Single output, high power density, system power supply • 360 W, 720 W and 1080 W versions with voltage up to 800 V and current up to 108 A• Programmable voltage or current rise and fall times preventing damage from inrush current to low impedance loads• Constant current priority setting reduces voltage and current overshoot when powering LEDs• Simulate a battery’s output with a programmable output resistance• Choose from analog control, USB, LAN, or an optional GPIB interface for automated control• Save bench and test system space: six 71mm wide 360 W units or three 142 mm wide 720 W units or two 214 mm wide 1080 W units fit in a standard rack width• Ability to combine two of same model in series or three in parallel to increase voltage / current• Three-year warranty• KickStart Software support Accessories Software OptionsKickstart www.tek.com/en/products/keithley/keithley-control-software-bench-instruments/kickstart Software Updates KickStart www.tek.com/en/products/keithley/keithley-control-software-bench-instruments/kickstartFor full list of accessories, application and software options, please see datasheetKeep your instrument up to date and to enhance the functionality, please visit Tektronix website for the latest software updates at https://www.tek.com/en/products/software Applications Automotive Battery Testing Embedded DesignPower Measurements and AnalysisEducationManufacturing test/troubleshooting

Keithley 7711 2GHz 50 Ohm RF Module The Keithley 7711 2GHz 50 Ohm RF Module is a plug-in module which provides an economic, wideband signal routing solution that complements the DC/low frequency switching and measurement capability of the Integra Series systems. The 7711 offers dual 1x4 configurations and can interface with a wide range of external AC instruments including oscilloscopes, pulse generators and signal analysis tools. One channel in each multiplex bank is always closed to the corresponding OUT connector. All connections are easily accessible from the rear panel. The 7711 is for use with Keithley systems 2700 ( 760-0354 , 7600357 ), 2701 ( 760-0351 ) and 2750 ( 760-0360 ). Signal routing performance to 2GHzSwitches up to 60VdcRear panel SMA connectionsOnboard switch closure counterOnboard S parameter storage

Keithley Source Meter Series 2600B Series 2600B Source Meter current/voltage source and measurement instruments are built from Keithley's 3rd generation SMU technology. Each tightly integrated instrument offers the capabilities of a precision power supply, true current source, 6 digit DMM, arbitrary waveform generator, pulse generator and electronic load. Series 2600B Source Meter models feature built-in Java-based test software which enables true plug & play I/V characterisation through any browser, on any computer, from anywhere in the world. Series 2600B is a family of powerful instruments with unique capabilities in testing components and devices across many applications including R&D, production test, education and QA/FA. Features and Benefits: • 4-quadrant voltage/current source and measure with 6 digit resolution (2-line VFD display)• Choose model from series offering exceptional dynamic range, 10A pulse to 0.1fA and 200V to 100nV• Built-in Java-based test software• Test Script Processing (TSP) technology embeds complete test programs for best-in-class system-level throughput• TSP-Link expansion technology for multi-channel parallel test without a mainframe• USB 2.0, LXI-C, GPIB, RS-232 and digital I/O interfaces• Software drivers and development/debug tools supplied• Model choice includes lower specification (2604B, 2614B, 2634B) instruments Typical Applications: • Semiconductor Structures- Wafers / Thin films• Nanomaterials and Devices- Graphene / Carbon Nanotubes/ Nanowires /Low Power nanostructures• Discrete and Passive Components- Resistors / diodes / Zener Diodes / LEDs, disk drive heads, sensors- small signal bipolar junction transistors (BJT’s), Field Effective Transistors(FET’s)• Organic Materials and Devices- E-links / Printable Electronics• Material Characterization- Resistivity / Hall Effect

Keithley Dual Fixed Rack Mount Kit 4288-2 Keithley dual fixed rack mount kit 4288-2 for use with Keithley Instruments models 428, 486, 487, 776, 2000 Series, 2182, 2300 Series, 2400 Series, 6514, 6517A, 7001, 6430, 6485

Keithley 2230G-30-1 High Power 3-Channel Bench Power Supply, 120W, 3 Output, 0 → 30V, 1.5A The Model 2230-30-1 programmable triple channel DC power supply combines three channels of output power to cost-effectively characterise and test a wide range of devices, circuit boards, modules and products that require more than one power source. The 2230-30-1 includes two 30V/1.5A channels and adds a 6V channel with up to 5A output for powering digital circuits. It offers performance, versatility and ease of use to maximise the information from characterisation or test as quickly and as easily as possible. It performs as effectively in automated test systems as in manual instrument configurations. USB interface is standard, for remote control, and the 'G' version adds a GPIB interface. Series 2220/2230 Multi-Channel Power Supplies are excellent for use in student labs, R&D, and test labs. They provide 2 or 3 channels of isolated, high quality power to one or multiple DUTs. Features and Benefits • Two or three outputs• Linear power supply with low ripple and noise• All channels are isolated and can be controlled independently to maximize flexibility• All channels have remote sensing to ensure maximum voltage accuracy at the DUT• Two 30 V channels can be connected in series or parallel and the display shows total output voltage and current• 0.03% voltage programming accuracy and 0.1% current programming accuracy• Three-year warranty• KickStart Software support Accessories PSU AccessoriesRack Mount KitsRS Stock No. 7962624 4299-7 (Rack Mount Kit)RS Stock No. 2409950 RMU2U (Fixed Rack Mount Kit)Software OptionsKickstart www.tek.com/en/products/keithley/keithley-control-software-bench-instruments/kickstartCable and Interface AccessoriesRS Stock No. 8470999 7007-05 (Shielded GPIB cable, 0.5m)RS Stock No. 7600341 KPCI-488LPA (Low Profile IEEE-488 Interface Board) Software Updates KickStart www.tek.com/en/products/keithley/keithley-control-software-bench-instruments/kickstartFor full list of accessories, application and software options, please see datasheetKeep your instrument up to date and to enhance the functionality, please visit Tektronix website for the latest software updates at https://www.tek.com/en/products/software Applications Automotive Battery Testing Embedded DesignPower Measurements and AnalysisEducationManufacturing test/troubleshooting

Keithley Single Fixed Rack Mount Kit 4288-1 Keithley single fixed rack mount kit 4288-1 for use with Keithley Instruments models 428, 486, 487, 776, 2700, 2000 Series, 2182, 2300 Series, 2500 Series, 6514, 6517A, 7001, 6430, 6485
