Littelfuse 1812L Series Littelfuse 1812L Series offers fast response over current protection in a compact design. These fuses are ideal for applications where space is limited and high temperature solders are to be used. Applications:Plug and Play protection for motherboards.USB peripherals.PCI cards.Game console port protection.

Littelfuse 218 Series Slo-Blo Fuses 5x20mm The Littlefuse 218 series of fuses are time-lag, glass fuses which form part of their Slo Blo™ range. These reliable, cost-effective devices are ideal for circuit protection in many applications, such as appliances or utilisation equipment. The Littlefuse 218 cartridge fuse range includes various different Amp ratings and interrupting ratings. So you will be sure to find a fuse to suit your application. Features:Variety of Current Ratings Available250V Voltage RatingMeets Global StandardsRoHS CompliantLead Free Why choose a glass fuse?Glass and ceramic fuses have similar properties. However you may choose a glass fuse as it enables you to see the inside of the fuse. Therefore it is easier to determine whether the fuse has blown. What size is it?5x20 mm is a standard cartridge size and it measures approximately 20 mm long by 5 mm in diameter. They are popular in board and panel protection and will fit a compatible 5x20 fuse holder. What Speed is it?Time lag fuses, also known as time delay or slow-blow fuses, are designed to allow a spike in electricity for a short time before the fuse blows. This current can be above the rated value of the fuse for a short period of time.

Littelfuse POLY-FUSE Resettable PTCs - 1206L Series The Littelfuse 1206L series PTC provides surface mount overcurrent protection for applications where space is at a premium and resettable protection is desired.

TVS Diode Arrays, SP05 Series General Purpose ESD Protection - SP05 Series

PolySwitch™ Mains Rated LVR/LVB Series TE PolySwitch LVR/LVB series line-voltage product line of polymeric positive temperature coefficient (PPTC) devices includes components that are rated for line voltages of 120VAC and 240VAC, for up to 2A of operating current at 20°C. They help protect against damage caused by both overcurrent surges and overtemperature faults. They also offer low resistance and are compatibly sized with fuse solutions. Typical application include: medical equipment, motors, fans and blowers, security and fire alarm systems, test and measurement equipment, transformers, USB hubs, ports and peripherals. Current ratings from 50mA to 2A Line voltage rating of 120VAC and 240VAC Fast time-to-trip Low resistanceRoHS compliant

PolySwitch™ Mains Rated LVR/LVB Series TE PolySwitch LVR/LVB series line-voltage product line of polymeric positive temperature coefficient (PPTC) devices includes components that are rated for line voltages of 120VAC and 240VAC, for up to 2A of operating current at 20°C. They help protect against damage caused by both overcurrent surges and overtemperature faults. They also offer low resistance and are compatibly sized with fuse solutions. Typical application include: medical equipment, motors, fans and blowers, security and fire alarm systems, test and measurement equipment, transformers, USB hubs, ports and peripherals. Current ratings from 50mA to 2A Line voltage rating of 120VAC and 240VAC Fast time-to-trip Low resistanceRoHS compliant

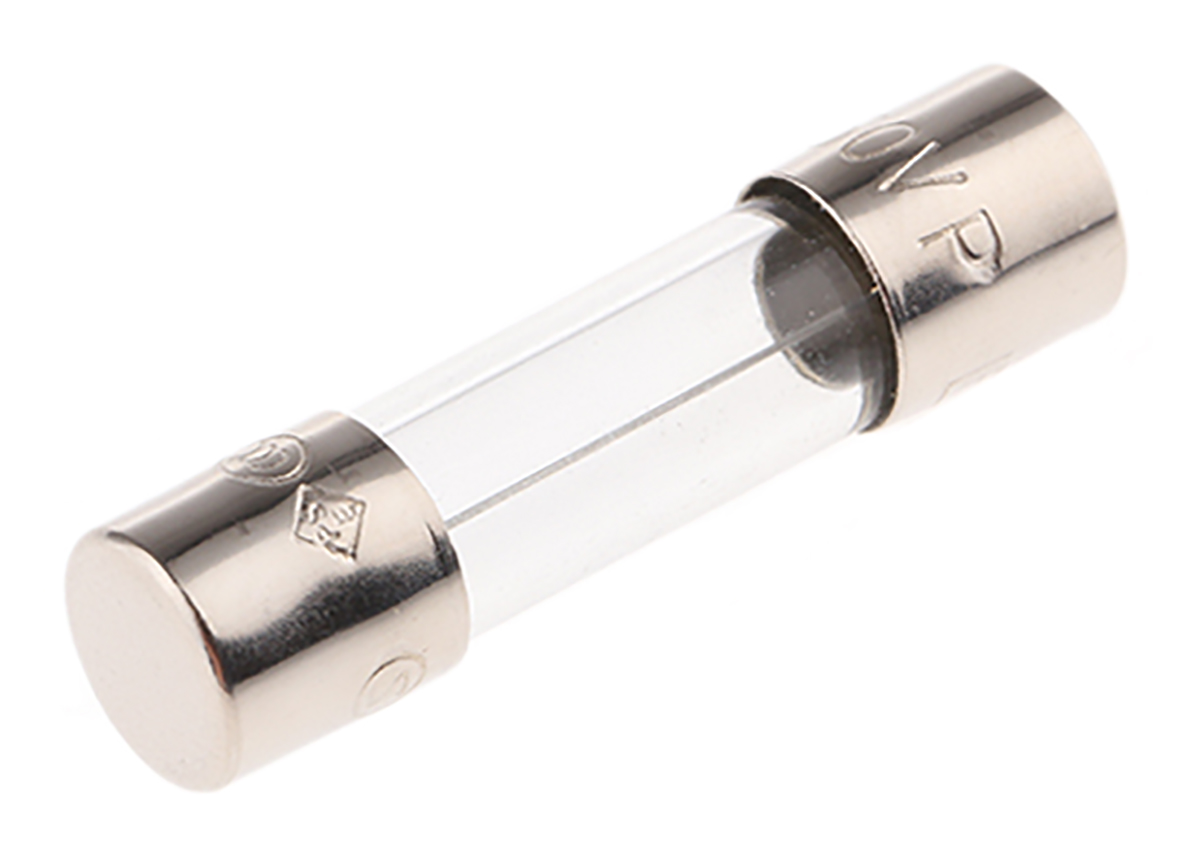

Glass cartridge fuses are ideal for providing protection to devices or internal circuits from short circuits and overcurrent. They are deliberately weaker components which, when too much current is drawn, will blow. Once the fuse has blown it will need replacing in order to make the circuit complete and allow the flow of current.Features:Glass cartridge5 x 20 mm cartridge sizeT Speed RatingAnti-surgeLow Breaking Capacity Typical applications:Cartridge fuses are a relatively cheap way of protecting electrical equipment from short circuits and overcurrent and can be used to protect electrical appliances such as motors air-conditions, refrigerator, pumps etc. They can be found in the following areas:IndustrialCommercialHome/ResidentialAutomotive Additional Information: Why choose a glass fuse?Glass and ceramic fuses have similar properties. However you may choose a glass fuse as it enables you to see the inside of the fuse. Therefore it is easier to determine whether the fuse has blown. What size is it?5x20 mm is a standard cartridge size and it measures approximately 20 mm long by 5 mm in diameter. They are popular in board and panel protection and will fit a compatible 5x20 fuse holder. What Speed is it?This particular fuse is “T” speed rated which means it is a slow acting fuse, sometimes referred to as anti-surge. It is able to tolerate higher levels for a short period, without shorting. Therefore, if a sudden change occurs, this fuse will not blow immediately. They are suitable for applications where a sudden flow of high current is required. What is Breaking Capacity?Breaking capacity is the level of current that the fuse can safely handle without exploding or rupturing. The breaking capacity of your fuse should be greater than the fault current of your electronic circuit. This particular fuse is LBC (Low Breaking Capacity).

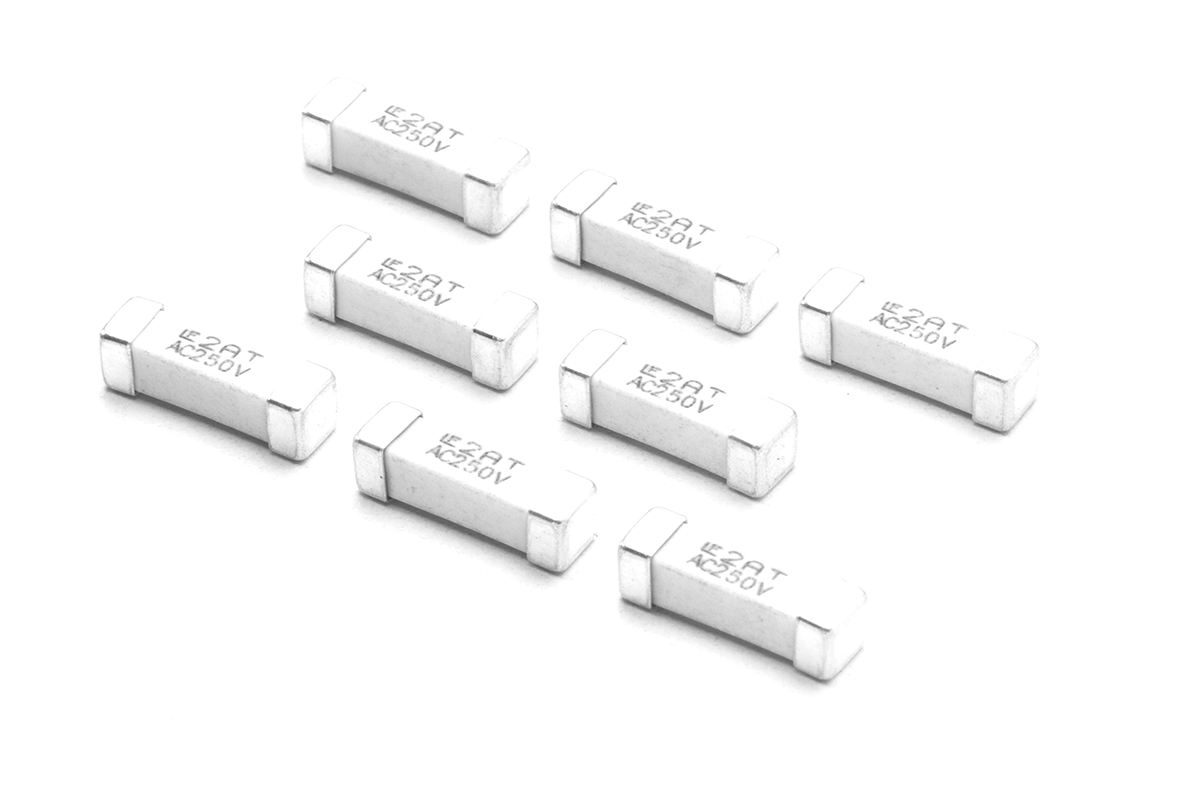

Littelfuse 451 Series NANO2 Surface Mount Fuses Littelfuse 451 series of NANO2 surface mount fuses are very small wire-in-air (WIA) square shape surface mount devices which are suitable for a variety of secondary side circuit over-current protection applications. Very fast actingSmall sizeLow temperature de-rating

Littelfuse ATOF Fuses Littelfuse ATOF automotive fuses are easy to identify and replace, and is suitable for a wide variety of low voltage electronic applications.

PolySwitch SMD & SMD2 Series From TE Connectivity, these SMD and SMD 2 Series surface mount Polyswitches are compact and suitable for a variety of computer and electronics applications. SMT footprints:• SMD - Hold current 0.3 - 1.25A: 7555 (metric) 2920 (Imperial)• SMD2 - Hold current 1.5 - 2.5A: 8763 (metric) 3425 (Imperial)

Littelfuse 438 Series Fast Acting Fuses Littelfuse 438 Series fast acting fuses has been especially designed to provide over current protection to circuits that operate under high working ambient temperatures up to 150ºC. Ideal for handheld electronics, LCD displays, battery packs, hard disk drives and SD memory cards applications. Operating temperature from -55°C to +150°C100% Lead-free and RoHS compliant and Halogen-freeSuitable for both leaded and lead-free reflow/wave soldering

Littelfuse 437 Series Fast Acting Fuses Littelfuse 437 Series fast acting fuses has been especially designed to provide over current protection to circuits with high working ambient temperatures (up to 150ºC). Ideal for automotive electronics, LCD displays, data modems, servers, printers and scanners applications. Operating temperature from -55°C to +150°C100% Lead-free and RoHS compliantSuitable for both leaded and lead-free reflow/wave soldering
