Lumileds LUXEON Rebel PLUS Series LEDs LUXEON Rebel PLUS LEDs, from Lumileds, are illumination grade LED light sources that are compatible optically and electrically with existing LUXEON Rebel LEDs. Hot testing and colour binning of every LUXEON Rebel PLUS LED at real world operating conditions (Tj = 85°C) provides exceptional colour control. Additionally Freedom From Binning means every LUXEON Rebel PLUS LED in this range falls within a single 3 step MacAdam ellipse ensuring colour consistency from LED to LED. <BR/>Consistent high quality light output and real world efficacy make LUXEON Rebel PLUS LEDs ideal for a wide range of indoor lighting applications including: retrofit bulbs, downlights, office lighting, retail lighting, linear lighting and home lighting. High CRI (Colour Rendering Index): 80 minimum <BR/>Superior efficacy, colour consistency and high light output<BR/>Freedom From Binning (3-step MacAdam Ellipse)<BR/>Hot tested at 85°C<BR/>LM-80 compliant<BR/>Low typical forward voltage: Vf= 2.76V at 350mA<BR/>Form and footprint compatible with existing LUXEON Rebel LEDs<BR/>4.5 x 3mm package with a 2.5mm dome lens that is optimised for maximum light output

Lumileds LUXEON Rebel PLUS Series LEDs LUXEON Rebel PLUS LEDs, from Lumileds, are illumination grade LED light sources that are compatible optically and electrically with existing LUXEON Rebel LEDs. Hot testing and colour binning of every LUXEON Rebel PLUS LED at real world operating conditions (Tj = 85°C) provides exceptional colour control. Additionally Freedom From Binning means every LUXEON Rebel PLUS LED in this range falls within a single 3 step MacAdam ellipse ensuring colour consistency from LED to LED. <BR/>Consistent high quality light output and real world efficacy make LUXEON Rebel PLUS LEDs ideal for a wide range of indoor lighting applications including: retrofit bulbs, downlights, office lighting, retail lighting, linear lighting and home lighting. High CRI (Colour Rendering Index): 80 minimum <BR/>Superior efficacy, colour consistency and high light output<BR/>Freedom From Binning (3-step MacAdam Ellipse)<BR/>Hot tested at 85°C<BR/>LM-80 compliant<BR/>Low typical forward voltage: Vf= 2.76V at 350mA<BR/>Form and footprint compatible with existing LUXEON Rebel LEDs<BR/>4.5 x 3mm package with a 2.5mm dome lens that is optimised for maximum light output

Lumileds LUXEON Rebel Series LEDs The LUXEON Rebel series, from Lumileds, are high quality, reliable LEDs. They offer design flexibility with high performance, making it easier to create energy efficient luminaires.<BR/><BR/>LUXEON Rebel General purpose white LEDs<BR/>The LUXEON Rebel white LEDs are suitable for a very wide variety of lighting applications. They produce a quality white light output and are a popular choice for lighting and illumination designs. The white LEDs deliver usable light and a higher flux density. Suitable applications include shops, offices, outdoor areas and hotels.<BR/><BR/>LUXEON Rebel Colour LEDs<BR/>There is a wide variety of colours available from this family of LEDs. They offer saturated colours from a high quality and reliable LED. The colours include; green, cyan, blue, royal-blue, red, red-orange, PC amber and amber. The LUXEON Rebel coloured LEDs are idea for transforming architecture, stages, dining, entertainment venues and branding. <BR/> Features of the LUXEON Rebel LEDs:<BR/>Lifetime in excess of 50,000 hours<BR/>Ultra compact surface mount design<BR/>Elevated light output and flux density<BR/>Package size: 4.37x3.17x2mm

Lumileds LUXEON 3535L Series LEDs The LUXEON 3535L series, from Lumileds, are high efficacy LEDs in surface mount (SMT) packages. They have the industry standard 3535 footprint, making them ideal drop-in replacements to existing 3535 sockets. Philips' LUXEON 3535L series offer high quality of light and performance to suit the requirements of distributed light source applications. This family of LEDs come in a variety of CCT and CRI combinations. <BR/>The LUXEON 3535L LEDs are suitable for indoor and outdoor lighting applications due to their efficacy and reliability. Other suitable applications for this family of LEDs include; architecture, downlights, indoor area lighting, lamps and outdoor lighting.<BR/> Supports ENERGY STAR® lumen maintenance certification requirements<BR/>High efficacy for sustainable design<BR/>Compact 3535L package<BR/>Full range of CCTs and minimum CRI configurations for design flexibility<BR/>ANSI compliant 1/6^th color binning from 3000K to 6500K<BR/><BR/>3535LS - Entry Flux and Efficacy<BR/>3535L - Medium Flux and Efficacy<BR/>3535L HE - High Flux and Efficacy<BR/>3535L HE Plus – High Flux and Highest Efficacy

Lumileds LUXEON C Series LEDs The LUXEON C Colour Line series from Lumileds, is a family of single colour and white LEDs. They are designed to offer exceptional colour mixing with one focal length for all colours. This enables consistent radiation from secondary lenses. Its compact package and low profile make it ideal for use in applications where space is limited. <BR/>Available in a range of different colours, suitable applications for the LUXEON C include; architecture, emergency vehicle lighting, tuneable lamps and horticulture lighting. <BR/> Features of the LUXEON C Colour Line LEDs:<BR/>One focal length<BR/>Consistent radiation patterns<BR/>2 x 2 x 1.35 mm compact package<BR/>High output from a small package<BR/>Low profile dome lens<BR/>

Lumileds LUXEON C Series LEDs The LUXEON C Colour Line series from Lumileds, is a family of single colour and white LEDs. They are designed to offer exceptional colour mixing with one focal length for all colours. This enables consistent radiation from secondary lenses. Its compact package and low profile make it ideal for use in applications where space is limited. <BR/>Available in a range of different colours, suitable applications for the LUXEON C include; architecture, emergency vehicle lighting, tuneable lamps and horticulture lighting. <BR/> Features of the LUXEON C Colour Line LEDs:<BR/>One focal length<BR/>Consistent radiation patterns<BR/>2 x 2 x 1.35 mm compact package<BR/>High output from a small package<BR/>Low profile dome lens<BR/>

Lumileds LUXEON IR Compact IR LEDs Lumileds LUXEON IR Compact LEDs are high-power IR emitters are designed to offer high efficiency from a compact package. They are ideal for coupling with a secondary optic, for tighter beam control. Available in a choice of different wavelengths, the LUXEON IR Compact LEDs are ideal for a range of applications.<BR/>LUXEON IR Compact LEDs have a small footprint of 1.9 x 1.37 mm, providing high power density from a very small package. <BR/>Suitable applications include; CCTV, machine vision, 3D scanning, biometric data, user interface control and virtual reality.<BR/>

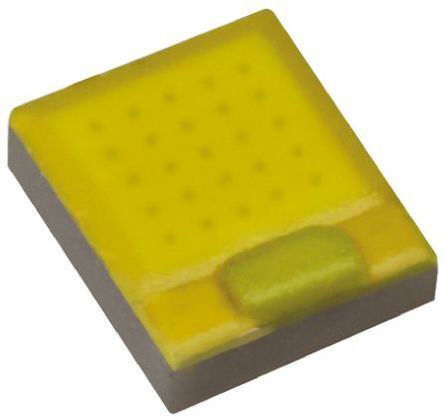

Lumileds LUXEON Z ES Series LEDs The LUXEON Z ES family of micro sized illumination grade LEDs, from Lumileds, provides high lumen density with exceptional design flexibility and precise optical control. The tiny 1.6 x 2mm footprint (75% smaller when compared to standard 3535 packages) allows very close packing of LEDs for a smaller LES (Light Emitting Surface). As well as this, the LUXEON Z ES LED does not have a dome lens, providing better optical coupling and hence excellent beam angle control and superior colour over angle. Tested and binned at real world conditions of 700mA at 85°C, LUXEON Z ES LEDs are an ideal choice for indoor and outdoor light sources requiring superior beam angles, higher efficiency and lower costs. Micro size undomed SMT package: 1.6 x 2.0 x 0.68 mm<BR/>Hot tested and binned at 85°C and 700mA<BR/>Drive current: 1A maximum<BR/>Freedom from Binning<BR/>3 and 5 step MacAdam Ellipse versions available (Parts with CRI lower than 70 will not have a SDCM value designated and all parts will be within 5 step MCE)<BR/>Low thermal resistance: 3°C/W<BR/>Vf (typical): 2.85V leading to higher lm/W<BR/>TVS ESD protection<BR/>Applications include: Indoor lighting, retrofit LED lamps - MR16, PAR, GU10 and candle, also high-flux street light modules, specialty lighting and architectural lighting

Lumileds LUXEON Z Series LEDs The ultra compact LUXEON Z series of high-power LEDs from Lumileds provides exceptional design flexibility for luminaire development. The 1.3x 1.7mm un-encapsulated LEDs can be used as building blocks to create specialised mono-colour or multi-colour LED arrays. With the ability to mount up to 250 LUXEON Z LEDs in one square inch, almost limitless configurations are possible at brilliant lumen densities. <BR/>LUXEON Z LEDs are ideal for entertainment/stage lighting, indoor and outdoor architectural lighting, emergency vehicle lighting, remote phosphor applications and a wide spectrum of specialty lighting applications. Ultra compact package with a 2.2mm² footprint<BR/>Un-encapsulated <BR/>Tested and Binned at 500mA <BR/>High drive current: 1A (InGaN) and 0.7A (AlInGaP)<BR/>Up to 150°C max T_j<BR/>Industry&#146;s leading Lm/mm² for high flux density solution <BR/>Superior colour mixing and beam control through choice of optics <BR/>Enables customisable light sources: linear, rectangular, circular, etc. and therefore smaller/unique luminaire designs

The Lumileds 850nm LUXEON IR Domed Line high power infrared emitters featured with innovative LUXEON technology to provide industry leading performance. It uses an industry standard footprint for ease of integration and upgrading existing system designs. Excellent performance<BR/>The five emission patterns<BR/>Best thermal conductivity

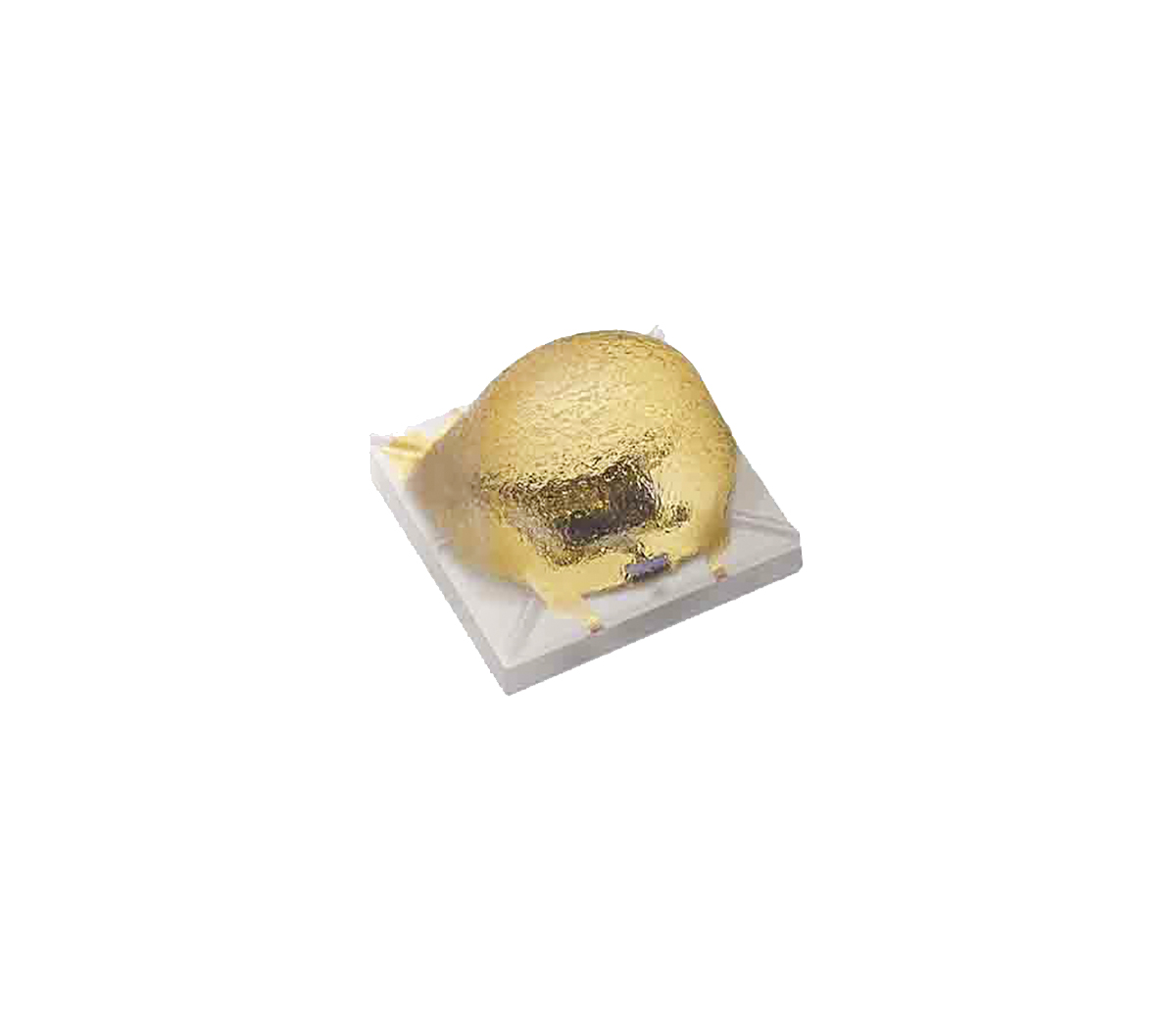

The Lumileds 940nm LUXEON IR Domed Line high power infrared emitters featured with innovative LUXEON technology to provide industry leading performance. It uses an industry standard footprint for ease of integration and upgrading existing system designs. Excellent performance<BR/>The five emission patterns<BR/>Best thermal conductivity

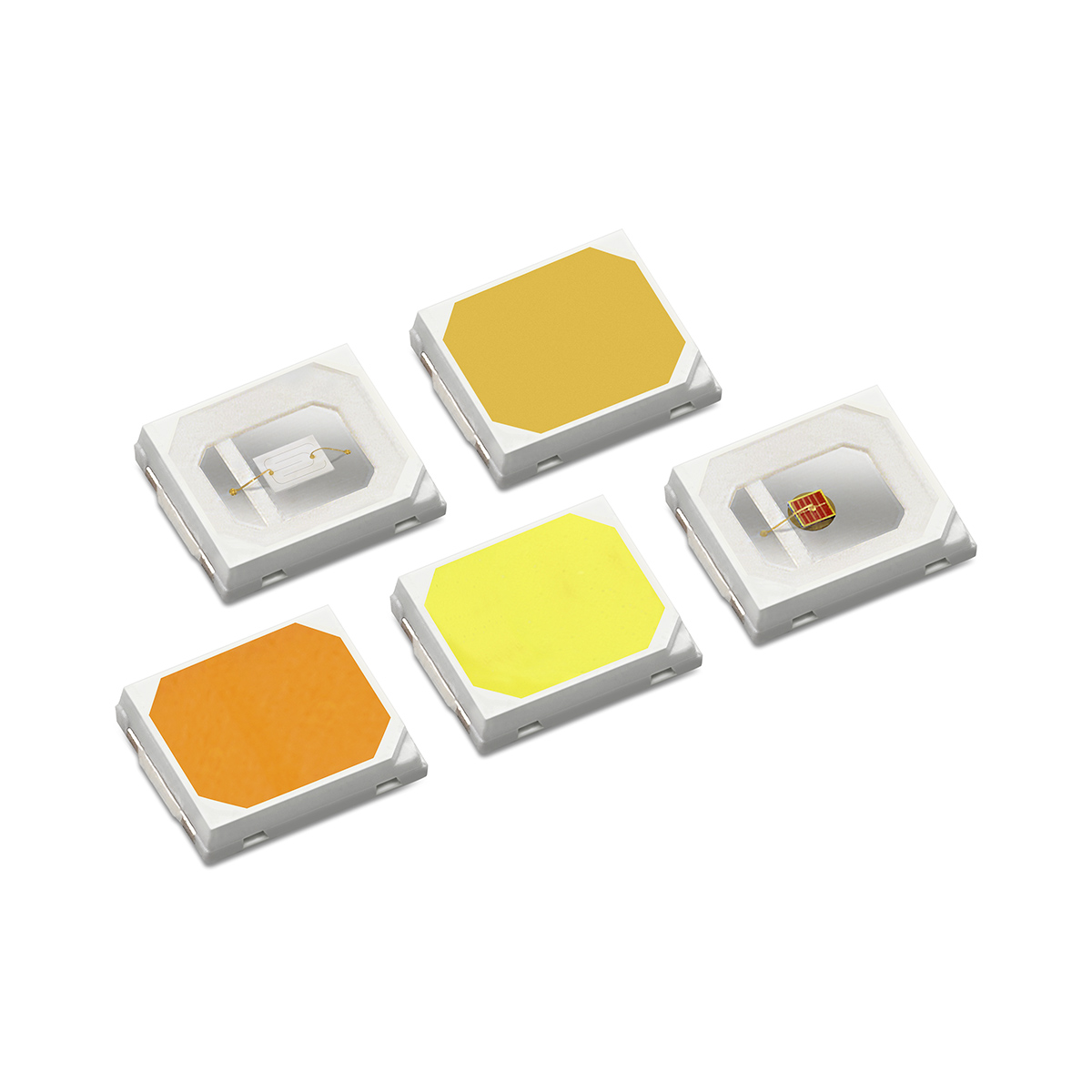

The LUXEON 2835 colour Line enables a new era of colour lighting. This robust colour line provides high performance and is targeted at cost effective designs. Complemented by a broad range of white offerings,the LUXEON 2835 colour Line enables RGBW applications. This product line extends the comprehensive LUXEON colour Family. Single die and single source architecture for optical control<BR/>Full colour palette for a wider spectrum range<BR/>Applications<BR/>Architectural & Entertainment<BR/>Lamps<BR/>colour Tunable Illumination<BR/>Specialty Lighting<BR/>Emergency Vehicle<BR/>Signage
