Marquardt 1660 Series Push Button Switches Marquardt 1660 series single and double pole push button switches. The 1660 push button switches are suitable for use in Class II appliances and are available with non illuminated or illuminated (amber or green) 230Vac neon actuators. The Marquardt 1660 push button series have silver contacts with SPNO, DPNO, DPDT and DPST switching formats. A transparent PVC cover is available to protect the 1660 series of push button switches from dust and water ingression and to give the push button switch actuator an IP64 rating. Contact distance ≥3mm (apart from stock number 741-0760 which has a contact distance less than 3mm) Operating force approximately 8N UL 94 V-2 flammability Mechanical life 50,000 operations Stock number 907-0348 would be the correct lamp in red 907-0342 is the green version

Marquardt 1800 Series Rocker Switches Marquardt 1800 series single and double pole rocker switches. The long life 1800 rocker switches are suitable for use in Class II appliances and are available in a choice of styles that includes non illuminated, fully illuminated red, amber or green 230Vac neon actuators, black or white bodies and various abrasion-proof legends on the rocker switches actuator.The 1800 rocker switches have silver contacts with SPNO, SPST, SPDT, DPNO, DPST or DPDT switching formats including 2 or 3 position switching, on-off, center off and changeovers with latching or momentary action contacts. The rocker switch body has a silk matt surface finish that snap fits into panel cut-outs with a panel thickness of between 0.75 and 3mm, the fixing ribs on the switch housing ensures a tight fit.Transparent PVC covers are available to protect the 1800 series of rocker switches from dust and water ingression and to give the rocker switch actuator an IP64 rating. High current rating, up to 12AHigh inrush current (capacitive) up to 50A, stock numbers 741-0855 and 607-7365 up to 70AContact distance ≥3mm (apart from 3 position changeover center off types which have a contact distance Contact resistance Insulation resistance >100MΩElectrical connection via PCB terminals, Solder tags or 4.8mm Faston/Quick Connect style tab terminalsUL 94 V-2 flammability rated

Marquardt 1830 Series Rocker Switches From Marquardt, a comprehensive range of single pole and double pole rocker switches designed for panel mounting. With a choice of illuminated and non-illuminated actuators in various legend designs and colours, the 1830 series of rocker switches are suitable for a wide variety of applications including Class II appliances. Fitting is easy, once the recommended panel cut-out is made the sturdy switches snap-in to the panel and are held in place by the retention ribs ensuring a tight fit. The 1830 series of panel mount rocker switches are available with momentary or latching formats including 2 and 3 position switching, on-off centre off and change over. A transparent PVC cover is available to protect the double pole versions of the 1830 series of rocker switches, providing an IP64 rating. Suitable for general repair, maintenance and new prototypes. Features and Benefits• AC mains rated• High current rating, up to 20A• High inrush current (capacitive) up to 120A• Rated to UL 94 V-2 (apart from stock number 679-8223 which is UL94 V-0 rated)• Moulded black or white bodies • Connection via 4.8 mm or 6.3 mm Faston / Quick Connect terminals• SPNO, SPST, SPDT DPST and DPDT switch configurations• Momentary and latching switch operations • Industry standard cut-outs• IP40 / IP64 (IP64 when used in conjunction with transparent cover 607-7731) ApplicationsRocker switches are one of the most frequently used types of electrical switch used in the market today. Due to their simple design and easy operation rocker switches are utilised in both domestic and industrial applications. Some of the most common are:• Security equipment • Automation and control panels• Test instruments• Laboratory equipment• Power supplies• HVAC equipment FAQ• Are the rocker switches easy to connect?Yes, the 1830 series of switches are fitted with either 4.8 mm or 6.3 mm Faston / quick connect male tab terminals. Simply select the appropriate red, yellow or blue female push on receptacles, according to the wire size required.• Are there any accessories available?Yes, a transparent PVC cover is available to protect the double pole versions. When fitted correctly they provide an IP64 ingress protection. See part number 607-7731

Marquardt Miniature Snap Action Switches - 1005 Series Marquardt 1005 Series miniature snap action single pole switches. The 1005 Series snap action switches are designed to DIN41635A with a contact resistance of 100MΩ. The Marquardt 1005 Series is available with various actuators and terminations. Contact distance 741-0978 which has a contact distance greater than 3mm) Bounce time UL 94 V-2 flammability Note The current rating and life expectancy figures quoted are nominal, please see datasheet for further ratings. Approvals UL; CSA; ENEC Switch type: Switch SPDT Connection: Spade cable shoes 6.3 ´ 0.8 mm, 189157: although 4.8 ´ 0.5 mm Switch material: Silver Mechanical life: 30 ´ 10 6 functions at max. contact load Temp. range: -55°C* to +85°C Dimensions: See drawings

Marquardt 1830 Series Rocker Switches From Marquardt, a comprehensive range of single pole and double pole rocker switches designed for panel mounting. With a choice of illuminated and non-illuminated actuators in various legend designs and colours, the 1830 series of rocker switches are suitable for a wide variety of applications including Class II appliances. Fitting is easy, once the recommended panel cut-out is made the sturdy switches snap-in to the panel and are held in place by the retention ribs ensuring a tight fit. The 1830 series of panel mount rocker switches are available with momentary or latching formats including 2 and 3 position switching, on-off centre off and change over. A transparent PVC cover is available to protect the double pole versions of the 1830 series of rocker switches, providing an IP64 rating. Suitable for general repair, maintenance and new prototypes. Features and Benefits• AC mains rated• High current rating, up to 20A• High inrush current (capacitive) up to 120A• Rated to UL 94 V-2 (apart from stock number 679-8223 which is UL94 V-0 rated)• Moulded black or white bodies • Connection via 4.8 mm or 6.3 mm Faston / Quick Connect terminals• SPNO, SPST, SPDT DPST and DPDT switch configurations• Momentary and latching switch operations • Industry standard cut-outs• IP40 / IP64 (IP64 when used in conjunction with transparent cover 607-7731) ApplicationsRocker switches are one of the most frequently used types of electrical switch used in the market today. Due to their simple design and easy operation rocker switches are utilised in both domestic and industrial applications. Some of the most common are:• Security equipment • Automation and control panels• Test instruments• Laboratory equipment• Power supplies• HVAC equipment FAQ• Are the rocker switches easy to connect?Yes, the 1830 series of switches are fitted with either 4.8 mm or 6.3 mm Faston / quick connect male tab terminals. Simply select the appropriate red, yellow or blue female push on receptacles, according to the wire size required.• Are there any accessories available?Yes, a transparent PVC cover is available to protect the double pole versions. When fitted correctly they provide an IP64 ingress protection. See part number 607-7731

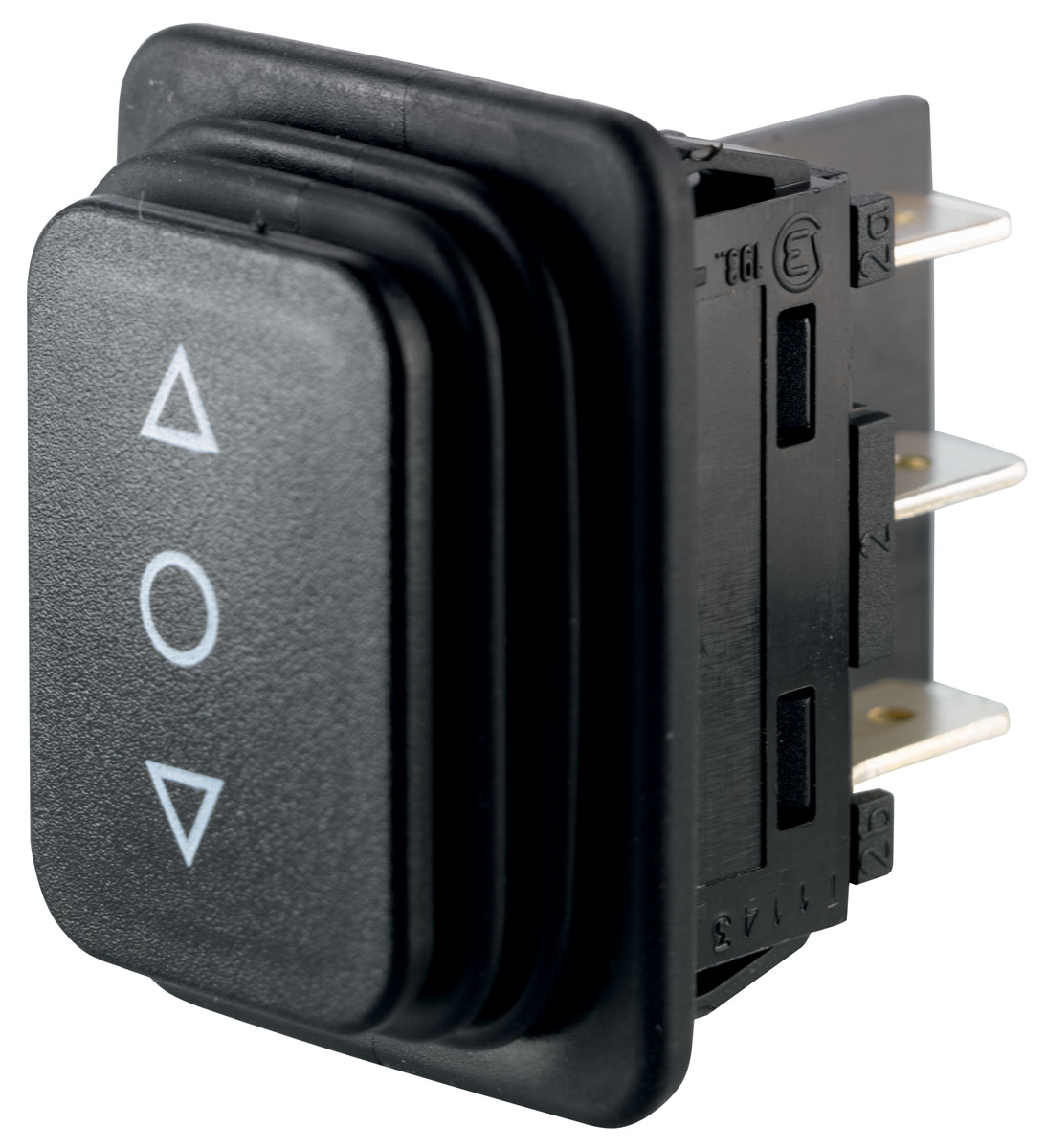

Marquardt 1930 Series Rocker Switches (Waterproof IP65) From Marquardt, an extensive range IP65 of double pole rocker switches designed for panel mounting. With a choice of illuminated and non-illuminated actuators in various legend designs and colours, the 1930 series of sealed rocker switches are suitable for a wide variety of applications. Fitting is easy, once the recommended panel cut-out is made, the robust rocker switches Snap-in to the panel and is held in place by the retention ribs ensuring a tight fit. The 1930 series of waterproof rocker switches are available with momentary or latching formats including 2 and 3 position switching, On-Off, centre off and change over. The fully sealed IP65 rocker switches are ideal for maintenance and repair in harsh environments including Class II appliances. Features and Benefits• AC mains rated• High current rating, up to 20A• High inrush current (capacitive) up to 120A, stock number 741-0836 up to 100A• Moulded black housing• Modern rocker design• Rated to UL 94 V-2• Industry standard cut-out• IP65 with an integral sealing gasket for extra protection• Connection via 6.3 mm quick connect male tab terminals• DPNO, DPST and DPDT switching configurations• On-Off and On-Off-On switching operationApplications for rocker switchesRocker switches are one of the most frequently used types of electrical switch used in the market today. Due to their simple design and easy operation rocker switches are utilised in both domestic and industrial applications. Some of the most common are:• Security equipment• Automation and control panels• Test instruments• Laboratory equipment• Power supplies• HVAC equipmentFAQ• Are the rocker switches easy to connect?Yes, the 1930 series of switches are fitted with 6.3 mm quick connect male tab terminals. Simply select the appropriate red, yellow or blue female push on receptacles, according to the wire size required.

Marquardt 1660 Series Push Button Switches Marquardt 1660 series single and double pole push button switches. The 1660 push button switches are suitable for use in Class II appliances and are available with non illuminated or illuminated (amber or green) 230Vac neon actuators. The Marquardt 1660 push button series have silver contacts with SPNO, DPNO, DPDT and DPST switching formats. A transparent PVC cover is available to protect the 1660 series of push button switches from dust and water ingression and to give the push button switch actuator an IP64 rating. Contact distance ≥3mm (apart from stock number 741-0760 which has a contact distance less than 3mm) Operating force approximately 8N UL 94 V-2 flammability Mechanical life 50,000 operations Stock number 907-0348 would be the correct lamp in red 907-0342 is the green version

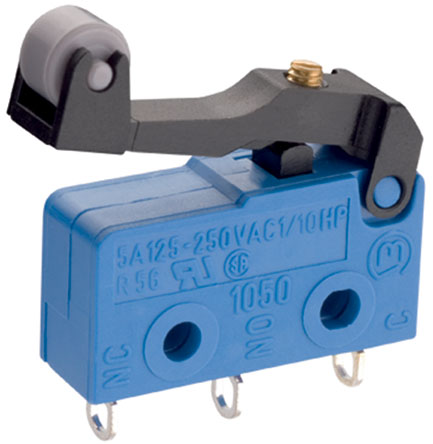

Marquardt Subminiature Snap Action Switches - 1050 Series Marquardt 1050 Series snap action single pole switches. The 1050 Series snap action switches are a sub-miniature switch with a body width of 6.4mm, designed to DIN41635B with a contact resistance of 100MΩ. The Marquardt 1050 Series is available with various actuators and terminations. Contact distance Bounce time UL 94 V-2 flammability

The double-pole rocker switch is a versatile and reliable electrical component designed for various applications. With a mechanical life endurance of 5E4, operating force of 3 - 8 N, and inrush current of up to 120 A, this switch offers high performance and durability. Suitable for appliances of protection class IIIP 65 protection rating for high dust and water resistanceAvailable in illuminated and non-illuminated variantsApproval for 400 VHigh-quality construction with silver-plated terminalsModern rocker design for ease of use

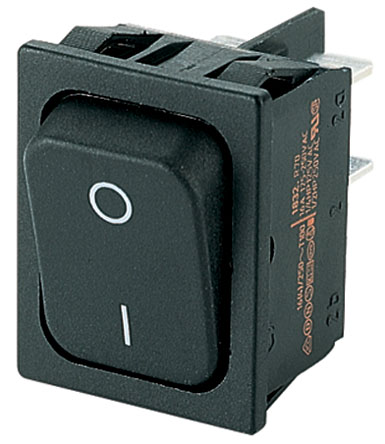

The rocker switch has a double pole, single throw (DPST) configuration, capable of carrying 4A at 250V. It operates with an ON-OFF function, rated IP40 for protection against solids, and is black in color. Standards met UL Listed, CSA, EN, ECRoHS compliant

Marquardt 5000 Series Push Button Switches The Marquardt 5000 series of round push button switches are a single pole normally open switch suitable for use in Class II appliances. These round push button switches require a 16mm cut out for panel mounting and are available with a choice of coloured actuators with IP40 or IP54 ratings for sealing against dust and water ingress. The Marquardt 5000 series push button switches have a long mechanical life endurance and feature 2.8mm Faston/Quick Connect style terminals. Contact distance ≥3mmPre travel 2 ±0.4mmTotal travel/stroke 4mmUL 94 V-2 flammabilityMechanical life 200,000 operations

Marquardt 1830 Series Rocker Switches From Marquardt, a comprehensive range of single pole and double pole rocker switches designed for panel mounting. With a choice of illuminated and non-illuminated actuators in various legend designs and colours, the 1830 series of rocker switches are suitable for a wide variety of applications including Class II appliances. Fitting is easy, once the recommended panel cut-out is made the sturdy switches snap-in to the panel and are held in place by the retention ribs ensuring a tight fit. The 1830 series of panel mount rocker switches are available with momentary or latching formats including 2 and 3 position switching, on-off centre off and change over. A transparent PVC cover is available to protect the double pole versions of the 1830 series of rocker switches, providing an IP64 rating. Suitable for general repair, maintenance and new prototypes. Features and Benefits• AC mains rated• High current rating, up to 20A• High inrush current (capacitive) up to 120A• Rated to UL 94 V-2 (apart from stock number 679-8223 which is UL94 V-0 rated)• Moulded black or white bodies • Connection via 4.8 mm or 6.3 mm Faston / Quick Connect terminals• SPNO, SPST, SPDT DPST and DPDT switch configurations• Momentary and latching switch operations • Industry standard cut-outs• IP40 / IP64 (IP64 when used in conjunction with transparent cover 607-7731) ApplicationsRocker switches are one of the most frequently used types of electrical switch used in the market today. Due to their simple design and easy operation rocker switches are utilised in both domestic and industrial applications. Some of the most common are:• Security equipment • Automation and control panels• Test instruments• Laboratory equipment• Power supplies• HVAC equipment FAQ• Are the rocker switches easy to connect?Yes, the 1830 series of switches are fitted with either 4.8 mm or 6.3 mm Faston / quick connect male tab terminals. Simply select the appropriate red, yellow or blue female push on receptacles, according to the wire size required.• Are there any accessories available?Yes, a transparent PVC cover is available to protect the double pole versions. When fitted correctly they provide an IP64 ingress protection. See part number 607-7731
