Multimec® Shaft Height Extenders Available in various heightsStackable

Multimec® 3F Switches SPNO momentary actionSealed to IP67

Unimec™ Bezel Recommended panel cut-out 14x14mm

Multimec® illumec™ 4F Switches SPNO momentary action with integrated LEDsSealed to IP67High luminous intensity

Multimec® illumec™ 4F Switches SPNO momentary action with integrated LEDsSealed to IP67High luminous intensity

Multimec® illumec™ 4F Switches SPNO momentary action with integrated LEDsSealed to IP67High luminous intensity

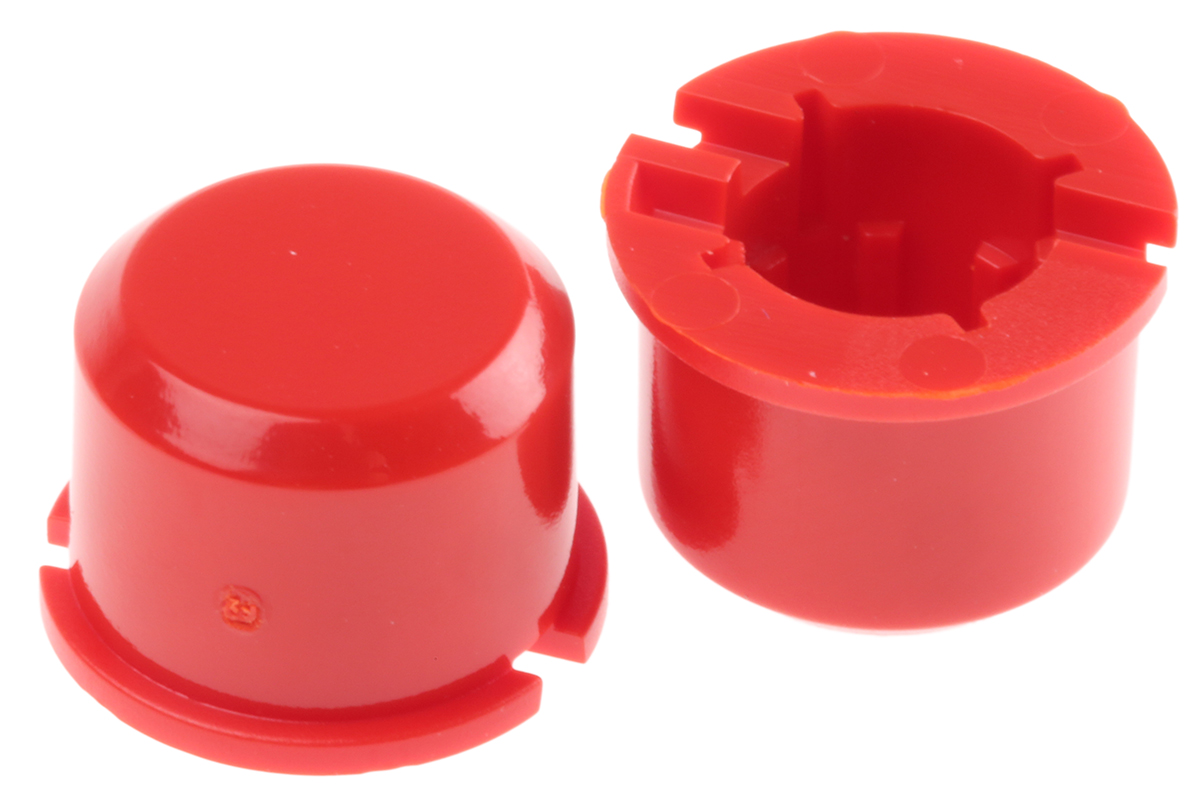

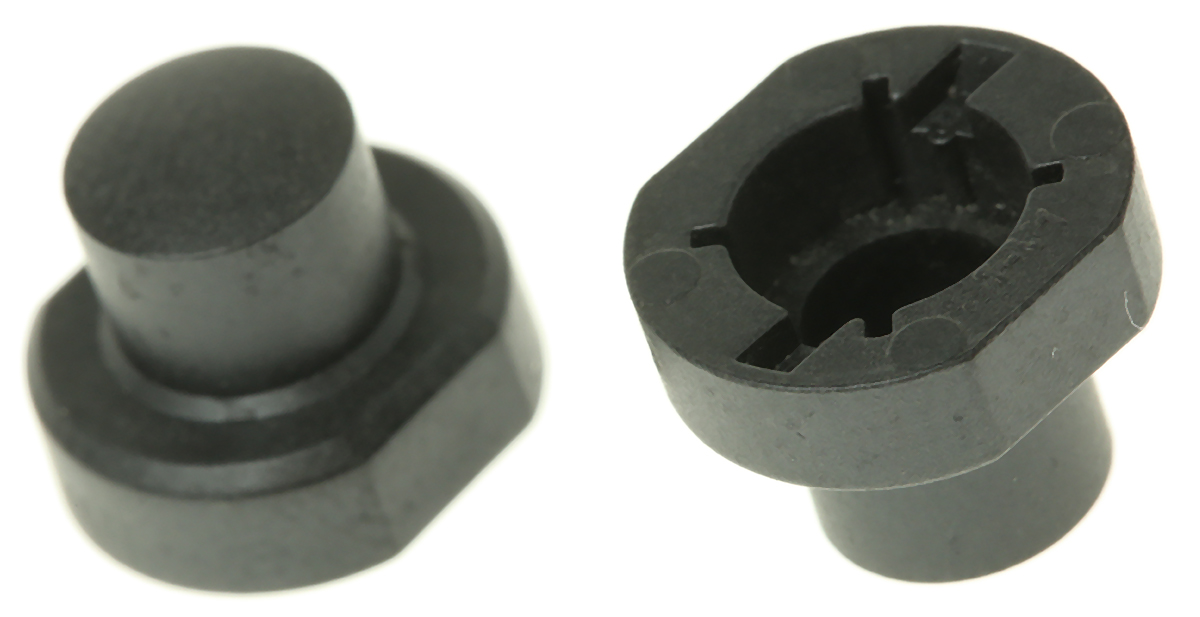

Multimec® Round Caps 6.5mm Ø Recommended panel cut-out 7mm ØAvailable in various heights

Multimec® Round Caps 6.5mm Ø Recommended panel cut-out 7mm ØAvailable in various heights

MEC Multimec® 5G Series Switches The MEC Multimec® 5G series of tactile switches feature improved cap retention system and actuator over previous Multimec® tactile switches. The MEC Multimec® 5G series is an ideal solution to a wide range of application requirements. 3.5N actuation force Rated for 10 million lifecycles IP67 sealed Switch type: SPNO switch, momentary Switch material: Silver Recommended load: 0.5-50mA, max. 24V Contact resistance: Insulation resistance: >10MΩ Bounce time: Mechanical life: >10,000,000 operations Activation pressure: 2.5 ± 0.2N Key travel: 1mm Temperature range: -40°C to + 65°C - for 3CSH9: -40°C to + 160°C

Unimec™ Switches Through hole PCB mount

Multimec® Flat Top Caps Designed for use beneath membranes

Multimec® 3A Bezels Recommended panel cut-out 15.1x15.1mm
