8M13 series single-acting linear electromagnets, standard use Single-acting linear electromagnets for use in automation and small mechanisms.Push or pull models available.Coils for permanent duty (duty factor 100 %). For intermittent operation, a superior operating effort may be obtained with a power supply that is above the rated voltage, up to 50 Vdc.

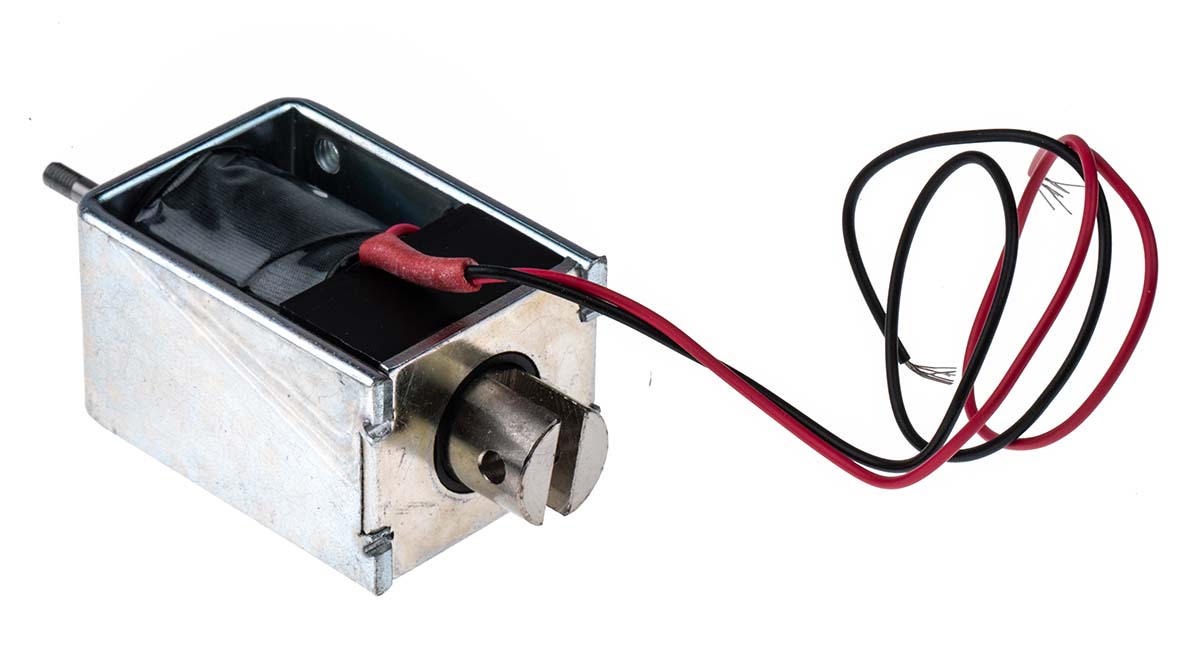

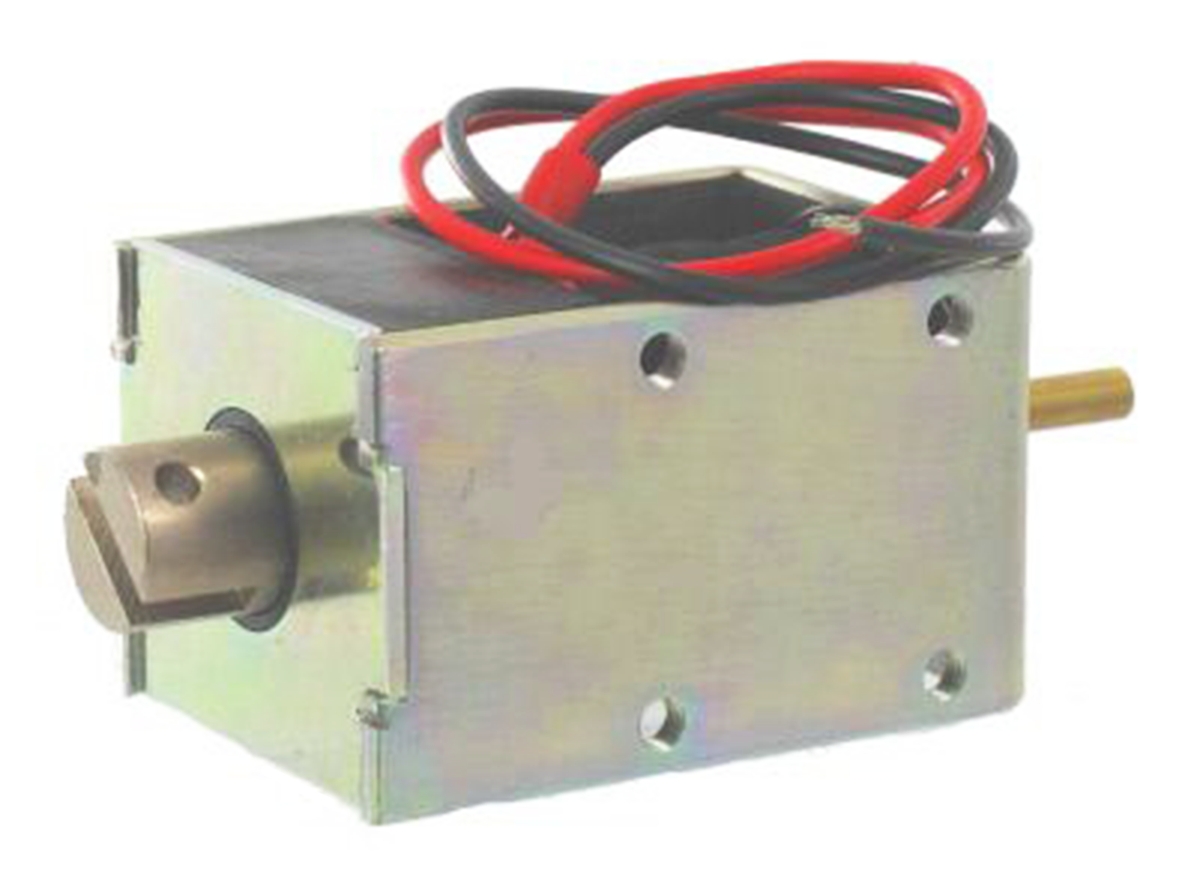

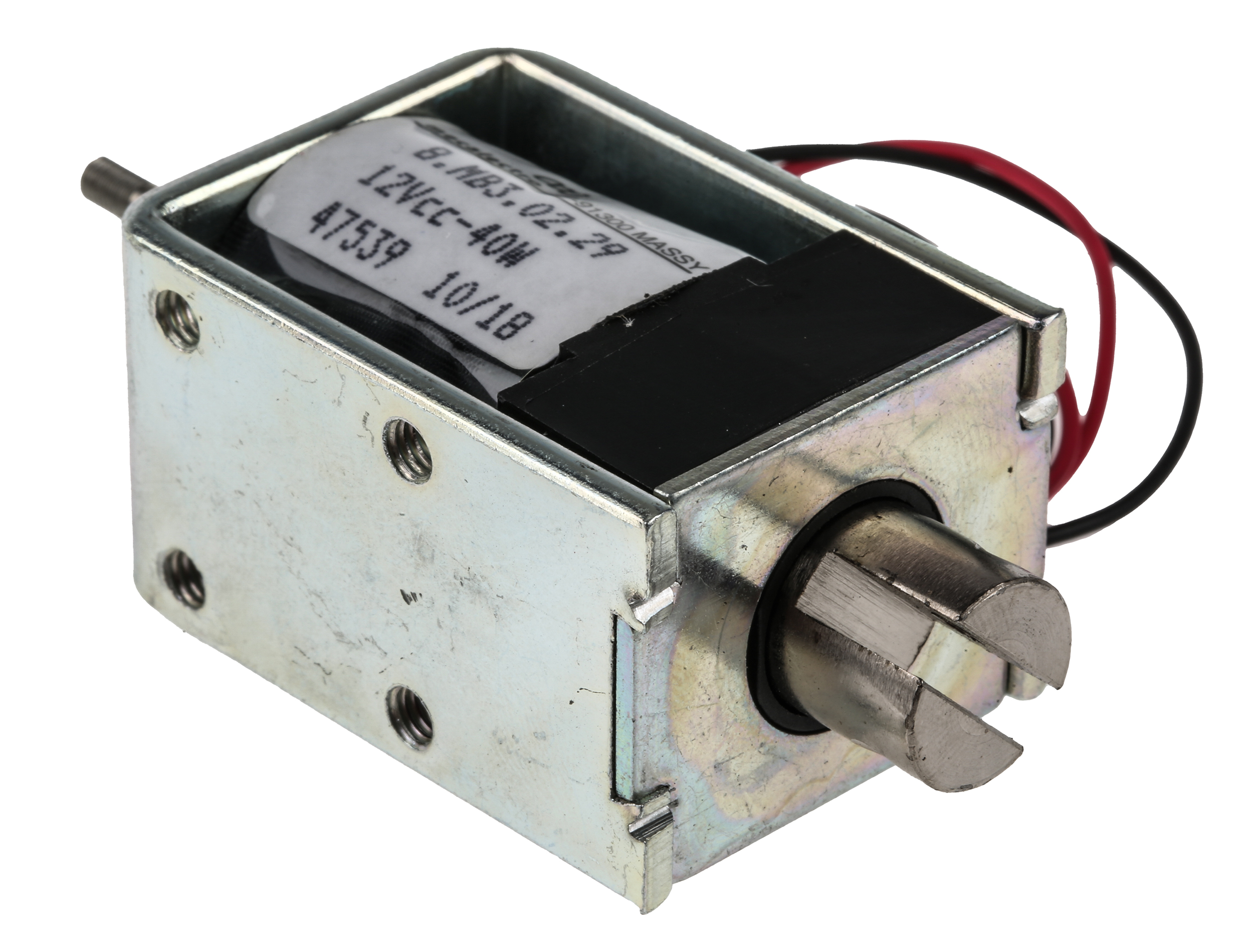

8.MB series maintained linear electromagnets 3 sizes available, each in several versions.Pulse supply. Core activates when powered up (+ red wire); held in retract position by magnetic locking, with power off. Unlocks by reverse polarity with a minimum pulse of 50 → 100 ms.Linked to a return system (spring, earth, etc.), this type of electromagnet ensures 2 stable positions with the power off (bistable).Recommended for applications requiring 2 stable states without consumption. For example: mechanical memory function, improving the service life of battery-powered systems.

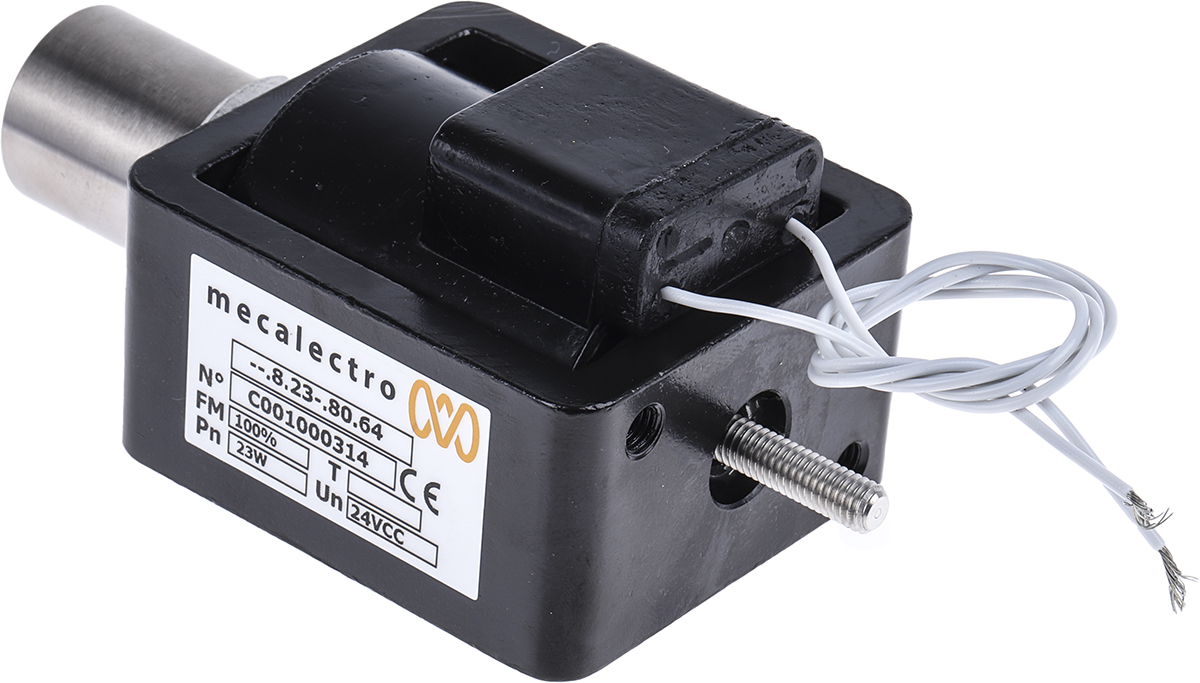

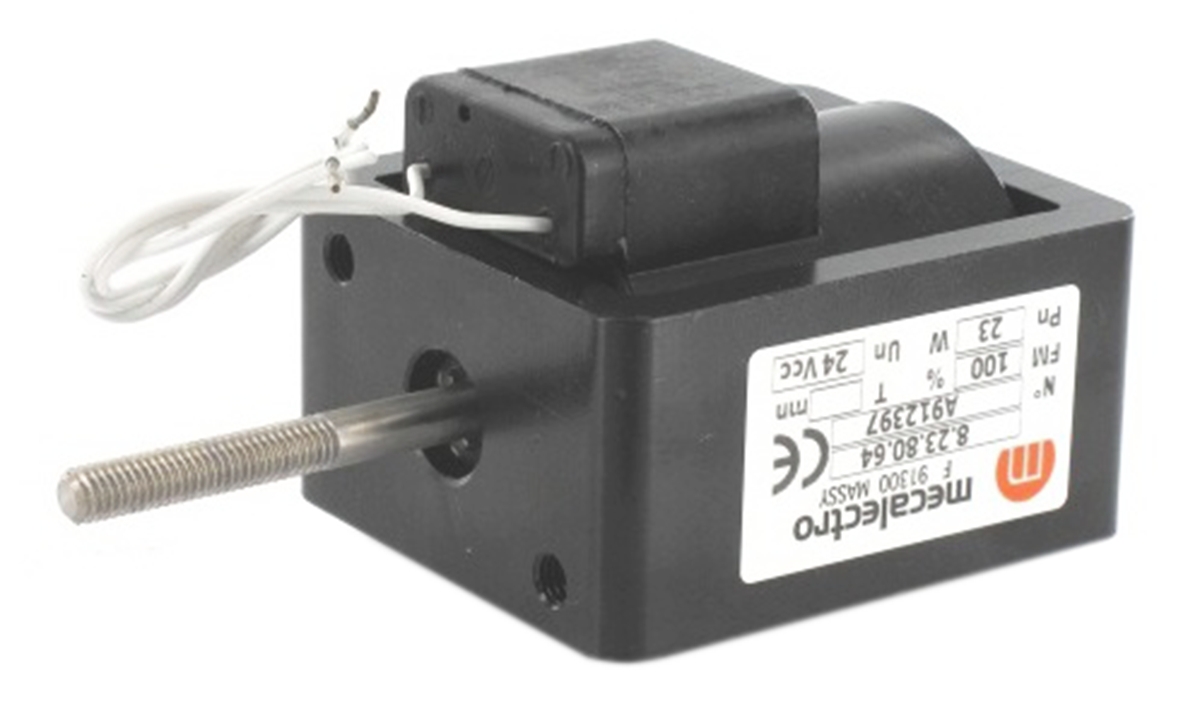

Linear solenoids: single-acting, heavy-duty, protected design Single-acting linear solenoids for automated systems, various machines and security applications. Permanent duty (duty factor 100%) for voltages lower than or equal to rated voltage. For models with 24 VDC and intermittent operation, greater force can be obtained using a power supply with higher voltage (in compliance with the applicable standards).

Supporting electromagnets These devices are designed for supporting or gripping ferromagnetic parts. The maximum retaining force is obtained by contact with flat mild steel parts, with a surface area equal to or greater than the attraction surface, and with a sufficient thickness (equal to at least 1/8 th of the diameter ofthe electromagnet). Any gap, no matter how small, will noticeably reduce this maximum force. Supply voltage: 24 Vdc Protection index: IP 40 Thermal class: B (130 °C) Stock switching max. VF dimensions (mm) weight no. (W) (daN) a b c d (g) 236-9294 5 27 30 20 M6 10 100 236-9301 7.5 44 39 32 M6 10 300 236-9317 8.5 79 48 27 M6 10 350 236-9323 10 145 63 30 M8 15 700 236-9339 14.5 200 75 35 M10 15 1200 236-9351 20 294 90 40 M12 20 2200 236-9367 29.5 550 110 50 M12 20 3500

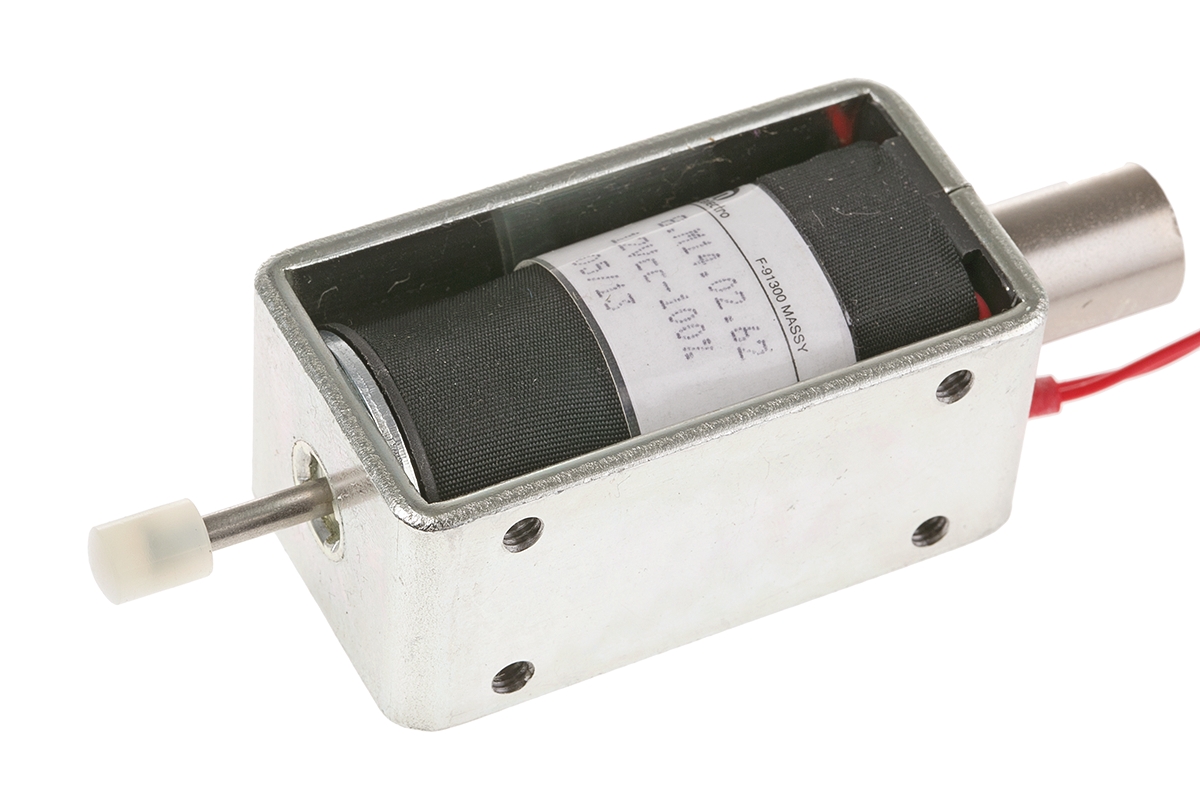

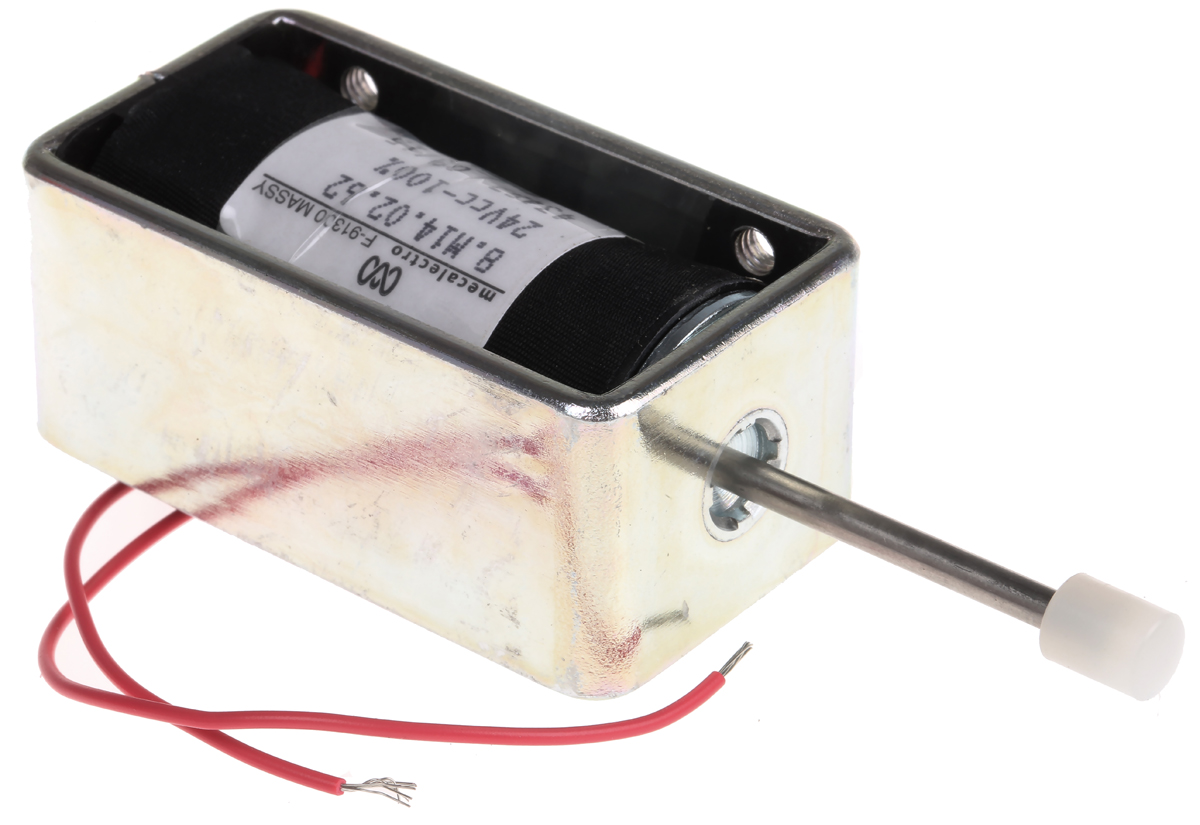

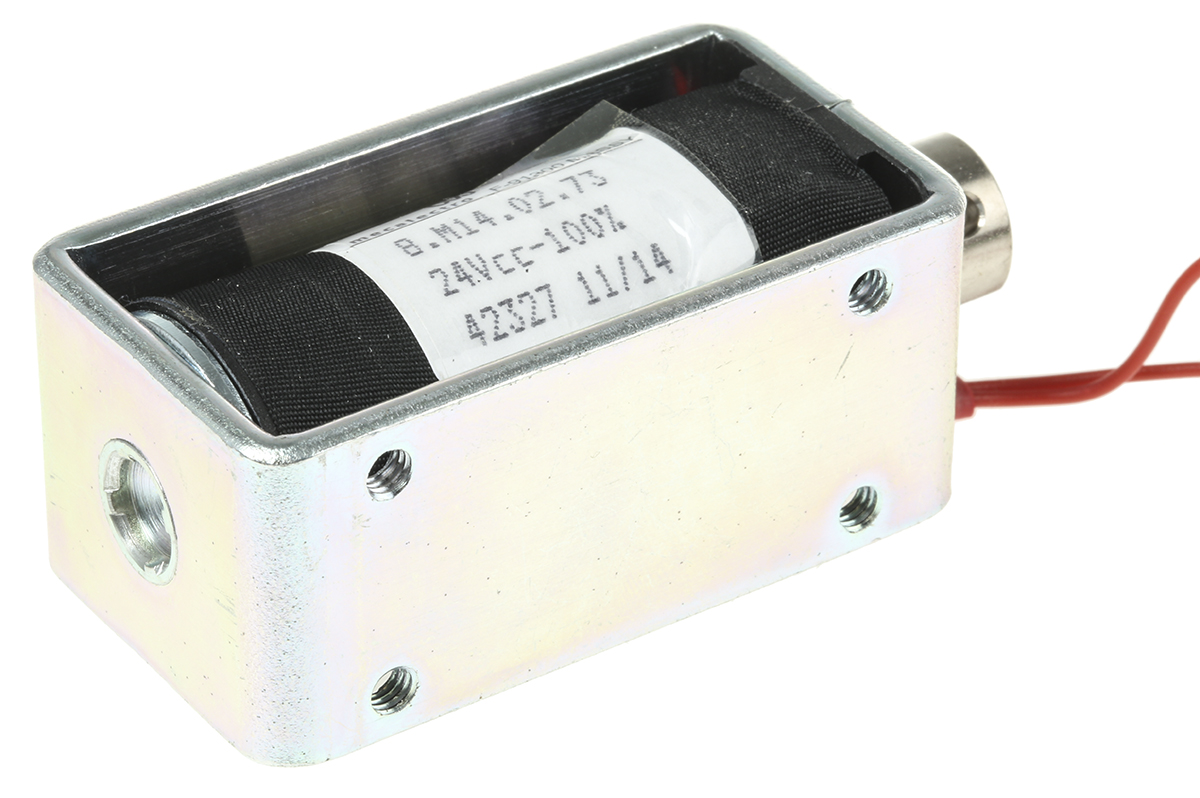

8M14 series single-acting linear electromagnets, standard use Single-acting linear electromagnets for use in automation and small mechanisms.Push or pull models available.Coils for permanent duty (duty factor 100 %). For intermittent operation, a superior operating effort may be obtained with a power supply that is above the rated voltage, up to 50 Vdc.

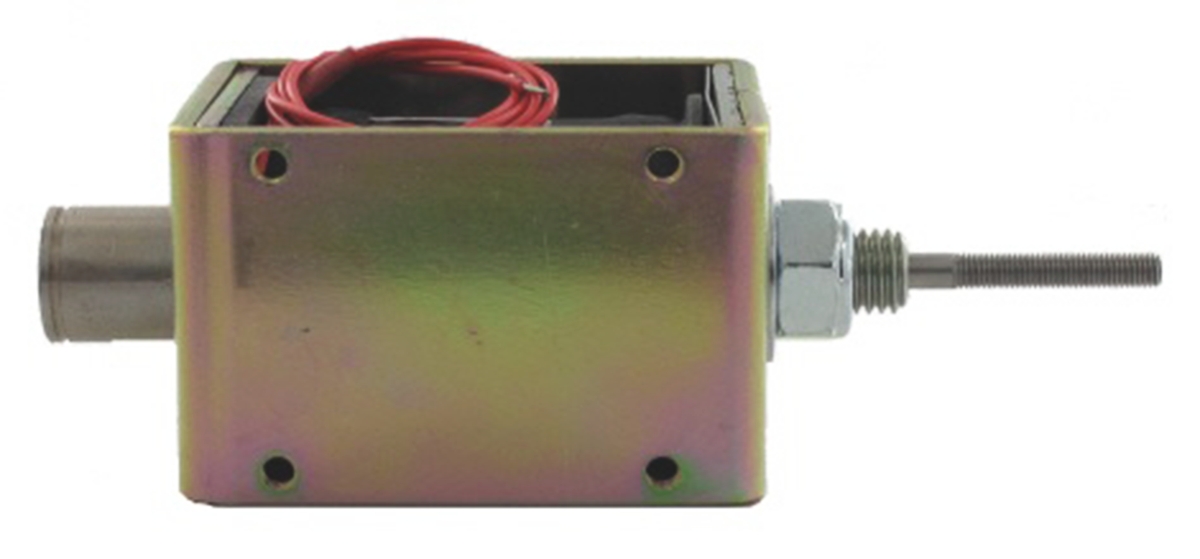

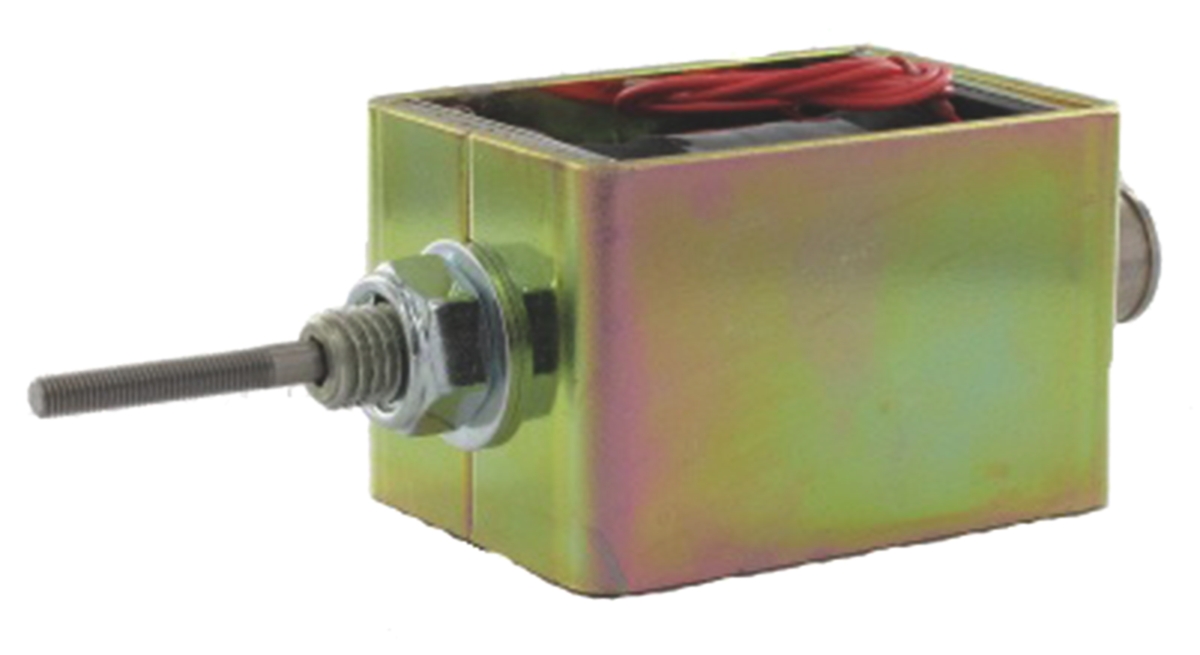

8M17 series single-acting linear electromagnets, standard use Single-acting linear electromagnets for automated systems.Push or pull models available.Coils for permanent duty (duty factor 100 %). For intermittent operation, a superior operating effort may be obtained with a power supply that is above the rated voltage, up to 50 Vdc.

8M10 series single-acting linear electromagnets, standard use Single-acting linear electromagnets for use in automation and small mechanisms.Can be used as push or pull models.Coil for duty cycle of 100% (permanent duty) or 25%. For pulse operation, a higher operating force can be obtained with a power supply above the rated voltage, up to a limit of 50 Vdc.

8M11 series single-acting linear electromagnets, standard use Single-acting linear electromagnets for use in automation and small mechanisms.Fitted with a return spring and available as a push or pull model.Coils for permanent duty (duty factor 100 %). For intermittent operation, a superior operating effort may be obtained with a power supply that is above the rated voltage, up to 50Vdc

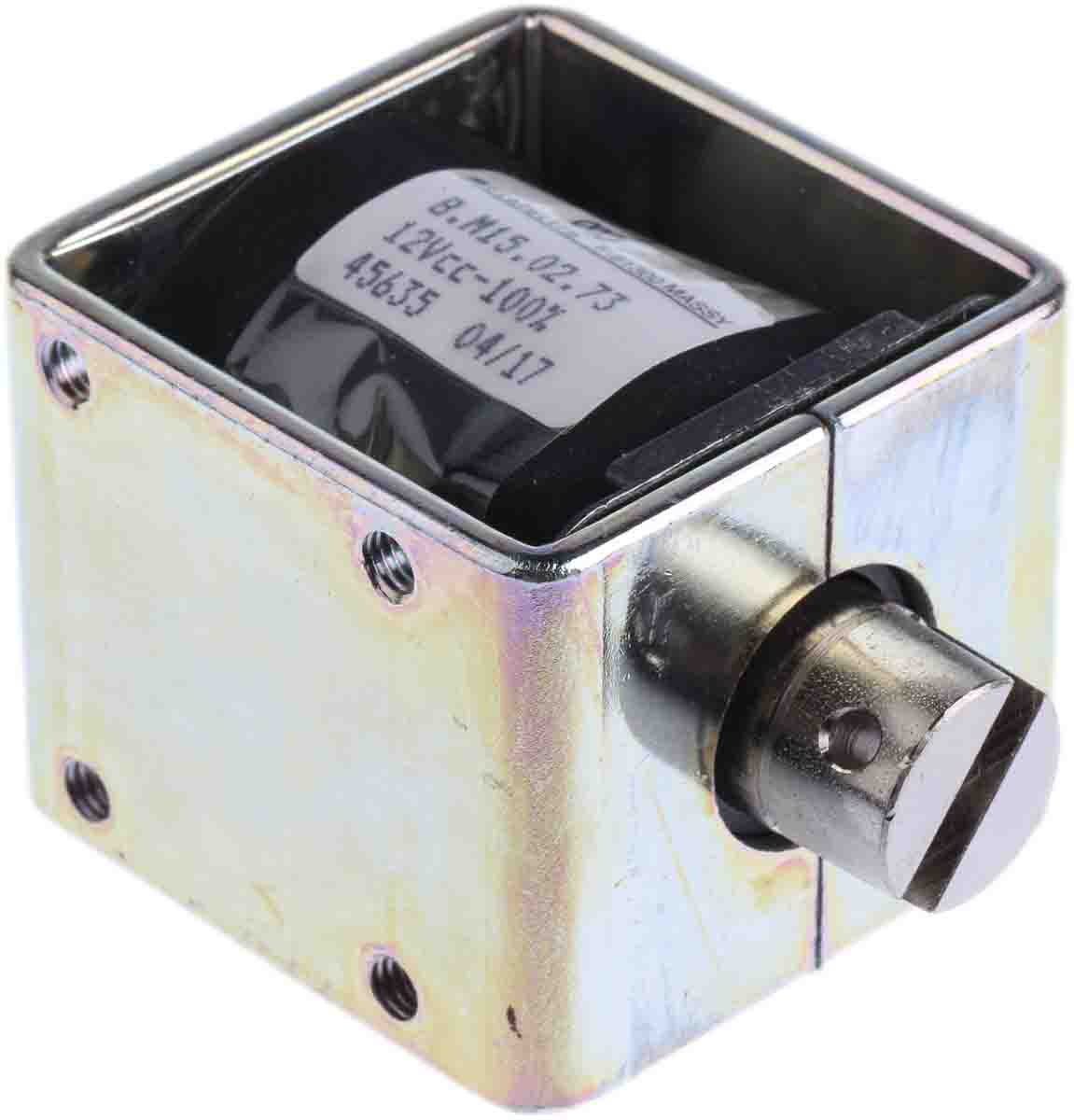

8M15 series single-acting linear electromagnets, standard use Single-acting linear electromagnets for automated systems.Push or pull models available.Coils for permanent duty (duty factor 100 %). For intermittent operation, a superior operating effort may be obtained with a power supply that is above the rated voltage, up to 50 Vdc.

8M17 series single-acting linear electromagnets, standard use Single-acting linear electromagnets for automated systems.Push or pull models available.Coils for permanent duty (duty factor 100 %). For intermittent operation, a superior operating effort may be obtained with a power supply that is above the rated voltage, up to 50 Vdc.

The Mecalectro holding magnet has holding force of 79daN. Power Consumption: 8.5 W

8M11 series single-acting linear electromagnets, standard use Single-acting linear electromagnets for use in automation and small mechanisms.Fitted with a return spring and available as a push or pull model.Coils for permanent duty (duty factor 100 %). For intermittent operation, a superior operating effort may be obtained with a power supply that is above the rated voltage, up to 50Vdc
