Mitsubishi Electric Logic Module The Mitsubishi FX3G series logic module has 24 inputs and 16 relay outputs with a contact rating of 8A. This DIN rail mount logic module has a screw termination method. It has a large memory for the applications that require a large space. This logic module has a supply voltage that ranges between 12VDC and 24VDC. Features and Benefits Detachable terminal blocks for all unitsExchangeable interface & I/O adapter boardsI/O,ADP & special function modules availableOperating temperature ranges between 0°C and 50°CProgram capacity 32000 stepsExtremely fast program executionMaximum flexibility Ladder logic programmingSubcompact Applications Industrial sitesAutomation sites Certifications CE

Mitsubishi Logic Module The Mitsubishi FX3G series logic module has 36 inputs and 24 relay outputs with a contact rating of 8A. This DIN rail mount logic module has a screw termination method. It has a large memory for the applications that require a large space. The logic module has a voltage rating that ranges between 100VAC and 240VAC. Features and Benefits Expandable compact PLCOperating temperature ranges between 0°C and 50°CProgram capacity is 32000 stepsExtremely fast program executionMaximum flexibilityLEDs for indicating input & output statusIntegrated USB interfacePassword access protectionExchangeable interface & I/O adapter board Applications Industrial applicationsAutomation applications

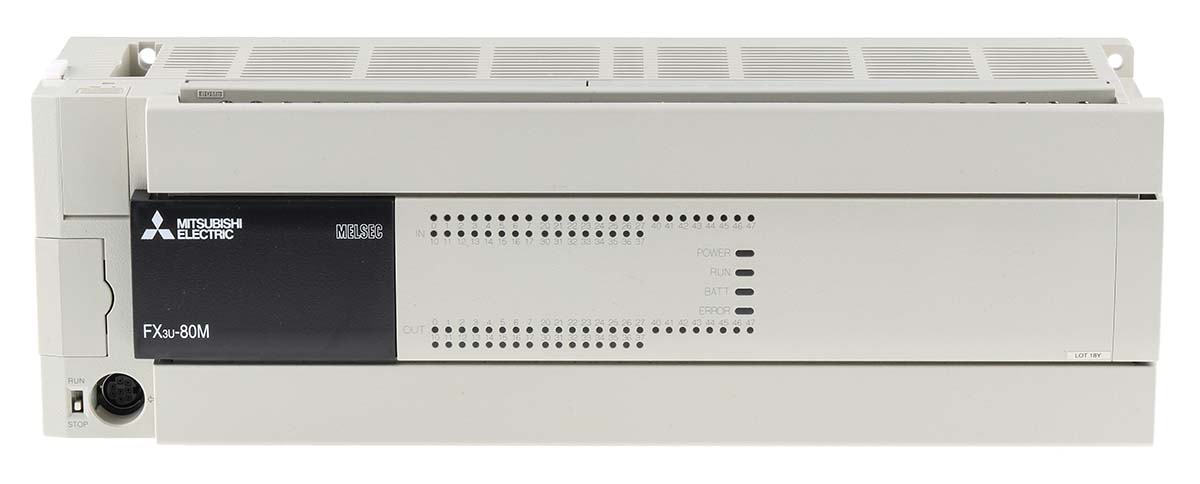

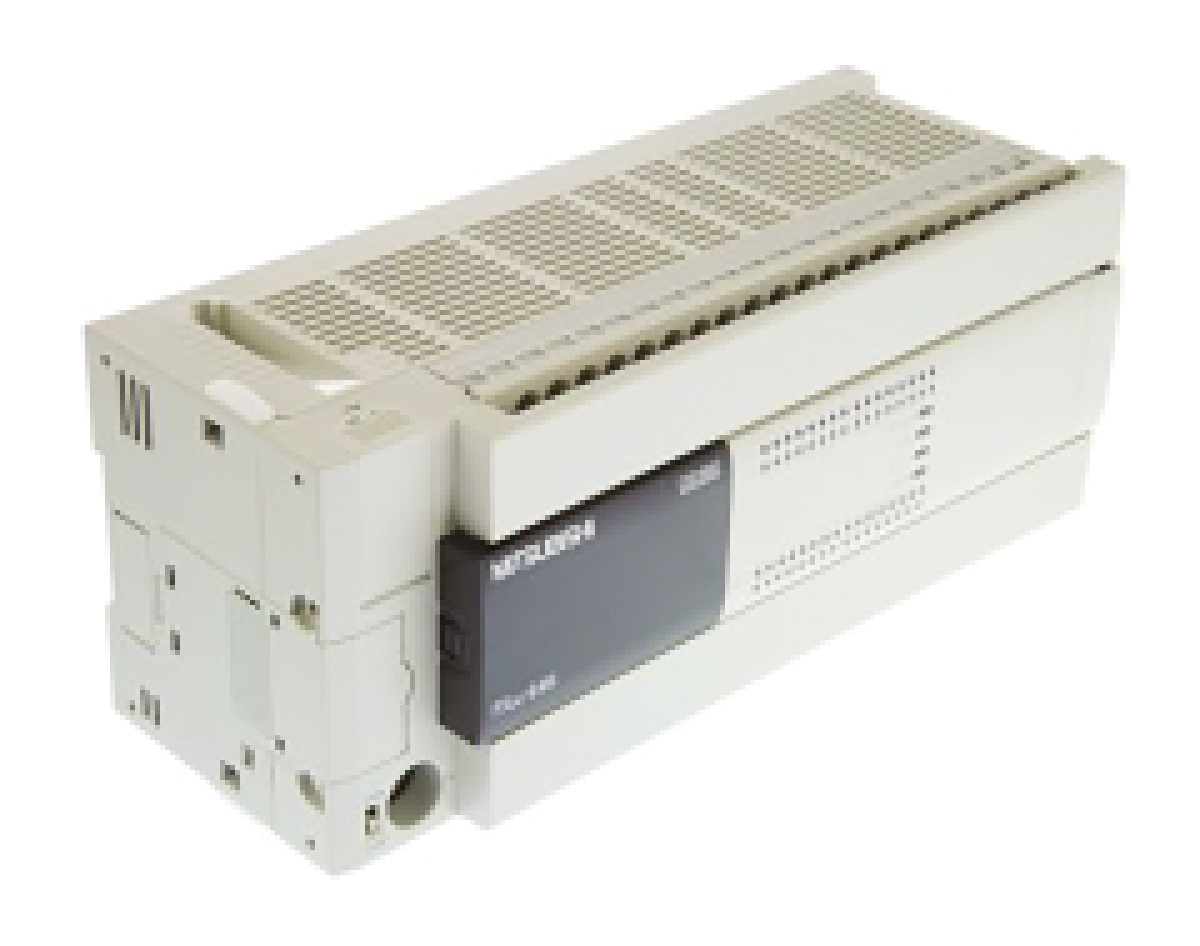

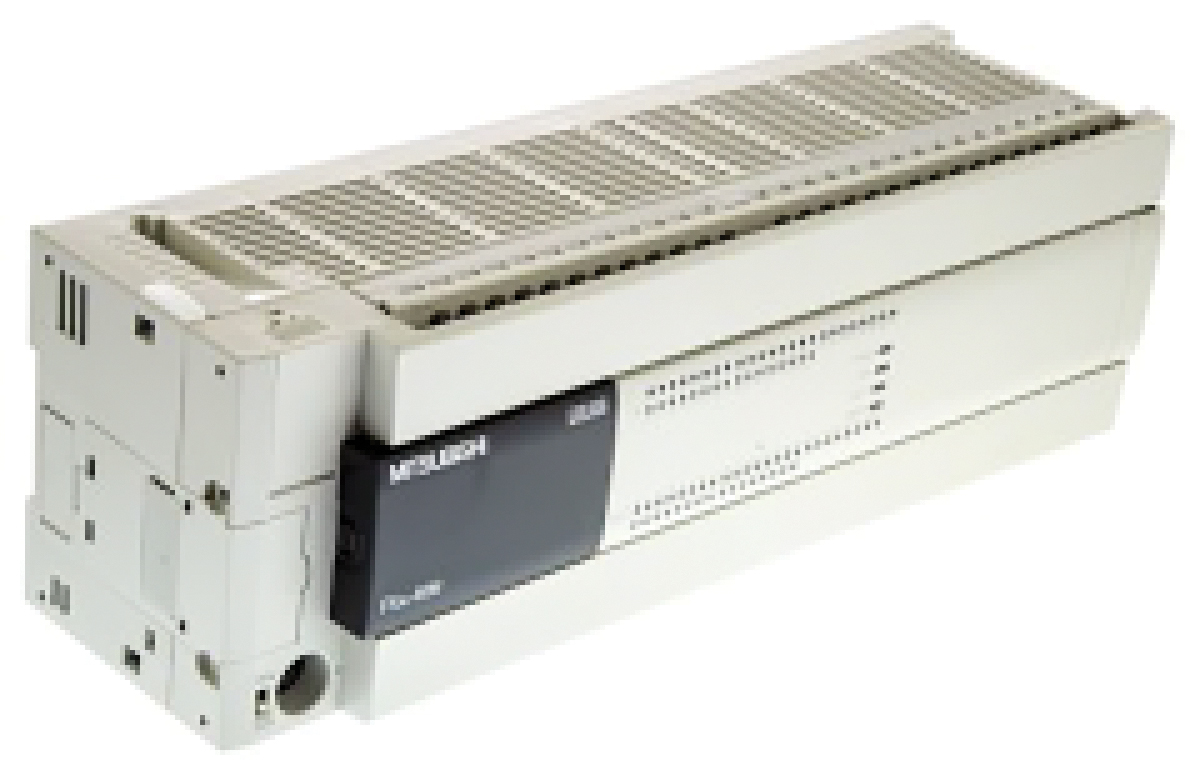

Mitsubishi Electric Logic Module The Mitsubishi FX3U series logic module has 8 inputs and 8 relay outputs with a contact rating of 8A. This DIN rail mount logic module has a screw termination method. It has a large memory for applications that require a large space. This logic module has a supply voltage that ranges between 100VAC and 240VAC. Mitsubishi FX3UFX3U CPU's are compatible with existing FX2N expansion modules as well as the new FX3U ADP expansion modules and may be used as a replacement for FX2N PLC's. Features and Benefits Expandable compact PLCI/O,ADP & special function modules availableExchangeable interface & I/O adapter boardsOperating temperature ranges between 0°C and 50°CHigh processing speed64K steps battery-backed RAM memory249 applied instructions, 7680 auxiliary relays, 512 timers, 251 counters and40768 data registers0.065μs/basic instructionBackward compatibilityPassword access protection Applications Industrial sitesFactory automation Certifications CE

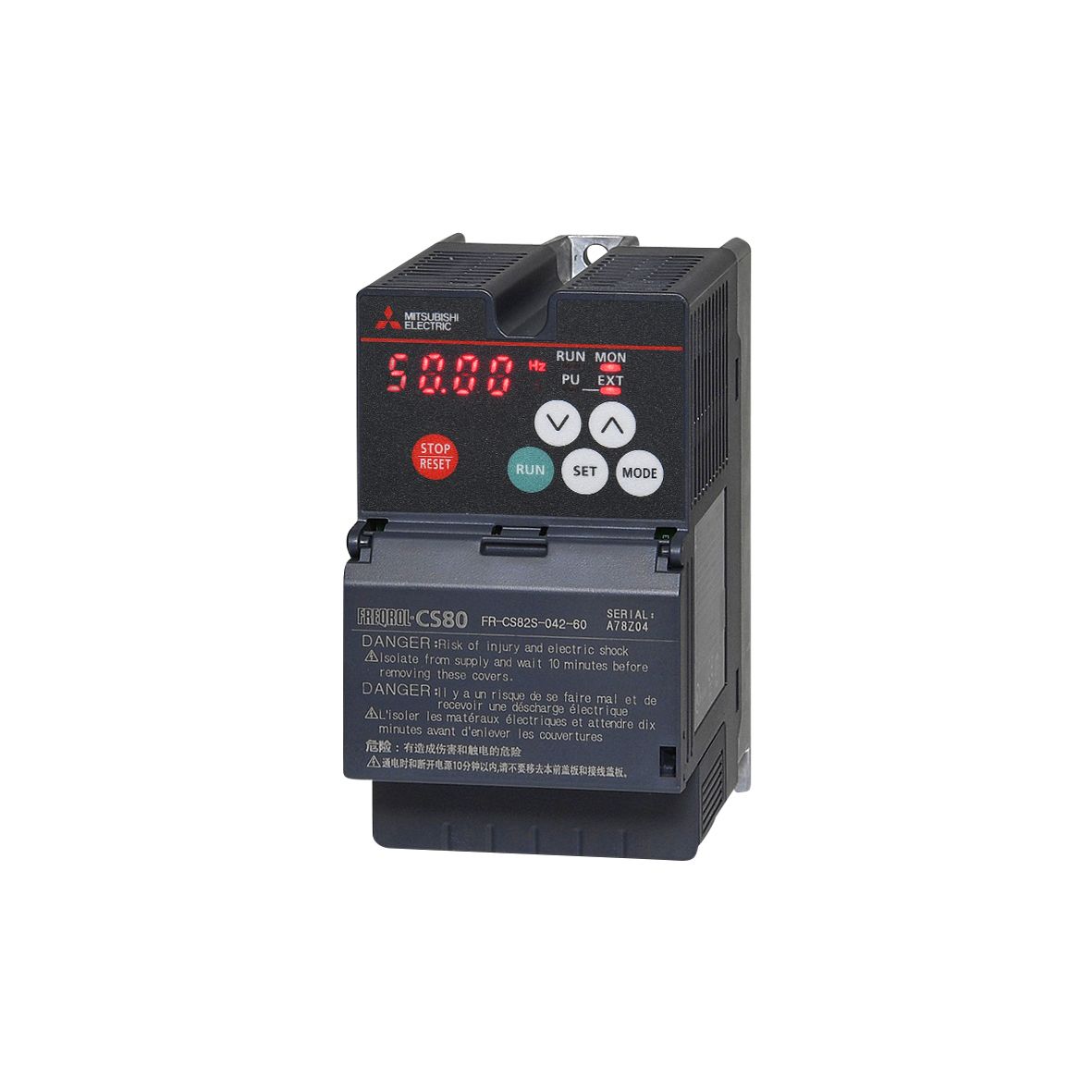

The FR-CS80 is the new cost-optimised frequency inverter from Mitsubishi Electric. With the most compact design in its class, it also sets the highest standards for reliability and quality.The cost-effective frequency inverters of the FR-CS80 class cover a power range from 0.4 to 15kW with a mains voltage of 1-phase 200 to 240V ac.Featuring Flux Vector Control in Mitsubishi Electric's smallest compact package, the FR-CS80 offers a simple and cost-effective solution for your application.It is suitable for almost all industrial applications. Use advanced magnetic flux vector control methodUsed in induction motor

The FR-CS80 is the new cost-optimised frequency inverter from Mitsubishi Electric. With the most compact design in its class, it also sets the highest standards for reliability and quality.The cost-effective frequency inverters of the FR-CS80 class cover a power range from 0.4 to 15kW with a mains voltage of 3-phase 380 V to 480V ac.Featuring Flux Vector Control in Mitsubishi Electric's smallest compact package, the FR-CS80 offers a simple and cost-effective solution for your application.It is suitable for almost all industrial applications. Use advanced magnetic flux vector control methodUsed in induction motor

The Mitsubishi Electric IGBT modules of the 7th generation (called T-series) maximum collector-emitter voltage is 600V and collector current is 450A. Flat base typeCopper-plating tab terminalRoHS Directive compliantTin Plating pin terminal

The Mitsubishi's signal filter is a passive component, which allows specific frequency bands to pass and reject other electrical signals, mainly for noise reduction. RoHS compliantUsed for filtering radio noise from signal

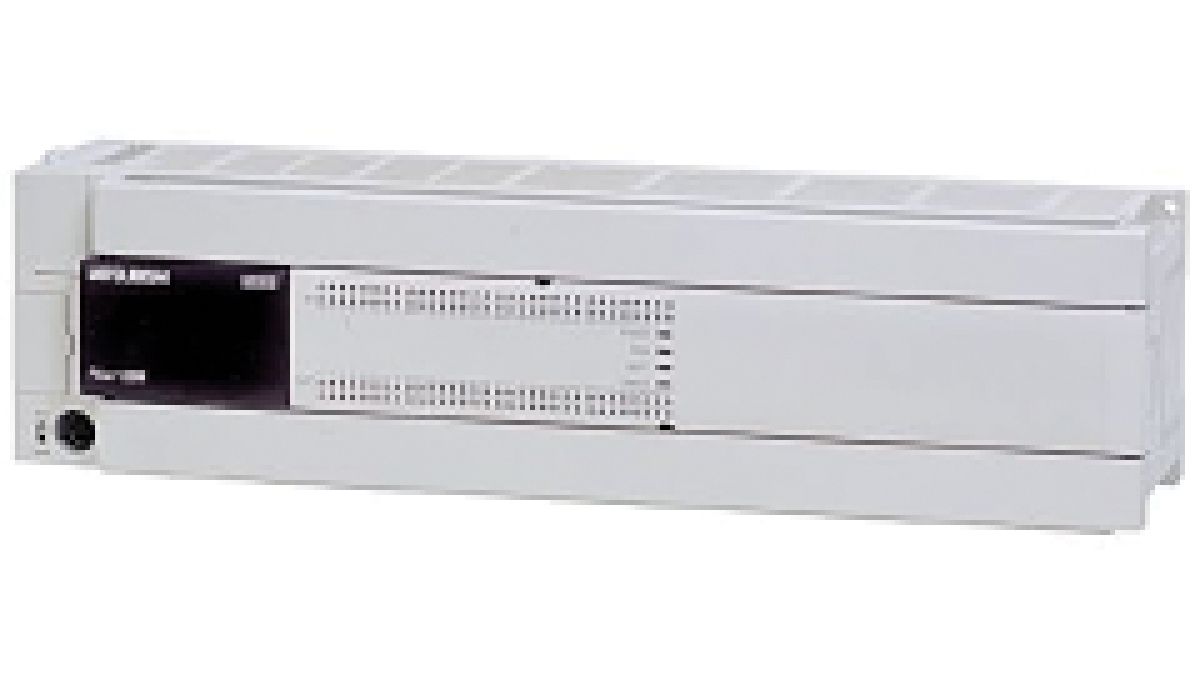

FX3U CPU base units CPU base units with very fast processing timeVersions with up to 256 inputs and outputsExpanded input/output area for networks and complex applicationsFully compatible with the PROFIBUS/DP network and EthernetCan be upgraded by combining with expansion modulesDisplays the input and output states via LEDsIntegrated real-time clock

The Mitsubishi Electric 20A, 600V dual-in-line package intelligent power module has 6 pack of connection with driver. It control supply under -voltage protection and short circuit protection. It used 3 phase DC/AC inverter and N side IGBT open emitterBuilt-in bootstrap diode with current limiting resistor

The Mitsubishi's signal filter is a passive component, which allows specific frequency bands to pass and reject other electrical signals, mainly for noise reduction. RoHS compliantUsed for filtering radio noise from signal

The Mitsubishi's signal filter is a passive component, which allows specific frequency bands to pass and reject other electrical signals, mainly for noise reduction. RoHS compliantUsed for filtering radio noise from signal

The Mitsubishi's signal filter is a passive component, which allows specific frequency bands to pass and reject other electrical signals, mainly for noise reduction. RoHS compliantUsed for filtering radio noise from signal
