Insulated Miniature Auxiliary Clip, Has Built in .25″ x .032″ male quick connect terminal for wire mounting. 3.15″ (80mm) long, 30 Amps. Insulated Miniature Clip Has built in male .25” x.032” quick connect terminal. Has custom wire routing that acts as a strain relief. Can be used with wire jacket OD’s up to .095” (2.41mm) max. Length 3.15” (80 mm) Jaw Opens .63” (16mm) Max. Material: Teeth – 304 Stainless Steel Housing – Nylon Rating: 30 Amps

Economy Miniature Battery Clip, 3.0″ (76mm) long, Jaw Opens .5″ (13mm), 40 Amps. Economy Miniature Battery Clip with insulators. Rugged Steel construction Can be used with wire up to 12 AWG (Crimped or Soldered) Length 3.0” (76 mm), Width .5” (13mm), Height 1.7” (43mm) Jaw Opens .5” (13mm) Max. Material: Clip – Dichromate Plated Steel Spring – Zinc Plated Music Wire Insulators – Molded PVC Rating: 40 Amps

Mueller Crocodile Clip with Grounding Cable The Mueller crocodile clip is a standard grounding/bonding cable with a copper crocodile clip. It is constructed with 10 AWG braided copper rope. The serrated jaws which are used for creating a temporary electrical connection are 27mm apart with BU- 21C solid copper clips on each end. The large versions of these clips, called automotive clips or battery clamps, are made of solid copper. For low electrical resistance, it is used with thick insulated copper cables to make connections between automobile batteries. Features and Benefits • High strength• Rust proof• Durable• Optimum finish• Dimensionally stable Applications • Quick and cost-efficient assembly or modification of experimental circuits• Used with batteries, small light bulbs and other small electrical devices to teach students about electricity• Used as miniature clamps to hold parts together for gluing or soldering• Useful as a heat sink while soldering heat-sensitive devices

Mueller Crocodile Clip The Mueller's crocodile clip BU-27M Clip was designed to thrive in coastal/marine environments. The solid copper, brass and stainless steel construction provides excellent corrosion resistance. Salt water testing has shown that these clips will last up to five times longer than traditional steel or copper clips. It has current rating of 40A. It acts as a connector. The larger versions of these clips, called automotive clips or battery clamps, are made of solid copper. For low electrical resistance, it is used with thick insulated copper cables to make connections between automobile batteries. Features and Benefits • High strength• Rust proof• Durable• Optimum finish• Dimensionally stable Applications • Quick and cost-effective assembly or modification of experimental circuits• Used with batteries, small light bulbs and other small electrical devices to teach students about electricity• Used as miniature clamps to hold parts together for gluing or soldering• Useful as a heat sink while soldering heat-sensitive devices

Mueller Crocodile Clip The Mueller's crocodile clip BU-25X is the same design as the other BU-25 series clips. The only difference is it is entirely made of stainless steel. It is 75A non-insulated heavy duty, 3-sided jaw test clip. It acts as a connector. The current rating is 75A. The large versions of these clips, called automotive clips or battery clamps, are made of solid copper. For low electrical resistance, it is used with thick insulated copper cables to make connections between automobile batteries. Features and Benefits • High strength• Rust proof• Durable• Optimum finish• Dimensionally stable Applications • Quick and cost-effective assembly or modification of experimental circuits• Used with batteries, small light bulbs and other small electrical devices in schools to teach students about electricity• Used as miniature clamps to hold parts together for gluing or soldering• Useful as a heat sink while soldering heat-sensitive devices

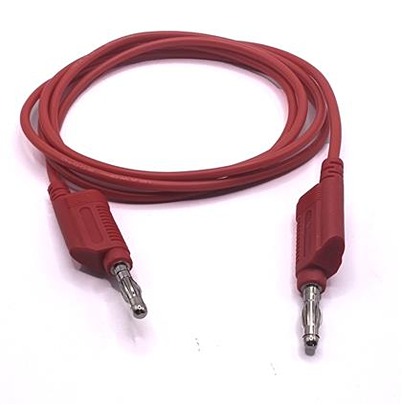

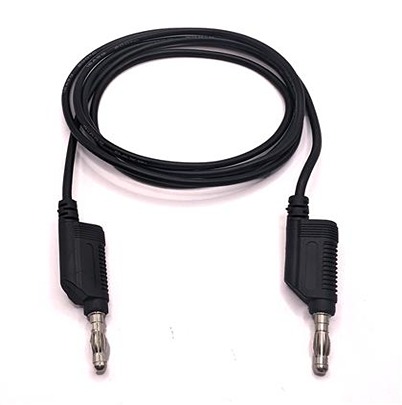

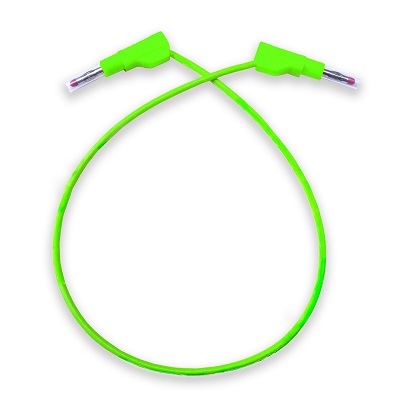

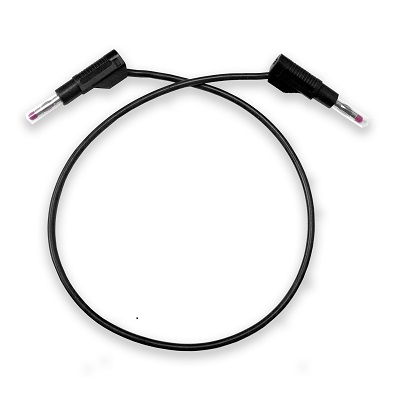

Banana plugs fit all standard 4mm banana jacks., 18 AWG wire, Hands free testing to 1000V, 15 Amps. See Data sheet for available lengths and colours. The BU‐PB‐XX‐* is a test lead with stackable, 4mm banana plugs on each end. The banana plugs mate with any standard 4mm banana jack. Constructed with 18 AWG PVC jacketed, test lead wire and has color matching polypropylene banana over‐molds Banana plugs are nickel plated beryllium copper Standard lengths are: 12” (30cm), 24” (61cm) , 36”(.9m), 48” (1.2m) and 60” (1.5m) Ratings: Hands free testing to 1000V., 15 Amps.

The Mueller Electric Cable Assembly features a male to male configuration with SMA to SMA connectors. The first connector is a gold plated SMA female bulkhead, while the second is a gold plated SMA male plug. Designed to withstand operating temperatures from 65°C to 150°C, this assembly is ideal for high performance applications requiring reliable connectivity. ShieldedRoHS 3 compliant

The Mueller Electric Test Lead Wire features 14 AWG, 420 strands of 0.08 mm tinned copper wire, ensuring excellent conductivity and flexibility. It is protected by a highly flexible silicone jacket with a diameter of 4.7 mm. The wire is rated for 1100V and has a dielectric strength of 3.2 kV per minute, along with a spark test rating of 10 kV, making it suitable for demanding applications requiring durability and reliability. Extra heavy dutyTemperature rating is FT2UL recognized

Economy Miniature Battery Clip, 3.0″ (76mm) long, Jaw Opens .5″ (13mm), 40 Amps. Economy Miniature Battery Clip with insulators. Rugged Steel construction Can be used with wire up to 12 AWG (Crimped or Soldered) Length 3.0” (76 mm), Width .5” (13mm), Height 1.7” (43mm) Jaw Opens .5” (13mm) Max. Material: Clip – Dichromate Plated Steel Spring – Zinc Plated Music Wire Insulators – Molded PVC Rating: 40 Amps

Micro Plier-Type Battery Clip Micro plier-type battery clips with screw or crimp connection. These battery clips are made from nickel-plated steel (stock numbers 714-8253 and 714-8257) or solid copper (stock numbers 714-8266 and 714-8269). The length of these plier type battery clips is 58mm with a 19mm maximum jaw opening.

Mueller Patch Cord The Mueller patch cord connector cable It has 300in length and PTFE insulation material, improving the strength of the test lead. It has male BNC on each end. Features and Benefits • RG58, 25ft • The jacket is non-contaminating PVC• centre conductor is 20AWG (19x33) tinned copper• The shield is tinned copper braid (95% coverage) • Hands-free testing to 500VRM• Clips are solid copper BU‐21CPN• Operating temperature range 40°C to 80°C• 50ohms impedance• Capacitance per foot: 30.8 pf• Power Loss/100ft at 1 MHz: 40dB Applications • Headphone, microphone• Optical cable• Computer device• Oscilloscopes, voltmeters and network analysers Certifications • CE marked

Mueller Crocodile Clip The Mueller crocodile clip is an innovative, patent pending version of Mueller's popular BU‐21A clip. The handle extensions reduce the force needed to open the clip by over 75%, while still keeping the BU‐21 grip strength. The reduced force allows people to use this clip all day long without fatigue. The material used is zinc plated steel. The current rating is 50A. The BU‐21CEZ clip does not have an insulator available. It acts like a connector. The large versions of these clips, called automotive clips or battery clamps, are made of solid copper. For low electrical resistance, it is used with thick insulated copper cables to make connections between automobile batteries. Features and Benefits • High strength• Rust proof• Durable• Optimum finish• Dimensionally stable Applications • Quick and cost-effective assembly or modification of experimental circuits• Used with batteries, small light bulbs and other small electrical devices in schools to teach students about electricity• Used as miniature clamps to hold parts together for gluing or soldering• Useful as a heat sink while soldering heat-sensitive devices
